Connect a qualified NEC digital Multiline Terminal to the LINE OUT jack.
Line Out

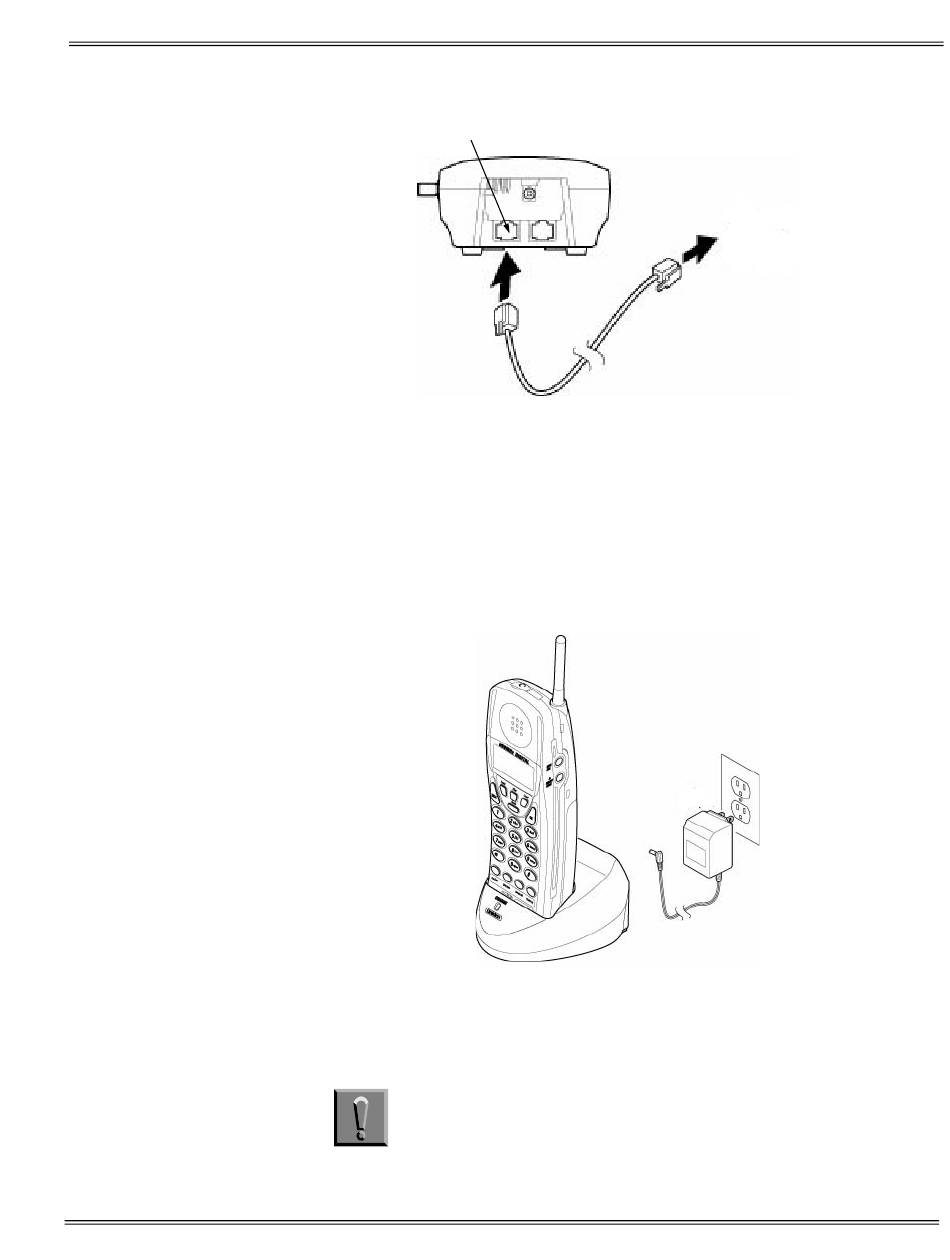

Figure 13-12 Connecting the Base Unit to the Multiline Terminal
Applying Power to the Charging Unit
The unique design of the telephone allows the user to place the handset in the
charging unit with or without the belt clip attached. The battery pack is
recharged automatically in the handset unit.
Figure 13-13 Applying Power to the Charging Unit
Use only the supplied AC adapter for the charging unit.
Document Revision 3
term
D
Series E
or Series i
Multiline Terminal
AC
Adapter
