Testing the system
In order to test the system, we are going to create a small user program. We are using the programming
language FBD. The program should read an input of the decentralized station (DC505-FBP) and output

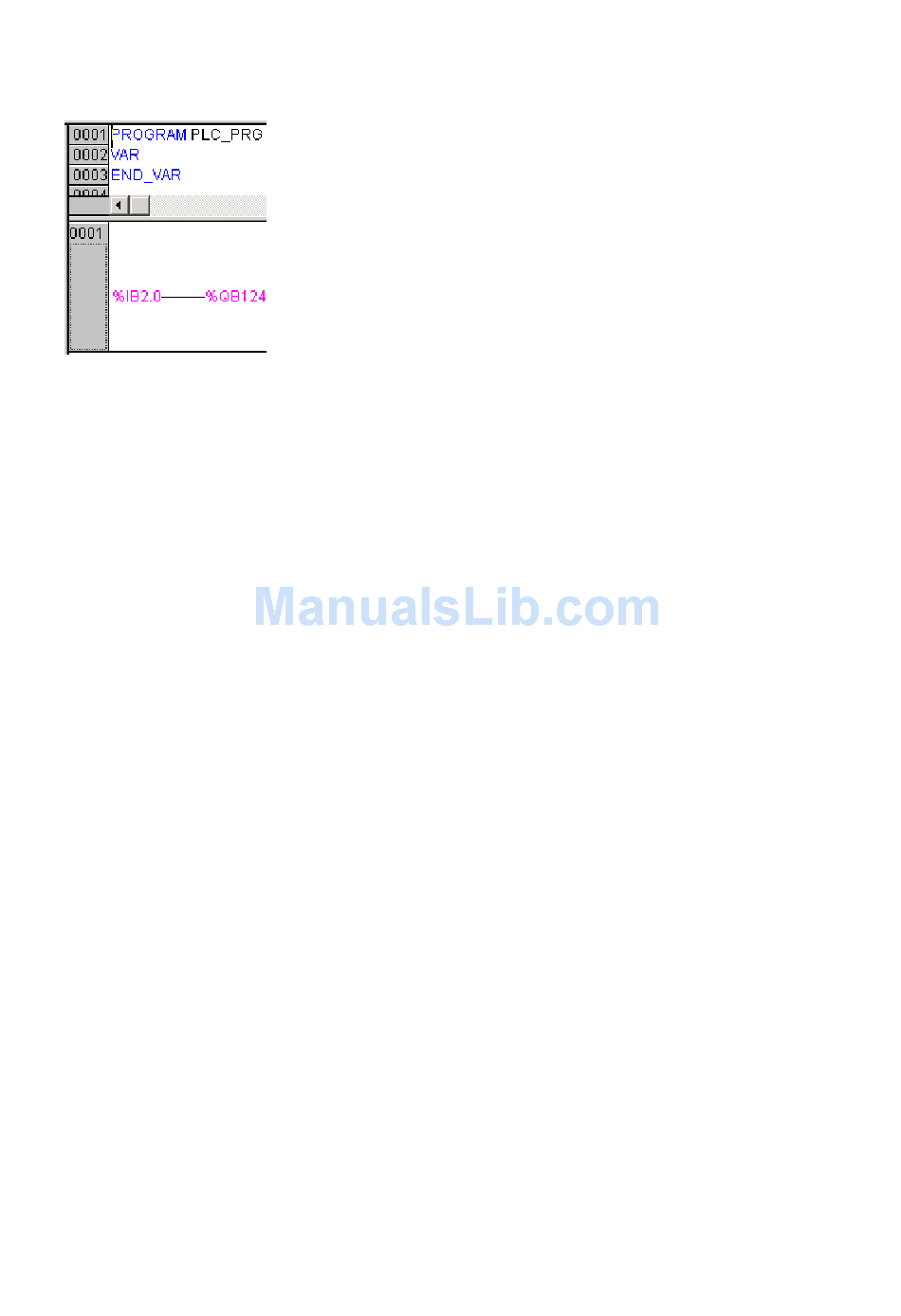

the value at the CPU. The program looks as follows:
The first byte on the DC505-FBP is read at address %IB2.0 and output at the CPU via the address
%QB124 (outputs A62,00 to A62,07).
