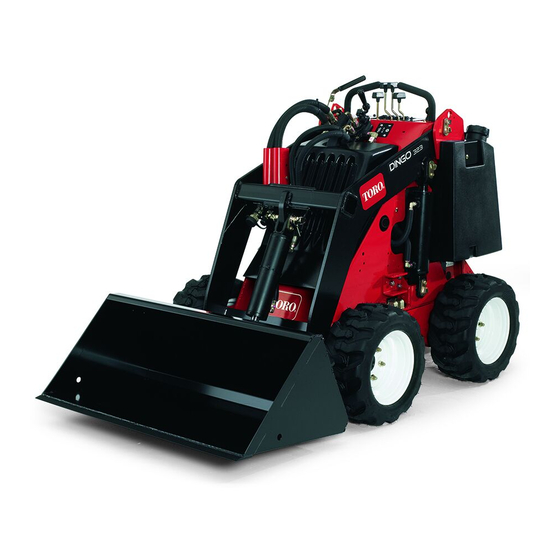

Toro 22318 Operator's Manual

Compact tool carrier
Hide thumbs Also See for 22318:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Service Manual
Register at www.Toro.com.
Original Instructions (EN)
323 Compact Tool Carrier
Model No. 22318—Serial No. 314000001 and Up
Form No. 3402-952 Rev A
*3402-952* A

Advertisement

Table of Contents
loading

Related Manuals for Toro 22318

Summary of Contents for Toro 22318

  • Page 1 Form No. 3402-952 Rev A 323 Compact Tool Carrier Model No. 22318—Serial No. 314000001 and Up *3402-952* A Register at www.Toro.com. Original Instructions (EN)
  • Page 2 California to cause cancer, birth defects, or other reproductive harm. You may contact Toro directly at www.Toro.com for product and accessory information, help finding a dealer, or to register your product. This product complies with all relevant European directives,...

  • Page 3: Table Of Contents

    This manual uses 2 words to highlight information. Checking the Hydraulic Lines........30 Important calls attention to special mechanical information Storage ................31 and Note emphasizes general information worthy of special Troubleshooting ............32 attention. Schematics ..............33 Contents Safety ................4 Safe Operating Practices........... 4 Sound Pressure Level..........

  • Page 4: Safety

    Safety – Never refuel or drain the machine indoors. • Check that the operator's presence controls, safety Improper use or maintenance by the operator or owner switches, and shields are attached and functioning can result in injury. To reduce the potential for injury, properly.
  • Page 5 Tall grass can hide obstacles. • Never jerk the controls; use a steady motion. • Use only Toro-approved attachments. Attachments can • Watch for traffic when operating near or crossing change the stability and the operating characteristics of roadways.

  • Page 6: Sound Pressure Level

    Stop and inspect the equipment if you strike an object. Make any necessary repairs before restarting. • Use only genuine Toro replacement parts to ensure that original standards are maintained. • Battery acid is poisonous and can cause burns. Avoid contact with skin, eyes, and clothing.

  • Page 7: Stability Data

    Stability Data The following tables list the maximum slope recommended for the traction unit in the positions listed in the tables. Slopes over the listed degree may cause the traction unit to become unstable. The data in the tables assume that the loader arms are fully lowered;...

  • Page 8: Slope Indicator

    Slope Indicator G011841 Figure 3 This page may be copied for personal use. 1. To determine the maximum slope you can safely operate the machine on, refer to the Stability Data section. Use the slope indicator to determine the degree of slope of hills before operating. Do not operate this machine on a slope greater than that specified in the Stability Data section.

  • Page 9: Safety And Instructional Decals

    Safety and Instructional Decals Safety decals and instructions are easily visible to the operator and are located near any area of potential danger. Replace any decal that is damaged or lost. 104–6108 93-9084 1. Lift point 108-9732 93–6686 1. Hydraulic oil 2.
  • Page 10 Battery Symbols Some or all of these symbols are on your battery 94-2551 1. Explosion hazard 6. Keep bystanders a safe 1. On 3. Off distance from the battery. 2. Choke 2. No fire, open flame, or 7. Wear eye protection; smoking.

  • Page 11: Setup

    Setup WARNING Battery terminals or metal tools could short against Installing the Valve Lever metal components, causing sparks. Sparks can cause the battery gasses to explode, resulting in 1. Remove and discard the nut securing the bolt and lock personal injury. washer to the speed selector lever.

  • Page 12: Product Overview

    Product Overview G005287 Figure 6 1. Mount plate 6. Fuel tank 11. Counterweight 16. Lift points 2. Tilt cylinder 7. Lift cylinder 12. Engine 17. Handles 3. Auxiliary hydraulic couplers 8. Tow valve 13. Air cleaner 4. Loader arms 9. Wheel 14.

  • Page 13: Specifications

    If you its capabilities. Contact your Authorized Service Dealer or operate the traction unit with the speed selector Distributor or go to www.Toro.com for a list of all approved lever in an intermediate position, the traction unit attachments and accessories.

  • Page 14: Operation

    Operation Note: Determine the left and right sides of the machine DANGER from the normal operating position. In certain conditions, gasoline is extremely Important: Before operating, check the fuel and oil flammable and highly explosive. A fire or explosion level, remove debris from the traction unit, and check the from gasoline can burn you and others and can tire pressure.

  • Page 15: Checking The Engine-Oil Level

    Filling the Fuel Tank Removing Debris from the Traction Unit 1. Park the traction unit on a level surface, lower the loader arms, and stop the engine. Service Interval: Before each use or daily 2. Remove the key and allow the engine to cool. Important: Operating the engine with a blocked grass 3.

  • Page 16: Checking The Tire Pressure

    4. Move the throttle lever midway between slow (turtle) and fast (rabbit) positions. 5. Turn the ignition key to the start position. When the engines starts, release the key. Important: Do not engage the starter for more than 10 seconds at a time. If the engine fails to start, allow a 30 second cool-down period between Figure 9 attempts.

  • Page 17: Stopping The Traction Unit

    • To turn, move the lever located on the side you want to 6. When you have repaired the traction unit, close the turn toward the neutral position while keeping the other tow valves and tighten the jam nuts. lever engaged. Important: Do not over tighten the tow valves.

  • Page 18: Using Attachments

    2. Cylinder locks 4. Clevis pin Using Attachments Installing an Attachment Important: Use only Toro-approved attachments. Attachments can change the stability and the operating characteristics of the traction unit. The warranty of the traction unit may be voided if used with unapproved attachments.

  • Page 19: Securing The Traction Unit For Transport

    Important: Connect the attachment hoses 4. Remove the protective covers from the hydraulic couplers on the traction unit. together to prevent hydraulic system contamination during storage. 5. Ensure that all foreign matter is cleaned from the hydraulic connectors. 6. Install the protective covers onto the hydraulic couplers on the traction unit.

  • Page 20: Maintenance

    Maintenance Note: Determine the left and right sides of the machine from the normal operating position. Recommended Maintenance Schedule(s) Maintenance Service Maintenance Procedure Interval • Replace the hydraulic filter. After the first 8 hours • Torque the wheel lug nuts to 50 ft-lb (68 N-m). •...

  • Page 21: Premaintenance Procedures

    Premaintenance Lubrication Procedures Greasing the Traction Unit Important: If you must tilting the machine more than Service Interval: Before each use or daily (Grease 25 degrees, clamp off the vent hose on the top of the fuel immediately after every washing) tank to prevent fuel from fouling the carbon canister.

  • Page 22: Engine Maintenance

    Engine Maintenance 4. Pump grease into the fittings until grease begins to ooze out of the bearings (approximately 3 pumps). 5. Wipe up any excess grease. Servicing the Air Cleaner Service Interval: Every 200 hours—Replace the primary filter. (Service more frequently if conditions are extremely dusty or sandy.) Yearly—Replace the safety (secondary) air filter.

  • Page 23: Servicing The Carbon Canister

    Important: If a small tube section comes out of into the engine. Replace the elements if they are dirty or damaged. the larger hose on the barb of the filter, remove it from the filter and insert it back into the hose. Installing the Filters 4.

  • Page 24: Servicing The Spark Plugs

    1. Start the engine and let it run for five minutes. This warms the oil so it drains better. 2. Park the traction unit so that the drain side is slightly lower than the opposite side to ensure that the oil drains completely.

  • Page 25: Fuel System Maintenance

    Fuel System Maintenance Changing the Fuel Filter Service Interval: Yearly Important: Never install a dirty filter. 1. Lower the loader arms, stop the engine, and remove the key. Figure 25 2. Shut off the fuel valve on the bottom of each fuel tank (Figure 28).

  • Page 26: Electrical System Maintenance

    2. Fuel valve, closed When the battery no longer holds a charge, replace it. 4. Loosen the hose clamp at the fuel filter and slide it up Important: Use only a genuine Toro replacement the fuel line away from the filter. battery.

  • Page 27: Servicing The Battery

    Servicing the Battery WARNING Battery terminals or metal tools could short Service Interval: Every 100 hours—Check the battery against metal components, causing sparks. electrolyte level (replacement battery only). Sparks can cause the battery gasses to explode, resulting in personal injury. Every 100 hours—Check the battery cable connections.
  • Page 28 DANGER Battery electrolyte contains sulfuric acid which is a deadly poison and causes severe burns. • Do not drink electrolyte and avoid contact with skin, eyes or clothing. Wear safety glasses to shield your eyes and rubber gloves to protect your hands.

  • Page 29: Hydraulic System Maintenance

    Hydraulic Fluid Specification: Use only one of the following fluids in the hydraulic system: • Toro Premium Transmission/Hydraulic Tractor Fluid (refer to your Authorized Toro Dealer for more information) • Toro Premium All Season Hydraulic Fluid (refer to your Authorized Toro Dealer for more information) Figure 32 •...

  • Page 30: Checking The Hydraulic Lines

    2/3 oz (20 ml) bottles. hoses. One bottle is sufficient for 4-6 gal (15-22 l) of hydraulic oil. Order part no. 44-2500 from your Authorized Toro WARNING Dealer. Hydraulic fluid escaping under pressure can 1.

  • Page 31: Important Calls Attention To Special Mechanical Information Storage

    Storage Important: Do not store stabilizer/conditioned gasoline over 90 days. 1. Lower the loader arms, stop the engine, and remove 13. Check and tighten all bolts, nuts, and screws. Repair or the key. replace any part that is damaged or defective. 2.

  • Page 32: And Note Emphasizes General Information Worthy Of Special Troubleshooting

    Troubleshooting Problem Possible Cause Corrective Action The starter does not crank 1. The auxiliary hydraulics lever is not in 1. Move the lever to the neutral position. the neutral position. 2. The battery is discharged. 2. Charge the battery or replace it. 3.

  • Page 33: Schematics

    Schematics Electrical Schematic (Rev. A)
  • Page 34 G025017 Hydraulic Schematic (Rev. B)
  • Page 35 The Way Toro Uses Information Toro may use your personal information to process warranty claims, to contact you in the event of a product recall and for any other purpose which we tell you about. Toro may share your information with Toro's affiliates, dealers or other business partners in connection with any of these activities. We will not sell your personal information to any other company.
  • Page 36 Toro importer. If all other remedies fail, you may contact us at Toro Warranty Company. Australian Consumer Law: Australian customers will find details relating to the Australian Consumer Law either inside the box or at your local Toro Dealer.
