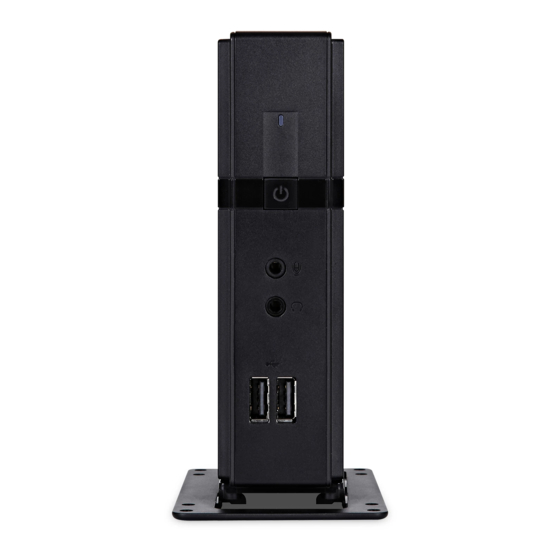

Viewsonic sc-t35 thin client
Hide thumbs Also See for SC-T35:
Table of Contents

Advertisement

Quick Links

Download this manual
SC-T35

Thin Client

User Guide
Model No. VS15164

Advertisement

Table of Contents
loading

Related Manuals for ViewSonic SC-T35

Summary of Contents for ViewSonic SC-T35

  • Page 1: Thin Client

    SC-T35 Thin Client User Guide Model No. VS15164...
  • Page 2 Thank you for choosing ViewSonic With over 25 years as a world leading provider of visual solutions, ViewSonic is dedicated to exceeding the world’s expectations for technological evolution, innovation, and simplicity. At ViewSonic, we believe that our products have the potential to make a positive impact in the world, and we are confident that the ViewSonic product you have chosen will serve you well.

  • Page 3: Compliance Information

    Compliance Information FCC Statement This device complies with part 15 of FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

  • Page 4: Important Safety Instructions

    Important Safety Instructions Read these instructions completely before using the equipment. Keep these instructions in a safe place. Heed all warnings. Follow all instructions. Do not use this equipment near water. Warning: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

  • Page 5: Declaration Of Rohs2 Compliance

    Declaration of RoHS2 Compliance This product has been designed and manufactured in compliance with Directive 2011/65/ EU of the European Parliament and the Council on restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS2 Directive) and is deemed to comply with the maximum concentration values issued by the European Technical Adaptation Committee (TAC) as shown below: Proposed Maximum...

  • Page 6: Copyright Information

    Other product names mentioned herein are used for identification purposes only and may be trademarks and/or registered trademarks of their respective companies. Disclaimer: ViewSonic Corporation shall not be liable for technical or editorial errors or omissions contained herein; nor for incidental or consequential damages resulting from furnishing this material, or the performance or use of this product.

  • Page 7: Product Registration

    _______________________________ Product disposal at end of product life ViewSonic respects the environment and is committed to working and living green. Thank you for being part of Smarter, Greener Computing. Please visit ViewSonic website to learn more. USA & Canada: http://www.viewsonic.com/company/green/recycle-program/ Europe: http://www.viewsoniceurope.com/uk/support/recycling-information/...

  • Page 8: About This User's Manual

    About This User’s Manual This manual provides detailed instructions on how to set up, use, manage, and maintain ViewSonic SC-T35 thin clients. Manual Structure and Subjects Chapter Subject Provides an overview of ViewSonic SC-T35 thin clients. Provides detailed instructions on how to set up ViewSonic SC-T35 thin clients.

  • Page 9: Style Conventions

    Style Conventions The following styles are used throughout this manual while referring to operational items on input devices, hardware panels, or application interfaces. Item Style Example keys on the keyboard bold Ctrl + F2, Alt + F9, Alt + Tab application windows or first letter Confirm Dialog window, RDP Connection list, ICA Connection list,...

  • Page 10: Table Of Contents

    4.2.2 Available Settings at a Glance 4.2.3 Configuring Time Zone and Time Server 4.2.4 Configuring the Access Privileges and Passwords of ViewSonic Client Setup 37 4.2.5 Configuring Shadow Settings for Remote Assistance 4.2.6 Updating Firmware from the Management Computer 4.2.7 Enabling or Disabling the Appliance Mode 4.2.8...
  • Page 11 Configuring Advanced View Connection Settings 4.6.12 Configuring SSH Connection Settings 4.6.13 Launching SSH and Telnet Sessions Appendices Resetting Your SC-T35 to the Factory Default 179 Updating Firmware for Your SC-T35 with a USB Flash Drive 180 Specifications Other Information Customer Support Limited Warranty...

  • Page 12: Overview

    Overview This chapter provides an overview of your SC-T35 thin clients. 1.1 Introduction Desktop virtualization and simple endpoint devices 1.2 Features Key features of ViewSonic SC-T35 1.3 Package Contents Check your package contents 1.4 Exterior Views Overview of thin client outside elements 1.5 Panel Components...

  • Page 13: Introduction

    Citrix® XenApp™, XenDesktop®, and VDI-in-a-Box™ Ź VMware® View™ • Support for high-definition technologies: Ź Microsoft® RemoteFX® Ź Citrix® HDX™ Ź VMware® View™ PCoIP® • Simple click-access to various applications/desktops • Built-in ViewSonic Client Setup as the local client management console...

  • Page 14: Package Contents

    1.3 Package Contents Please check your package contents. Ensure that all of the items are present in your package. If any items are missing or damaged, please contact your dealer immediately. ViewSonic SC-T35 ViewSonic SC-T35 AC adapter DVI-I to VGA adapter...

  • Page 15: Panel Components

    USB port Connects to a USB device. NOTE • Six options are available on ViewSonic Thin Client Menu (see the table below). For more information, please refer to “Appendices” on page 178. Menu Option Description Normal Mode Boots up your SC-T35 as the normal startup procedure.
  • Page 16 Connects to an AC adapter. NOTE • Your SC-T35 comes with a DVI-I to VGA adapter. If only the VGA monitor is available, use the supplied DVI-I to VGA adapter to connect your VGA monitor to SC-T35’s DVI-I port. For detailed instructions, please see section ”2.3 Getting Connected” on...

  • Page 17: Led Indicators

    Overview LED Indicators 1.6 LED Indicators Your SC-T35 is equipped with a Power LED to indicate the state of power. The meanings of LED signals are described as follows: Signal Meaning The client is off. Power LED Blue The client is on.

  • Page 18: Setting Up Your Sc-T35

    2.1 Positioning Your SC-T35 To mount your SC-T35 Step 1: Remove the Stand from Your SC-T35 Step 2: Understand Your Stand / VESA Mount Kit for SC-T35 Step 3: Store Screws inside the Bracket Step 4: Remove Screws from the Bracket Step 5: Mount Your SC-T35 2.2 Assembling the AC Adapter...

  • Page 19: Positioning Your Sc-T35

    • Put it (with its stand) on a desk or a desired place uprightly. • Mount it on the back of a monitor using a VESA mount kit. To mount your SC-T35 on the back of a monitor, please follow the steps below: Step 1:...
  • Page 20 Step 2: Understand Your Stand / VESA Mount Kit for SC-T35 The stand for your SC-T35 is dual-purpose: it can be used as a stand or as a VESA mount kit. All screws of different types supplied with the stand / VESA mount kit can be stored away inside the main bracket when not needed.
  • Page 21 NOTE • Please refer to the figure and descriptions in “Step 2: Understand Your Stand / VESA Mount Kit for SC-T35” for the correct storage space of each screw. Step 4: Remove Screws from the Bracket To remove screws stored inside the bracket, please do the following: 1.

  • Page 22: Assembling The Ac Adapter

    VESA mount holes on the bracket to align with two mount holes on your SC-T35 such that the bracket projects out and is closer to the rear panel than the front one as shown below, and then secure the bracket to your SC-T35 with two (2) screws of type 4.

  • Page 23: Getting Connected

    2. Connect a keyboard and mouse to your SC-T35. 3. Connect and turn on the monitor(s). NOTE • For your SC-T35, if only the VGA monitor is available, use the supplied DVI-I to VGA adapter to connect your SC-T35 and monitor. DVI-I port...

  • Page 24: Getting Started

    Getting Started This chapter provides the basics of how to use your SC-T35. 3.1 Learning the Basics Topic 1: Powering On Your SC-T35 Topic 2: Configuring the Time Zone Topic 3: Returning to the Quick Connection Screen Topic 4: Accessing Desktops or Applications...

  • Page 25: Getting Started

    Getting Started Learning the Basics 3.1 Learning the Basics The following topics will guide you through the basics of using your SC-T35: Topic 1: Powering On Your SC-T35 Topic 2: Configuring the Time Zone Topic 3: Returning to the Quick Connection Screen (if needed)
  • Page 26 Otherwise, the client may fail to set an appropriate resolution for the monitor(s). 2. Press the Power button to turn on the client. Wait a moment for ViewSonic Quick Connection screen to appear. Topic 2 to set the time zone for the first time use.

  • Page 27: Topic 2: Configuring The Time Zone

    Getting Started Learning the Basics Topic 2: Configuring the Time Zone To set the time zone for your SC-T35, please do the following: 1. Click the Setup icon to launch ViewSonic Client Setup. ViewSonic Client Setup Category Tabs Click a tab to select a setting category.

  • Page 28: Topic 3: Returning To The Quick Connection Screen

    Getting Started Learning the Basics Topic 3: Returning to the Quick Connection Screen To return to ViewSonic Quick Connection screen when on local Linux desktop, please double click ViewSonic Quick Connection on that desktop. Local Linux Desktop ViewSonic Quick Connection...

  • Page 29: Topic 4: Accessing Desktops Or Applications

    Getting Started Learning the Basics Topic 4: Accessing Desktops or Applications Through ViewSonic Quick Connection screen, you can access three types of desktop virtualization services: Remote Desktop, Citrix, and VMware View. ViewSonic Quick Connection Screen Icon Description Page Remote Desktop Click to access Microsoft Remote Desktop services.
  • Page 30 3. Click the drop-down menu to select the desired system, and then click OK. 4. The IP address of the selected system will appear in the Computer field. • To return to ViewSonic Quick Connection screen (see the screen in Topic 4), press Esc.
  • Page 31 1. Click on ViewSonic Quick Connection screen (see the screen in Topic 2. On the appeared ViewSonic Citrix Connection screen, enter the IP address / URL / FQDN of the server, and then click Log On. ViewSonic Citrix Connection Screen NOTE • For newer versions of XenDesktop and XenApp, you may need to further specify...
  • Page 32 The following are some examples of Citrix Logon screens. XenDesktop 5.6 Platinum: Citrix Logon Screen Type the required user name, password, and then click Log On to access virtual desktops. NOTE • To return to ViewSonic Quick Connection screen, press Esc.
  • Page 33 Log On to access virtual applications. NOTE • To return to ViewSonic Quick Connection screen, press Esc. • If your XenApp doesn’t belong to any domain, type the computer name of the server in the Domain field. XenApp 6.5 Platinum:...
  • Page 34 Type the required user name, password, and then click Log On to access virtual desktops. NOTE • To return to ViewSonic Quick Connection screen, press Esc. XenApp and XenDesktop 7.5 Platinum: Citrix Logon Screen Type the required user name, password, and then click...
  • Page 35 Getting Started Learning the Basics Accessing Virtual Desktops and Applications You will enter the Desktop Selection or Application Selection screen after logon. On the screen you can click to select the desired desktop or application(s). NOTE • You might enter the virtual desktop directly if only one type of virtual desktop is assigned to the provided credentials.
  • Page 36 Getting Started Learning the Basics Virtual Desktop Example: Windows 7 Ultimate XenApp 6.5 Platinum: 1. The Application Selection screen appears after logon. Application Selection Screen 2. Click to select the desired application(s). 3. The selected application(s) will be displayed on the screen.
  • Page 37 — Click to launch another virtual desktop if any or to launch other applications. — Click Log Off on the top of the screen to return to the Citrix Logon screen. — Press Esc to return to ViewSonic Quick Connection screen directly. XenApp and XenDesktop 7.5 Platinum: 1.
  • Page 38 Getting Started Learning the Basics You might see this screen when you log in to XenApp 7.5 for first time. Just click to add your favorite apps from a list. Two buttons may be available for your to switch between Application and Desktop Selection screen, depending on your server-side deployment.
  • Page 39 — Click to launch another virtual desktop if any or to launch other applications. — Click Log Off on the top of the screen to return to the Citrix Logon screen. — Press Esc to return to ViewSonic Quick Connection screen directly.
  • Page 40 2. On the opened window, enter the IP address or computer name of the VMware View Connection Server, and then click Connect. NOTE • To return to ViewSonic Quick Connection screen (see the screen in Topic 4), close the opened window.
  • Page 41 Getting Started Learning the Basics NOTE • A window might appear with a certificate message about the remote server. Consult the IT administrator for details and ensure the connection is secure first. To import a security certificate, please refer to section “4.2.11 Importing Certificates for Remote Computers”...

  • Page 42: Configuring Client Settings

    Configuring Client Settings This chapter provides instructions on how to configure advanced settings and customize your SC-T35 with ViewSonic Client Setup. 4.1 ViewSonic Client Setup Interface overview Available settings at glance 4.2 Configuring System Settings System tab overview Available settings at a glance 4.3 Configuring User Interface Settings...

  • Page 43: Viewsonic Client Setup

    Configuring Client Settings ViewSonic Client Setup 4.1 ViewSonic Client Setup Your SC-T35 comes with ViewSonic Client Setup, the built-in local client management console to help you configure client settings and customize your SC-T35. 4.1.1 Interface Overview To access ViewSonic Client Setup on your SC-T35, please do the following: 1.

  • Page 44: Client Settings At A Glance

    Configuring Client Settings ViewSonic Client Setup 4.1.2 Client Settings at a Glance The following table provides a brief description of each setting item under five main setting categories. Setting Item Section Page • Configuring time zone and time server • Configuring passwords • Configuring remote assistance settings • Updating firmware • Enabling/Disabling the Appliance mode 4.2 Configuring System Settings...

  • Page 45: Configuring System Settings

    4.2 Configuring System Settings 4.2.1 System Tab Overview System tab enables you to configure settings for the operation and maintenance of clients. To access available settings of System tab, click the tab on ViewSonic Client Setup. System Tab Overview Interface Elements Name Description Click to select a setting item under System tab.

  • Page 46: Available Settings At A Glance

    4.2.11 remote computers. NOTE • ViewSonic Device Manager is a remote and mass client management console, helping you remotely manage a large number of endpoint devices in a desktop virtualization infrastructure. For more information about ViewSonic Device Manager, please refer to the User’s Manual for ViewSonic Device Manager.

  • Page 47: Configuring Time Zone And Time Server

    • The IP address of the default time server is pool.ntp.org. For more information on the default, please refer to the website for the NTP Pool Project at www.pool.ntp.org. • Ensure the connectivity of your SC-T35 to the network or Internet in order to get accurate time from the time server.

  • Page 48: Configuring The Access Privileges And Passwords Of Viewsonic Client Setup

    4.2.4 Configuring the Access Privileges and Passwords of ViewSonic Client Setup You can configure the access privileges of ViewSonic Client Setup for SC-T35 users by the Password setting. NOTE • All SC-T35 users are allowed to access ViewSonic Client Setup by factory default.
  • Page 49 Setting Access Privileges and Password Also for Standard Users To set access privileges and password also for standard users, please do the following: 1. On ViewSonic Client Setup, click System > Password. 2. Under the User section, click to check Use Password.

  • Page 50: Configuring Shadow Settings For Remote Assistance

    • To use the Shadow feature on a remote computer, you need to install the ViewSonic Device Manager console and Java software on that computer, and add your SC-T35 into a managed group under ViewSonic Device Manager. For details, please refer to the User’s Manual for ViewSonic Device Manager.
  • Page 51 Taskbar of the local Linux desktop and a notification pops up in the bottom-right corner. If you are under the Quick Connection mode (the default for SC-T35 thin clients), a notification would pop up in the upper-left corner on ViewSonic Quick Connection screen.

  • Page 52: Updating Firmware From The Management Computer

    Update Firmware allows client users to update firmware from its management computer. NOTE • Ensure that your SC-T35 has been added into a managed group under ViewSonic Device Manager installed on a remote computer, and that you have imported client firmware files into ViewSonic Device Manager.
  • Page 53 If No is selected, all setting values will be restored to the factory default. This option may not be available on your system. Keep the user data NOTE: If the client is managed by ViewSonic Device Manager and here No is selected, ViewSonic Device Manager will fail to manage the client after firmware update. For more information on ViewSonic Device Manager, please refer to the User’s Manual for ViewSonic Device Manager.

  • Page 54: Enabling Or Disabling The Appliance Mode

    Enabling or Disabling the Appliance Mode The Appliance mode allows your SC-T35 to start up directly with the desired Microsoft Remote Desktop, Citrix ICA, VMware View or Horizon View session. Under the Appliance mode, users will feel as if they were using a standalone desktop computer;...
  • Page 55 — “4.6.8 Configuring Advanced ICA Connection Settings” on page 145 — “4.6.11 Configuring Advanced View Connection Settings” on page 172 1. On ViewSonic Client Setup, click System > Appliance Mode. 2. Click to check Enable Appliance Mode. 3. Other settings of the Appliance mode appear.
  • Page 56 5. Click Save to confirm your selections. 6. The system will enter the Appliance mode after restart. NOTE • To disable the Appliance mode or to access ViewSonic Client Setup under the Appliance mode, please refer to “Disabling the Appliance Mode” on page 46.
  • Page 57 2. Click Ctrl + Shift + Del to launch ViewSonic Client Setup. NOTE • You cannot access the Taskbar of the client operating system (ViewSonic ARM Linux) under the Appliance mode. 3. On ViewSonic Client Setup, click System > Appliance Mode.

  • Page 58: Enabling Or Disabling The Quick Connection Mode

    Configuring System Settings 4.2.8 Enabling or Disabling the Quick Connection Mode The Quick Connection mode enables you to enter the ViewSonic Quick Connection screen after system startup. This setting is enabled by default. NOTE • For detailed instructions on how to use your SC-T35 under the Quick Connection mode, please refer to section “3.1 Learning the Basics”...
  • Page 59 Configuring System Settings To enable/disable the Quick Connection mode, please do the following: 1. On ViewSonic Client Setup, click System > Quick Connection. 2. Click to check/uncheck Enable Quick Connection after Power-up to enable/disable the Quick Connection mode, and then click Save to apply the change.

  • Page 60: Enabling Or Disabling The Command-Line Functions

    Enabling or Disabling the Command-line Functions To enable/disable the execution of the text-based (command-line) functions, please do the following: 1. On ViewSonic Client Setup, click System > Terminal. 2. Click to check/uncheck Enable to allow/disallow the execution of the command-line functions.

  • Page 61: Collecting Event Logs And Capturing Related Screens

    1. Plug a USB flash drive into your SC-T35. NOTE • This USB flash drive will be used for storing the event logs of your SC-T35. • Ensure that you have enabled the access and automount of USB storage devices.
  • Page 62 The attached USB flash drive is the default location if attached. Click Save to apply. Capturing Error-Related Screens To capture error-related screens of your SC-T35, please do the following: 1. On ViewSonic Client Setup, click System > Error Report.

  • Page 63: Importing Certificates For Remote Computers

    To import certificates for remote computers through a USB storage device, please do the following: 1. Copy your certificates to a USB storage device, and then connect this storage device to your SC-T35. 2. On ViewSonic Client Setup, click System > Certificate Manager.
  • Page 64 Configuring Client Settings Configuring System Settings 4. In the From File section, click Browser to locate the desired certificate file, and then click Open to confirm. 5. Click Import to start importing the certificate. 6. On completion, the certificate is shown in the Certificate list.
  • Page 65 Importing certificates from remote computers through the network To import the certificate from a remote computer through the network, please do the following: 1. On ViewSonic Client Setup, click System > Certificate Manager. 2. Click Add on the top of the Certificate list.
  • Page 66 NOTE • Before proceeding, ensure that (1) your thin client has been added into a managed group in the management console, that is, ViewSonic Device Manager, and that (2) you have imported certificates into the management console. 1. On ViewSonic Client Setup, click System > Certificate Manager.

  • Page 67: Configuring User Interface Settings

    4.3.1 User Interface Tab Overview User Interface tab enables you to configure settings for the user interface of clients. To access available settings of User Interface tab, click the tab on ViewSonic Client Setup. User Interface Tab Overview Interface Elements...

  • Page 68: Available Settings At A Glance

    4.3.3 Configuring Display Settings To configure display settings for your SC-T35, please do the following: 1. On ViewSonic Client Setup, click User Interface > Display. 2. Click drop-down menus to select the number of attached display(s), arrangement of displays, display mode for multiple displays, and resolution.
  • Page 69 DVI-D one is on the top; the DVI-I the bottom. vertical The DVI-D one is the main display for local desktop when Extend is selected. This item is available only for SC-T35 and only when 2 is selected in the Number of Display drop-down menu: Option Description...
  • Page 70 Please note that some resolutions may not be applicable to your monitor(s). This item is available only for SC-T35 and only when 2 is selected in the Number of Display drop-down menu. Use this item to set an appropriate resolution for the attached DVI-I display.
  • Page 71 Configuring Client Settings Configuring User Interface Settings This item is available only for SC-T35 and only when 2 is selected in the Number of Display drop-down menu. Use this item to set an appropriate resolution for the attached DVI-D display. Option Description...

  • Page 72: Customizing Desktop And System Language Settings

    4.3.4 Customizing Desktop and System Language Settings To customize desktop and system language settings for your SC-T35, please do the following: 1. On ViewSonic Client Setup, click User Interface > Desktop. 2. Click drop-down menus or tick/untick checkboxes to choose desired settings. Refer to the following table for a description of each setting item.
  • Page 73 Centers and sizes the image proportionally to fill the screen. NOTE: Depending on the size of the connected display, two options might have the same effect. Click the drop-down menu to select the color of ViewSonic wallpaper. Four colors Wallpaper are available: Green, Blue, Orange, and Cyan. 3. Click Save to apply.

  • Page 74: Hiding Or Showing Quick Access Shortcuts

    4.3.5 Hiding or Showing Quick Access Shortcuts When the Quick Connection mode is disabled, the switch shortcuts ViewSonic Quick Connection on the START menu and local Linux desktop will be hidden. In case you want to access services quickly when the Quick Connection mode is disabled, you can choose to show Quick Access shortcuts Remote Desktop / Citrix / VMware View on the START menu and local Linux desktop.

  • Page 75: Adjusting Keyboard Settings

    Linux desktop. 3. Click Save to apply the change. 4. The selected shortcuts will be shown/hidden. 4.3.6 Adjusting Keyboard Settings To adjust keyboard settings for your SC-T35, please do the following: 1. On ViewSonic Client Setup, click User Interface > Keyboard.
  • Page 76 Configuring Client Settings Configuring User Interface Settings 2. Click drop-down menus, tick/untick checkboxes, or move sliders to choose desired settings. Refer to the following table for a description of each setting item. Keyboard Item Description Check/Uncheck to enable/disable the use of custom keyboard settings. NOTE: You are allowed to set the keyboard layout and type only when this Use Custom Keyboard Settings setting is enabled.

  • Page 77: Configuring Screensaver Settings

    Configuring User Interface Settings 4.3.7 Configuring Screensaver Settings To configure screensaver settings for your SC-T35, please do the following: 1. On ViewSonic Client Setup, click User Interface > Screensaver. 2. Click drop-down menus or tick/untick checkboxes to choose desired settings.

  • Page 78: Configuring External Device Settings

    4.4 Configuring External Device Settings 4.4.1 Devices Tab Overview Devices tab enables you to configure settings for external devices of clients. To access available settings of Devices tab, click the tab on ViewSonic Client Setup. Devices Tab Overview Interface Elements Name...

  • Page 79: Available Settings At A Glance

    • To access locally attached USB storage devices in a local or virtual session, you need to configure appropriate settings under this setting item. 1. On ViewSonic Client Setup, click Devices > USB Storage. 2. Tick/untick the checkboxes to choose the desired settings.

  • Page 80: Manually Mount And Unmount Attached Usb Storage Devices

    Configuring Client Settings Configuring External Device Settings Settings for USB Storage Devices Item Description Tick/Untick this checkbox to allow/disallow the access of USB storage devices. NOTE: To use the locally attached USB storage devices in an RDP / ICA / View session, the mapping of local USB storage devices must be enabled in this session’s RDP / ICA / View connection settings.

  • Page 81: Disabling Or Enabling Attached Audio Devices

    — “4.6.11 Configuring Advanced View Connection Settings” on page 172 1. On ViewSonic Client Setup, click Devices > Audio. 2. Click to check/uncheck Enable System Audio Device. 3. Click Save to confirm your selection. NOTE • The change will not take effect until SC-T35 has been restarted.

  • Page 82: Adding A Local Printer

    Adding a Local Printer To add a local printer for your SC-T35, please do the following: 1. Connect the desired printer to your SC-T35 and turn on the printer. 2. On ViewSonic Client Setup, click Devices > Printer. 3. Click Add on the top of the Printer list.
  • Page 83 Configuring Client Settings Configuring External Device Settings 8. A field for the selected printer appears and the printer URI (Uniform Resource Identifier) data is automatically filled out in the field. NOTE • A URI (Uniform Resource Identifier) is a sequence of characters that is used to identify a resource on the Internet.
  • Page 84 4. Under Select a shared printer by name, enter http://IP address of your SC-T35:631/printers/Printer Name. NOTE: For example, if a printer is locally attached to your SC-T35 and is added as a local printer through ViewSonic Client Setup with the printer name EPS, and the IP address of your SC-T35 is 192.168.50.146.

  • Page 85: Adding A Network Printer

    Adding a Network Printer To add a network printer for your SC-T35, please do the following: 1. Ensure that your SC-T35 is connected to the network and the desired network printer is turned on. 2. On ViewSonic Client Setup, click Devices > Printer.

  • Page 86: Configuring Network Settings

    Configuring Network Settings 4.5 Configuring Network Settings 4.5.1 Network Tab Overview Network tab enables you to configure network settings for clients. To access available settings of Network tab, click the tab on ViewSonic Client Setup. Network Tab Overview Interface Elements Name Description...

  • Page 87: Available Settings At A Glance

    Configuring Client Settings Configuring Network Settings 4.5.2 Available Settings at a Glance Setting Icon Description Section Page Ethernet Click to configure wired network settings. 4.5.3 Click to configure VPN (Virtual Private Network) 4.5.4 connection settings and create a VPN connection. 4.5.5 Click to create the mapping of IP addresses to the names of host servers. You can then use the Network Hosts name of a host server instead of its IP address...

  • Page 88: Configuring Wired Network Settings

    Configuring Network Settings 4.5.3 Configuring Wired Network Settings The Ethernet setting enables you to configure the wired network settings for your SC-T35 thin client. Using a Dynamic IP Address To use a dynamic IP address, please do the following: 1. On ViewSonic Client Setup, click Network > Ethernet.
  • Page 89 Configuring Client Settings Configuring Network Settings 4. Type in the IP address, subnet mask, and gateway for your SC-T35 thin client. NOTE • Consult your network administrator for a free IP address and other required data about the network to which your SC-T35 connects.
  • Page 90 Configuring Network Settings NOTE • If you choose to use a static IP address for your SC-T35 thin client, then you need to specify DNS server addresses manually. In this case, the DNS type field will not appear for you to select Manual setting or Dynamic DNS (via DHCP).

  • Page 91: Establishing And Stopping A Vpn Connection

    Configuring Network Settings 4.5.4 Establishing and Stopping a VPN connection The VPN setting enables you to establish/stop a virtual private network connection for your SC-T35 thin client. NOTE • The VPN setting also allows you to configure and manage virtual private network settings.
  • Page 92 6. Click Save to add the virtual private network. Establishing a Virtual Private Network Connection To establish a virtual private network connection for your SC-T35 thin client, please do the following: 1. On ViewSonic Client Setup, click Network > VPN to open the Virtual Private Network list.
  • Page 93 Configuring Client Settings Configuring Network Settings NOTE • If you haven’t created any entry, the Virtual Private Network list will be empty. For instructions on adding a virtual private network, please see the preceding topic. 2. Click to check the desired virtual private network. The Connect button then appears on the top of the Virtual Private Network list.
  • Page 94 Stopping a Virtual Private Network Connection To stop a virtual private network connection, please do the following: 1. On ViewSonic Client Setup, click Network > VPN to open the Virtual Private Network list. 2. Click to check the desired virtual private network. The Disconnect button appears on the top of the Virtual Private Network list.

  • Page 95: Configuring Virtual Private Network Settings

    To adjust connection settings for a virtual private network, please do the following: 1. On ViewSonic Client Setup, click Network > VPN to open the Virtual Private Network list. 2. Click to check the desired virtual private network. The Edit button appears on the top of the Virtual Private Network list.

  • Page 96: Creating The Mapping Of Ip Addresses To Names Of Host Servers

    Creating the Mapping of IP Addresses to Names of Host Servers ViewSonic Client Setup allows you to use the name or alias of a host server instead of its IP address wherever you need to specify an IP address while configuring client settings. To use this feature, first you need to create the mapping of IP addresses to names or aliases of host servers.
  • Page 97 Managing the Mapping List To manage the Mapping list, please do the following: 1. On ViewSonic Client Setup, click Network > Hosts to open the Mapping list. 2. Select to manage entries on the Mapping list. • To adjust the settings of an entry, double click the entry, or check off an entry, and then click the Edit button on the top of the Mapping list.

  • Page 98: Changing The Host Name Of Your Thin Client

    Changing the Host Name of Your Thin Client To change the host name of your thin client, please do the following: 1. On ViewSonic Client Setup, click Network > Host Name. 2. Change the default host name of your thin client.

  • Page 99: Establishing And Stopping A Wireless Connection

    Configuring Network Settings 4.5.8 Establishing and Stopping a Wireless Connection The Wireless setting enables you to establish/stop a wireless connection for your SC-T35 thin client. NOTE • Before you can access available wireless networks, you need to install an external and USB-based wireless network adapter.
  • Page 100 Configuring Client Settings Configuring Network Settings 3. Click Connect to create a wireless network connection through the selected wireless network. 4. A window appears prompting for confirmation or authentication. NOTE • If you ever accessed this wireless network before, the password will be automatically recorded for future access.
  • Page 101 Stopping a Wireless Network Connection To stop a wireless network connection, please do the following: 1. On ViewSonic Client Setup, click Network > Wireless to open the Wireless Network list. 2. Click to check the desired wireless network. The Disconnect button appears on the top of the Wireless Network list.

  • Page 102: Configuring Wireless Network Settings

    Adjusting Connection settings for a Wireless Network To adjust connection settings for a wireless network, please do the following: 1. On ViewSonic Client Setup, click Network > Wireless to open the Wireless Network list. 2. Click to check the desired wireless network. The Edit button appears on the top of the Wireless Network list.

  • Page 103: Configuring Proxy Settings For Web-Based Access To Services

    • Settings available here are only applicable to services that use Web-based access, such as (Microsoft) Remote Web Access and (Citrix) Web Logon connection types. 1. On ViewSonic Client Setup, click Network > Proxy. 2. Click the Mode drop-down menu to select the desired configuration mode. Four modes are available: No Proxy, Auto-detect proxy settings, Manual proxy configuration, and Auto proxy configuration.
  • Page 104 Configuring Client Settings Configuring Network Settings 3. Provide the data as required. Please refer to the following table for a description of each setting item. Connection Settings Item Description Click to select the desired proxy configuration mode. Mode Description No Proxy Don’t use any proxy server. Auto-detect proxy Detects the proxy settings for your network Mode settings automatically.

  • Page 105: Configuring Service Access Settings

    4.6 Configuring Service Access Settings 4.6.1 Applications Tab Overview Applications tab enables you to configure settings for service access on clients. To access available settings of Applications tab, click the tab on ViewSonic Client Setup. Applications Tab Overview Interface Elements Name...

  • Page 106: Available Settings At A Glance

    Configuring Client Settings Configuring Service Access Settings 4.6.2 Available Settings at a Glance Setting Icon Description Section Page Click to configure RDP (Remote Desktop Protocol) 4.6.3 connection settings and create shortcuts on Remote Desktop 4.6.4 the local desktop and START menu for Remote 4.6.5 Desktop sessions. Click to configure ICA (Independent Computing 4.6.6 Architecture) connection settings and create Citrix ICA 4.6.7...

  • Page 107: Configuring Basic Rdp Connection Settings

    Configuring Client Settings Configuring Service Access Settings 4.6.3 Configuring Basic RDP Connection Settings The Remote Desktop setting allows you to configure RDP (Remote Desktop Protocol) connection settings and create shortcuts on the local desktop and START menu for service access. You can access remote desktops or applications for work simply through these shortcuts.
  • Page 108 Connection Type: Remote Desktop To quickly configure RDP connection settings for the Remote Desktop connection type, please do the following: 1. On ViewSonic Client Setup, Click Applications > Remote Desktop. 2. The RDP Connection list appears in the Configuration area.
  • Page 109 • SC-T35 supports up to two Remote Desktop sessions at the same time. • SC-T35 can only run one RemoteFX-enabled session at a time. The second is not allowed. The default for an RDP connection is RemoteFX enabled. To adjust the setting, please refer to section “4.6.5 Configuring Advanced RDP Connection...
  • Page 110 To quickly configure RDP connection settings for the Remote Web Access connection type, please do the following: NOTE • ViewSonic SC-T35 supports only RD Web Access based on Windows Sever 2012 R2; Windows Server 2008 R2 based is not supported.
  • Page 111 Configuring Client Settings Configuring Service Access Settings 4. On General sub-tab, click the Connection Type drop-down menu to select Remote Web Access. 5. Type in the session name and connection URL through which Web-based remote applications is accessible. NOTE • The red asterisks indicate the required fields. • Consult your IT administrator about the appropriate connection URL.
  • Page 112 To quickly configure RDP connection settings for the Web Feed connection type, please do the following: NOTE • ViewSonic SC-T35 supports only RD Web Feed based on Windows Sever 2012 R2; Windows Server 2008 R2 based is not supported. 1. On ViewSonic Client Setup, Click Applications > Remote Desktop.
  • Page 113 Configuring Client Settings Configuring Service Access Settings 4. On General sub-tab, click the Connection Type drop-down menu to select Web Feed. 5. Type in the session name, Web Feed URL through which remote applications is accessible, and your credentials for Web Feed. NOTE • The red asterisks indicate the required fields.
  • Page 114 Configuring Client Settings Configuring Service Access Settings 6. Click Update Now in the RemoteApp and Desktop Connections section. After completion, the result will be shown as below in that section. NOTE • You can and need to use Update Now to refresh the Web Feed summary if there are newly published applications.
  • Page 115 Configuring Client Settings Configuring Service Access Settings 9. Access shortcuts for available applications can be found in that folder. NOTE • You need to use Update Now described in Step 6 to refresh the Web Feed if there are newly published applications. Otherwise, new applications will not be shown.

  • Page 116: Accessing Remote Desktop Services

    Configuring Client Settings Configuring Service Access Settings 4.6.4 Accessing Remote Desktop Services Connection Type: Remote Desktop To access remote desktops, please do the following: 1. Double click the created shortcut on the desktop. 2. Follow the on-screen instructions and provide required credentials if needed. 3.
  • Page 117 Configuring Client Settings Configuring Service Access Settings Example: Windows 8 Enterprise NOTE • The connection type of Remote Desktop also allows you to launch application- only sessions; only a specific application is launched rather than a full desktop. For details, please refer to section “4.6.5 Configuring Advanced RDP Connection Settings”...
  • Page 118 Configuring Client Settings Configuring Service Access Settings Connection Type: Remote Web Access To access remote applications, please do the following: 1. Double click the created shortcut on the desktop. 2. A window appears prompting for credentials. NOTE • A warning message “This Connection is Untrusted“ might appear. Consult the IT administrator for details and ensure the connection is secure first.
  • Page 119 Configuring Client Settings Configuring Service Access Settings 4. Access shortcuts will be shown on the screen. 5. Click or Double-click to select the desired application. 6. A window appears prompting for credentials. 7. Provide your credentials, and then click OK to launch the selected application. • Use Alt + Tab to select and restore a hidden or minimized application or desktop.
  • Page 120 Configuring Client Settings Configuring Service Access Settings Connection Type: Web Feed 1. Double click Work Resources folder on the local desktop. 2. Access shortcuts for available applications can be found in that folder. 3. Double-click to select the desired application.
  • Page 121 Configuring Client Settings Configuring Service Access Settings 4. A window appears prompting for credentials. 5. Provide your credentials, and then click OK to launch the selected application. Remote Application Examples Mozilla Firefox and Calculator...

  • Page 122: Configuring Advanced Rdp Connection Settings

    Configuring Client Settings Configuring Service Access Settings 4.6.5 Configuring Advanced RDP Connection Settings The tables below provide a description of each setting item for RDP connections. Please refer to these tables to configure advanced settings and customize shortcuts on local desktop and START menu for service access. NOTE • Please note that available settings vary with the selected connection type.
  • Page 123 Configuring Client Settings Configuring Service Access Settings Select what to do next if the client cannot verify the identity of the remote computer. Three options are available: Connect and don’t warn me, Warn me, and Do not connect. Option Description Connect and don’t Connects anyway without any warning.
  • Page 124 Select whether to open a Remote Desktop session automatically or not when SC- T35 is started up (Autostart mode). NOTE: There are three similar but different modes for your SC-T35 and only one mode will take effect if all are enabled. Three modes and the order of...
  • Page 125 Configuring Client Settings Configuring Service Access Settings Options Sub-tab Programs Item Description Click the drop-down menu to enable or disable the Application mode. Use this option to select the session type. Two remote session types are available: • Remote Desktop (when the Application mode is disabled) Start the following program on connection • Remote Application (when the Application mode is enabled)
  • Page 126 Multiple Uses multiple displays for a Remote Desktop session. Click the drop-down menu to select whether to use the ViewSonic Toolbar on a Remote Desktop session. The tool bar allows you to adjust a session window size or suspend a session.
  • Page 127 Remote Desktop session. NOTE: For detailed instructions on how to add a local or network printer for your SC-T35, please refer to section “4.4.6 Adding a Local Printer” on page 71 or “4.4.7 Adding a Network Printer” on page 74.
  • Page 128 On the client side, please do the following to enable locally attached USB devices in a virtual machine based desktop: Use RemoteFX USB Redirection 1. Ensure that the desired USB device has been connected to your SC-T35. 2. Ensure that RemoteFX is enabled on your SC-T35 (see “Use RemoteFX” on page 115).
  • Page 129 Configuring Client Settings Configuring Service Access Settings Settings for the Connection Type of Remote Web Access NOTE • For descriptions of settings for the connection type of Remote Desktop, please refer to “Settings for the Connection Type of Remote Desktop” on page 111. • For descriptions of settings for the connection type of Web Feed, please refer to “Settings for the Connection Type of Web Feed”...
  • Page 130 Select whether to open a Remote Web Access session automatically or not when SC-T35 is started up (Autostart mode). NOTE: There are three similar but different modes for your SC-T35 and only one mode will take effect if all are enabled. Three modes and the order of...
  • Page 131 Configuring Client Settings Configuring Service Access Settings Options Sub-tab NOTE • No options are available under the Options sub-tab in the connection type of Remote Web Access. RD Gateway Sub-tab NOTE • No options are available under the RD Gateway sub-tab in the connection type of Remote Web Access.
  • Page 132 Configuring Client Settings Configuring Service Access Settings Settings for the Connection Type of Web Feed NOTE • For descriptions of settings for the connection type of Remote Desktop, please refer to “Settings for the Connection Type of Remote Desktop” on page 111. • For descriptions of settings for the connection type of Remote Web Access, please refer to “Settings for the Connection Type of Remote Web Access”...
  • Page 133 When Enable is selected, users can access the local USB storage devices, such as a USB flash drive and memory card reader, in a Remote Desktop session. NOTE: ViewSonic Client Setup also allows you to enable or disable the use of USB Storage Mapping locally attached USB storage devices. You need to enable locally attached USB storage devices first in order to use them in a Remote Desktop session.
  • Page 134 Configuring Client Settings Configuring Service Access Settings Click the drop-down menu to enable/disable serial port mapping. Serial Port Mapping When Enable is selected, users can access a serial device, such as a barcode scanner, in a Remote Desktop session. Click the drop-down menu to enable/disable parallel port mapping. Parallel Port Mapping When Enable is selected, users can access a parallel device, such as a printer or scanner, in a Remote Desktop session.
  • Page 135 On the client side, please do the following to enable locally attached USB devices in a virtual machine based desktop: 1. Ensure that the desired USB device has been connected to your SC-T35. Use RemoteFX USB Redirection 2. Ensure that RemoteFX is enabled on your SC-T35 (see “Use RemoteFX” on page 115).

  • Page 136: Configuring Basic Ica Connection Settings

    Configuring Client Settings Configuring Service Access Settings 4.6.6 Configuring Basic ICA Connection Settings The Citrix ICA setting allows you to configure ICA connections for Citrix services and create shortcuts on the local desktop and START menu for service access. You can access virtual desktops and applications for work simply through these shortcuts.
  • Page 137 Connection Type: Web Logon To quickly configure ICA connection settings for the Web Logon connection type, please do the following: 1. On ViewSonic Client Setup, click Applications > Citrix ICA. 2. The available ICA Connection list appears in the Configuration area.
  • Page 138 Configuring Client Settings Configuring Service Access Settings 4. On General sub-tab, leave the connection type as Web Logon as default, and then type in the desired session name and the IP address / URL / FQDN of the server through which Citrix services are accessible. NOTE • For newer versions of XenDesktop and XenApp, you may need to further specify the sub-path of the server.
  • Page 139 StoreFront / Web Logon VDI-in-a-Box VDI-in-a-Box / Web Logon 1. On ViewSonic Client Setup, Click Applications > Citrix ICA. 2. The available ICA Connection list appears in the Configuration area. NOTE • If you haven’t created any entry, the ICA Connection list will be empty.
  • Page 140 Configuring Client Settings Configuring Service Access Settings 4. On General sub-tab, click the Connection Type drop-down menu to select StoreFront. 5. Type the session name, the IP address / URL / FQDN of the server through which virtual applications/ desktops are accessible, and the name of desktop group or application. NOTE • You can use the Search icon to help you discover available desktop groups or...
  • Page 141 StoreFront / Web Logon VDI-in-a-Box VDI-in-a-Box / Web Logon 1. On ViewSonic Client Setup, Click Applications > Citrix ICA. 2. The available ICA Connection list appears in the Configuration area. NOTE • If you haven’t created any entry, the ICA Connection list will be empty.
  • Page 142 Configuring Client Settings Configuring Service Access Settings 4. On General sub-tab, click the Connection Type drop-down menu to select VDI-in-a-Box. 5. Type the session name, the IP address / URL / FQDN of the server through which virtual desktops are accessible, and the name of the desktop group. NOTE • You can use the Search icon to help you discover available desktop groups for...
  • Page 143 StoreFront / Web Logon VDI-in-a-Box VDI-in-a-Box / Web Logon 1. On ViewSonic Client Setup, click Applications > Citrix ICA. 2. The available ICA Connection list appears in the Configuration area. NOTE • If you haven’t created any entry, the ICA Connection list will be empty.
  • Page 144 Configuring Client Settings Configuring Service Access Settings 4. On General sub-tab, click the Connection Type drop-down menu to select XenDesktop. 5. Type the session name, the IP address / URL / FQDN of the server through which virtual desktops are accessible, and the desired desktop group. NOTE • You can use the Search icon to help you discover available desktop groups for...
  • Page 145 StoreFront / Web Logon VDI-in-a-Box VDI-in-a-Box / Web Logon 1. On ViewSonic Client Setup, click Applications > Citrix ICA. 2. The available ICA Connection list appears in the Configuration area. NOTE • If you haven’t created any entry, the ICA Connection list will be empty.
  • Page 146 Configuring Client Settings Configuring Service Access Settings 4. On General sub-tab, click the Connection Type drop-down menu to select XenApp. 5. Type the session name, the IP address / URL / FQDN of the XenApp server, and the desired application name. NOTE • You may need to provide the XML port number as well for your server address (for example, XA65P.CTX.poc:8080), depending on your server-side configuration.
  • Page 147 • This connection type is used to connect to XenApp server for administration and supports only XenApp 6.5 and earlier. 1. On ViewSonic Client Setup, click Applications > Citrix ICA. 2. The available ICA Connection list appears in the Configuration area.
  • Page 148 Configuring Client Settings Configuring Service Access Settings 4. On General sub-tab, click the Connection Type drop-down menu to select Server Connection. 5. Type the session name, the server address, and the name of the server. NOTE • You may need to provide the XML port number as well for your server address (for example, 192.168.77.10:8080), depending on your server-side configuration.

  • Page 149: Accessing Citrix Services

    Configuring Client Settings Configuring Service Access Settings 4.6.7 Accessing Citrix Services For Connection Types of StoreFront, VDI-in-a-Box, XenDesktop, XenApp, and Server Connection To access Citrix services, please do the following: 1. Double click the created (customized) shortcut on the desktop, and then provide your credentials if needed. 2.
  • Page 150 Configuring Client Settings Configuring Service Access Settings Citrix Logon Screen Example: XenDesktop 5.6 Platinum Citrix Logon Screen Example: VDI-in-a-Box...
  • Page 151 Configuring Client Settings Configuring Service Access Settings Citrix Logon Screen Example: XenApp and XenDesktop 7.5 Platinum 3. Type in the required credentials, and then click Log On. NOTE • If your XenApp doesn’t belong to any domain, type in the server name in the Domain field instead.
  • Page 152 Configuring Client Settings Configuring Service Access Settings 4. On the Desktop or Application Selection screen, click to select the desired desktop or application(s). NOTE • You might enter the virtual desktop directly if only one type of virtual desktop is assigned to the provided credentials. Selection Screen Example: XenApp 6.5 Platinum Selection Screen Example: XenDesktop 5.6 Platinum...
  • Page 153 Configuring Client Settings Configuring Service Access Settings Selection Screen Example: XenApp 7.5 Platinum Selection Screen Example: XenDesktop 7.5 Platinum...
  • Page 154 Configuring Client Settings Configuring Service Access Settings 5. The selected virtual desktop or application(s) will be displayed on the screen. Virtual Application Examples PowerPoint Viewer, Adobe Reader, and Notepad Virtual Application Examples Adobe Reader, Mozilla Firefox, and PowerPoint Viewer...
  • Page 155 Configuring Client Settings Configuring Service Access Settings Virtual Desktop Example Windows 7 Ultimate Virtual Desktop Example Windows Server 2008 R2...

  • Page 156: Configuring Advanced Ica Connection Settings

    Configuring Client Settings Configuring Service Access Settings 4.6.8 Configuring Advanced ICA Connection Settings The table below provides a description of each setting item for ICA connections. Please refer to this table to configure advanced settings and customize shortcuts on the local desktop and START menu for service access. NOTE • Please note that available settings vary depending on the selected connection type.
  • Page 157 Configuring Client Settings Configuring Service Access Settings General Sub-tab Server Settings Item Description Session Name Type in the name of browser sessions for Citrix service access. This table only provides descriptions for available settings when Web Logon is selected. Six connection types are available: Option Description Provides access to virtual desktops and applications...
  • Page 158 Select whether to open a browser session for Citrix service access automatically or not when your SC-T35 is started up (Autostart mode). NOTE: There are three similar but different modes for your SC-T35 and only one mode will take effect if all are enabled. Three modes and the order of...
  • Page 159 Configuring Client Settings Configuring Service Access Settings Settings for the Connection Type of StoreFront NOTE • For descriptions of available settings for the connection type of Web Logon, please refer to “Settings for the Connection Type of Web Logon” on page 145. • For descriptions of settings for the connection type of VDI-in-a-Box, please refer to “Settings for the Connection Type of VDI-in-a-Box”...
  • Page 160 Select whether to open a Citrix ICA session automatically or not when your SC-T35 is started up (Autostart mode). NOTE: There are three similar but different modes for your SC-T35 and only one mode will take effect if all are enabled. Three modes and the order of...
  • Page 161 Citrix ICA sessions. Mapping Local Serial Ports NOTE: This setting item is not applicable to your SC-T35. However, if you use a serial-based barcode scanner, and attach it to your SC-T35 with a serial-to-USB adapter, you need to enable this setting in order to use the local barcode scanner in a delivered application.
  • Page 162 Configuring Client Settings Configuring Service Access Settings Enable Audio Check/Uncheck to enable/disable sound in an ICA session. Click the drop-down menu to choose the desired sound quality in an ICA session. Three options are available: High Quality, Medium Quality, and Low Quality. Option Description Allows endpoint devices to play a sound...
  • Page 163 Configuring Client Settings Configuring Service Access Settings Settings for the Connection Type of VDI-in-a-Box NOTE • For descriptions of available settings for the connection type of Web Logon, please refer to “Settings for the Connection Type of Web Logon” on page 145. • For descriptions of settings for the connection type of StoreFront, please refer to “Settings for the Connection Type of StoreFront”...
  • Page 164 Select whether to open a Citrix ICA session automatically or not when your SC-T35 is started up (Autostart mode). NOTE: There are three similar but different modes for your SC-T35 and only one mode will take effect if all are enabled. Three modes and the order of...
  • Page 165 Citrix ICA sessions. Mapping Local Serial Ports NOTE: This setting item is not applicable to your SC-T35. However, if you use a serial-based barcode scanner, and attach it to your SC-T35 with a serial-to-USB adapter, you need to enable this setting in order to use the local barcode scanner in a virtual desktop.
  • Page 166 Configuring Client Settings Configuring Service Access Settings Click the drop-down menu to choose the desired sound quality in an ICA session. Three options are available: High Quality, Medium Quality, and Low Quality. Option Description Allows endpoint devices to play a sound file at its native data transfer rate. This High Quality is recommended for connections where bandwidth is plentiful and sound quality is...
  • Page 167 Configuring Client Settings Configuring Service Access Settings Settings for the Connection Type of XenDesktop NOTE • For descriptions of available settings for the connection type of Web Logon, please refer to “Settings for the Connection Type of Web Logon” on page 145. • For descriptions of settings for the connection type of StoreFront, please refer to “Settings for the Connection Type of StoreFront”...
  • Page 168 Select whether to open a Citrix ICA session automatically or not when your SC-T35 is started up (Autostart mode). NOTE: There are three similar but different modes for your SC-T35 and only one mode will take effect if all are enabled. Three modes and the order of...
  • Page 169 Citrix ICA sessions. Mapping Local Serial Ports NOTE: This setting item is not applicable to your SC-T35. However, if you use a serial-based barcode scanner, and attach it to your SC-T35 with a serial-to-USB adapter, you need to enable this setting in order to use the local barcode scanner in a virtual desktop.
  • Page 170 Configuring Client Settings Configuring Service Access Settings Click the drop-down menu to choose the desired sound quality in an ICA session. Three options are available: High Quality, Medium Quality, and Low Quality. Option Description Allows endpoint devices to play a sound file at its native data transfer rate. This High Quality is recommended for connections where bandwidth is plentiful and sound quality is...
  • Page 171 Configuring Client Settings Configuring Service Access Settings Settings for the Connection Type of XenApp NOTE • For descriptions of available settings for the connection type of Web Logon, please refer to “Settings for the Connection Type of Web Logon” on page 145. • For descriptions of settings for the connection type of StoreFront, please refer to “Settings for the Connection Type of StoreFront”...
  • Page 172 Select whether to open a Citrix ICA session automatically or not when your SC-T35 is started up (Autostart mode). NOTE: There are three similar but different modes for your SC-T35 and only one mode will take effect if all are enabled. Three modes and the order of...
  • Page 173 Citrix ICA sessions. Mapping Local Serial Ports NOTE: This setting item is not applicable to your SC-T35. However, if you use a serial-based barcode scanner, and attach it to your SC-T35 with a serial-to-USB adapter, you need to enable this setting in order to use the local barcode scanner in a delivered application.
  • Page 174 Configuring Client Settings Configuring Service Access Settings Click the drop-down menu to select the delay time between retries, ranging from Delay between Retries 5 to 60 seconds. Enable Audio Check/Uncheck to enable/disable sound in an ICA session. Click the drop-down menu to choose the desired sound quality in an ICA session. Three options are available: High Quality, Medium Quality, and Low Quality.
  • Page 175 Configuring Client Settings Configuring Service Access Settings Settings for the Connection Type of Server Connection NOTE • For descriptions of available settings for the connection type of Web Logon, please refer to “Settings for the Connection Type of Web Logon” on page 145. • For descriptions of settings for the connection type of StoreFront, please refer to “Settings for the Connection Type of StoreFront”...
  • Page 176 Select whether to open a Citrix ICA session automatically or not when your SC-T35 is started up (Autostart mode). NOTE: There are three similar but different modes for your SC-T35 and only one mode will take effect if all are enabled. Three modes and the order of...
  • Page 177 Citrix ICA sessions. Mapping Local Serial Ports NOTE: This setting item is not applicable to your SC-T35. However, if you use a serial-based barcode scanner, and attach it to your SC-T35 with a serial-to-USB adapter, you need to enable this setting in order to use the local barcode scanner in a virtual server desktop.
  • Page 178 Configuring Client Settings Configuring Service Access Settings Click the drop-down menu to select the delay time between retries, ranging from Delay between Retries 5 to 60 seconds. Enable Audio Check/Uncheck to enable/disable sound in an ICA session. Click the drop-down menu to choose the desired sound quality in an ICA session. Three options are available: High Quality, Medium Quality, and Low Quality.

  • Page 179: Configuring Basic Vmware View Connection Settings

    • For more information on VMware desktop virtualization solutions, please visit VMware website at www.vmware.com. To quickly configure VMware View connection settings, please do the following: 1. On ViewSonic Client Setup, click Applications > VMware View. 2. The View Connection list appears in the Configuration area. NOTE • If you haven’t created any entry, the View Connection list will be empty.
  • Page 180 Configuring Client Settings Configuring Service Access Settings 4. Type in the desired session name and the computer name or IP address of the View Connection Server, and then click Save to confirm. NOTE • These are the only required fields for the creation of a service access shortcut on the desktop.

  • Page 181: Accessing Vmware View Or Horizon View Services

    Configuring Client Settings Configuring Service Access Settings 4.6.10 Accessing VMware View or Horizon View Services To access VMware View or Horizon View services, please do the following: 1. Double click the created (customized) access shortcut on the desktop. 2. On the appeared View Client window, type in the computer name or IP address of the View Connection Server, and then click Connect.
  • Page 182 Configuring Client Settings Configuring Service Access Settings 5. A window appears with available desktops for the provided credentials. NOTE • You can click the Screen Size drop-down menu of a virtual desktop group to select the desired screen size. Five options are available: Full Screen - All Monitors, Full Screen - This Monitor, Large Screen, Small Screen, and Custom Size.

  • Page 183: Configuring Advanced View Connection Settings

    Configuring Client Settings Configuring Service Access Settings 4.6.11 Configuring Advanced View Connection Settings The table below provides a description of each setting item for View connections. Please refer to this table to configure advanced settings and customize shortcuts on the local desktop and START menu for service access. General Sub-tab Server Settings Item...
  • Page 184 Select whether to open a VMware View or Horizon View session automatically or not when your SC-T35 is started up (Autostart mode). NOTE: There are three similar but different modes for your SC-T35 and only one mode will take effect if all are enabled. Three modes and the order of...

  • Page 185: Configuring Ssh Connection Settings

    NOTE: For detailed instructions on how to add a local or network printer for your SC-T35, please refer to section “4.4.6 Adding a Local Printer” on page 71 or “4.4.7 Adding a Network Printer” on page 74.
  • Page 186 Configuring Client Settings Configuring Service Access Settings To configure SSH (Secure SHell) connection settings, please do the following: 1. On ViewSonic Client Setup, click Applications > SSH. 2. The SSH Connection list appears in the Configuration area. NOTE • If you haven’t created any entry, the SSH Connection list will be empty.
  • Page 187 Configuring Client Settings Configuring Service Access Settings 4. Click the drop-down menu to select the desired connection type. Two types are available: SSH and Telnet. 5. Type in the desired session name, the computer name or IP address of the remote server, the user name, and then click Save to confirm.

  • Page 188: Launching Ssh And Telnet Sessions

    Configuring Client Settings Configuring Service Access Settings 4.6.13 Launching SSH and Telnet Sessions To launch an SSH or Telnet session, please do the following: 1. Double click the created shortcut on the local desktop. 2. The SSH or Telnet session starts in the opened window. Example: SSH Session Example: Telnet Session...

  • Page 189: Appendices

    This chapter provides instructions for the maintenance and upgrade of your SC-T35 thin clients. A.1 Resetting Your SC-T35 to the Factory Default How to restore factory default settings for your SC-T35 A.2 Updating Firmware for Your SC-T35 with a USB Flash Drive How to update firmware for your SC-T35 with a USB flash drive...

  • Page 190: Resetting Your Sc-T35 To The Factory Default

    To reset your SC-T35 to the factory default, please do the following: WARNING • Resetting your SC-T35 to the factory default will erase all current settings in ViewSonic Client Setup and restore all settings to defaults. 1. In Power-off state (the Power LED is off ), connect a monitor to your client, long press the power button about 6 to 8 seconds, then release the power button to enter ViewSonic Thin Client Menu.

  • Page 191: Updating Firmware For Your Sc-T35 With A Usb Flash Drive

    A.2 Updating Firmware for Your SC-T35 with a USB Flash Drive A simple picture of how to update the firmware for your SC-T35 thin client can be given by two main steps: Step 1: Prepare a USB flash drive for firmware update...
  • Page 192 1. In the Power-off state (the Power LED is off ), plug your USB flash drive into a USB port on the front panel of your SC-T35, and ensure that you have made power connection and connected a keyboard, mouse, and monitor to your SC-T35 thin client.
  • Page 193 11. Press Enter on the keyboard to confirm. 12. A new screen appears prompting you to select the desired display language for your SC-T35. NOTE • The available languages may vary with the firmware version. 13. Use arrow keys on the keyboard to select the desired language, and then select Next.

  • Page 194: Specifications

    ViewSonic ARM Linux Supported Protocols Microsoft RDP with RemoteFX / Citrix ICA with HDX / VMware PCoIP Management ViewSonic Client Setup / ViewSonic Device Manager Security 1 x Kensington lock slot Mount/Stand VESA mount kit/Stand, (W)68 x (H)10 x (D)111 mm Dimensions (W)39.5 x (H)143 x (D)103 mm...

  • Page 195: Other Information

    Latin America C= http://www.viewsonic.com/ www.viewsonic.com/la/ soporte@viewsonic.com (Mexico) la/soporte/servicio-tecnico Nexus Hightech Solutions, Cincinnati #40 Desp. 1 Col. De los Deportes Mexico D.F. Tel: 55) 6547-6454 55)6547-6484 Other places please refer to http://www.viewsonic.com/la/soporte/servicio-tecnico#mexico Latin America C= http://www.viewsonic.com/ www.viewsonic.com/la/ soporte@viewsonic.com (Peru) la/soporte/servicio-tecnico Macau www.hk.viewsonic.com T= 853 2870 0303 service@hk.viewsonic.com...

  • Page 196: Limited Warranty

    ViewSonic Thin Client products are warranted for (3) years from the first consumer purchase for parts and labor. User is responsible for the back up of any data before returning the unit for service. ViewSonic is not responsible for any data lost.
  • Page 197 Exclusion of damages: ViewSonic’s liability is limited to the cost of repair or replacement of the product. ViewSonic shall not be liable for: 1. Damage to other property caused by any defects in the product, damages based upon inconvenience, loss of use of the product, loss of time, loss of profits, loss of business opportunity, loss of goodwill, interference with business relationships, or other commercial loss, even if advised of the possibility of such damages.

Table of Contents
