Rack-Mounting the Cisco RPS

Mounting the Chassis in a Rack

Cisco Redundant Power System Hardware Installation Guide
2-8

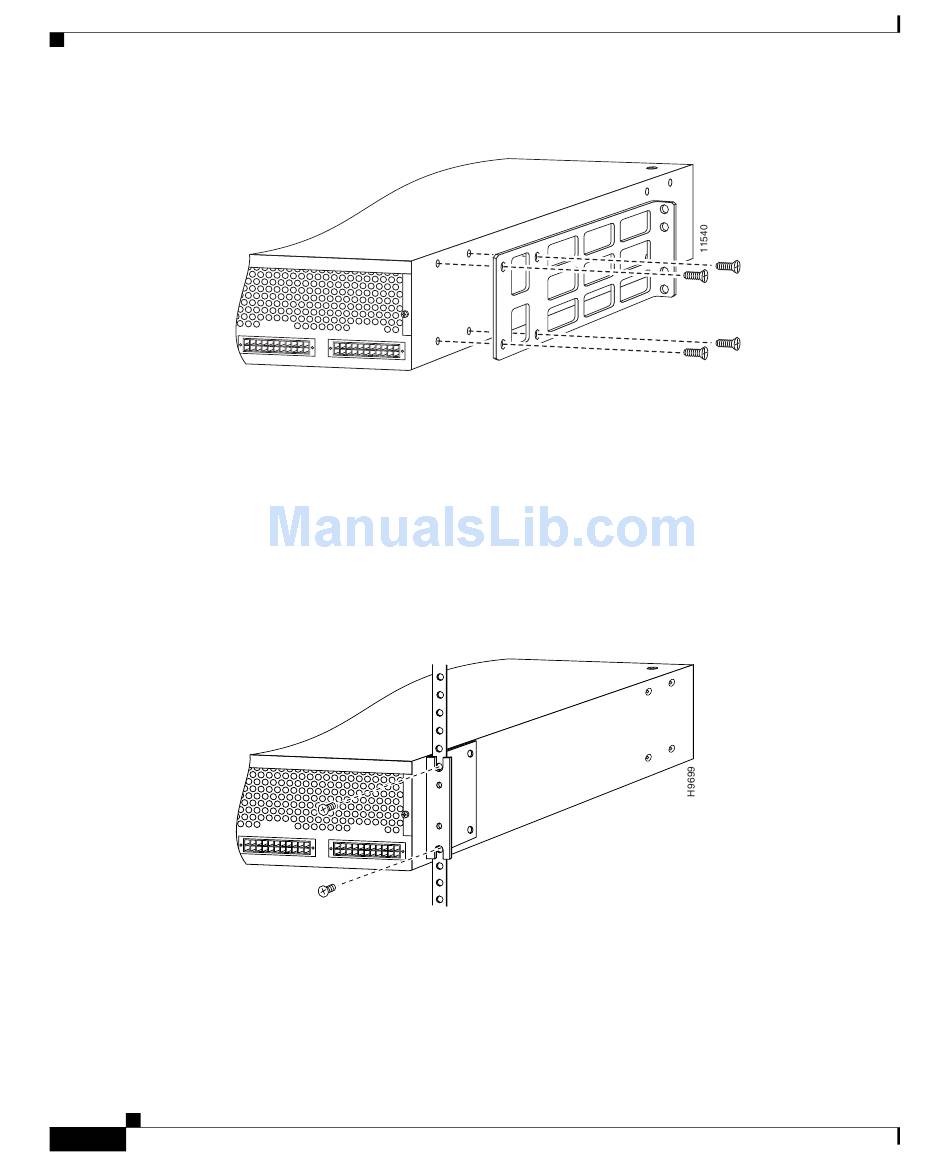

Figure 2-5 Telco Bracket Installation—Rear Panel Forward
DC OUT PUT 3
DC OUT PUT 4
Note: The second bracket attaches to the other side of the chassis.
The brackets can also be installed with the Cisco RPS front panel forward.
After the brackets are secured to the chassis, use your own screws to attach the
chassis to the rack, as shown in
Figure 2-6 Attaching the Chassis to a Rack—Rear Panel Forward
DC OUT PUT 3
DC OUT PUT 4
Note: The second bracket attaches to the rack at the other side of the chassis.
Chapter 2
Figure 2-6.
Installing the Cisco RPS
OL-3654-01
