Summary of Contents for HIKVISION DS?2CC1102P(N)(?A)

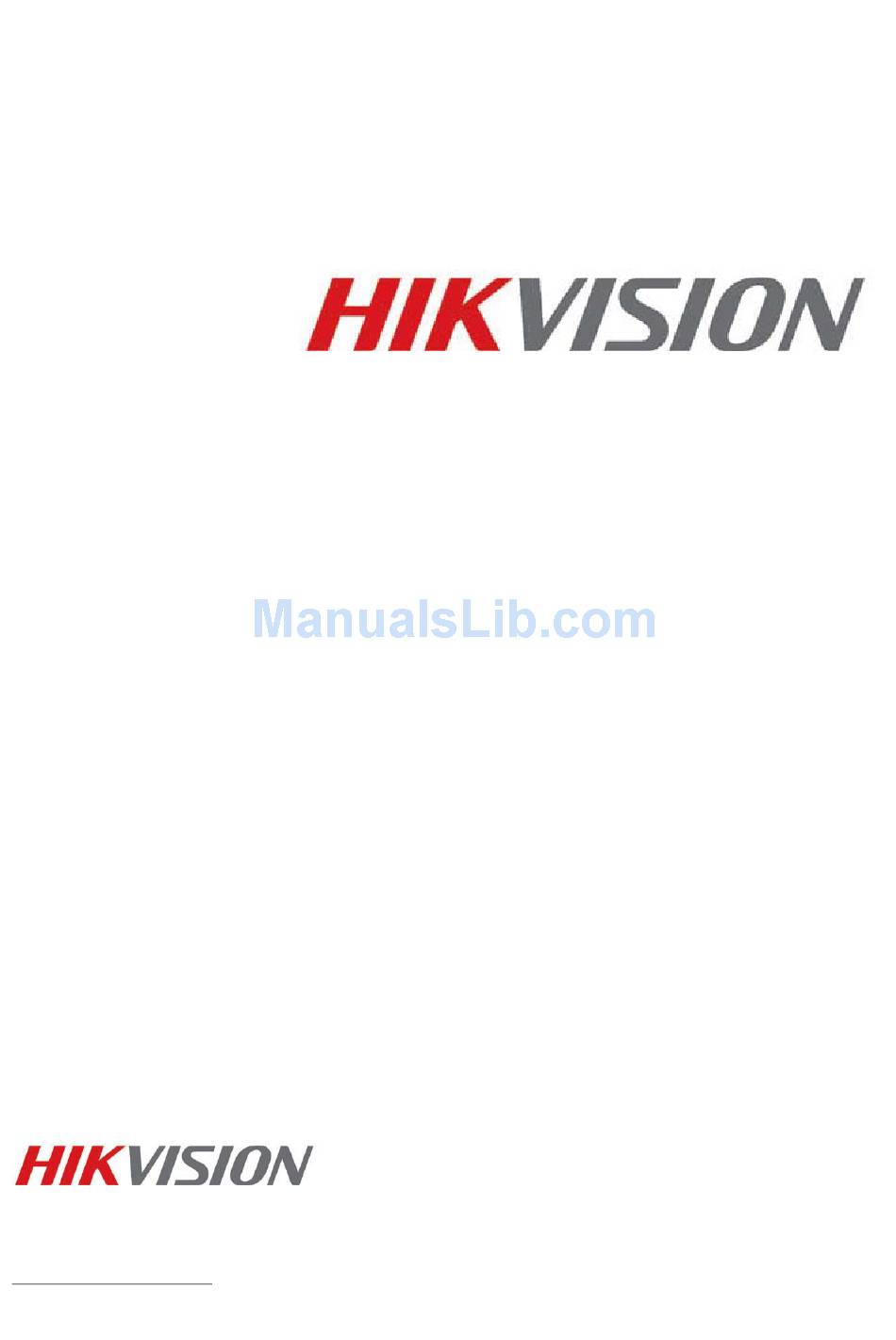

Page 1
Day/Night Box Camera User Manual V 3.0.0 Hangzhou Hikvision Digital Technology Co., Ltd. http://www.hikvision.com...
Page 2
UL MAKES NO REPRESENTATIONS, WARRANTIES OR CERTIFICATIONS WHATSOEVER REGARDING THE PERFORMANCE OR RELIABILITY OF ANY SECURITY OR SIGNALING RELATED FUNCTIONS OF THIS PRODUCT.” Hangzhou Hikvision Digital Technology Co., Ltd. | Copyright ©...
Page 3
1. This device may not cause harmful interference. 2. This device must accept any interference received, including interference that may cause undesired operation. EU Conformity Statement This product and ‐ if applicable ‐ the supplied accessories too are marked with "CE" and comply therefore with the applicable harmonized European standards listed under the Low Voltage Directive 2006/95/EC, the EMC Directive 2004/108/EC. 2002/96/EC (WEEE directive): Products marked with this symbol cannot be disposed of as unsorted municipal waste in the European Union. For proper recycling, return this product to your local supplier upon the purchase of equivalent new equipment, or dispose of it at designated collection points. For more information see: www.recyclethis.info. 2006/66/EC (battery directive): This product contains a battery that cannot be disposed of as unsorted municipal waste in the European Union. See the product documentation for specific battery information. The battery is marked with this symbol, which may include lettering to indicate cadmium (Cd), lead (Pb), or mercury (Hg). For proper recycling, return the battery to your supplier or to a designated collection point. For more information see: www.recyclethis.info. Hangzhou Hikvision Digital Technology Co., Ltd. | Copyright ©...
Page 4
User Manual of Day/Night Box Camera Safety Warnings and Cautions Please pay attention to the following warnings and cautions: Hazardous Voltage may be present: Special measures and precautions must be taken when using this device. Some potentials (voltages) on the device may present a hazard to the user. This device should only be used by HIKVISION Employees with knowledge and training in working with these types of devices that contain live circuits. Power Supply Hazardous Voltage: AC mains voltages are present within the power supply assembly. This device must be connected to a UL approved, completely enclosed power supply, of the proper rated voltage and current. No user serviceable parts inside the power supply. System Grounding (Earthing): To avoid shock, ensure that all AC wiring is not exposed and that the earth grounding is maintained. Ensure that any equipment to which this device will be attached is also connected to properly wired grounded receptacles and are approved medical devices. Power Connect and Disconnect: The AC power supply cord is the main disconnect device to mains (AC power).The socket outlet shall be installed near the equipment and shall be readily accessible. Installation and Maintenance: Do not connect/disconnect any cables to or perform installation/maintenance on this device during an electrical storm. Hangzhou Hikvision Digital Technology Co., Ltd. | Copyright ©...
Page 5
Thermal and Mechanical Injury: Some components such as heat sinks, power regulators, and processors may be hot; care should be taken to avoid contact with these components. Electro Magnetic Interference: This equipment has not been tested for compliance with emissions limits of FCC and similar international regulations. This device is not, and may not be, offered for sale or lease, or sold, or leased until authorization from the United States FCC or its equivalent in other countries has been obtained. Use of this equipment in a residential location is prohibited. This equipment generates, uses and can radiate radio frequency energy which may result in harmful interference to radio communications. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment on and off, the user is required to take measures to eliminate the interference or discontinue the use of this equipment. Lead Content: Please recycle this device in a responsible manner. Refer to local environmental regulations for proper recycling; do not dispose of device in unsorted municipal waste. Hangzhou Hikvision Digital Technology Co., Ltd. | Copyright ©...
Page 6
3. Do not connect several devices to one power adapter as an adapter overload may cause over‐heating and can be a fire hazard. If use the POE as the power supply, please make sure that the POE Switch have the sufficient power. 4. Please make sure that the plug is firmly inserted into the power socket. 5. When the product is installed on a wall or ceiling, the device should be firmly fixed. 6. If smoke, odor, or noise rise from the device, turn off the power at once and unplug the power cable, then contact the service center. 7. If the product does not work properly, please contact your dealer or the nearest service center. Never attempt to disassemble the camera yourself. (We shall not assume any responsibility for problems caused by unauthorized repair or maintenance.) Hangzhou Hikvision Digital Technology Co., Ltd. | Copyright ©...
Page 7
The average time varies because of differences between operating environment and usage history, so regular checking is recommended for all users. Please contact with your dealer for more details. 10. Improper use or replacement of the battery may result in hazard of explosion. Replace with the same or equivalent type only. Dispose of used batteries according to the instructions provided by the battery manufacturer. Hangzhou Hikvision Digital Technology Co., Ltd. | Copyright ©...
Page 8: Table Of Contents
Appendix Specification ......................... 1 7 Table 1 DS‐2CC1102P(N)(‐A) ...................... 1 7 Table 2 DS‐2CC1112P(N)(‐A) ...................... 1 9 Table 3 DS‐2CC1172P(N)(‐A) ...................... 2 1 Table 4 DS‐2CC1182P(N)(‐A) ...................... 2 3 Table 5 DS‐2CC1192P(N)(‐A) ...................... 2 5 Hangzhou Hikvision Digital Technology Co., Ltd. | Copyright ©...
Page 9: Chapter 1 Introduction
Support auto electronic shutter control to adapt to different environments Support auto gain control, adaptive brightness Support auto iris Advanced design technology with high reliability Convenient back focus adjustment 1.2 Chief Introduction about Function Color B/W auto switch: The camera will display color image and become monochrome automatically at night. AGC: When object being shot look dim, please turn on AGC. It is propitious to enhance brightness. To output standard video under different illumination, the range of auto gain control must be large enough. When under low illumination, AGC will increase camera’s sensitivity, and output bright and clear video. S/N ratio: It is the ratio of Signal voltage and noise voltage. The ratio is larger, the effect of noise is less, and the image is more spotless. White Balance: Because the camera could not adjust the color temperature according to the light alteration as the eyes, that will cause color deviation. White balance is the white rendition ability of the camera to adjust the problem according to the environment automatically. Hangzhou Hikvision Digital Technology Co., Ltd. | Copyright ©...
Page 10: Introduction Of Box Camera Side Plate And Rear Plate
Normal AGC: Normal auto gain control, the value is approximate 30dB with NAGC NAGC on. Super AGC: Super auto gain control, the value is approximate 60dB with SAGC SAGC on. FL Flickerless: Turn this switch to ON to get rid of flickers which are caused by Hangzhou Hikvision Digital Technology Co., Ltd. | Copyright ©...
Page 11
Internal synchronization: Please turn switch to INT when internal INT synchronization mode is needed. 6. LEVEL adjustment button: This button is used to enhance image brightness when auto iris lens is used and driven by direct current. And the LEVEL adjustment is invalid when auto iris lens is driven by video. 7. V PHASE (power synchronization phase) adjustment button: This button is used to adjust the phase of power synchronization under power synchronization mode. And the V PHASE adjustment is invalid under internal synchronization mode. 8. DD, VD switch: Both the auto iris driven by DC and the auto iris driven by video can be connected to the camera. Please turn switch to DD mode when DC drive auto iris lens is used and turn switch to VD mode when video drive auto iris lens is used. Hangzhou Hikvision Digital Technology Co., Ltd. | Copyright ©...
Page 12: The Description Of Ds-2Cc1102/1112/1172/1182/1192P(N) Rear Panel
Normal AGC: Normal auto gain control, the value is approximate 30dB with NAGC NAGC on. Super AGC: Super auto gain control, the value is approximate 60dB with SAGC SAGC on. Flickerless: Turn this switch to ON to get rid of flickers which are caused by FL different power consumption circuits (different signal system for example). Back light compensation: The exposure value for compensating back light will BLC be adjusted automatically when this feature is enabled. Hangzhou Hikvision Digital Technology Co., Ltd. | Copyright ©...
Page 13: Introduction Of Box Camera Side Plate
DNR Digital noise reduction: Enable this function to reduce noise effectively. Digital wide dynamic range: Enable this function to enlarge wide dynamic D‐WDR range. NC Reserved button 6. LEVEL adjustment button: This button is used to enhance image brightness when auto iris lens is used and driven by direct current. And the LEVEL adjustment is invalid when auto iris lens is driven by video. 7. DD, VD switch: Both the auto iris driven by DC and the auto iris driven by video can be connected to the camera. Please turn switch to DD mode when DC drive auto iris lens is used and turn switch to VD mode when video drive auto iris lens is used. 1.3.3 Introduction of Box Camera Side Plate Fig. 1.3.2 Back focus ring, auto iris interface definition Hangzhou Hikvision Digital Technology Co., Ltd. | Copyright ©...
Page 14
User Manual of Day/Night Box Camera 1. Back Focus Adjustment Stick: The back focus has been configured to optimum value acquiescently. But it can be adjusted slightly to coordinate with different lens. Adjust the back focus stick when the lens connector has been confirmed but the lens is still not focalized. The steps are as below: Firstly, tighten the lens, then loose the set screw of back focus stick, and adjust the stick left and right until lens gets clear image, lastly lock the set screw. 2. Auto Iris Interface: There is an interface for auto iris, the type is negative pattern four square holes, and the definition of pins is shown in the figure above. The interface of video drive auto iris is using three pins, i.e. Power +, Video, GND; the interface of direct drive auto iris is using four pins, i.e. damp+, damp‐, drive+, drive‐. Auto Iris Video Drive: The camera inputs the video signal level into lens interior, and internal drive circuit outputs control voltage to adjust lens aperture through electronic motor; Auto IRIS Direct Current Drive: The camera interior adds lens aperture electronic motor’s drive circuit, and can directly output DC control voltage to control lens electronic motor. Hangzhou Hikvision Digital Technology Co., Ltd. | Copyright ©...
Page 15: Chapter 2 Installation
User Manual of Day/Night Box Camera Chapter 2 Installation Before mounting, please make sure that the device in the package is in good condition and all the assembly parts are complete. 2.1 Mounting Note: The lens weight must be less than the 1kg CS assembly. After installation the plane the outshoot must be less than 5mm. When using the C assembly lens, please adopt C to assemble the adapter. There are two mounting methods for box camera: wall mounting, ceiling mounting, which depends on the demand of the customers. Please stick to the following steps (take ceiling mounting for example, wall mounting steps are the same). Select the mounting method, and mount camera bracket according to the mounting method. For cement wall, first you need to mount expansion screw (the mounting holes of it needs to be the same with bracket), then mount the bracket, shown as figure 2.1. For the woodiness wall, then skip the first step, and mount the bracket with self‐tapping screw. Please note that the mounting wall needs to sustain the weight 3 times heavier than the sum weight of camera and bracket. Mounting the camera. Screw the camera in the bracket by using the mount base at the top of camera. Hangzhou Hikvision Digital Technology Co., Ltd. | Copyright ©...
Page 16
User Manual of Day/Night Box Camera Fig. 2.1 Install the camera 1. Adjust the camera and move it to the monitoring point, and screw down the knob in the bracket, fix the camera. 2. Screw the lens into the head of the camera, adjust the focus, and fasten the lens. Fig. 2.2 Install the lens Hangzhou Hikvision Digital Technology Co., Ltd. | Copyright ©...
Page 17: Wiring
User Manual of Day/Night Box Camera 2.2 Wiring Rear Panel Linkage of Box Camera: Fig. 2.3 Rear panel Linkage Note: Please use standard power supply of the camera normally with 12 V DC or 24 V AC. (refer to appendix specification for more detailed information). Hangzhou Hikvision Digital Technology Co., Ltd. | Copyright ©...
Page 18: Appendix Specification
Electronic Horizontal Resolution 420 TVL Internal synchronization Synchronization (‐A series support power synchronization) Video Output 1Vp‐p composite output (75 Ω/BNC) S/N Ratio More than 50 dB General Operating Conditions ‐10 °C – 60 °C (14 °F – 140 °F) Humidity 90% or less (non‐condensing) Power Supply 12 V DC ± 10% (‐A series support 24 V AC ± 10%) Power Consumption Max. 2 W (‐A series support Max. 3 W) Dimension 69 x 56 x 113.3 mm (2.72” × 2.20” × 4.46”) Weight 400 g (0.88 lbs) Hangzhou Hikvision Digital Technology Co., Ltd. | Copyright ©...
Page 19
Dimension Unit: mm Hangzhou Hikvision Digital Technology Co., Ltd. | Copyright ©...
Page 20
480 TVL Internal synchronization Synchronization (‐A series support power synchronization) Video Output 1Vp‐p composite output (75 Ω/BNC) S/N Ratio More than 52 dB General Operating Conditions ‐10 °C – 60 °C (14 °F – 140 °F) Humidity 90% or less (non‐condensing) Power Supply 12 V DC ± 10% (‐A series support 24 V AC ± 10%) Power Consumption Max. 2 W (‐A series support Max. 3 W) Dimension 69 x 56 x 113.3 mm (2.72” × 2.20” × 4.46”) Weight 400 g (0.88 lbs) Hangzhou Hikvision Digital Technology Co., Ltd. | Copyright ©...
Page 21
User Manual of Day/Night Box Camera Dimension Unit: mm Hangzhou Hikvision Digital Technology Co., Ltd. | Copyright ©...
Page 22
Internal synchronization Synchronization (‐A series support power synchronization) Video Output 1Vp‐p composite output (75 Ω/BNC) S/N Ratio More than 52 dB General Operating Conditions ‐10 °C – 60 °C (14 °F – 140 °F) Humidity 90% or less (non‐condensing) Power Supply 12 V DC ± 10% (‐A series support 24 V AC ± 10%) Power Consumption Max. 2 W (‐A series support Max. 3 W) Dimension 69 x 56 x 113.3 mm (2.72” × 2.20” × 4.46”) Weight 400 g (0.88 lbs) Hangzhou Hikvision Digital Technology Co., Ltd. | Copyright ©...
Page 23
User Manual of Day/Night Box Camera Dimension Unit: mm Hangzhou Hikvision Digital Technology Co., Ltd. | Copyright ©...
Page 24
Internal synchronization Synchronization (‐A series support power synchronization) Video Output 1Vp‐p composite output (75 Ω/BNC) S/N Ratio More than 52 dB General Operating Conditions ‐10 °C – 60 °C (14 °F – 140 °F) Humidity 90% or less (non‐condensing) Power Supply 12 V DC ± 10% (‐A series support 24 V AC ± 10%) Power Consumption Max. 2 W (‐A series support Max. 3 W) Dimension 69 x 56 x 113.3 mm (2.72” × 2.20” × 4.46”) Weight 400 g (0.88 lbs) Hangzhou Hikvision Digital Technology Co., Ltd. | Copyright ©...
Page 25
User Manual of Day/Night Box Camera Dimension Unit: mm Hangzhou Hikvision Digital Technology Co., Ltd. | Copyright ©...
Page 26
Internal synchronization Synchronization (‐A series support power synchronization) Video Output 1Vp‐p composite output (75 Ω/BNC) S/N Ratio More than 52 dB General Operating Conditions ‐10 °C – 60 °C (14 °F – 140 °F) Humidity 90% or less (non‐condensing) Power Supply 12 V DC ± 10% (‐A series support 24 V AC ± 10%) Power Consumption Max. 2 W (‐A series support Max. 3 W) Dimension 69 x 56 x 113.3 mm (2.72” × 2.20” × 4.46”) Weight 400 g (0.88 lbs) Hangzhou Hikvision Digital Technology Co., Ltd. | Copyright ©...
Page 27
User Manual of Day/Night Box Camera Dimension Unit: mm Hangzhou Hikvision Digital Technology Co., Ltd. | Copyright ©...
Page 28
User Manual of Day/Night Box Camera First Choice for Security Professionals Hangzhou Hikvision Digital Technology Co., Ltd. | Copyright ©...
