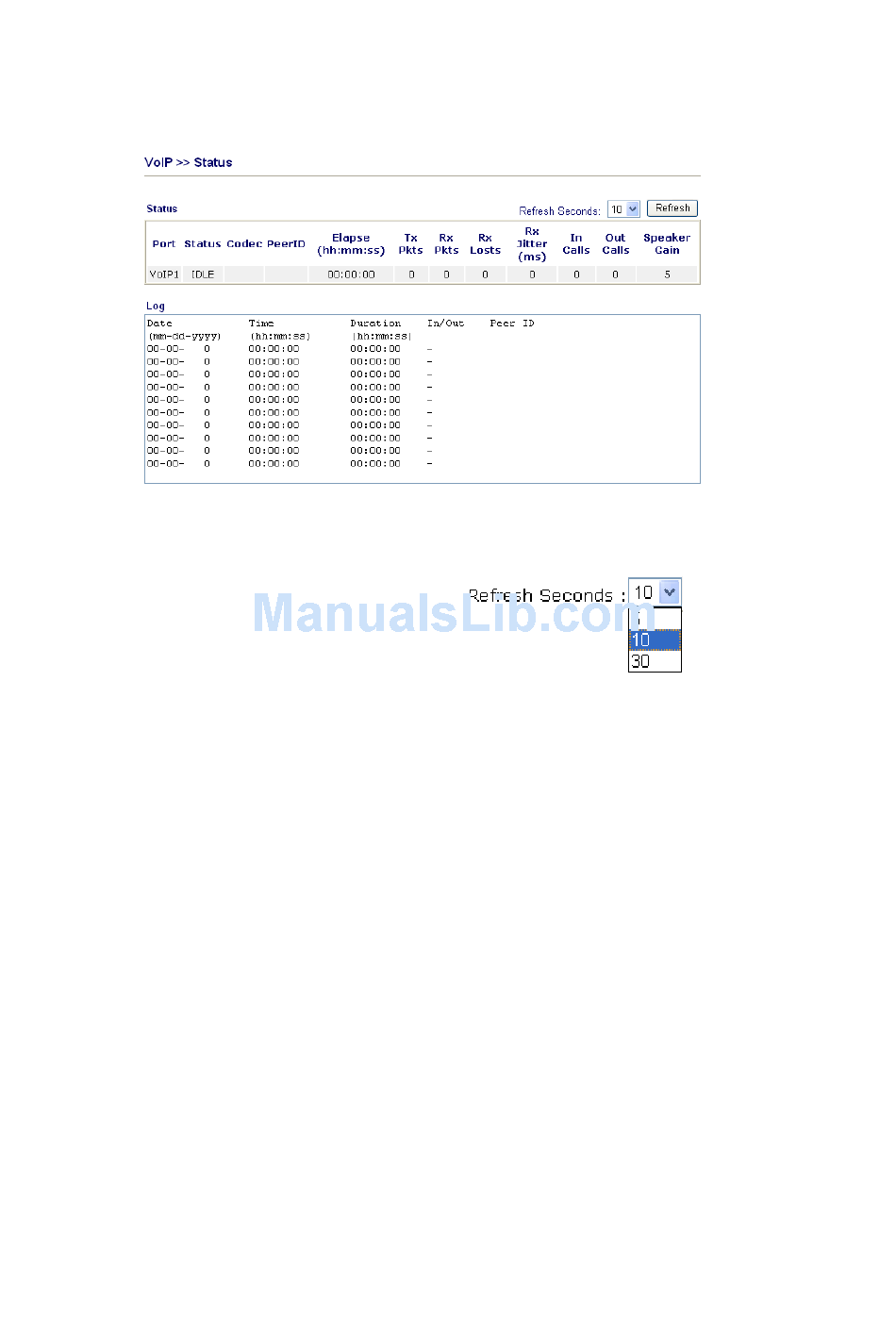

On VoIP call status, you can find codec, connection and other important call status for both
ports of VoIP 1 and 2.
Refresh Seconds
Port
Status
Codec
PeerID
Elapse
Tx Pkts
Rx Pkts
Rx Losts
Rx Jitter
In Calls
Out Calls
Vigor2100 Series User's Guide
Specify the interval of refresh time to obtain the latest VoIP calling
information. The information will update immediately when the
Refresh button is clicked.
It shows current connection status for the port of VoIP1.
It shows the VoIP connection status.
IDLE - Indicates that the VoIP function is idle.
HANG_UP - Indicates that the connection is not established (busy
tone).
CONNECTING - Indicates that the user is calling out.
WAIT_ANS - Indicates that a connection is launched and waiting
for remote user's answer.
ALERTING - Indicates that a call is coming.
ACTIVE-Indicates that the VoIP connection is launched.
Indicates the voice codec employed by present channel.
The present in-call or out-call peer ID (the format may be IP or
Domain).
Displays the duration of VoIP phone.
Total number of transmitted voice packets during this connection
session.
Total number of received voice packets during this connection
session.
Total number of lost packets during this connection session.
The jitter of received voice packets.
The accumulating times of in-call.
The accumulating times of out-call.
