Page 2 Vigor2760 Series User’s Guide...
Page 3 Vigor2760 Series VDSL2 Security Firewall User’s Guide Version: 1.02 Firmware Version: V3.7.5.1 (For future update, please visit DrayTek web site) Date: May 20, 2014 Vigor2760 Series User’s Guide...
Page 4 Web registration is preferred. You can register your Vigor router via Owner http://www.DrayTek.com. Firmware & Tools Due to the continuous evolution of DrayTek technology, all routers will be regularly Updates upgraded. Please consult the DrayTek web site for more information on newest firmware, tools and documents.
Page 5: Regulatory Information
Product: Vigor2760 Series Router DrayTek Corp. declares that Vigor2760 Series of routers are in compliance with the following essential requirements and other relevant provisions of R&TTE 1999/5/EC, ErP 2009/125/EC and RoHS 2011/65/EU The product conforms to the requirements of Electro-Magnetic Compatibility (EMC) Directive 2004/108/EC by complying with the requirements set forth in EN55022/Class B and EN55024/Class B.
Page 6 Vigor2760 Series User’s Guide...
Page 7: Table Of Contents
2.1.3 For WAN3 (USB) ......................50 2.2 Service Activation Wizard...................... 52 2.3 VPN Client Wizard ........................ 56 2.4 VPN Server Wizard ....................... 62 2.5 Wireless Wizard ........................67 2.6 VoIP Wizard........................... 70 2.7 Registering Vigor Router....................... 72 Vigor2760 Series User’s Guide...
Page 8 3.7.4 DNS Filter ........................219 3.7.5 APPE Support List ......................220 3.8 Bandwidth Management ..................... 221 3.8.1 Sessions Limit....................... 221 3.8.2 Bandwidth Limit ......................223 3.8.3 Quality of Service......................225 3.8.4 APP QoS ........................234 Vigor2760 Series User’s Guide viii...
Page 9 3.15.1 System Status......................325 3.15.2 TR-069 ........................327 3.15.3 Administrator Password....................328 3.15.4 User Password ......................329 3.15.5 Login Page Greeting....................331 3.15.6 Configuration Backup ....................333 3.15.7 Syslog/Mail Alert ......................335 3.15.8 Time and Date ......................338 Vigor2760 Series User’s Guide...
Page 10 5.2 Checking If the Network Connection Settings on Your Computer Is OK or Not ....412 5.3 Pinging the Router from Your Computer ................415 5.4 Checking If the ISP Settings are OK or Not ................ 416 5.5 Problems for 3G Network Connection ................416 Vigor2760 Series User’s Guide...
Page 11 5.6 Backing to Factory Default Setting If Necessary ..............417 5.7 Contacting DrayTek......................418 Vigor2760 Series User’s Guide...
Page 13: Introduction

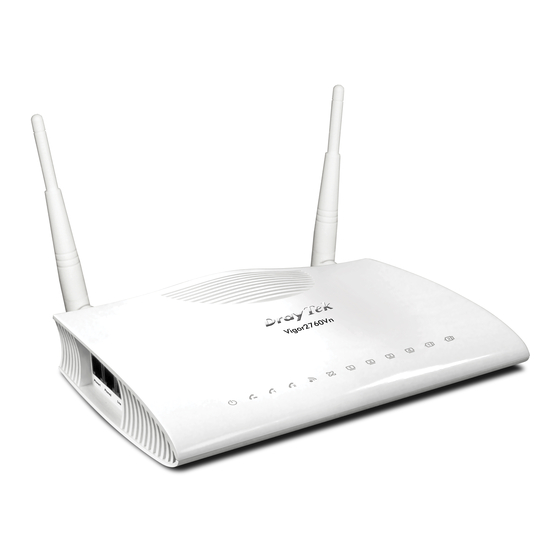

Vigor2760 series is a VDSL2 router. It integrates IP layer QoS, NAT session/bandwidth management to help users control works well with large bandwidth. With the development of NGN (Next Generation Network), you may recently hear the news about FTTx deployment in your local area or even have already subscribed the unbundling last mile service (e.g.
Page 14: Features
Network Feature  LAN Port Mirror  Bandwidth/Session Management  QoS by IP, Port, Applications  Dynamic DNS  LAN DNS  UPnP  IGMP proxy & snooping  Wake on LAN  Bonjour  Printer Sharing Vigor2760 Series User’s Guide...
Page 15 T.38 for fax Sending/Receiving  Supplemental Services :  Call Hold/Retrieve  Call Waiting  CLIR (Calling Line Identification Restriction)  Call Forwarding (Always, Busy and No Answer)  Call Barring (Incoming / Outgoing)  Hotline Vigor2760 Series User’s Guide...
Page 16: Package And Content
The type of the power adapter depends on the country that the router will be installed. * The maximum power consumption is 17-23 Watt. UK-type Power Adapter EU-type Power Adapter USA/Taiwan-type Power Adapter AU/NZ-type Power Adapter Vigor2760 Series User’s Guide...
Page 17: Led Indicators And Connectors
The DSL port is connected. Blinking The router is ready. DSL (Green) (Slowly) Blinking The connection is training. (Quickly) On (Green) The port is connected. Blinking The data is transmitting. LAN1/2/3/4 (Green) A USB device is connected and active. USB1/2 Vigor2760 Series User’s Guide...
Page 18 Then the router will restart with the factory default configuration. VDSL/ADSL Connector for accessing the Internet. USB (1-2) Connector for USB storage device (Pen Driver/Mobile HD) or printer or 3G backup. LAN (1-4) Connectors for local network devices. Vigor2760 Series User’s Guide...
Page 19: For Vigor2760N
The router is ready. DSL (Green) (Slowly) Blinking The router is trying to connect to Internet. (Quickly) The port is connected. Blinking The data is transmitting. LAN1/2/3/4 (Green) A USB device is connected and active. USB1/2 Vigor2760 Series User’s Guide...
Page 20 WLAN ON/OFF - Press the button once to enable (WLAN LED on) or disable (WLAN LED off) wireless connection. VDSL/ADSL Connector for accessing the Internet. USB (1-2) Connector for USB storage device (Pen Driver/Mobile HD) or printer or 3G backup. LAN (1-4) Connectors for local network devices. Vigor2760 Series User’s Guide...
Page 21: For Vigor2760Vn
The router is ready. DSL (Green) (Slowly) Blinking The router is trying to connect to Internet. (Quickly) The port is connected. Blinking The data is transmitting. LAN1/2/3/4 (Green) A USB device is connected and active. USB1/2 Vigor2760 Series User’s Guide...
Page 22 Connector for USB storage device (Pen Driver/Mobile HD) or printer or 3G backup. LAN (1-4) Connectors for local network devices. Interface Description LINE Connector for PSTN life line. Phone1/Phone2 Connector of analog phone for VoIP communication. Vigor2760 Series User’s Guide...
Page 23: Hardware Installation
Connect Phone port to a conventional analog telephone (for V model only). Connect detachable antennas to the router for Vigor2760 series (for n model only). Connect one end of the power cord to the power port of this device. Connect the other end to the wall outlet of electricity.
Page 24: Printer Installation
You can install a printer onto the router for sharing printing. All the PCs connected this router can print documents via the router. The example provided here is made based on Windows 7. For installation on other Windows systems, please visit www.DrayTek.com. Before using it, please follow the steps below to configure settings for connected computers (or wireless clients).
Page 25 A dialog will appear. Click Add a local printer and click Next. In this dialog, choose Create a new port. In the field of Type of port, use the drop down list to select Standard TCP/IP Port. Then, click Next. Vigor2760 Series User’s Guide...
Page 26 In the following dialog, type 192.168.1.1 (router’s LAN IP) in the field of Hostname or IP Address and type 192.168.1.1 as the Port name. Then, click Next. Click Standard and choose Generic Network Card. Vigor2760 Series User’s Guide...
Page 27 Now, your system will ask you to choose right name of the printer that you installed onto the router. Such step can make correct driver loaded onto your PC. When you finish the selection, click Next. Type a name for the chosen printer. Click Next. Vigor2760 Series User’s Guide...
Page 28 10. Choose Do not share this printer and click Next. 11. Then, in the following dialog, click Finish. Vigor2760 Series User’s Guide...
Page 29 12. The new printer has been added and displayed under Printers and Faxes. Click the new printer icon and click Printer server properties. 13. Edit the property of the new printer you have added by clicking Configure Port. Vigor2760 Series User’s Guide...
Page 30 14. Select "LPR" on Protocol, type p1 (number 1) as Queue Name. Then click OK. Next please refer to the red rectangle for choosing the correct protocol and LPR name. The printer can be used for printing now. Most of the printers with different manufacturers are compatible with vigor router. Vigor2760 Series User’s Guide...
Page 31 Note 1: Some printers with the fax/scanning or other additional functions are not supported. If you do not know whether your printer is supported or not, please visit www.draytek.com to find out the printer list. Open Support >FAQ/Application Notes; find out the link of USB>>Printer Server and click it.
Page 32: Accessing Web Page
Please type “admin/admin” as the Username/Password and click Login. Notice: If you fail to access to the web configuration, please go to “Trouble Shooting” for detecting and solving your problem. Vigor2760 Series User’s Guide...
Page 33: Changing Password
Open a web browser on your PC and type http://192.168.1.1. A pop-up window will open to ask for username and password. Please type “admin/admin” as Username/Password for accessing into the web user interface with admin mode. Go to System Maintenance page and choose Administrator Password. Vigor2760 Series User’s Guide...
Page 34: Introducing Dashboard
“admin”. Dashboard shows the connection status including System Information, IPv4 Internet Access, IPv6 Internet Access, Interface (physical connection), Security and Quick Access. Click Dashboard from the main menu on the left side of the main page. Vigor2760 Series User’s Guide...
Page 35: Virtual Panel
LED display, refer to 1.2 LED Indicators and Connectors. A name with a link (e.g., Router Name, Current Time, WAN1 and etc.) below means you can click it to open the configuration page for modification. Vigor2760 Series User’s Guide...
Page 36: Quick Access For Common Used Menu
All of the hosts (including wireless clients) displayed with Host ID, IP Address and MAC address indicates that the traffic would be transmitted through LAN port(s) and then the WAN port. The purpose is to perform the traffic monitor of the host(s). Vigor2760 Series User’s Guide...
Page 37: Gui Map
All the functions the router supports are listed with table clearly in this page. Users can click the function link to access into the setting page of the function for detailed configuration. Click the icon on the top of the main screen to display all the functions. Vigor2760 Series User’s Guide...
Page 38: Web Console
The functions/settings modified under Web Console also can be reviewed on the web user interface. Click the Web Console icon on the top of the main screen to open the following screen. Vigor2760 Series User’s Guide...
Page 39: Config Backup
Simply click the icon on the top of the main screen and a pop up dialog will appear. Click Save to store the setting. Click this icon to exit the web user interface. Such page displays the physical connection status such as LAN connection status, WAN connection status, ADSL information, and so on. Vigor2760 Series User’s Guide...
Page 40 Note: If the firmware which supports Vectoring has been installed to your Vigor router, you will see a short message of “with Vectoring support” near to VDLS2 Information. Such feature is available for VDSL2 only. Vigor2760 Series User’s Guide...
Page 41 RX Packets - Displays the total number of received packets at the WAN interface. RX Rate - Displays the speed of received octets at the WAN interface. Detailed explanation (for IPv6) is shown below: Item Description Vigor2760 Series User’s Guide...
Page 42: Virtual Wan
Internet. Such page displays the virtual WAN connection information. Virtual WAN are used by TR-069 management, VoIP service and so on. The field of Application will list the purpose of such WAN connection. Vigor2760 Series User’s Guide...
Page 43: Saving Configuration
Each time you click OK on the web page for saving the configuration, you can find messages showing the system interaction with you. Ready indicates the system is ready for you to input settings. Settings Saved means your settings are saved once you click Finish or OK button. Vigor2760 Series User’s Guide...
Page 44 This page is left blank. Vigor2760 Series User’s Guide...
Page 45: Quick Setup
VoIP Wizard – used for establishing VoIP profile. Quick Start Wizard can help you to deploy and use the router easily and quickly. The first screen of Quick Start Wizard is entering login password. After typing the password, please click Next. Vigor2760 Series User’s Guide...
Page 46 WAN1; if Ethernet interface is used, please choose WAN2; if 3G USB modem is used, please choose WAN3. Then click Next for next step. WAN1, WAN2, and WAN3 will bring up different configuration page. Refer to the following sections for detailed information. Vigor2760 Series User’s Guide...
Page 47: For Wan1 (Adsl/Vdsl2)
ISP. For example, you should select PPPoE mode if the ISP provides you PPPoE interface. In addition, the field of For ADSL Only will be available only when ADSL is detected. Then click Next for next step. Vigor2760 Series User’s Guide...
Page 48 Type the IP address if Fixed IP is enabled. Primary DNS Type in the primary IP address for the router. Secondary DNS Type in secondary IP address for necessity in the future. Back Click it to return to previous setting page. Vigor2760 Series User’s Guide...
Page 49 Note: The maximum length of the password you can set is 62 characters. Confirm Password Retype the password. Click it to return to previous setting page. Back Next Click it to get into the next setting page. Cancel Click it to give up the quick start wizard. Vigor2760 Series User’s Guide...
Page 50 After finished the above settings, click Next for viewing summary of such connection. Click Finish. A page of Quick Start Wizard Setup OK!!! will appear. Then, the system status of this protocol will be shown. Now, you can enjoy surfing on the Internet. Vigor2760 Series User’s Guide...
Page 51 VPI and VCI. Or, click Auto detect to find out the best values. Fixed IP Click Yes to enable Fixed IP feature. Type the IP address if Fixed IP is enabled. IP Address Subnet Mask Type the subnet mask. Vigor2760 Series User’s Guide...
Page 52 Then click Next for viewing summary of such connection. Click Finish. A page of Quick Start Wizard Setup OK!!! will appear. Then, the system status of this protocol will be shown. Now, you can enjoy surfing on the Internet. Vigor2760 Series User’s Guide...
Page 53: For Wan2 (Ethernet)
On the next page as shown below, please select the appropriate Internet access type according to the information from your ISP. For example, you should select PPPoE mode if the ISP provides you PPPoE interface. Then click Next for next step. Vigor2760 Series User’s Guide...
Page 54 Note: The maximum length of the user name you can set is 63 characters. Password Assign a valid password provided by the ISP. Note: The maximum length of the password you can set is 62 characters. Vigor2760 Series User’s Guide...
Page 55 Please manually enter the Username/Password provided by your ISP. Click Next for viewing summary of such connection. Click Finish. A page of Quick Start Wizard Setup OK!!! will appear. Then, the system status of this protocol will be shown. Now, you can enjoy surfing on the Internet. Vigor2760 Series User’s Guide...
Page 56 Note: The maximum length of the user name you can set is 63 characters. Assign a valid password provided by the ISP. Password Note: The maximum length of the password you can set is 62 characters. Vigor2760 Series User’s Guide...
Page 57 Then click Next for viewing summary of such connection. Click Finish. A page of Quick Start Wizard Setup OK!!! will appear. Then, the system status of this protocol will be shown. Now, you can enjoy surfing on the Internet. Vigor2760 Series User’s Guide...
Page 58 Type the IP address of gateway. Type in the primary IP address for the router. Primary DNS Secondary DNS Type in secondary IP address for necessity in the future. Back Click it to return to previous setting page. Vigor2760 Series User’s Guide...
Page 59 Please type in the IP address information originally provided by your ISP. Then click Next for next step. Click Finish. A page of Quick Start Wizard Setup OK!!! will appear. Then, the system status of this protocol will be shown. Now, you can enjoy surfing on the Internet. Vigor2760 Series User’s Guide...
Page 60 Choose WAN2 as WAN Interface and click the Next button. The following page will be open for you to specify Internet Access Type. Click DHCP as the Internet Access type. Simply click Next to continue. Vigor2760 Series User’s Guide...
Page 61 After finished the settings above, click Next for viewing summary of such connection. Click Finish. A page of Quick Start Wizard Setup OK!!! will appear. Then, the system status of this protocol will be shown. Now, you can enjoy surfing on the Internet. Vigor2760 Series User’s Guide...
Page 62: For Wan3 (Usb)
SIM Pin code –Type PIN code of the SIM card that will be 3G/4G USB Modem (PPP mode) used to access Internet. The maximum length of the pin code you can set is 15 characters. Modem Initial String – Such value is used to initialize USB Vigor2760 Series User’s Guide...
Page 63 Then, click Next for viewing summary of such connection. Click Finish. A page of Quick Start Wizard Setup OK!!! will appear. Then, the system status of this protocol will be shown. Now, you can enjoy surfing on the Internet. Vigor2760 Series User’s Guide...
Page 64: Service Activation Wizard
Service Activation Wizard is a tool which allows you to use trial version or update the license of WCF directly without accessing into the server (MyVigor) located on http://myvigor.draytek.com. For using Web Content Filter Profile, please refer to later section Web Content Filter Profile for detailed information.
Page 65 When you finish the selection, please click Next. Commtouch is the web content filter based on Commtouch operated in the worldwide. There is a 30-day trial period. After trial, you can purchase DrayTek's prepared Commtouch GlobalView WCF package from retailing outlets.
Page 66 Later, if you need to extend the license valid time for the same service, you can also use the Service Activation Wizard again to reach your goal by clicking the radio button of Formal edition with license key and clicking Next. Vigor2760 Series User’s Guide...
Page 67 Vigor2760 Series User’s Guide...
Page 68: Vpn Client Wizard
Route Mode/NAT Mode – If the remote network only allows you to dial in with single IP, please choose this mode, otherwise please choose Route Mode. Please choose a There are 32 VPN profiles for users to set. LAN-to-LAN Profile Vigor2760 Series User’s Guide...
Page 69 In this page, you have to select suitable VPN type for the VPN client profile. There are six types provided here. Different type will lead to different configuration page. After making the choices for the client profile, please click Next. You will see different configurations based on the selection(s) you made. Vigor2760 Series User’s Guide...
Page 70 Note: The following descriptions for VPN Type are based on the Route Mode specified in LAN-to-LAN Client Mode Selection.  When you choose PPTP (None Encryption) or PPTP (Encryption), you will see the following graphic:  When you choose IPsec, you will see the following graphic: Vigor2760 Series User’s Guide...
Page 71 When you choose L2TP over IPsec (Nice to Have) or L2TP over IPsec (Must), you will see the following graphic: Available settings are explained as follows: Item Description Profile Name Type a name for such profile. The length of the file is limited to 10 characters. Vigor2760 Series User’s Guide...
Page 72 3. After finishing the configuration, please click Next. The confirmation page will be shown as follows. If there is no problem, you can click one of the radio buttons listed on the page and click Finish to execute the next action. Vigor2760 Series User’s Guide...
Page 73 Click this radio button to set another profile of VPN Server Server Wizard Setup through VPN Server Wizard. View more detailed Click this radio button to access VPN and Remote configuration Access>>LAN to LAN for viewing detailed configuration. Vigor2760 Series User’s Guide...
Page 74: Vpn Server Wizard
VPN connection. Please choose a This item is available when you choose Site to Site VPN LAN-to-LAN Profile (LAN-to-LAN) as VPN server mode. There are 32 VPN profiles for users to set. Vigor2760 Series User’s Guide...
Page 75 2. After making the choices for the server profile, please click Next. You will see different configurations based on the selection you made. Here we take the examples of choosing Site-to-Site VPN as the VPN Server Mode. Vigor2760 Series User’s Guide...
Page 76 When you check PPTP, you will see the following graphic:  When you check PPTP & IPsec & L2TP (three types) or PPTP & IPsec (two types) or L2TP with Policy (Nice to Have/Must), you will see the following graphic: Vigor2760 Series User’s Guide...
Page 77 Peer IP/VPN Client Type the WAN IP address or VPN client IP address for the remote client. Peer ID Type the ID name for the remote client. The length of the name is limited to 47 characters. Vigor2760 Series User’s Guide...
Page 78 Click this radio button to set another profile of VPN Server Server Wizard Setup through VPN Server Wizard. View more detailed Click this radio button to access VPN and Remote configuration Access>>LAN to LAN for viewing detailed configuration. Vigor2760 Series User’s Guide...
Page 79: Wireless Wizard
Description Name Type the SSID name of this router. The default name is defined with DrayTek. Change the name if required. Mode At present, the router can connect to 11b Only, 11n Only, 11g Only, Mixed (11b+11g), Mixed (11g+11n), and Mixed (11b+11g+11n) stations simultaneously.
Page 80 (guest) accessing into Internet but not being allowed to share the LAN network and VPN connection. Available settings are explained as follows: Item Description Click it to enable or disable settings in this page. Enable/Disable Name Type the SSID name of this router. (SSID1) Vigor2760 Series User’s Guide...
Page 81 Exit the wireless wizard without saving any changes. 4. After typing the required information, click Next. 5. The following page will display the configuration summary for wireless setting. 6. Click Finish to complete the wireless settings configuration. Vigor2760 Series User’s Guide...
Page 82: Voip Wizard
Password – Type the password for the account registered to your ISP. Use the same Account as phone 1 – If you don’t need to configure Phone 2 settings, simply check this box. Next Click it to get into the next setting page. Vigor2760 Series User’s Guide...
Page 83 Cancel Click it to give up the quick start wizard. 3. After finished the settings above, click Next for viewing summary of such connection. 4. Click Finish. A page of VoIP Wizard Setup OK!!! will appear. Vigor2760 Series User’s Guide...
Page 84: Registering Vigor Router
Please login the web configuration interface of Vigor router by typing “admin/admin” as User Name / Password. Click Support Area>>Production Registration from the home page. A Login page will be shown on the screen. Please type the account and password that you created previously. And click Login. Vigor2760 Series User’s Guide...
Page 85 (it appears when you click on the box of Registration Date). After adding the basic information for the router, please click Submit. When the following page appears, your router information has been added to the database. Now, you have finished the product registration. Vigor2760 Series User’s Guide...
Page 86 From the Device’s Service section, click the Trial. In the following page, check the box of “I have read and accept the above Agreement”. The system will find out the date for you to activate this version of service. Then, click Next. Vigor2760 Series User’s Guide...
Page 87 When this page appears, click Register. Wait for a moment until the following page appears. Click Close. Vigor2760 Series User’s Guide...
Page 88 This page is left blank. Vigor2760 Series User’s Guide...
Page 89: Advanced Configuration
These are known as private IP addresses, and are listed in the following ranges: From 10.0.0.0 to 10.255.255.255 From 172.16.0.0 to 172.31.255.255 From 192.168.0.0 to 192.168.255.255 Vigor2760 Series User’s Guide...
Page 90 Besides, 3G USB Modem in WAN3 also can be used as backup device. Therefore, when WAN1 and WAN2 are not available, the router will use 3.5G for supporting automatically. The supported 3G USB Modem will be listed on DrayTek web site. Please visit www.draytek.com for more detailed information.
Page 91: General Setup
V means such WAN interface is enabled and ready to be used. Physical Mode / Type Display the physical mode and physical type of such WAN interface. Note: In default, each WAN port is enabled. After finished the above settings, click OK to save the settings. Vigor2760 Series User’s Guide...
Page 92 Physical Type For such interface, no type can be selected. DSL Modem Code Choose the correct DSL modem code for ensuring the network connection. If you have no idea about the selection, simply choose Vigor2760 Series User’s Guide...
Page 93 Tag value – Type the value as the VLAN ID number. The range is form 0 to 4095. Priority – Type the packet priority number for such VLAN. The range is from 0 to 7. After finished the above settings, click OK to save the settings. Vigor2760 Series User’s Guide...
Page 94 You can change the physical type for WAN2 or choose Auto negotiation for determined by the system. VLAN Tag insertion Enable – Enable the function of VLAN with tag. The router will add specific VLAN number to all packets on Vigor2760 Series User’s Guide...
Page 95 Choose No to disable the settings for this WAN interface. Display Name Type the description for such WAN interface. Physical Mode Display the physical mode of such WAN interface. After finished the above settings, click OK to save the settings. Vigor2760 Series User’s Guide...
Page 96: Internet Access
Physical Mode It shows the physical connection for WAN1(ADSL/VDSL2) /WAN2 (Ethernet) /WAN3 (3G/4G USB Modem) according to the real network connection. Access Mode Use the drop down list to choose a proper access mode. The Vigor2760 Series User’s Guide...
Page 97 Option Number – Type a number for such function. Note If you choose to configure option 61 here, the detailed settings in WAN>>Interface Access will be overwritten. DataType – Choose the type (ASCII or Hex) for the data to be stored. Vigor2760 Series User’s Guide...
Page 98 Such function allows you to verify whether network Detection connection is alive or not through ARP Detect or Ping Detect. Mode – Choose ARP Detect or Ping Detect for the system to execute for WAN detection. Vigor2760 Series User’s Guide...
Page 99 Default MAC Address – You can use Default MAC Address or specify another MAC address by typing on the boxes of MAC Address for the router. Specify a MAC Address – Type the MAC address for the router manually. Vigor2760 Series User’s Guide...
Page 100 TTL (Time to Live) – Displays value for your reference. TTL value is set by telnet command. RIP Protocol Routing Information Protocol is abbreviated as RIP （RFC1058）specifying how routers exchange routing tables information. Click Enable RIP for activating this function. Vigor2760 Series User’s Guide...
Page 101 Specify a MAC Address – Type in the MAC address for the router manually. DNS Server IP Address Type in the primary IP address for the router. If necessary, type in secondary IP address for necessity in the future. Vigor2760 Series User’s Guide...
Page 102 All the schedules can be set previously in Application >> Schedule web page and you can use the number that you have set in that web page. It means Max Transmit Unit for packet. The default setting Vigor2760 Series User’s Guide...
Page 103 Specify an IP address – Click this radio button to specify some data.  IP Address – Type the IP address.  Subnet Mask – Type the subnet mask. After finishing all the settings here, please click OK to activate them. Vigor2760 Series User’s Guide...
Page 104 Protocol - Drop down the list to choose the one (PPPoE or PPPoA) provided by ISP. If you have already used Quick Start Wizard to set the protocol, then it is not necessary for you to change any settings in this group. Vigor2760 Series User’s Guide...
Page 105 Username – Type in the username provided by ISP in this field. Password – Type in the password provided by ISP in this field. Separate Account for ADSL – In default, WAN1 supports VDSL2/ADSL and uses the same PPPoE account and Vigor2760 Series User’s Guide...
Page 106 All the schedules can be set previously in Applications >> Schedule web page and you can use the number that you have set in that web page. After finishing all the settings here, please click OK to activate them. Vigor2760 Series User’s Guide...
Page 107 Multi-PVC channel - The selections displayed here are determined by the page of Internet Access >>Multi PVCs. Select M-PVCs Channel means no selection will be chosen. Encapsulating - Drop down the list to choose the type provided by ISP. Vigor2760 Series User’s Guide...
Page 108 WAN IP Alias. You can set up to 8 public IP addresses other than the current one you are using. Notice that this setting is available for WAN1 only. Type the additional WAN IP address and check the Enable box. Then click OK to exit the dialog. Vigor2760 Series User’s Guide...
Page 109 Type in the primary IP address for the router. If necessary, DNS Server IP Address type in secondary IP address for necessity in the future. After finishing all the settings here, please click OK to activate them. Vigor2760 Series User’s Guide...
Page 110 WAN Connection Such function allows you to verify whether network Detection connection is alive or not through ARP Detect or Ping Detect. Mode – Choose ARP Detect or Ping Detect for the system Vigor2760 Series User’s Guide...
Page 111 Default MAC Address – You can use Default MAC Address or specify another MAC address by typing on the boxes of MAC Address for the router. Specify a MAC Address – Type the MAC address for the Vigor2760 Series User’s Guide...
Page 112 Keep WAN Connection Normally, this function is designed for Dynamic IP environments because some ISPs will drop connections if there is no traffic within certain periods of time. Check Vigor2760 Series User’s Guide...
Page 113 WAN IP Alias. You can set up to 8 public IP addresses other than the current one you are using. Obtain an IP address automatically – Click this button to obtain the IP address automatically if you want to use Vigor2760 Series User’s Guide...
Page 114 Type in the primary IP address for the router if you want to use Static IP mode. If necessary, type in secondary IP address for necessity in the future. After finishing all the settings here, please click OK to activate them. Vigor2760 Series User’s Guide...
Page 115 It means Max Transmit Unit for packet. The default setting is 1460. PPP Setup PPP Authentication - Select PAP only or PAP or CHAP Vigor2760 Series User’s Guide...
Page 116 Specify an IP address – Click this radio button to specify some data.  IP Address – Type the IP address.  Subnet Mask – Type the subnet mask. After finishing all the settings here, please click OK to activate them. Vigor2760 Series User’s Guide...
Page 117 Modem Initial String Such value is used to initialize USB modem. Please use the default value. If you have any question, please contact to your ISP. The maximum length of the string you can set is 47 Vigor2760 Series User’s Guide...
Page 118 IP address in this field for pinging. TTL (Time to Live) – Displays value for your reference. TTL value is set by telnet command. After finishing all the settings here, please click OK to activate them. Vigor2760 Series User’s Guide...
Page 119 APN Name APN means Access Point Name which is provided and required by some ISPs. Type the name and click Apply. The maximum length of the name you can set is 47 characters. Vigor2760 Series User’s Guide...
Page 120 PCs under LAN also can have the public IPv6 address for Internet access by means of the generated prefix. No need to type any other information for PPP mode. Below shows an example for successful IPv6 connection based on PPP mode. Vigor2760 Series User’s Guide...
Page 121 After getting the IPv6 prefix and starting router advertisement daemon (RADVD), the PC behind this router can directly connect to IPv6 the Internet. Available settings are explained as follows: Vigor2760 Series User’s Guide...
Page 122 The maximum length of the name you can set is 19 characters. Password Type the password assigned with the user name. The maximum length of the password you can set is 19 characters. Vigor2760 Series User’s Guide...
Page 123 Available settings are explained as follows: Item Description Identify Association Choose Prefix Delegation or Non-temporary Address as the identify association. Type a number as IAID. IAID After finished the above settings, click OK to save the settings. Vigor2760 Series User’s Guide...
Page 124 Delete – Click it to remove an existed entry. Current IPv6 Address Display current interface IPv6 address. Table Static IPv6 Gateway IPv6 Gateway Address - Type your IPv6 gateway address Configuration here. After finished the above settings, click OK to save the settings. Vigor2760 Series User’s Guide...
Page 125 Type the static IPv6 address for LAN routing with the value for prefix length. Type the number for the data lifetime in tunnel. Tunnel TTL After finished the above settings, click OK to save the settings. Vigor2760 Series User’s Guide...
Page 126 Type the IPv4 addresses of the 6rd Border Relay for a given 6rd domain. IPv4 Mask Length Type a number of high-order bits that are identical across all CE IPv4 addresses within a given 6rd domain. It may be any value between 0 and 32. Vigor2760 Series User’s Guide...
Page 127 Type the IPv6 prefix length for the 6rd IPv6 prefix in number of bits. After finished the above settings, click OK to save the settings. Below shows an example for successful IPv6 connection based on 6rd mode. Vigor2760 Series User’s Guide...
Page 128: Multi-Pvc
WAN type may not configure the same VLAN tag value. Enable - Check this box to enable the port-based bridge function on this channel. P1 ~ P4 – Check the box(es) to build bridge connection on LAN. Vigor2760 Series User’s Guide...
Page 129 VLAN Tags. Channels using the same WAN type may not configure the same VLAN tag value. Priority – Choose the number to determine the packet Vigor2760 Series User’s Guide...
Page 130 WAN links for Channel 4, 5 and 6 are provided for router-borne application such as TR-069. The settings must be applied and obtained from your ISP. For your special request, please contact with your ISP and then click WAN link of Channel 4, 5 and 6 to configure your router. Vigor2760 Series User’s Guide...
Page 131 Multi-VLAN Channel Enable – Click it to enable the configuration of this 4/5/6 channel. Disable –Click it to disable the configuration of this channel. General Settings VPI - Type in the value provided by your ISP. Vigor2760 Series User’s Guide...
Page 132 Password – Type in the password provided by ISP in this field. The maximum length of the password you can set is 48 characters. PPP Authentication – Select PAP only or PAP or CHAP for PPP. Always On – Check it to keep the network connection Vigor2760 Series User’s Guide...
Page 133 Such configuration is applied to upstream packets. Such information will be provided by ISP. Please contact with your ISP for detailed information. Note that such web page is available only when ADSL is selected as WAN type. Vigor2760 Series User’s Guide...
Page 134: Lan
IP address to private IP address to forward the right packets to the right host and vice versa. Besides, Vigor router has a built-in DHCP server that assigns private IP address to each local host. See the following diagram for a briefly understanding. Vigor2760 Series User’s Guide...
Page 135 When you have several subnets in your LAN, sometimes a more effective and quicker way for connection is the Static routes function rather than other method. You may simply set rules to forward data from one specified subnet to another specified subnet without the presence of RIP. Vigor2760 Series User’s Guide...
Page 136: General Setup
LAN must be configured in different subnet. IPv6 – Click it to access into the settings page of IPv6. Advanced DHCP packets can be processed by adding option number and data information when such function is enabled. Vigor2760 Series User’s Guide...
Page 137 Internet Access server (PPPoE, PPTP, L2TP or DHCP server). Inter-LAN Routing Check the box to link two or more different subnets (LAN and LAN). When you finish the configuration, please click OK to save and exit this page. Vigor2760 Series User’s Guide...
Page 138 LAN. Disable Server – Let you manually assign IP address to every host in the LAN. Enable Relay Agent –Specify which subnet that DHCP server is located the relay agent should redirect the DHCP Vigor2760 Series User’s Guide...
Page 139 DNS Server. If your ISP does not provide it, the router will automatically apply default secondary DNS Server IP address: 194.98.0.1 to this field. The default DNS Server IP address can be found via Online Status: Vigor2760 Series User’s Guide...
Page 140 IPv4) and IPv6 Setup. Click the tab for each type and refer to the following explanations for detailed information. Below shows the settings page for IPv6. It provides 2 daemons for LAN side IPv6 address configuration. One is RADVD(stateless) and the other is DHCPv6 Server (Stateful). Available settings are explained as follows: Vigor2760 Series User’s Guide...
Page 141 Add – Click it to add a new entry. Delete – Click it to remove an existed entry. Current IPv6 Address Display current used IPv6 addresses. Table When you finish the configuration, please click OK to save and exit this page. Vigor2760 Series User’s Guide...
Page 142 Vigor Router’s, you can let Relay Agent help you to redirect the DHCP request to the specified location. DHCP Server IP Address – It is available when Enable Relay Agent is checked. Set the IP address of the DHCP Vigor2760 Series User’s Guide...
Page 143 DNS Server IP address: 194.98.0.1 to this field. The default DNS Server IP address can be found via Online Status: If both the Primary IP and Secondary IP Address fields are Vigor2760 Series User’s Guide...
Page 144 (Default) Enable – activate the RIP protocol. DHCP Server DHCP stands for Dynamic Host Configuration Protocol. Configuration The router by factory default acts a DHCP server for your Vigor2760 Series User’s Guide...
Page 145 Edit – Click it to edit the selected MAC address. Cancel – Click it to cancel the job of adding, deleting and editing. When you finish the configuration, please click OK to save and exit this page. Vigor2760 Series User’s Guide...
Page 146: Static Route
Displays the destination address of the static route. Status Displays the status of the static route. Set to Factory Default Clear all of the settings and return to factory default settings. Displays the routing table for your reference. Viewing Routing Table Vigor2760 Series User’s Guide...
Page 147 1st subnet (192.168.1.0/24). The second is that those hosts on the internal private subnets (ex. 192.168.10.0/24) can access the Internet via the router, and continuously exchange of IP routing information with different subnets. Vigor2760 Series User’s Guide...
Page 148 Use the drop down list to specify an interface for such static route. Return to Static Route Setup page. Click on another Index Number to add another static route as show below, which regulates all packets destined to 211.100.88.0 will be forwarded to 192.168.1.3. Click OK. Vigor2760 Series User’s Guide...
Page 149 Set to Factory Default Clear all of the settings and return to factory default settings. Viewing IPv6 Routing Displays the routing table for your reference. Table Click any underline of index number to get the following page. Vigor2760 Series User’s Guide...
Page 150 Type the gateway address for this entry. Network Interface Use the drop down list to specify an interface for this static route. When you finish the configuration, please click OK to save and exit this page. Vigor2760 Series User’s Guide...
Page 151: Vlan
Choose one of them to make the selected VLAN mapping to the specified subnet only. For example, LAN1 is specified for VLAN0. It means that PCs grouped under VLAN0 can get the IP address(es) that specified by the subnet. Vigor2760 Series User’s Guide...
Page 152 Note: Leave one VLAN untagged at least to prevent from not connecting to Vigor router due to unexpected error. Vigor2760 series features a hugely flexible VLAN system. In its simplest form, each of the Gigabit LAN ports can be isolated from each other, for example to feed different companies or departments but keeping their local traffic completely separated.
Page 153 Vigor router supports up to six private IP subnets on LAN. Each can be independent (isolated) or common (able to communicate with each other). This is ideal for departmental or multi-occupancy applications. Vigor2760 Series User’s Guide...
Page 154: Bind Ip To Mac
Each pair of IP and MAC address listed in ARP table can be selected and added to IP Bind List by clicking Add below Click this link to select all the items in the ARP table. Select All Sort Reorder the table based on the IP address. Vigor2760 Series User’s Guide...
Page 155 Note: Before you select Strict Bind, you have to bind one set of IP/MAC address for one PC. If not, no one of the PCs can access into Internet. And the web user interface of the router might not be accessed. When you finish the configuration, click OK to save the settings. Vigor2760 Series User’s Guide...
Page 156: Lan Port Mirror
Mirror Port Select a port to view traffic sent from mirrored ports. Mirrored Port Select which ports are necessary to be mirrored. After finishing all the settings here, please click OK to save the configuration. Vigor2760 Series User’s Guide...
Page 157: Web Portal Setup
Display the applied interfaced of the profile. Preview Open a preview window according to the configured settings. To configure the profile, click any index number link to open the following page. Available settings are explained as follows: Vigor2760 Series User’s Guide...
Page 158: Route Policy
"policies" are defined first. Then, if there comes a packet that matches any one of the "policies", it will be directed to the specified interface. Available settings are explained as follows: Item Description Index Click the number of index to access into the configuration web page. Vigor2760 Series User’s Guide...
Page 159 WAN interface. Src IP End - Type the source IP end for the specified WAN interface. If this field is blank, it means that all the source IPs inside the LAN will be passed through the WAN Vigor2760 Series User’s Guide...
Page 160 4. After specifying the interface, click Next to get the following page. Available settings are explained as follows: Item Description It determines which mechanism that the router will use to Force NAT /Force Routing forward the packet to WAN. Vigor2760 Series User’s Guide...
Page 161 5. After choosing the mechanism, click Next to get the summary page for reference. 6. If there is no error, click Finish to complete wizard setting. Vigor2760 Series User’s Guide...
Page 162 Src IP End - Type the source IP end for the specified WAN interface. If this field is blank, it means that all the source IPs inside the LAN will be passed through the WAN interface. Vigor2760 Series User’s Guide...
Page 163 WAN automatically when the selected WAN interface is down. Packet Forwarding to WAN via – Choose Force NAT or Force Routing. When you finish the configuration, please click OK to save and exit this page. Vigor2760 Series User’s Guide...
Page 164: Nat
IP address/port, the goal of Port Redirection function is to forward all access request with public IP address from external users to the mapping private IP address/port of the server. Vigor2760 Series User’s Guide...
Page 165 Each item is explained as follows: Item Description Index Display the number of the profile. Service Name Display the description of the specific network service. WAN Interface Display the WAN IP address used by the profile. Vigor2760 Series User’s Guide...
Page 166 Private IP and Port of the internal host. If you choose Range as the port redirection mode, you will see two boxes on this field. Simply type the required number on the first box. The second one will be assigned automatically later. Vigor2760 Series User’s Guide...
Page 167 80 to avoid conflict, such as 8080. This can be set in the System Maintenance >>Management Setup. You then will access the admin screen of by suffixing the IP address with 8080, e.g., http://192.168.1.1:8080 instead of port 80. Vigor2760 Series User’s Guide...
Page 168: Dmz Host
Click DMZ Host to open the following page. You can set different DMZ host for each WAN interface. Click the WAN tab to switch into the configuration page for that WAN. Vigor2760 Series User’s Guide...
Page 169 IP address will be shown on the following screen. Click OK to save the setting. DMZ Host for WAN2, or WAN3 is slightly different with WAN1. Active True IP selection is available for WAN1 only. See the following figure. Vigor2760 Series User’s Guide...
Page 170 When you have selected one private IP from the above dialog, the IP address will be shown on the screen. Click OK to save the setting. After finishing all the settings here, please click OK to save the configuration. Vigor2760 Series User’s Guide...
Page 171: Open Ports
Local IP Address Display the private IP address of the local host offering the service. Status Display the state for the corresponding entry. X or V is to represent the Inactive or Active state. Vigor2760 Series User’s Guide...
Page 172 Specify the transport layer protocol. It could be TCP, UDP, or ----- (none) for selection. Start Port Specify the starting port number of the service offered by the local host. End Port Specify the ending port number of the service offered by the local host. Vigor2760 Series User’s Guide...
Page 173: Port Triggering
The duration that these ports are opened depends on the type of protocol used. The "default" durations are shown below and these duration values can be modified via telnet commands. TCP: 86400 sec. UDP: 180 sec. IGMP: 10 sec. TCP WWW: 60 sec. TCP SYN: 60 sec. Vigor2760 Series User’s Guide...
Page 174 Available settings are explained as follows: Item Description Enable Check to enable this entry. Choose the predefined service to apply for such trigger Service profile. Comment Type the text to memorize the application of this rule. Vigor2760 Series User’s Guide...
Page 175 (TCP, UDP or TCP/UDP) for the incoming data of such triggering profile. Incoming Port Type the port or port range for the incoming packets. After finishing all the settings here, please click OK to save the configuration. Vigor2760 Series User’s Guide...
Page 176: Firewall
It will check packets according to the filter rules. If legal, the packet will pass the router. The following illustrations are flow charts explaining how router will treat incoming traffic and outgoing traffic respectively. Vigor2760 Series User’s Guide...
Page 177 4. Port Scan attack 12. Tear drop attack 5. IP options 13. Ping of Death attack 6. Land attack 14. ICMP fragment 7. Smurf attack 15. Unassigned Numbers 8. Trace route Below shows the menu items for Firewall. Vigor2760 Series User’s Guide...
Page 178: General Setup
Check Enable to activate the Call Filter function. Assign a start filter set for the Call Filter. Data Filter Check Enable to activate the Data Filter function. Assign a start filter set for the Data Filter. Vigor2760 Series User’s Guide...
Page 179 NAT. IPv4 - Check the box to make the incoming packets via IPv4 being accepted by such router. It is effective only for the packets routed but not for packets translated by NAT. Vigor2760 Series User’s Guide...
Page 180 Choose one of the QoS rules to be applied as firewall rule. For detailed information of setting QoS, please refer to the related section later. APP Enforcement Select an APP Enforcement profile for global IM/P2P application blocking. If there is no profile for you to select, Vigor2760 Series User’s Guide...
Page 181 URL will be processed. Please use the drop-down list to choose a codepage. If you do not have any idea of choosing suitable codepage, please open Syslog. From Codepage Information of Setup dialog, you will see the recommended codepage listed on the dialog box. Vigor2760 Series User’s Guide...
Page 182 However, if the network is not stable, small value will be proper. Session timeout – Setting timeout for sessions can make the best utilization of network resources. After finishing all the settings here, please click OK to save the configuration. Vigor2760 Series User’s Guide...
Page 183: Filter Setup
Use Up or Down link to move the order of the filter rules. Next Filter Set Set the link to the next filter set to be executed after the current filter run. Do not make a loop with many filter sets. Vigor2760 Series User’s Guide...
Page 184 Set the direction of packet flow. It is for Data Filter only. For the Call Filter, this setting is not available since Call Filter is only applied to outgoing traffic. Note: RT means routing domain for 2nd subnet or other Vigor2760 Series User’s Guide...
Page 185 Service Type Click Edit to access into the following dialog to choose a suitable service type. To set the service type manually, please choose User defined as the Service Type and type them in this dialog. In Vigor2760 Series User’s Guide...
Page 186 Sessions Control The number typed here is the total sessions of the packets that do not match the filter rule configured in this page. The Vigor2760 Series User’s Guide...
Page 187 CSM>> Web Content Filter web page first. Or choose [Create New] from the drop down list in this page to create a new profile. For troubleshooting needs, you can specify to record information for Web Content Filter by checking the Vigor2760 Series User’s Guide...
Page 188 TCP protocol only; session timeout is configured for the data flow which matched with the firewall rule. DrayTek Banner – Please uncheck this box and the following screen will not be shown for the unreachable web Vigor2760 Series User’s Guide...
Page 189 Vigor router. When the resource is inadequate, the packets will be blocked if Strict Security Checking is enabled. If Strict Security Checking is not enabled, then the packets will pass through the router. Vigor2760 Series User’s Guide...
Page 190 Each filter set is composed by 7 filter rules, which can be further defined. After that, in General Setup you may specify one set for call filter and one set for data filter to execute first. Vigor2760 Series User’s Guide...
Page 191: Dos Defense
Once detecting the Threshold of the UDP packets from the Internet has exceeded the defined value, the Vigor router will start to randomly discard the subsequent UDP packets for a period defined in Timeout. The default setting for threshold and timeout are 2000 Vigor2760 Series User’s Guide...
Page 192 The Vigor router will drop any packets having SYN flag and more fragment bit set. Block Fraggle Attack Check the box to activate the Block fraggle Attack function. Any broadcast UDP packets received from the Internet is blocked. Activating the DoS/DDoS defense functionality might Vigor2760 Series User’s Guide...
Page 193 All the warning messages related to DoS Defense will be sent to user and user can review it through Syslog daemon. Look for the keyword DoS in the message, followed by a name to indicate what kind of attacks is detected. Vigor2760 Series User’s Guide...
Page 194 Vigor2760 Series User’s Guide...
Page 195: Objects Settings
Description Set to Factory Default Clear all profiles. Index Display the profile number that you can configure. Name Display the name of the object profile. To set a new profile, please do the steps listed below: Vigor2760 Series User’s Guide...
Page 196 Select Range Address if this object contains several IPs within a range. Select Subnet Address if this object contains one subnet for IP address. Select Any Address if this object contains any IP address. Select Mac Address if this object contains Mac address. Vigor2760 Series User’s Guide...
Page 197 If it is checked, all the IP addresses except the ones listed above will be applied later while it is chosen. After finishing all the settings here, please click OK to save the configuration. Below is an example of IP objects settings. Vigor2760 Series User’s Guide...
Page 198: Ip Group
Display the name of the group profile. To set a new profile, please do the steps listed below: 1. Click the number (e.g., #1) under Index column for configuration in details. 2. The configuration page will be shown as follows: Vigor2760 Series User’s Guide...
Page 199 Selected IP Objects Click >> button to add the selected IP objects in this box. After finishing all the settings here, please click OK to save the configuration. Vigor2760 Series User’s Guide...
Page 200: Ipv6 Object
Display the name of the object profile. To set a new profile, please do the steps listed below: 1. Click the number (e.g., #1) under Index column for configuration in details. 2. The configuration page will be shown as follows: Vigor2760 Series User’s Guide...
Page 201 Invert Selection If it is checked, all the IPv6 addresses except the ones listed above will be applied later while it is chosen. After finishing all the settings, please click OK to save the configuration. Vigor2760 Series User’s Guide...
Page 202: Ipv6 Group
To set a new profile, please do the steps listed below: 1. Click the number (e.g., #1) under Index column for configuration in details. 2. The configuration page will be shown as follows: Available settings are explained as follows: Vigor2760 Series User’s Guide...
Page 203: Service Type Object
You can set up to 96 sets of Service Type Objects with different conditions. Available settings are explained as follows: Item Description Set to Factory Default Clear all profiles. Index Display the profile number that you can configure. Name Display the name of the object profile. Vigor2760 Series User’s Guide...
Page 204 (>) – the port number greater than this value is available. (<) – the port number less than this value is available for this profile. Vigor2760 Series User’s Guide...
Page 205: Service Type Group
This page allows you to bind several service types into one group. Available settings are explained as follows: Item Description Set to Factory Default Clear all profiles. Index Display the profile number that you can configure. Display the name of the group profile. Name Vigor2760 Series User’s Guide...
Page 206 Objects Setting>>Service Type Object will be shown in this box. Selected Service Type Click >> button to add the selected IP objects in this box. Objects After finishing all the settings, please click OK to save the configuration. Vigor2760 Series User’s Guide...
Page 207: Keyword Object
Web Content Filter Profile. Available settings are explained as follows: Item Description Set to Factory Default Clear all profiles. Display the profile number that you can configure. Index Name Display the name of the object profile. Vigor2760 Series User’s Guide...
Page 208 Contents. When you browse the webpage, the page with gambling information will be watched out and be passed/blocked based on the configuration on Firewall settings. After finishing all the settings, please click OK to save the configuration. Vigor2760 Series User’s Guide...
Page 209: Keyword Group
Display the name of the group profile. To set a new profile, please do the steps listed below: 1. Click the number (e.g., #1) under Index column for configuration in details. 2. The configuration page will be shown as follows: Vigor2760 Series User’s Guide...
Page 210: File Extension Object
Available settings are explained as follows: Item Description Set to Factory Default Clear all profiles. Index Display the profile number that you can configure. Name Display the name of the object profile. Vigor2760 Series User’s Guide...
Page 211 Type a name for this profile. The maximum length of the name you can set is 7 characters. Type a name for such profile and check all the items of file extension that will be processed in the router. Finally, click OK to save this profile. Vigor2760 Series User’s Guide...
Page 212 Display the service provider which offers SMS service. To set a new profile, please do the steps listed below: 1. Click the SMS Provider tab, and click the number (e.g., #1) under Index column for configuration in details. Vigor2760 Series User’s Guide...
Page 213 Note that one credit equals to one SMS text message on the standard route. Sending Interval To avoid quota being exhausted soon, type time interval for sending the SMS. 3. After finishing all the settings here, please click OK to save the configuration. Vigor2760 Series User’s Guide...
Page 214 Display the name of this profile. It cannot be modified. Service Provider Type the website of the service provider. Type the URL string in the box under the filed of Service Provider. You have to contact your SMS provider to obtain the exact URL string. Vigor2760 Series User’s Guide...
Page 215: Sms/Mail Service Object
Each item is explained as follows: Item Description Set to Factory Default Clear all of the settings and return to factory default settings. Index Display the profile number that you can configure. Profile Display the name for such mail server profile. Vigor2760 Series User’s Guide...
Page 216 Username – Type a name for authentication. The maximum length of the name you can set is 31 characters. Password – Type a password for authentication. The maximum length of the password you can set is 31 Vigor2760 Series User’s Guide...
Page 217: Notification Object
You can set an object with different monitoring situation. To set a new profile, please do the steps listed below: 1. Open Object Setting>>Notification Object, and click the number (e.g., #1) under Index column for configuration in details. Vigor2760 Series User’s Guide...
Page 218 Display the types that will be monitored. Status Display the status for the category. You can check the box you want to be monitored. 3. After finishing all the settings here, please click OK to save the configuration. Vigor2760 Series User’s Guide...
Page 219: Csm Profile
Please note that this action will not introduce any delay in your Web surfing because each of multiple load balanced database servers can handle millions of requests for categorization. Note: The priority of URL Content Filter is higher than Web Content Filter. Vigor2760 Series User’s Guide...
Page 220: App Enforcement Profile
Click the number under Index column for settings in detail. There are four tabs IM, P2P, Protocol and Misc displayed on this page. Each tab will bring out different items that you can choose to disallow people using. Vigor2760 Series User’s Guide...
Page 221 Uncheck all the selected boxes. The profiles configured here can be applied in the Firewall>>General Setup and Firewall>>Filter Setup pages as the standard for the host(s) to follow. Below shows the items which are categorized under IM. Vigor2760 Series User’s Guide...
Page 222 The items categorized under P2P ----- The items categorized under OTHERS----- Vigor2760 Series User’s Guide...
Page 223: Url Content Filter Profile
Each item is explained as follows: Item Description Set to Factory Default Clear all profiles. Profile Display the number of the profile which allows you to click to set different policy. Name Display the name of the URL Content Filter Profile. Vigor2760 Series User’s Guide...
Page 224 Access Control and Web Feature below, such function can determine the priority for the actions executed. For this one, the router will process the packages with the conditions set below for URL first, then Web feature second. Vigor2760 Series User’s Guide...
Page 225 If the web pages do not match with the keyword set here, it will be processed with reverse action. Group/Object Selections – The Vigor router provides several frames for users to define keywords and each frame Vigor2760 Series User’s Guide...
Page 226 Upload – Check the box to block the file upload by way of web page. File Extension Profile – Choose one of the profiles that you configured in Object Setting>> File Extension Vigor2760 Series User’s Guide...
Page 227: Web Content Filter Profile
Note: If you have used Service Activation Wizard to activate WCF service, you can skip this section. WCF adopts the mechanism developed and offered by certain service provider (e.g., DrayTek). No matter activating WCF feature or getting a new license for web content filter, you have to click Activate to satisfy your request.
Page 228 Setup Test Server It is recommended for you to use the default setting, auto-selected. Click it to open http://myvigor.draytek.com for searching Find more another qualified and suitable server. Test a site to verify Click this link to do the verification.
Page 229 If you have and activate another web content filter license, the items will be changed simultaneously. All of the configuration made for web content filter will be deleted automatically. Therefore, please backup your data before you change the web content filter license. Vigor2760 Series User’s Guide...
Page 230 Block – Only the log about Block will be recorded in Syslog. All – All the actions (Pass and Block) will be recorded in Syslog. After finishing all the settings, please click OK to save the configuration. Vigor2760 Series User’s Guide...
Page 231: Dns Filter
Pass – Only the log about Pass will be recorded in Syslog. Block – Only the log about Block will be recorded in Syslog. All – All the actions (Pass and Block) will be recorded in Syslog. Vigor2760 Series User’s Guide...
Page 232: Appe Support List
After finishing all the settings, please click OK to save the configuration. Such page lists all the information (name, version and note) about IM, P2P, Protocol and others applications that Vigor router supports for APPE function. Vigor2760 Series User’s Guide...
Page 233: Bandwidth Management
To activate the function of limit session, simply click Enable and set the default session limit. Available settings are explained as follows: Item Description Session Limit Enable - Click this button to activate the function of limit session. Vigor2760 Series User’s Guide...
Page 234 All the schedules can be set previously in Application >> Schedule web page and you can use the number that you have set in that web page. After finishing all the settings, please click OK to save the configuration. Vigor2760 Series User’s Guide...
Page 235: Bandwidth Limit
Disable - Click this button to close the function of limit bandwidth. Default TX limit - Define the default speed of the upstream for each computer in LAN. Default RX limit - Define the default speed of the Vigor2760 Series User’s Guide...
Page 236 Index (1-15) in Schedule Setup - You can type in four sets of time schedule for your request. All the schedules can be set previously in Application >> Schedule web page and you can use the number that you have set in that web page. Vigor2760 Series User’s Guide...
Page 237: Quality Of Service
The core routers in the backbone will do the same checking before executing treatments in order to ensure service-level consistency throughout the whole QoS-enabled network. Vigor2760 Series User’s Guide...
Page 238 Rule – Allow to configure detailed settings for the selected Class. Service Type – Allow to configure detailed settings for the service type. Enable the First Priority When this feature is enabled, the VoIP SIP/UDP packets will Vigor2760 Series User’s Guide...
Page 239 There are four queues allowed for QoS control. The first three (Class 1 to Class 3) class rules can be adjusted for your necessity. Yet, the last one is reserved for the packets which are not suitable for the user-defined class rules. Vigor2760 Series User’s Guide...
Page 240 Enable UDP Bandwidth Check this and set the limited bandwidth ratio on the right Control field. This is a protection of TCP application traffic since UDP application traffic such as streaming video will exhaust lots of bandwidth. Vigor2760 Series User’s Guide...
Page 241 Edit link of that one. After you click the Edit link, you will see the following page. Now you can define the name for that Class. In this case, “Test” is used as the name of Class Index #1. Vigor2760 Series User’s Guide...
Page 242 QoS control. It can also be edited. You can choose the predefined service type from the Service Type drop down list. Those types are predefined in factory. Simply choose the one that you want for using by current QoS. Vigor2760 Series User’s Guide...
Page 243 Edit to open the rule edit page for modification. To add a new service type, edit or delete an existed service type, please click the Edit link under Service Type field. After you click the Edit link, you will see the following page. Vigor2760 Series User’s Guide...
Page 244 After finishing all the settings here, please click OK to save the configuration. By the way, you can set up to 10 service types. If you want to edit/delete an existed service type, please select the radio button of that one and click Edit/Edit for modification. Vigor2760 Series User’s Guide...
Page 245 For example, in the following illustration, the VoIP packets in LAN go into Vigor router without any header. However, when they go forward to the Server on ISP through Vigor router, all of the packets are tagged with AF (configured in Bandwidth >>QoS>>Class) automatically. Vigor2760 Series User’s Guide...
Page 246: App Qos
Each tab offers different types of protocols to fit your request. Untraceable The protocol listed below is not easy to trace by Vigor router. Each tab offers different types of protocols to fit your request. Select All Click it to select all of the protocols. Vigor2760 Series User’s Guide...
Page 247 Apply – Click it to make the selected action be applied all of the selected protocols immediately. Action There are many protocols which can be specified with different QoS Class. After finishing all the settings here, please click OK to save the configuration. Vigor2760 Series User’s Guide...
Page 248: Applications
Enable the Function and Add a Dynamic DNS Account Assume you have a registered domain name from the DDNS provider, say hostname.dyndns.org, and an account with username: test and password: test. In the DDNS setup menu, check Enable Dynamic DNS Setup. Vigor2760 Series User’s Guide...
Page 249 Service Provider Select the service provider for the DDNS account. Service Type Select a service type (Dynamic, Custom or Static). If you choose Custom, you can modify the domain that is chosen in the Domain Name field. Vigor2760 Series User’s Guide...
Page 250 Delete a Dynamic DNS Account In the DDNS setup menu, click the Index number you want to delete and then push Clear All button to delete the account. Vigor2760 Series User’s Guide...
Page 251: Lan Dns
Simply click Application>>LAN DNS to open the following page. Each item is explained as follows: Item Description Set to Factory Default Clear all profiles and recover to factory settings. Check the box to enable the selected profile. Enable Vigor2760 Series User’s Guide...
Page 252 In general, one domain name maps with one IP address. If required, you can configure two IP addresses mapping with the same domain name. Add – Click it to open a dialog to type the host’s IP address. Vigor2760 Series User’s Guide...
Page 253 IP address for the DNS query coming from different LAN PC. Delete – Click it to remove an existed IP address on the list. Click OK button to save the settings. A new LAN DNS profile has been created. Vigor2760 Series User’s Guide...
Page 254: Schedule
You can set up to 15 schedules. Then you can apply them to your Internet Access or VPN and Remote Access >> LAN-to-LAN settings. To add a schedule: Click any index, say Index No. 1. The detailed settings of the call schedule with index 1 are shown below. Vigor2760 Series User’s Guide...
Page 255 How often -Specify how often the schedule will be applied Once -The schedule will be applied just once Weekdays -Specify which days in one week should perform the schedule. Click OK button to save the settings. Vigor2760 Series User’s Guide...
Page 256 Assign these two profiles to the PPPoE Internet access profile. Now, the PPPoE Internet connection will follow the schedule order to perform Force On or Force Down action according to the time plan that has been pre-defined in the schedule profiles. Vigor2760 Series User’s Guide...
Page 257: Radius
The maximum length of the shared secret you can set is 36 characters. Confirm Shared Secret Re-type the Shared Secret for confirmation. After finished the above settings, click OK button to save the settings. Vigor2760 Series User’s Guide...
Page 258: Upnp
NAT router. The application will also learn the external IP address and configure port mappings on the router. Subsequently, such a facility forwards packets from the external ports of the router to the internal ports used by the application. Vigor2760 Series User’s Guide...
Page 259 Non-privileged users can control some router functions, including removing and adding port mappings. The UPnP function dynamically adds port mappings on behalf of some UPnP-aware applications. When the applications terminate abnormally, these mappings may not be removed. Vigor2760 Series User’s Guide...
Page 260: Igmp
This field displays the ID port for the multicast group. The available range for IGMP starts from 224.0.0.0 to 239.255.255.254. P1 to P4 It indicates the LAN port used for the multicast group. After finishing all the settings here, please click OK to save the configuration. Vigor2760 Series User’s Guide...
Page 261: Wake On Lan
MAC Address Type any one of the MAC address of the bound PCs. Wake Up Click this button to wake up the selected IP. See the following figure. The result will be shown on the box. Vigor2760 Series User’s Guide...
Page 262: Sms / Mail Alert Service
Available settings are explained as follows: Item Description Index Check the box to enable such profile. SMS Provider Use the drop down list to choose SMS service provider. You can click SMS Provider link to define the SMS server. Vigor2760 Series User’s Guide...
Page 263 Use the drop down list to choose a message profile. The recipient will get the content stated in the message profile. You can click the Notify Profile link to define the content of the mail message. Vigor2760 Series User’s Guide...
Page 264: Bonjour
Below shows an example for applying the bonjour feature that Vigor router can be used as the FTP server. 1. Here, we use Firefox and DNSSD to discover the service in such case. Therefore, just ensure the Bonjour client program and DNSSD for Firefox have been installed on the computer. Vigor2760 Series User’s Guide...
Page 265 (DNSSD) and see the following results. 3. Open System Maintenance>>Management. Type a name (e.g., Dray_2925) as the Router Name and click OK. 4. Next, open Applications>>Bonjour. Check the service that you want to use via Bonjour. Vigor2760 Series User’s Guide...
Page 266 Vigor router (based on Bonjour protocol) is ready to be used as a printer server, FTP server, SSH Server, Telnet Server, and HTTP Server. 6. Now, any page or document can be printed out through Vigor router (installed with a printer). Vigor2760 Series User’s Guide...
Page 267: Vpn And Remote Access
LAN, you should disable the VPN service of Vigor Router to allow VPN tunnel pass through, as well as the appropriate NAT settings, such as DMZ or open port. After finishing all the settings here, please click OK to save the configuration. Vigor2760 Series User’s Guide...
Page 268: Ppp General Setup
40-bit encryption scheme will be applied to encrypt the data. Maximum MPPE - This option indicates that the router will use the MPPE encryption scheme with maximum bits (128-bit) to encrypt the data. Vigor2760 Series User’s Guide...
Page 269: Ipsec General Setup
AH it receives. Encapsulating Security Payload (ESP) is a security protocol that provides data confidentiality and protection with optional authentication and replay detection service. Vigor2760 Series User’s Guide...
Page 270 High (ESP) - Encapsulating Security Payload (ESP) means payload (data) will be encrypted and authenticated. You may select encryption algorithm from Data Encryption Standard (DES), Triple DES (3DES), and AES. After finishing all the settings here, please click OK to save the configuration. Vigor2760 Series User’s Guide...
Page 271: Ipsec Peer Identity
Click each index to edit one peer digital certificate. There are three security levels of digital signature authentication: Fill each necessary field to authenticate the remote peer. The following explanation will guide you to fill all the necessary fields. Vigor2760 Series User’s Guide...
Page 272 The field includes Country (C), State (ST), Location (L), Organization (O), Organization Unit (OU), Common Name (CN), and Email (E). After finishing all the settings here, please click OK to save the configuration. Vigor2760 Series User’s Guide...
Page 273: Remote Dial-In User
Click each index to edit one remote user profile. Each Dial-In Type requires you to fill the different corresponding fields on the right. If the fields gray out, it means you may leave it untouched. The following explanation will guide you to fill all the necessary fields. Vigor2760 Series User’s Guide...
Page 274  Nice to Have - Apply the IPsec policy first, if it is applicable during negotiation. Otherwise, the dial-in VPN connection becomes one pure L2TP connection.  Must -Specify the IPsec policy to be definitely Vigor2760 Series User’s Guide...
Page 275 Digital Signature (X.509) – Check the box of Digital Signature to invoke this function and Select one predefined Profiles set in the VPN and Remote Access >>IPsec Peer Identity. This group of fields is a must for IPsec Tunnels and L2TP IPsec Security Method Vigor2760 Series User’s Guide...
Page 276: Lan To Lan
L2TP by itself or over IPsec) and corresponding security methods, etc. The router supports up to 32 VPN tunnels simultaneously. The following figure shows the summary table. Available settings are explained as follows: Item Description Set to Factory Default Click to clear all indexes. Vigor2760 Series User’s Guide...
Page 277 LAN-to-LAN profile includes 4 subgroups. If the fields gray out, it means you may leave it untouched. The following explanations will guide you to fill all the necessary fields. For the web page is too long, we divide the page into several sections for explanation. Vigor2760 Series User’s Guide...
Page 278 Vigor router can know the true existence of this VPN connection and react accordingly. This is independent of DPD (dead peer detection). PING to the IP - Enter the IP address of the remote host that located at the other-end of the VPN tunnel. Vigor2760 Series User’s Guide...
Page 279 IKE aggressive mode.  Local Certificate – Select one of the profiles set in Certificate Management>>Local Certificate. IPsec Security Method - This group of fields is a must for IPsec Tunnels and L2TP with IPsec Policy. Vigor2760 Series User’s Guide...
Page 280 VPN peers, and get its feedback to find a match. Three combinations are available for both modes. We suggest you select the combination that covers the most algorithms.  IKE phase 1 key lifetime-For security reason, the Vigor2760 Series User’s Guide...
Page 281 Available settings are explained as follows: Item Description Dial-In Settings Allowed Dial-In Type - Determine the dial-in connection with different types.  PPTP - Allow the remote dial-in user to make a PPTP VPN connection through the Internet. You should set Vigor2760 Series User’s Guide...
Page 282 Digital Signature (X.509) –Check the box of Digital Signature to invoke this function and select one predefined Profiles set in the VPN and Remote Access >>IPsec Peer Identity.  Local ID – Specify which one will be inspected first. Vigor2760 Series User’s Guide...
Page 283 More - Add a static route to direct all traffic destined to more Remote Network IP Addresses/ Remote Network Mask through the VPN connection. This is usually used when you find there are several subnets behind the remote VPN router. Vigor2760 Series User’s Guide...
Page 284: Connection Management
Dial - Click this button to execute dial out function. Dial-out Tool Refresh Seconds - Choose the time for refresh the dial information among 5, 10, and 30. Refresh - Click this button to refresh the whole connection status. Vigor2760 Series User’s Guide...
Page 285: Certificate Management
Remember to adjust the time of Vigor router before using the certificate so that you can get the correct valid period of certificate. Below shows the menu items for Certificate Management. Available settings are explained as follows: Item Description Generate Click this button to open Generate Certificate Request window. Vigor2760 Series User’s Guide...
Page 286 View Click this button to view the detailed settings for certificate request. Click this button to delete selected name with certification Delete information. After clicking GENERATE, the generated information will be displayed on the window below: Vigor2760 Series User’s Guide...
Page 287: Trusted Ca Certificate
For viewing each trusted CA certificate, click View to open the certificate detail information window. If you want to delete a CA certificate, choose the one and click Delete to remove all the certificate information. Vigor2760 Series User’s Guide...
Page 288: Certificate Backup
Backup on the following screen to save them. If you want to set encryption password for these certificates, please type characters in both fields of Encrypt password and Retype password. Also, you can use Restore to retrieve these two settings to the router whenever you want. Vigor2760 Series User’s Guide...
Page 289: Voip
Then, both parties’ SIP proxies will forward the sequence of messages to caller to establish the session. If you both register to the same SIP Registrar, then it will be illustrated as below: Vigor2760 Series User’s Guide...
Page 290 QoS Assurance assists to assign high priority to voice traffic via Internet. You will always have the required inbound and outbound bandwidth that is prioritized exclusively for Voice traffic over Internet but you just get your data a little slower and it is tolerable for data traffic. Vigor2760 Series User’s Guide...
Page 291: Dialplan
SIP addresses. Loop through and Backup Phone Number will be displayed if you are using Vigor2830Vn for setting the phone book. Click any index number to display the dial plan setup page. Vigor2760 Series User’s Guide...
Page 292 PSTN phone, the telecom co. might charge you for the connection fee. Please type in backup phone number for this VoIP phone setting. After finishing all the settings here, please click OK to save the configuration. Vigor2760 Series User’s Guide...
Page 293 VoIP interface. Take the above picture (Prefix Table Setup web page) as an example, the OP number of 886 will be deleted completely for the prefix number is set Vigor2760 Series User’s Guide...
Page 294 VoIP>> Phone Settings. Move UP /Move Down Click the link to move the selected entry up or down. After finishing all the settings here, please click OK to save the configuration. Vigor2760 Series User’s Guide...
Page 295 Available settings are explained as follows: Item Description Enable Check it to enable this entry. Call Direction Determine the direction for the phone call, IN – incoming call, OUT-outgoing call, IN & OUT – both incoming and outgoing calls. Vigor2760 Series User’s Guide...
Page 296 For Block Unknown Domain – this function can block incoming calls (through Phone port) from unrecognized domain that is not specified in SIP accounts. Such control also can be done based on preconfigured schedules. Vigor2760 Series User’s Guide...
Page 297 You have finished an incoming phone call, however you Last Call Return [In] want to call back again for some reason. Please dial number Vigor2760 Series User’s Guide...
Page 298 Dial the number typed in this field to release this function. Dial the number typed in this field to block the last Block Last Calls [Act] incoming phone call. After finishing all the settings here, please click OK to save the configuration. Vigor2760 Series User’s Guide...
Page 299 PSTN number available for dial whenever you need and type the number in the field of phone number for PSTN relay. After finishing all the settings here, please click OK to save the configuration. Vigor2760 Series User’s Guide...
Page 300: Sip Accounts
Specify which port will ring when receiving a phone call. Status Show the status for the corresponding SIP account. R means such account is registered on SIP server successfully. – means the account is failed to register on SIP server. Vigor2760 Series User’s Guide...
Page 301 Some SIP server allows user to use VoIP function without registering. For such server, please check the box of Call without Registration. Choosing Auto is recommended. The system will select a proper way for your VoIP call. Vigor2760 Series User’s Guide...
Page 302 Manual – Choose this option if you want to specify an external IP address as the NAT transversal support. Nortel – If the soft-switch that you use supports Nortel solution, you can choose this option. Vigor2760 Series User’s Guide...
Page 303 Single Codec – If the box is checked, only the selected Codec will be applied. Packet Size The amount of data contained in a single packet. The default value is 20 ms, which means the data packet will contain 20 ms voice information. Vigor2760 Series User’s Guide...
Page 304: Phone Settings
Gain - Display the volume gain settings for Mic/Speaker that configured in the advanced settings page of Phone Index. Default SIP Account – “draytel_1” is the default SIP account. You can click the number below the Index field to Vigor2760 Series User’s Guide...
Page 305 The default value is 15000. RTP TOS – It decides the level of VoIP package. Use the drop down list to choose any one of them. After finishing all the settings here, please click OK to save the configuration. Vigor2760 Series User’s Guide...
Page 306 Check this box to hide the caller ID on the display panel of the phone set. Call Waiting Check this box to invoke this function. A notice sound will appear to tell the user new phone call is waiting for your Vigor2760 Series User’s Guide...
Page 307 Select the proper region which you are located. The common settings of Caller ID Type, Dial tone, Ringing tone, Busy tone and Congestion tone will be shown automatically on the page. If you cannot find out a suitable Vigor2760 Series User’s Guide...
Page 308 It is recommended for you to use the default setting. Interdigit Timeout –Type a value in this field to specify time limit for interdigit. DTMF DTMF Mode – There are four DTMF modes for you to choose. Vigor2760 Series User’s Guide...
Page 309: Status
From this page, you can find codec, connection and other important call status for each port. Available settings are explained as follows: Item Description Refresh Seconds Specify the interval of refresh time to obtain the latest VoIP calling information. The information will update immediately when the Refresh button is clicked. Vigor2760 Series User’s Guide...
Page 310 Accumulation for the times of in call. Out Calls Accumulation for the times of out call. Miss Calls Accumulation for the times of missing call. Speaker Gain The volume of present call. Display logs of VoIP calls. Vigor2760 Series User’s Guide...
Page 311: Wireless Lan
SSID as identification, located channel etc. Vigor router supports four SSID settings for wireless connections. Each SSID can be defined with different name and download/upload rate for selecting by stations connected to the router wirelessly. Vigor2760 Series User’s Guide...
Page 312 For a more flexible deployment, you may add filters of MAC addresses to isolate users’ access from wired LAN. Manage Wireless Stations - Station List will display all the station in your wireless network and the status of their connection. Vigor2760 Series User’s Guide...
Page 313: General Setup
Check the box to enable wireless function. Mode At present, the router can connect to 11b Only, 11g Only, 11n Only(2.4 GHz), Mixed (11b+11g), Mixed (11g+11n), and Mixed (11b+11g+11n) stations simultaneously. Simply choose Mixed (11b+11g+11n) mode. Vigor2760 Series User’s Guide...
Page 314 Download – Type the transmitting rate for data download. Default value is 30,000 kbps. Schedule Set the wireless LAN to work at certain time interval only. You may choose up to 4 schedules out of the 15 schedules Vigor2760 Series User’s Guide...
Page 315: Security
If WEP mode is selected, only one of four preset keys can be selected at one time. By clicking the Security Settings, a new web page will appear so that you could configure the settings of WPA and WEP. Vigor2760 Series User’s Guide...
Page 316 The WPA encrypts each frame transmitted from the radio using the key, which either PSK (Pre-Shared Key) entered manually in this field below or automatically negotiated via 802.1x authentication. Either 8~63 ASCII characters, such as 012345678(or 64 Hexadecimal digits leading by 0x, such Vigor2760 Series User’s Guide...
Page 317 The keys can be entered in ASCII or Hexadecimal. Check the key you wish to use. After finishing all the settings here, please click OK to save the configuration. Vigor2760 Series User’s Guide...
Page 318: Access Control
Isolate the station from LAN - select to isolate the wireless connection of the wireless client of the MAC address from LAN. Add a new MAC address into the list. Delete Delete the selected MAC address in the list. Vigor2760 Series User’s Guide...
Page 319: Wps
He/she only needs to press a button on wireless client, and WPS will connect for client and router automatically. There are two methods to do network connection through WPS between AP and Stations: pressing the Start PBC button or using PIN Code. Vigor2760 Series User’s Guide...
Page 320 For WPS is supported in WPA-PSK or WPA2-PSK mode, if you do not choose such mode in Wireless LAN>>Security, you will see the following message box. Please click OK and go back Wireless LAN>>Security to choose WPA-PSK or WPA2-PSK mode and access WPS again. Vigor2760 Series User’s Guide...
Page 321 Start PIN button. The WPS LED on the router will blink fast when WPS is in progress. It will return to normal condition after two minutes. (You need to setup WPS within two minutes) Vigor2760 Series User’s Guide...
Page 322: Wds
To meet the above requirement, two WDS modes are implemented in Vigor router. One is Bridge, the other is Repeater. Below shows the function of WDS-bridge interface: The application for the WDS-Repeater mode is depicted as below: Vigor2760 Series User’s Guide...
Page 323 Available settings are explained as follows: Item Description Mode Choose the mode for WDS setting. Disable mode will not invoke any WDS setting. Bridge mode is designed to fulfill the first type of application. Repeater mode is for the Vigor2760 Series User’s Guide...
Page 324 Disable to cancel this function. Status It allows user to send “hello” message to peers. Yet, it is valid only when the peer also supports this function. After finishing all the settings here, please click OK to save the configuration. Vigor2760 Series User’s Guide...
Page 325: Advanced Setting
128 bit sync field. However, some original 11b wireless network devices only support long preamble. Click Enable to use Long Preamble if needed to communicate with this kind of devices. Packet-OVERDRIVE This feature can enhance the performance in data Vigor2760 Series User’s Guide...
Page 326 Vigor N61 wireless utility window, choose Enable for TxBURST on the tab of Option). Note: * means the real transmission rate depends on the environment of the network. After finishing all the settings here, please click OK to save the configuration. Vigor2760 Series User’s Guide...
Page 327: Wmm Configuration
1 to 15. Be aware that CWMax value must be greater than CWMin or equals to CWMin value. Both values will influence the time delay for WMM accessing categories. The difference between AC_VI and AC_VO categories must be smaller; however, the difference Vigor2760 Series User’s Guide...
Page 328 “Check” the box means the AP router will not answer any response request for the transmitting packets. It will have better performance with lower reliability. After finishing all the settings here, please click OK to save the configuration. Vigor2760 Series User’s Guide...
Page 329: Ap Discovery
AP’s MAC address on the bottom of the page and click Bridge or Repeater. Next, click Add to. Later, the MAC address of the AP will be added to Bridge or Repeater field of WDS settings page. Vigor2760 Series User’s Guide...
Page 330: Station List
WLAN station and click Add to Access Control below. Available settings are explained as follows: Item Description Refresh Click this button to refresh the status of station list. Click this button to add current typed MAC address into Access Control. Vigor2760 Series User’s Guide...
Page 331: Usb Application
FTP sessions. The router allows up to 6 FTP sessions connecting to USB storage disk at one time. Default Charset - At present, Vigor router supports four types of character sets. Default Charset is for English based file name. Vigor2760 Series User’s Guide...
Page 332: Usb User Management
Description FTP/Samba User Enable – Click this button to activate this profile (account) for FTP service or Samba User service. Later, the user can use the username specified in this page to login into FTP server. Vigor2760 Series User’s Guide...
Page 333 USB storage disk, must follow the rule specified here. File – Check the items (Read, Write and Delete) for such profile. Directory –Check the items (List, Create and Remove) for such profile. Vigor2760 Series User’s Guide...
Page 334: File Explorer
Click this icon to add a new folder. Create Current Path Display current folder. Upload Click this button to upload the selected file to the USB storage disk. The uploaded file in the USB diskette can be shared for other user through FTP. Vigor2760 Series User’s Guide...
Page 335: Usb Device Status
Username It displays the username that user uses to login to the FTP server. When you insert USB storage disk into the Vigor router, the system will start to find out such device within several seconds. Vigor2760 Series User’s Guide...
Page 336: Modem Support List
Such page provides the information about the brand name and model name of the USB modems which are supported by Vigor router. Vigor2760 Series User’s Guide...
Page 337: System Maintenance
Below shows the menu items for System Maintenance. The System Status provides basic network settings of Vigor router. It includes LAN and WAN interface information. Also, you could get the current running firmware version or firmware related information from this presentation. Vigor2760 Series User’s Guide...
Page 338 Scope - Display the scope of IPv6 address. For example, IPv6 Link Local could only be used for direct IPv6 link. It can't be used for IPv6 internet. Internet Access Mode – Display the connection mode chosen for accessing into Internet. Vigor2760 Series User’s Guide...
Page 339: 327
Test With Inform – Specify the Event Code from the drop down list. Click this button to make a test for the response from VigorACS. Last Inform Response Time - Display the response time informed by VigorACS. Vigor2760 Series User’s Guide...
Page 340 Type in new password in this field. Confirm Password Type in the new password again. When you click OK, the login window will appear. Please use the new password to access into the web user interface again. Vigor2760 Series User’s Guide...
Page 341: Administrator Password
Below shows an example for accessing into User Operation with User Password. 1. Open System Maintenance>>User Password. 2. Check the box of Enable User Mode for simple web configuration to enable user mode operation. Type a new password in the field of New Password and click OK. Vigor2760 Series User’s Guide...
Page 342 4. Log out Vigor router web user interface by clicking the Logout button. 5. The following window will be open to ask for username and password. Type the new user password in the filed of Password and click Login. Vigor2760 Series User’s Guide...
Page 343: Login
At that moment, the background of the web page is blank and no heading will be displayed on the Login window. This page allows you to specify login URL and the heading on the Login window if you have such requirement. Vigor2760 Series User’s Guide...
Page 344 Enable Check this box to enable the login customization function. Login Page Title Type a brief description (e.g., Welcome to DrayTek) which will be shown on the heading of the login dialog. Welcome Message and Type words or sentences here. It will be displayed for bulletin message.
Page 345: Configuration Backup
Click Backup button to get into the following dialog. Click Save button to open another dialog for saving configuration as a file. In Save As dialog, the default filename is config.cfg. You could give it another name by yourself. Vigor2760 Series User’s Guide...
Page 346 Click Browse button to choose the correct configuration file for uploading to the router. Click Restore button and wait for few seconds, the following picture will tell you that the restoration procedure is successful. Vigor2760 Series User’s Guide...
Page 347: Syslog/Mail Alert
Mail Syslog – Check the box to recode the mail event on Syslog. Enable syslog message - Check the box listed on this web page to send the corresponding message of firewall, VPN, User Access, Call, WAN, Router/DSL information to Syslog. Vigor2760 Series User’s Guide...
Page 348 From the Syslog screen, select the router you want to monitor. Be reminded that in Network Information, select the network adapter used to connect to the router. Otherwise, you won’t succeed in retrieving information from the router. Vigor2760 Series User’s Guide...
Page 349 Vigor2760 Series User’s Guide...
Page 350: Time And Date
Enable Daylight Saving Check the box to enable the daylight saving. Such feature is available for certain area. Automatically Update Select a time interval for updating from the NTP server. Interval Click OK to save these settings. Vigor2760 Series User’s Guide...
Page 351: Snmp
Set trap community by typing a proper name. The default setting is public. The maximum length of the text is limited to 23 characters. Notification Host IP Set the IPv4 address of the host that will receive the trap (IPv4) community. Vigor2760 Series User’s Guide...
Page 352 Privacy Algorithm Choose one of the methods listed below as the privacy algorithm. Privacy Password Type a password for privacy. The maximum length of the text is limited to 23 characters. Click OK to save these settings. Vigor2760 Series User’s Guide...
Page 353: Management
Type in the router name provided by ISP. Default: Disable If it is enabled, the function of auto-logout for web user Auto-Logout interface will be disabled. The web user interface will be open until you click the Logout icon manually. Vigor2760 Series User’s Guide...
Page 354 No respond to External Device – Check the box to make Vigor2760 not being detected by other router and not being displayed as an external device. After finished the above settings, click OK to save the configuration. Vigor2760 Series User’s Guide...
Page 355 A maximum of three IPs/subnet masks is allowed. IPv6 Address /Prefix Length- Indicate the IP address(es) allowed to login to the router. After finished the above settings, click OK to save the configuration. Vigor2760 Series User’s Guide...
Page 356: Reboot System
Note: When the system pops up Reboot System web page after you configure web settings, please click Reboot Now to reboot your router for ensuring normal operation and preventing unexpected errors of the router in the future. Vigor2760 Series User’s Guide...
Page 357: Firmware Upgrade
Note that this example is running over Windows OS (Operating System). Download the newest firmware from DrayTek's web site or FTP site. The DrayTek web site is www.DrayTek.com (or local DrayTek's web site) and FTP site is ftp.DrayTek.com.
Page 358: Dsl Firmware Upgrade
Available settings are explained as follows: Item Description Activate via Interface Choose WAN interface used by such device for activating Web Content Filter. The Activate link brings you accessing into Activate www.vigorpro.com to finish the activation of the account Vigor2760 Series User’s Guide...
Page 359: Diagnostics
Below shows the successful activation of Web Content Filter: Diagnostic Tools provide a useful way to view or diagnose the status of your Vigor router. Below shows the menu items for Diagnostics. Vigor2760 Series User’s Guide...
Page 360: Dial-Out Triggering
(e.g., PPPoE) is triggered by a package sending from the source IP address. Available settings are explained as follows: Item Description Decoded Format It shows the source IP address (local), destination IP (remote) address, the protocol and length of the package. Refresh Click it to reload the page. Vigor2760 Series User’s Guide...
Page 361: Routing Table
Click Diagnostics and click Routing Table to open the web page. Available settings are explained as follows: Item Description Refresh Click it to reload the page. Vigor2760 Series User’s Guide...
Page 362: Arp Cache Table
IPv6 address. This information is helpful in diagnosing network problems, such as IP address conflicts, etc. Click Diagnostics and click IPv6 Neighbour Table to open the web page. Available settings are explained as follows: Item Description Vigor2760 Series User’s Guide...
Page 363: Dhcp Table
It displays the IP address assigned by this router for specified PC. MAC Address It displays the MAC address for the specified PC that DHCP assigned IP address for it. Leased Time It displays the leased time of the specified PC. Vigor2760 Series User’s Guide...
Page 364: Nat Sessions Table
It indicates the temporary port of the router used for NAT. Peer IP:Port It indicates the destination IP address and port of remote host. Interface It displays the representing number for different interface. Refresh Click it to reload the page. Vigor2760 Series User’s Guide...
Page 365: Ping Diagnosis
Use the drop down list to choose the destination that you want to ping. IP Address Type the IP address of the Host/IP that you want to ping. Type the IPv6 address that you want to ping. Ping IPv6 Address Vigor2760 Series User’s Guide...
Page 366: Data Flow Monitor
Flow Monitor. If not, a notification dialog box will appear to remind you enabling it. Click Diagnostics and click Data Flow Monitor to open the web page. You can click IP Address, TX rate, RX rate or Session link for arranging the data display. Vigor2760 Series User’s Guide...
Page 367 Peak means the highest peak value detected by the router in data transmission. Speed means line speed specified in WAN>>General Setup. If you do not specify any rate at that page, here will display Auto for instead. Vigor2760 Series User’s Guide...
Page 368: Traffic Graph
WAN1/WAN2/WAN3 Bandwidth chart, the numbers displayed on vertical axis represent the numbers of the transmitted and received packets in the past. For Sessions chart, the numbers displayed on vertical axis represent the numbers of the NAT sessions during the past. Vigor2760 Series User’s Guide...
Page 369: Trace Route
Available settings are explained as follows: Item Description IPv4 / IPv6 Click one of them to display corresponding information for Trace through Use the drop down list to choose the interface that you want to ping through. Vigor2760 Series User’s Guide...
Page 370: Syslog Explorer
Click this link to save the data as a file. Refresh Click this link to refresh this page manually. Clear Click this link to clear information on this page. Display Mode There are two modes for you to choose. Vigor2760 Series User’s Guide...
Page 371 This page displays the syslog recorded on the USB storage disk. Available settings are explained as follows: Item Description Time Display the time of the event occurred. Log Type Display the type of the record. Message Display the information for each event. Vigor2760 Series User’s Guide...
Page 372: Ipv6 Tspc Status
If TSPC has configured properly, the router will display the following page when the user connects to tunnel broker successfully. Available settings are explained as follows: Item Description Refresh Click this link to refresh this page manually. Vigor2760 Series User’s Guide...
Page 373: Tutorials And Applications
TSPC, AICCU, DHCPv6 Client, Static IPv6, 6in4 Static Tunnel and 6rd. Access into the web user interface of Viogr2760. Open WAN>> Internet Access. Choose one of the WAN interfaces as the one supporting IPv6 service. Then, click the IPv6 button of the selected WAN. Vigor2760 Series User’s Guide...
Page 374 PPP – Dual Stack application, IPv4 and IPv6 services can be utilized at the same time Choose PPP and type the information for PPPoE of IPv4. Access into the setting page for IPv6 service, it is not necessary for you to configure anything. Vigor2760 Series User’s Guide...
Page 375 Click OK and open Online Status. If the connection is successful, you will get the IP address for IPv4 and IPv6 at the same time. Vigor2760 Series User’s Guide...
Page 376 (In the following figure, the TSPC information is obtained from http://gogo6.com/ after applied for the service.) Click OK and open Online Status. If the connection is successful, the physical connection will be shows as follows: Vigor2760 Series User’s Guide...
Page 377 (In the following figure, the AICCU information is obtained from https://www.sixxs.net/main/ after applied for the service.) Click OK and open Online Status. If the connection is successful, the physical connection will be shows as follows: Vigor2760 Series User’s Guide...
Page 378  DHCPv6 Client Choose DHCPv6 Client. Click one of the identity associations and type the IAID number. Click OK and open Online Status. If the connection is successful, the physical connection will be shows as follows: Vigor2760 Series User’s Guide...
Page 379  Static IPv6 Choose Static IPv6. Type IPv6 address, Prefix Length and Gateway Address. Click OK and open Online Status. If the connection is successful, the physical connection will be shows as follows: Vigor2760 Series User’s Guide...
Page 380 Choose 6in4 Static Tunnel. Type remote endpoint IPv4 address, 6in4 IPv6 Address, LAN Routed Prefix and Tunnel TTL. Click OK and open Online Status. If the connection is successful, the physical connection will be shows as follows: Vigor2760 Series User’s Guide...
Page 381  Choose 6rd. Type IPv4 Border Relay, IPv4 Mask Length, 6rd Prefix and 6rd Prefix Length. Click OK and open Online Status. If the connection is successful, the physical connection will be shows as follows: Vigor2760 Series User’s Guide...
Page 382 In the field of HCPv6 Server Configuration, when DHCPv6 service is enabled, you can assign available IPv6 address for the client manually. Note: When both mechanisms are enabled, the client can determine which mechanism to be used (e.g., the default mechanism for Windows7 is Router Advertisement Server ). Vigor2760 Series User’s Guide...
Page 383 IPv4 IP and IPv6 IP services. Its IPv6 address is seen with a format of 2001:200:dff:fff1:216:3eff:feb1:44d7. After getting the above message, it means the IPv6 service has been activated successfully. Vigor2760 Series User’s Guide...
Page 384 If not, only a steady turtle will be seen. If you can see a turtle dancing on the screen, that means IPv6 service is ready for you to access and utilize. Vigor2760 Series User’s Guide...
Page 385: How Can I Get The Files From Usb Storage Device Connecting To Vigor Router
Setup a user account for the FTP service by using USB Application >>USB User Management. Click Enable to enable FTP account. Here we add a new account "user1" and assign authorities “Read”, “Write” and “List” to it. Click OK to save the configuration. Vigor2760 Series User’s Guide...
Page 386 Now, users in LAN of Vigor2710 can access into the USB storage device by typing ftp://192.168.1.1 on any browser. They can add or remove files / directories, depending on the Access Rule for FTP account settings in USB Application >>USB User Management. Vigor2760 Series User’s Guide...
Page 387: How To Build A Lan-To-Lan Vpn Between Remote Office And Headquarter Via Ipsec Tunnel
(in this case, type VPN Server), and check the box of Enable This Profile. For Vigor router will be set as a server, the call direction shall be set as Dial-in and set 0 as Idle Timeout. Vigor2760 Series User’s Guide...
Page 388 (e.g., 218.242.130.19 in this case). Press the IKE Pre-Shared Key button to set the PSK; and select Medium (AH) or High (ESP) as the security method. Continue to navigate to the TCP/IP Network Settings for setting the LAN IP for remote side. Click OK to save the settings. Vigor2760 Series User’s Guide...
Page 389 (in this case, type VPN Client), and check the box of Enable This Profile. For such Vigor router will be set as a client, the call direction shall be set as Dial-out. Check the box of Always on for a permanent VPN connection. Vigor2760 Series User’s Guide...
Page 390 IKE Pre-Shared Key button to set the PSK; and select Medium (AH) or High (ESP) as the security method. Continue to navigate to the TCP/IP Network Settings for setting the LAN IP for the remote side. Click OK to save the settings. Vigor2760 Series User’s Guide...
Page 391: How To Optimize The Bandwidth Through Qos Technology
Internet connection line? The advanced bandwidth management technology-QoS (Quality of Service) helps you to well allocate the bandwidth upon your demand of Voice, Video, or Data transferring. Let's see how to get the optimum bandwidth per your request by using DrayTek Vigor router as below.
Page 392 In the pop-up window, choose Range Address as the Address Type and type the start IP address and end IP address in relational fields. Click OK to save the settings and exit the window. Click OK again to save the settings. Vigor2760 Series User’s Guide...
Page 393 Do the same steps to add class rules for IPTV and Data/Email with IP addresses as shown below. Assuming you get 2MB/512Kb Internet line. You can click the Setup link of WAN1 to set up the bandwidth for different groups among VoIP, IPTV and Data/Email. Vigor2760 Series User’s Guide...
Page 394 10. In the Setup page, check the box of Enable the QoS Control. Type 30, 50 and 15 in the boxes for VoIP, IPTV and Data/Email respectively. Check the box of Enable UDP Bandwidth Control. 11. Click OK to save the settings. The class rules for WAN1 are defined as shown below. Vigor2760 Series User’s Guide...
Page 395: Qos Setting Example
Skype in the restroom. Go to Bandwidth Management>>Quality of Service. Click Setup link of WAN(1/2/3). Make sure the QoS Control on the left corner is checked. And select BOTH in Direction. Set Inbound/Outbound bandwidth. Vigor2760 Series User’s Guide...
Page 396 E-mail using protocol POP3 and SMTP. Click OK to save the settings. Return to previous page. Enter the Name of Index Class 2 by clicking Edit link. In this index, the user will set reserved bandwidth for HTTPS. And click OK. Vigor2760 Series User’s Guide...
Page 397 Click OK. If the worker has connected to the headquarter using host to host VPN tunnel. (Please refer to Chapter 3 VPN for detail instruction), he may set up an index for it. Enter the Vigor2760 Series User’s Guide...
Page 398 Class Name of Index 3. In this index, he will set reserved bandwidth for 1 VPN tunnel. 10. Click Edit for Class 3 to open a new window. In this index, the user will set reserved bandwidth for VPN. 11. Click Add to open the following window. Check the ACT box, first. Vigor2760 Series User’s Guide...
Page 399 12. Then click Edit of Local Address to set a worker’s subnet address. Click Edit of Remote Address to set headquarter’s IP address. Leave other fields and click OK. Vigor2760 Series User’s Guide...
Page 400: How To Send A Notification To Specified Phone Number Via Sms Service In Wan Disconnection
Choose any index number (e.g., Index 1 in this case) to configure the SMS Provider setting. In the following page, type the username and password and set the quota that the router can send the message out. Vigor2760 Series User’s Guide...
Page 401 Choose any index number (e.g., Index 1 in this case) to configure conditions for sending the SMS. In the following page, type the name of the profile and check the Disconnected and Reconnected boxes for WAN to work in concert with the topic of this paper. Vigor2760 Series User’s Guide...
Page 402 Click OK to save the settings. Later, if one of the WAN connections fails in your router, the system will send out SMS to the phone number specified. If the router has only one WAN interface, the system will send out SMS to the phone number while reconnecting the WAN interface successfully. Vigor2760 Series User’s Guide...
Page 403 URL string of the SMS provider and type the username and password. After clicking OK, the new added SMS provider will be added and will be available for you to specify for sending SMS out. Vigor2760 Series User’s Guide...
Page 404: How To Create An Account For Myvigor
The website of MyVigor (a server located on http://myvigor.draytek.com) provides several useful services (such as Anti-Spam, Web Content Filter, Anti-Intrusion, and etc.) to filtering the web pages for the sake of protecting your system. To access into MyVigor for getting more information, please create an account for MyVigor.
Page 405 2. Click the Activate link. A login page for MyVigor web site will pop up automatically. 3. Click the link of Create an account now. 4. Check to confirm that you accept the Agreement and click Accept. Vigor2760 Series User’s Guide...
Page 406 5. Type your personal information in this page and then click Continue. 6. Choose proper selection for your computer and click Continue. Vigor2760 Series User’s Guide...
Page 407 8. Check to see the confirmation email with the title of Letter from myvigor.draytek.com. 9. Click the Activate my Account link to enable the account that you created. The following screen will be shown to verify the register process is finished. Please click Login. Vigor2760 Series User’s Guide...
Page 408: Create An Account Via Myvigor Web Site
11. Now, click Login. Your account has been activated. You can access into MyVigor server to activate the service (e.g., WCF) that you want. 1. Access into http://myvigor.draytek.com. Find the line of Not registered yet?. Then, click the link Click here! to access into next page.
Page 409 2. Check to confirm that you accept the Agreement and click Accept. 3. Type your personal information in this page and then click Continue. 4. Choose proper selection for your computer and click Continue. Vigor2760 Series User’s Guide...
Page 410 6. Check to see the confirmation email with the title of Letter from myvigor.draytek.com. 7. Click the Activate my Account link to enable the account that you created. The following screen will be shown to verify the register process is finished. Please click Login. Vigor2760 Series User’s Guide...
Page 411 UserName and Password. Then type the code in the box of Auth Code according to the value displayed on the right side of it. Now, click Login. Your account has been activated. You can access into MyVigor server to activate the service (e.g., WCF) that you want. Vigor2760 Series User’s Guide...
Page 412: How To Setup Address Mapping
We will take an example to introduce how to make use of this feature. Log into the web user interface of Vigor2760. Open WAN>>Internet Access. For WAN1, choose MPoA/Static or Dynamic IP as the Access Mode. Vigor2760 Series User’s Guide...
Page 413 Click the WAN IP Alias button to configure the other P address which is 202.211.100.11. Make sure Join IP NAT Pool is not checked. Click OK to save the settings. Now, you bind some specific computers to some WAN IP alias for outgoing traffic. Vigor2760 Series User’s Guide...
Page 414: How To Configure Certain Computers Accessing To Internet
Firewall>>Filter Setup is used as the default setting, we has to create a new rule starting from Filter Rule 2 of Set 2. Access into the web user interface of Vigor router. Open Firewall>>Filter Setup. Click the Set 2 link and choose the Filter Rule 2 button. Vigor2760 Series User’s Guide...
Page 415 Next, set another rule. Just open Firewall>>Filter Setup. Click the Set 2 link and choose the Filter Rule 3 button. Check the box of Check to enable the Filter Rule. Type the comments (e.g., open_ip). Click the Edit button for Source IP. Vigor2760 Series User’s Guide...
Page 416 End IP. Then, click OK to save the settings. The computers within the range can access into the Internet. Now, check the content of Source IP is correct or not. The action for Filter shall be set with Pass Immediately. Then, click OK to save the settings. Vigor2760 Series User’s Guide...
Page 417 Both filter rules have been created. Click OK. Now, all the settings are configured well. Only the computers with the IP addresses within 192.168.1.10 ~ 192.168.1.20 can access to Internet. Vigor2760 Series User’s Guide...
Page 418: How To Block Facebook Service Accessed By The Users Via Web Content Filter / Url Content Filter
*How to Register AI/AV/AS/WCF Service (Service Activation Wizard) (http://www.draytek.com/user/SupportFAQDetail.php?ID=1955) *How to Activate Anti-Virus/Anti-Intrusion/Anti-Spam Service (http://www.draytek.com/user/SupportFAQDetail.php?ID=286 ) How to use the Web Content Filter (WCF) (http://www.draytek.com/user/SupportFAQDetail.php?ID=1953) * What the Web Content Filter (WCF) license benefits are, (http://www.draytek.com/user/PdInfoDetail.php?Id=110) Vigor2760 Series User’s Guide...
Page 419 Open CSM >> Web Content Filter Profile to create a WCF profile. Check Social Networking with Action, Block. Enable this profile in Firewall>>General Setup>>Default Rule. Next time when someone accesses facebook via this router, the web page would be blocked and the following message would be displayed instead. Vigor2760 Series User’s Guide...
Page 420 In the field of Contents, please type facebook. Configure the settings as the following figure. Open CSM>>URL Content Filter Profile. Click an index number to open the setting page. Configure the settings as the following figure. When you finished the above steps, click OK. Then, open Firewall>>General Setup. Vigor2760 Series User’s Guide...
Page 421 B. Disallow users to play games on Facebook Open Object Settings>>Keyword Object. Click an index number to open the setting page. In the field of Contents, please type apps.facebook. Configure the settings as the following figure. Vigor2760 Series User’s Guide...
Page 422 When you finished the above steps, please open Firewall>>General Setup. Click the Default Rule tab. Choose the profile just configured from the drop down list in the field of URL Content Filter. Now, users cannot open any web page with the word “facebook” inside. Vigor2760 Series User’s Guide...
Page 423: Trouble Shooting
Turn on the router. Make sure the ACT LED blink once per second and the correspondent LAN LED is bright. If not, it means that there is something wrong with the hardware status. Simply back to “1.3 Hardware Installation” to execute the hardware installation again. And then, try again. Vigor2760 Series User’s Guide...
Page 424 Open All Programs>>Getting Started>>Control Panel. Click Network and Sharing Center. In the following window, click Change adapter settings. Icons of network connection will be shown on the window. Right-click on Local Area Connection and click on Properties. Vigor2760 Series User’s Guide...
Page 425 Select Internet Protocol Version 4 (TCP/IP) and then click Properties. Select Obtain an IP address automatically and Obtain DNS server address automatically. Finally, click OK. Vigor2760 Series User’s Guide...
Page 426 Double click on the current used Mac OS on the desktop. Open the Application folder and get into Network. On the Network screen, select Using DHCP from the drop down list of Configure IPv4. Vigor2760 Series User’s Guide...
Page 427: Pinging The Router From Your Computer
Open the Application folder and get into Utilities. Double click Terminal. The Terminal window will appear. Type ping 192.168.1.1 and press [Enter]. If the link is OK, the line of “64 bytes from 192.168.1.1: icmp_seq=0 ttl=255 time=xxxx ms” will appear. Vigor2760 Series User’s Guide...
Page 428: Checking If The Isp Settings Are Ok Or Not
PIN code and try again. If it still fails, it might be the compliance problem of system. Please open DrayTek Syslog Tool to capture the connection information (WAN Log) and send the page (similar to the following graphic) to the service center of DrayTek.
Page 429 Go to System Maintenance and choose Reboot System on the web page. The following screen will appear. Choose Using factory default configuration and click Reboot Now. After few seconds, the router will return all the settings to the factory settings. Vigor2760 Series User’s Guide...
Page 430 After restore the factory default setting, you can configure the settings for the router again to fit your personal request. If the router still cannot work correctly after trying many efforts, please contact Draytek or your dealer for further help right away. For any questions, please feel free to send e-mail to support@DrayTek.com.

Draytek Vigor2760 series User Manual

Quick Links

Related Manuals for Draytek Vigor2760 series

Summary of Contents for Draytek Vigor2760 series
