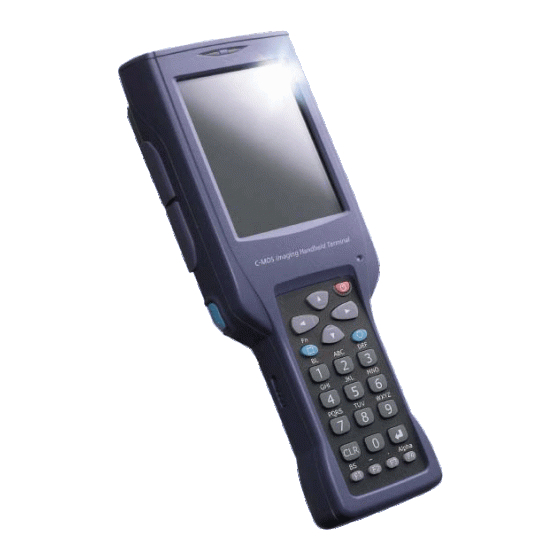

Handheld Terminal
User's Guide
Be sure to read "Safety
Precautions" inside this
guide before trying to use
your Handheld Terminal.
After reading this guide,
keep it in a safe place for
future reference.
PN410401-001
Series
Fn
BL
ABC
DEF
GHI
JKL
MNO
PQRS
TUV
WXYZ
BS
Alpha
E

Advertisement

Table of Contents
loading
