MODEL G0670

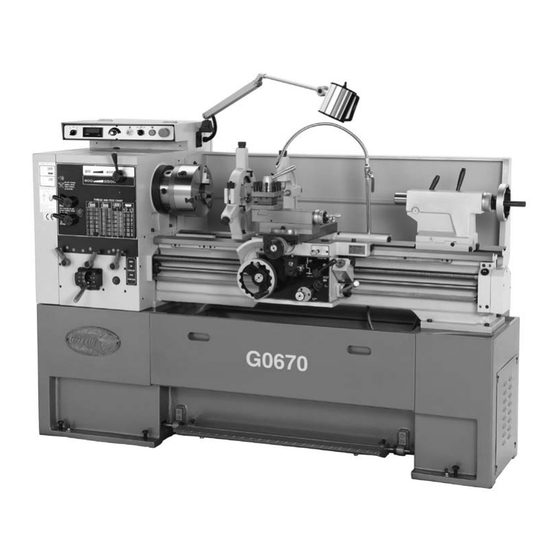

16" x 40" HIGH PRECISION
EVS LATHE
OWNER'S MANUAL
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.

Advertisement

Table of Contents
loading

Related Manuals for Grizzly G0670

Summary of Contents for Grizzly G0670

  • Page 1 MODEL G0670 16" x 40" HIGH PRECISION EVS LATHE OWNER'S MANUAL WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.

  • Page 3: Table Of Contents

    Table of Contents INTRODUCTION ... 3 SECTION 1: SAFETY ... 10 SECTION 2: CIRCUIT REQUIREMENTS ... 14 SECTION 3: SETUP ... 15 SECTION 4: OPERATIONS ... 23...
  • Page 4 SECTION 5: ACCESSORIES ... 48 SECTION 6: MAINTENANCE... 52 SECTION 7: SERVICE ... 59 SECTION 8: WIRING ... 71 SECTION 9: PARTS ... 82 WARRANTY AND RETURNS ... 111...

  • Page 5: Introduction

    INTRODUCTION Foreword Functional Overview www. grizzly.com Note If the CSS switch is in the OFF position, the cross slide position has no effect on spindle speed. The spindle speed is only adjusted with the spindle speed dial. Contact Info...

  • Page 6: Machine Data Sheet

    16" X 40" ELECTRONIC VARIABLE SPEED LATHE Product Dimensions: Shipping Dimensions: Electrical: Motors: Main Lubrication MACHINE DATA SHEET MODEL G0670...
  • Page 7 Motors (continued): Coolant Main Specifications: Operation Information Headstock Information Tailstock Information Threading Information...
  • Page 8 Main Specifications (continued): Dimensions Construction Other Specifications: Features Standard Equipment...
  • Page 9 Figure 1. Identification...
  • Page 10 Headstock/Apron Controls Figure 2. A. Spindle Range Lever: B. Gearbox Range Lever: C. Feed Direction Lever: D. Gearbox Levers: E. 4-Position Tool Post Lever: Compound Hand Crank: G. Cutting Fluid Flow Control Lever: H. Cross Slide Handwheel: Longitudinal Carriage Handwheel: Manual Carriage Oil Pump: K.
  • Page 11 Figure 3. Figure 4. O. CSS ON/OFF SWITCH: Tachometer Display: Q. Spindle Speed Dial: R. Power Light: S. Cutting Fluid Pump Switch: ON/OFF Jog Button: U. Emergency Stop Button: Master Power Switch: ON/OFF...

  • Page 12: Section 1: Safety

    SECTION 1: SAFETY...

  • Page 14: Additional Safety For Metal Lathes

    SECURING THE WORKPIECE. CHANGING GEARS. SUPPORT LONG STOCK. PINCH HAZARDS. LATHE MAINTENANCE. 10. SAFETY CLEARANCES. THIS 11. RATES. 12. STOPPING LATHE. 13. ATTENDANCE. 14. ENTANGLEMENT HAZARDS. 15. AUTOMATIC FEEDS. 16. MOTOR DIRECTION. 17. GUARDS. 18. TOOL POST CLEARANCE. 19. CRASHES.

  • Page 15: Glossary Of Terms

    Glossary of Terms Arbor: Backlash: Collet: CSS: Cross Slide: Cutting Speed: Dial Indicator: Facing: Feed: EVS: Gib: Headstock: Lathe Center: Leadscrew: Spindle: Tailstock: Tool Post: Turret: Ways:...

  • Page 16: Section 2: Circuit Requirements

    SECTION 2: CIRCUIT REQUIREMENTS 220V 3-Phase Operation Serious personal injury could occur if you connect the machine to power before com- pleting the setup process. DO NOT connect the machine to the power until instructed later in this manual. Electrocution or fire could result if machine is not grounded and installed in compliance with electrical...

  • Page 17: Section 3: Setup

    Wear safety glasses dur- ing the entire setup pro- cess! The Model G0670 is extremely heavy machine. Serious per- sonal injury may occur if safe moving methods are not followed. To be safe,...

  • Page 18: Figure

    Some hardware/fasteners on the inventory list may arrive pre-installed on the machine. Check these locations before assuming that any items from the inventory list are missing. Tool Box Inventory: (Figure 7) Note: Chuck jaws are shiped inside of main lathe electrical box. Figure 7.

  • Page 19: Figure

    Site Considerations Floor Load Machine Data Sheet Working Clearances Figure 8 Children and visitors may be seriously injured if unsuper- vised around this machine. Lock entrances to the shop or disable start switch or power connection to prevent unsupervised use. Figure 8.

  • Page 20: Figure

    Lifting & Moving the Lathe This lathe is an extremely heavy machine. Serious personal injury or death may occur if safe lifting Figure 9. and moving methods are not followed. Get assis- tance from a professional rigger if you are unsure...

  • Page 21: On Figure

    Test Run NOTICE This lathe is shipped without oil. Fill all gearboxes to the correct level, and oil the ways and all lubrication points before start- ing lathe. Ignoring this notice will result in lathe damage and void warranty! Troubleshooting...
  • Page 22 Note: This headstock has a pressurized oil system that is equipped with an oil pres- sure safety switch. If oil stops flowing, the lathe will shut down automatically and not restart until the oil system failure is cor- rected. Never bypass this safety system or...
  • Page 23 Figure 20 Brake and Switch Page 66 Figure 20 Spindle Break-in THIS LATHE IS SHIPPED WITHOUT OIL! Complete all Lubrication procedures out- lined in the MAINTENANCE section on Page 53 Failure to follow all lubrication and beak-in procedures will cause rapid deterioration of bearings and other related parts and void your machine warranty.
  • Page 24 Figure 21. Figure 22 Figure 22. NOTICE Do not leave the lathe unattended during the break-in period. Make sure that you keep a close eye on the headstock oil thermometer (Figure 23) on the oil tank. If the headstock oil temperature reaches 160°F shut the lathe down and let the system cool before resuming break-in.

  • Page 25: Section 4: Operations

    SECTION 4: OPERATIONS Operation Safety If at any time you are experiencing difficulties performing any operation, stop using the machine! Above all, your safety must come first! Damage to your eyes could result from using this machine without proper protective gear. Always wear safety glasses or a face shield when operating this machine.

  • Page 26: Camlock Stud Adjustment

    Camlock Stud Adjustment Figure 26 Page 26 NOTICE Never install a chuck or faceplate without having the camlock cap screws in place or fully tightened. If you ignore this notice, Figure 26 the chuck may never be able to be removed since the camlock studs will turn with the camlocks and never release.

  • Page 27: Chuck And Faceplate

    Chuck and Faceplate Mounting The chuck is heavy and is awkward to han- dle. Always protect the ways when remov- ing or installing a chuck, and make sure that you make a support cradle Figure 27 , lifting hoist, or that you have an assis- tant when installing or removing chucks.
  • Page 28 To install a chuck or faceplate: NOTICE Never install a chuck or faceplate without having the camlock cap screws in place or fully tightened. If you ignore this notice, the chuck may never be able to be removed since the camlock studs will turn with the camlocks and never release.
  • Page 29 Using the 3-Jaw Chuck Figure 31 Figure 31. Tools Needed To mount a workpiece in the 3-jaw chuck: Using the 4-Jaw Chuck Tools Needed To mount a workpiece on the 4-jaw chuck: Figure 32 Figure 32.

  • Page 30: Using The Faceplate

    Using the Faceplate To mount a workpiece on the faceplate: Figure 33 Note: Take into account the rotation and cutting forces that will be applied to the workpiece when clamping it to the faceplate. Figure 33.
  • Page 31 Reversing the Jaws Figure 34 Figure 34. Figure 35. Note: The chuck need not be removed from the spindle to swap the jaws. To reverse a set of jaws: Figure 35 Figure 36. Figure 36...
  • Page 32 Centers To install a dead or live center: Figure 37 Figure 37. Note: Make sure there is a center drilled hole in the end of workpiece that will fit the dead center tip. Tailstock Figure 38 Figure 38. To move the tailstock: To use the tailstock quill:...

  • Page 33: Aligning Tailstock

    Aligning Tailstock To align the tailstock: Page 18 Step 6. Figure 39 . Note: As long as the dead center remains in the chuck, the point of your center will remain true to the spindle axis. But remember the point will have to be refinished whenever it is removed and returned to the chuck.
  • Page 34 Drilling with Tailstock To use a tapered drill chuck: Figure 43 Figure 42. Figure 43. Cutting Tapers with Figure 42 To offset the tailstock: Figure 44 Figure 45 Figure 44 Figure 45 Tailstock...
  • Page 35 Steady Rest To install/use the steady rest: Figure 46. Figure 47 Figure 46 Figure 46 Figure 46 Figure 47.

  • Page 36: Follow Rest

    Follow Rest Setting the Compound Figure 48 To set the angular position: Figure 49 Figure 48. Figure 49.

  • Page 37: Way Tool Post

    4-Way Tool Post Chip Drawer Figure 50 Figure 51 Figure 51. Figure 50.

  • Page 38: Foot Brake

    Note: Do not confuse this feature with the emer- gency stop button. The emergency stop button cuts power to the machine and does not apply the brake. This button must be reset to restore power to the lathe. Figure 52. Adjustable Carriage Stop System...

  • Page 39: Manual Feed

    Manual Feed Figure 54 Figure 54. Longitudinal Handwheel Cross Slide Handwheel Compound Handcrank Power Feed NOTICE Feed rate is based on spindle RPM. High feed rates combined with high spindle speeds result in a rapidly moving carriage or cross slide. Pay close attention to the feed rate you have chosen and keep your foot poised over the brake pedal.

  • Page 40: Feed Direction

    Feed Direction Figure 58 Control Knob Figure 57 Figure 58. Figure 57.

  • Page 41: Cutting Fluid System

    General Note: Cutting fluids are used for heavy-duty lathe operations and production turning. Oil-water emulsions and synthetic cutting fluids are the most common for typical lathe operations. Sulfurized oils often are used for threading. For small projects spot lubrication is done with an oil can or brush, or omitted completely.
  • Page 42 Calculating Spindle Speed Low Carbon High Carbon Steel Annealed Steel Cutting Speed SFM (Roughing) Feed Rate 0.010" 0.010" (Roughing) 0.020" 0.020" Cutting Speed SFM (Finishing) Feed Rate 0.003" 0.003" (Finishing) 0.005" 0.005" SFM = Surface Feet per Minute IPR = Inches per Revolution Note: For carbide cutting tools, double the cutting speed.
  • Page 43 Gearbox Threading and Feed Setup Figure 63 Figure 64 Inch an Metric Pitch Threading Inch an Metric Feeding Figure 63 NOTICE Module and Diametrial Pitch Threading Always use the slowest speed possible for threading, and avoid deep cuts or you may not be able to disengage the half nut to pre- vent an apron crash! Figure 64...

  • Page 44: Thread Dial

    Thread Dial Figure 65 NOTICE Always use the slowest speed possible for threading, and avoid deep cuts or you may not be able to disengage the half nut to prevent an apron crash! Figure 65. Figure For all other even numbered TPI: Any number or mark can be used.

  • Page 45: Positioning Gearbox Levers

    Positioning Gearbox Levers Gearbox Threading and Feed Setup Page 41 LCR8W 0.35mm 0.014" Figure 67.

  • Page 46: Starting Lathe

    Starting Lathe To start the lathe: Figure 68. Figure 69 Figure 69. Figure 68 Figure 70. Figure 71 Figure Figure 70 Figure 71.
  • Page 47 If the lathe is started with the CSS switch ON, and the cross slide is positioned all the way inward, the spindle will immedi- ately wind-up to the highest spindle RPM of the range that it is in.
  • Page 48 FORWARD, Note: To quickly change carriage or cross slide feed direction, disengage the feed lever, push-in or pull-out the feed direction knob, and the re-engage the feed lever. There is no need to shutdown and move the leadscrew/ feedrod direction lever on the gearbox. However be careful, changing the position of the gearbox direction lever will reverse any feed direction knob selection.
  • Page 49 and Feed Chart Page 43 HSS Cutting Speed Table Page Thread Page 40 Calculating Spindle Speed Thread and Feed Chart...

  • Page 50: Section 5: Accessories

    SECTION 5: ACCESSORIES www.grizzly.com H2670—HSS Square Tool Bits ½" x ½" x 4 Figure 75. H5687—8-Pc. Pre-Ground Tool Bit Set Figure 76. G9777—20-Pc. Carbide Tipped Tool Bit Set Figure 77. G5640—5-Pc. Indexable Carbide Tool Set ½" G6706—Replacement TiN Coated Carbide Indexable Insert Figure 78.
  • Page 51 H8257—Primrose Armor Plate with Moly-D Machine and Way Oil Figure 79. H9240—Rustlick™ WS5050 Heavy-Duty Soluble Machining Oil Figure 80. G5845—10 HP/8 HP Start, Phase Converter Figure 81. H5787—MT#4 x 5" Bull Nose Rolling Center H5903—MT#4 x 5" Bull Nose Rolling Center Figure 82.
  • Page 52 G7038Z—Boring Bar G7040—Carbide Inserts for Steel (5 pk) G7048—Carbide Inserts for Cast Iron (5 pk) Figure 83. G7030—Threading Tool Holder G7041—Carbide Inserts for Steel (5 pk) G7049—Carbide Inserts for Cast Iron (5 pk) Figure 84. G7033—Internal Threading Tool Holder G7042—Carbide Inserts for Steel (5 pk) G7050—Carbide Inserts for Cast Iron (5 pk) Figure 85.
  • Page 53 H2987—½" Bent Lathe Dog H2988—1" Bent Lathe Dog H2989—1½" Bent Lathe Dog H2990—2" Bent Lathe Dog H2991—3" Bent Lathe Dog Figure 88. G9256—6" Dial Caliper G9257—8" Dial Caliper G9258—12" Dial Caliper Figure 89. G9849—Magnetic Base/Dial Indicator Combo Figure 90. H6879—Lathe Operation & Maintenance Book Figure 91.

  • Page 54: Section 6: Maintenance

    SECTION 6: MAINTENANCE Always disconnect power to the machine before performing maintenance. Failure to do this may result in serious person- al injury. Schedule Daily: Monthly: Annually: Cleaning Figure 92 Figure 92...
  • Page 55 Lubrication Figure 94 General Lubrication SECTION 5: ACCESSORIES Page 48 Headstock Figure 93 Figure 94 Gearbox Figure 95) Figure 93. Figure 93 Figure 95.
  • Page 56 Lead Screw and Feedrod Figure 96 Figure 97 Figure 97. Figure 96.
  • Page 57 Apron Figure 98 Figure 98. Apron Oil Pump Figure 99. Ball Oilers Figure 99 Figures 100 Figure 100. Figure Figure 101.
  • Page 58 Oil Pump System Figure 102 Figure 107 Figure 102. Figure 103 Tools Needed: Figure 103. To clean the oil pump system: Figure 103 Figure 104 Note: The cap screw in the center of the cover acts as a handle to lift the plate and does not need to be removed.
  • Page 59 TIP: While the tank is accessible, you can place a magnet at the bottom-center of the tank, or install a magnetic drain plug to collect any fine metal particles generated by the headstock drivetrain. Figure 105. Figure 107. Figure 105 Figure 106.
  • Page 60 Cutting Fluid System POISON AND BIOLOGICAL HAZARD! Use the correct personal protection equip- ment when handling cutting fluid and by follow federal, state, and fluid manufactur- er requirements to properly dispose of cutting fluid. To perform regular maintenance on the cut- ting fluid system: Figure 108 Figure 108.

  • Page 61: Section 7: Service

    SECTION 7: SERVICE Troubleshooting Motor & Electrical Page 56 Page 40...
  • Page 62 Operation and Work Results Page 27 Page 66 Page 24 Page 64 Page 64 Page 63 Page 64 Page 64 Page 62 Page Page 31 Page 29...
  • Page 63 Operation and Work Results Page 64...
  • Page 64 Cross Slide Slide Leadscrew Adjustment NOTICE Figure 111 Avoid the temptation to overtighten the backlash set screw. Overtightening will cause excessive wear to the wedge, half nut, and lead screw. Reducing backlash to less than 0.001" is impractical and reduces cross slide and compound slide life.

  • Page 65: Half Nut Adjustment

    Leadscrew End Play Half Nut Adjustment Adjustment Tools Needed: Tools Needed: Figure 113 To remove leadscrew end play: Figure 112 Figure 113. Figure 112.

  • Page 66: Gib Adjustment

    Gib Adjustment Figures 114-116 Figure 115. Figure 116. Figure 114. Figure 117.
  • Page 67 Feedrod Clutch Adjustment Tools Needed: To adjust the clutch release point: Figure 118. Figure 119 Figure 120 Figure 119. Figure 118 Figure 120. Figure 120...

  • Page 68: Brake And Switch

    V-Belts Tools Needed: To adjust or replace the V-belts on the lathe: Figure 121 Note: Replace all three belts as a matched set even if only one shows cracking, glazing, or fraying. Figure 121. Brake and Switch Tools Needed: To adjust the brake and brake switch: Figure 122 Figure 122.
  • Page 69 Figure 123 Figure 123. Figure 124 Figure 124 Figure 124 Figure 124. 25mm...
  • Page 70 Leadscrew Shear Pin Replacement Figure 125 Shear Pin Material: S45C (SAE 1045) Figure 125. Tools Needed: To replace the shear pin: Figure 126. Figure 127. Figure 128 Figure 126 Figure 128. Figure 127 Figure 128...
  • Page 71 Figure 129 Figure 129. Figure 130. Figure 131 Figure 131. Figure Figure 132 Figure 132.
  • Page 72 Gap Removal & Installation NOTICE We don't recommend removing the gap. Reinstallation to exact factory alignment is nearly impossible. The only option is to then leave the gap out. To remove the gap: Figure 133 Figure 133 Figure 133. Figure 133 To reinstall the gap:...

  • Page 73: Section 8: Wiring

    The photos and diagrams included in this section are best viewed in color. You can view these pages in color at www.grizzly.com. 220V SINGLE-PHASE GROUNDED CIRCUIT. MOTOR WIRING.
  • Page 74 General Wiring Diagram Index Page 77. 220 VAC 3-PH Page 81. Page 81. Page 81. Page 78. Page 78. Page 78. SHOCK HAZARD! Page 75. Page 78. Page 81. Page 81. Page 81.
  • Page 75 Electrical Box Wiring Diagram Index Page 75 Page 77 Page 77 Page 75 Page 77 Page 75 Page 75 Page 77 Page 75 Page 75 Pages 75 & 77 Figure 134...
  • Page 76 Electrical Component Index Page 81. Page 75. Page 81. Page 81. Page 78. Page 81. Page 81. Page 75. Page 78. Page 78. Page 75. Page 78. Figure 135.
  • Page 78 Variable Speed Drive Unit Figure 136...
  • Page 79 View this page in color at www.grizzly.com. L15-20 PLUG (as recommended) SHOCK HAZARD! Varispeed 220 VAC 3-PH Figure Page 75. COLOR KEY Page Page 75.
  • Page 80 View this page in color at www.grizzly.com. COLOR KEY OIL PUMP Page 75. MOTOR (220V) Page 75. SPINDLE MOTOR Page 75. (220V) COOLANT PUMP MOTOR (220V) Page 75.
  • Page 81 Control Panel Switch Electrical Figure 137.
  • Page 82 Sensor and Limit Switch Electrical Figure 138. Figure 140. Figure 139. Figure 141.
  • Page 83 SHOCK HAZARD! View this page in color at www.grizzly.com. COLOR KEY Figure Figure Figure Figure Page 75. Figure...

  • Page 84: Section 9: Parts

    SECTION 9: PARTS Headstock (Oil Distribution System) PART # DESCRIPTION P06700001 OIL PLUG PSB29M CAP SCREW M6-1 X 40 P06700003 HEADSTOCK COVER P06700004 COVER SEAL PSB50M CAP SCREW M5-.8 X 10 P06700006 STAND-OFF CLAMP PART # DESCRIPTION PSB15M CAP SCREW M5-.8 X 20 PFH30M FLAT HD SCR M5-.8 X 8 P06700009...
  • Page 85 Headstock (Lubrication System)
  • Page 86 Headstock (Lubrication) Parts List PART # DESCRIPTION 1001 P06701001 ELBOW FITTING 1002 P06701002 FERRULE 1003 P06701003 FERRULE NUT 1004 PSB50M CAP SCREW M5-.8 X 10 1005 PW02M FLAT WASHER 5MM 1006 P06701006 PIPE CLIP 1007 P06701007 BRACKET 1008 PS34 PHLP HD SCR M3-.5 X 25 1009 P06701009 TACHOMETER SENSOR...
  • Page 87 Headstock (Spindle Motor)
  • Page 88 Headstock (Spindle Motor) Parts List PART # DESCRIPTION 1502 PW04M FLAT WASHER 10MM 1504 P06701504 COVER 1505 P06701505 THUMB KNOB M10-1.5 1506 PVB69 V-BELT 5L690 1507 PB116M HEX BOLT M10-1.5 X 45 1508 P06701508 COVER 1509 PS68M PHLP HD SCR M6-1 X 10 1510 P06701510 ANCHOR PIN...
  • Page 89 Headstock (Spindle Drive System) PART # DESCRIPTION 2034 PSB01M CAP SCREW M6-1 X 16 2055 P06702055 PLUG 2056 PORG055 O-RING 54.4 X 3.1 G55 2057 PR38M INT RETAINING RING 62MM 2058 P6206Z BALL BEARING 6206Z 2059 P06702059 GEAR 24T 2060 P06702060 SPECIAL KEY 10 X 8 X 25 2061...
  • Page 90 Headstock (Shifting System)
  • Page 91 Headstock (Shifting System) Parts List PART # DESCRIPTION 2514 PSS30M SET SCREW M10-1.5 X 10 2515 P06702515 BUSHING 2516 P06702516 COMPRESSION SPRING 8 X 37 2517 P06702517 STEEL BALL 1/4" 2518 P06702518 PLUG 2519 PORP014 O-RING 13.8 X 2.4 P14 2520 P06702520 PLUG...
  • Page 92 Headstock (Gearbox Drive System) PART # DESCRIPTION 3034 PSB01M CAP SCREW M6-1 X 16 3066 PR15M EXT RETAINING RING 30MM 3072 PR15M EXT RETAINING RING 30MM 3105 P06703105 SPECIAL WASHER 6MM 3106 P06703106 GEAR 21T 3107 P06703107 GEAR 42T 3108 PK99M KEY 6 X 6 X 15 3109...
  • Page 93 Gearbox (Change Gear System) PART # DESCRIPTION 3501 PSB02M CAP SCREW M6-1 X 20 3502 P06703502 SPECIAL 6MM WASHER 3503 P06703503 GEAR 24T 3504 P06703504 SWING FRAME 3505 PK82M KEY 7 X 7 X 18 3506 PN32M HEX NUT M14-2 3507 P06703507 SPECIAL 14MM WASHER...
  • Page 94 Gearbox (Shift System)
  • Page 95 Gearbox (Shift System) Parts List PART # DESCRIPTION 4062 P06704062 GASKET 4063 P06704063 PARTITION NUT 4064 P06704064 UPPER PLATE 4065 P06704065 FORK SUPPORT 4066 P06704066 COMPRESSION SPRING 4 X 19 4067 P06704067 STEEL BALL 1/4" 4068 P06704068 PARTITION 4069 P06704069 FORK SUPPORT 4070 P06704070...
  • Page 96 Gearbox (Leadscrew and Feedrod Drive)
  • Page 97 Gearbox (Leadscrew and Feedrod Drive) PART # DESCRIPTION 4501 P06704501 SHAFT 4502 P06704502 OIL SEAL 4503 P06704503 ROLLER BEARING TAF202820 4504 P06704504 FLANGE BEARING 4505 P06704505 SPACER 4506 PR09M EXT RETAINING RING 20MM 4507 PK109M KEY 7 X 7 X 35 4508 P06704508 GEAR 19T/20T...
  • Page 98 Carriage (Controlrod, Feedrod, Leadscrew)
  • Page 99 Carriage (Control Rod, Feedrod, Leadscrew) PART # DESCRIPTION 5001 P06705001 5002 P06705002 STOP STUD 5003 P06705003 COVER 5004 P06705004 BLOCK 5005 P06705005 STEEL BALL 1/4" 5006 P06705006 COMPRESSION SPRING 8 X 27 5007 P06705007 DETENT CAM 5008 P06705008 HOUSING 5009 P06705009 COLLAR 5010...
  • Page 100 Carriage (Apron Drive and Shift System)
  • Page 101 Carriage (Apron Drive and Shift System) PART # DESCRIPTION 5501 P06705501 GEAR 18T/60T 5502 P06705502 SPECIAL WASHER 5503 PRP04M ROLL PIN 4 X 24 5504 P06705504 GEAR 81T/60T 5505 P06705505 DOWEL PIN 4 X 17MM 5506 P06705506 GEAR 72T/60T 5507 P06705507 COLLAR 5508...
  • Page 102 Carriage (Saddle and Slide)
  • Page 103 Carriage (Saddle and Slide) Parts List PART # DESCRIPTION 6001 P06706001 GIB SCREW 6002 P06706002 CROSS SLIDE 6003 P06706003 PIVOT 6004 P06706004 T-BOLT 6005 P06706005 6006 P06706006 WIPER 6007 P06706007 PLATE 6008 P06706008 THRUST BEARING NTB/AS2 6009 P06706009 CAP COLLAR 6010 P06706010 SPACER...
  • Page 104 Carriage (Saddle Lubrication System) PART # DESCRIPTION 6506 PS08M PHLP HD SCR M5-.8 X 12 6511 PSS03M SET SCREW M6-1 X 8 6513 PSB02M CAP SCREW M6-1 X 20 6515 PSB24M CAP SCREW M5-.8 X 16 6516 PSS74M SET SCREW M8-1.25 X 35 6517 PSB169M CAP SCREW M12-1.75 X 75...
  • Page 105 Carriage (Compound and Tool Holder) PART # DESCRIPTION 7001 P06707001 LEVER 7002 P06707002 TURRET NUT 7003 P06707003 SPACER WASHER 7004 P06707004 TOOLING BOLT M10-1.5 X 52 7005 P06707005 TURRET BODY 7006 P06707006 TURRET SHAFT 7007 P06707007 DETENT PIN 7008 P06707008 COMPRESSION SPRING 6 X 27 7009 P06707009...
  • Page 106 Bed (Thread Dial and Rests) PART # DESCRIPTION 7501 P06707501 DIAL SCALE 7502 P06707502 DIAL SHAFT 7503 P06707503 THREAD DIAL CASTING 7504 P06707504 THUMB NUT M8-1.25 7505 P06707505 STUD M8-1.25 X 107 7506 P06707506 THREADING PLATE 7507 P06707507 SPACER 7508 P06707508 DIAL GEAR 16T 7509...
  • Page 107 Bed (Tailstock)
  • Page 108 Bed (Tailstock) Parts List PART # DESCRIPTION 8001 P06708001 LEAD SCREW 8002 P06708002 LEADSCREW NUT 8003 PK34M KEY 5 X 5 X 20 8004 P06708004 THRUST BEARING AS2035 8005 P06708005 FLANGE 8006 PR37M EXT RETAINING RING 32MM 8007 P06708007 SPACER 8008 P06708008 INDEX RING...
  • Page 109 Accessories and Coolant System...
  • Page 110 Accessories and Coolant System Parts List PART # DESCRIPTION 8501 P06708501 SHAFT 8502 PSB31M CAP SCREW M8-1.25 X 25 8503 P06708503 PEDAL BRACKET 8504 PSB01M CAP SCREW M6-1 X 16 8505 P06708505 COLLAR 8506 PSB61M CAP SCREW M10-1.5 X 20 8507 P06708507 FOOT PEDAL...
  • Page 111 Electrical (Main Electrical Box) REF PART # DESCRIPTION 9001 P06709001 CONTACTOR TELE LC1D09 220VAC 9002 P06709002 THERMAL RELAY TELE LR3D 05 0.63-1A 9003 P06709003 THERMAL RELAY TELE LR3D 07 1.6-2.5A 9004 P06709004 MAIN FUSE BUS 3-PH 9005 P06709005 FUSE 20A 10.3 X 38MM 9006 P06709006 FUSE HOUSING 9007 P06709007 FUSE 5A 5.2 X 20.2MM 9008 P06709008 GROUNDING JUNCTION BLOCK...
  • Page 112 Notes...

  • Page 113: Warranty And Returns

    WARRANTY AND RETURNS 1 year...
