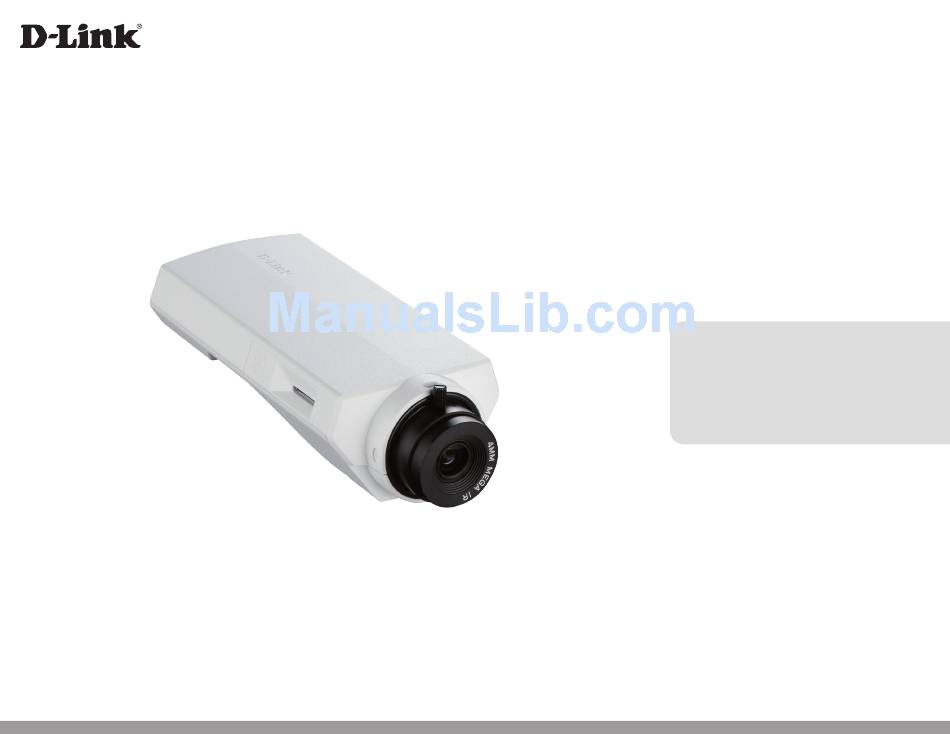

User Manual

HD PoE Fixed Network Camera
DCS-3010

Advertisement

Table of Contents
loading

Related Manuals for D-Link DCS-3010

Summary of Contents for D-Link DCS-3010

  • Page 1: User Manual

    User Manual HD PoE Fixed Network Camera DCS-3010...

  • Page 2: Manual Revisions

    Preface D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any person or organization of such revisions or changes. Manual Revisions Revision Date Description January 11, 2013 DCS-3010 Revision A1 with firmware version 1.10...

  • Page 3: Table Of Contents

    Logs .............. 70 Advanced Setup ..........28 System Overview ........... 29 Appendix A - Technical Specifications ....71 Video ..............30 Technical Specifications ........71 Video Settings ..........30 Image Settings ..........33 Audio Settings ..........35 D-Link DCS-3010 User Manual...

  • Page 4: Product Overview

    User Manual and Software HD PoE Fixed Network on CD-ROM Camera Power Adapter Quick Install Guide CAT5 Ethernet Cable Accessory wrench and lens ring fixture If any of the above items are missing, please contact your reseller. D-Link DCS-3010 User Manual...

  • Page 5: System Requirements

    ƒ VGA card resolution: SVGA or XGA (1024x768 or above) ƒ CPU: 1.7GHz or above (2.8GHz plus processor with 512MB memory and a 32MB video card is required for multiple camera viewing and recording in IP surveillance program) ƒ An available Ethernet connection D-Link DCS-3010 User Manual...

  • Page 6: Introduction

    Introduction DCS-3010 is a HD, full frame rate network camera with H.264 compression. The DCS-3010 connects to a network to provide high- quality live video over the Internet. With the vivid video quality and superb high resolution, it can provide most detail of the video which is useful to identify any suspected object.

  • Page 7: Features

    HD Surveillance DCS-3010 provides HD industral standard 16:9 wide screen video for IP surveillance. With the fixed lens, it is a high performance high quality network camera. To utilize the advantage of high resolution, the "viewing window" design can provide user a flexible settings to monitor multiple ROI(Region of Interest) by a single camera.

  • Page 8: Hardware Overview

    Product Overview Hardware Overview Front Panel Lens Connector Connect to a CS mount Built-in MIC Internal microphone D-Link DCS-3010 User Manual...

  • Page 9: Rear Panel

    Microphone Port Use to Connect an External microphone Speaker Port Use to Connect an External speaker Ethernet (PoE) DC Power RJ-45 connector for Ethernet 12V DC which can also be used to power the camera using PoE D-Link DCS-3010 User Manual...

  • Page 10: Side Panel

    Product Overview Side Panel Micro SD Card Slot Local Micro SD card for storing recorded images and video Side Panel D-Link DCS-3010 User Manual...

  • Page 11: Button Panel

    Product Overview Button Panel DC-Iris Connector Connector for DC auto iris lens D-Link DCS-3010 User Manual...

  • Page 12: Installation

    PoE will transmit both power and data over a single cable. Note: Once power has been established, the LED will turn red. When the device has obtained an IP address and is accessible, the LED will turn green. D-Link DCS-3010 User Manual...

  • Page 13: Configuration With Wizard

    Installation Configuration with Wizard Insert the DCS-3010 CD into your computer's CD-ROM drive to begin the installation. If the Autorun function on your computer is disabled, or if the D-Link Launcher fails to start automatically, click Start > Run. Type D:\ autorun.exe, where D: represents the drive letter of your CD-ROM drive.
  • Page 14 Installation Click Yes to accept the License Agreement. To start the installation process, click Next. Note: The installation may take several minutes to finish. D-Link DCS-3010 User Manual...
  • Page 15 Installation Click Finish to complete the installation. Click on the D-Link Setup Wizard SE icon that was created in your Windows Start menu. Start > D-Link > Setup Wizard SE D-Link DCS-3010 User Manual...
  • Page 16 Click the Wizard button to continue. Enter the Admin ID and password. When logging in for the first time, the default Admin ID is admin with the password left blank. Click Next, to proceed to the next page. D-Link DCS-3010 User Manual...
  • Page 17 Select static IP if the camera will use the same IP address each time it is started. Click Next, to proceed to the next page. Take a moment to confirm your settings and click Restart. D-Link DCS-3010 User Manual...

  • Page 18: Viewing Camera Via Web Browser

    Installation Viewing Camera via Web Browser Click on the D-Link Setup Wizard SE icon that was created in your Windows Start menu. Start > D-Link > Setup Wizard SE Select the camera and click the button labeled "Link" to access the web configuration.
  • Page 19 This section shows your camera’s live video. You can select your video profile and view or operate the camera. For additional information about web configuration, please refer to the user manual included on the CD-ROM or the D-Link website. D-Link DCS-3010 User Manual...

  • Page 20: D-Viewcam Setup Wizard

    D-ViewCam Setup Wizard D-ViewCam software is included for the administrator to manage multiple D-Link IP cameras remotely. You may use the software to configure all the advanced settings for your cameras. D-ViewCam is a comprehensive management tool for IP surveillance.
  • Page 21 Installation Click Finish to complete the installation. To start D-ViewCam, select Start > All Programs > D-Link D-ViewCam > Main Console. For more information about D-ViewCam, please refer to the documentation on the D-ViewCam CD-ROM. D-Link DCS-3010 User Manual...

  • Page 22: Configuration

    When you connect to the camera's web interface you will see the following page. This is the Live Video page which will allow you to view the camera's video feed and control basic camera functions using the icons on the screen. Please refer to the tables on the following pages for detailed information about the icons on this screen. D-Link DCS-3010 User Manual...
  • Page 23 Configuration Click this logo to visit the D-Link website. D-Link Logo The logos and website can be customized to fit your needs. For more information, please refer to User Customization on page 68. Securicam Logo Setup the stream transmission mode and saving options on the local computer.

  • Page 24: Control Panel

    Auto Pan: Auto Pan automatically scans an area horizontally. Select from the preset drop-down list to quickly move the camera to the desired preset position. Go Preset Control Pan/Tilt/Zoom speed Pan Speed Control Tilt Speed Control Zoom Speed Control Speed Control D-Link DCS-3010 User Manual...

  • Page 25: Camera Control

    50%: Keep the video zoom ratio at 50% Zoom ratio 25%: Keep the video zoom ratio at 25% Click the Help button to learn the detailed information regarding camera setup and solve any problems you encounter. Help D-Link DCS-3010 User Manual...

  • Page 26: Client Setup

    Local Streaming Buffer Time Enter the buffer time in milliseconds. The buffer will cause a slight delay between live activity and the video of the live stream but may increase the quality of video. D-Link DCS-3010 User Manual...

  • Page 27: Setup

    Configuration Setup The DCS-3010 includes basic and advanced setup screens. Both screens include a tree view with multiple setup options. This manual includes detailed explanations for all advanced setup screens. Basic Setup Click the setup button to enter the setup screen.

  • Page 28: Advanced Setup

    HTTPS, Access List, Advanced Settings Event Management - Motion Detection, Tamper Detection, Event Settings Recording - Recording Settings, Local Storage PTZ Control - Digtal PTZ System - User Settings, Device Settings, Time and Date, Maintenance, Parameter List, Logs D-Link DCS-3010 User Manual...

  • Page 29: System Overview

    Configuration System Overview The system overview page contains a summary of the camera's current settings. For more information about adjusting these settings, please consult the subsequent instructions found in this manual. D-Link DCS-3010 User Manual...

  • Page 30: Video

    "Output Frame Rate" (size of the live view window). Stream 4: This is global view stream which captures the full view of the video. Users can also define the "Output Frame Rate" (size of the live view window). D-Link DCS-3010 User Manual...
  • Page 31 Please manually enter a range of time if you choose Schedule mode. 3. Configure Exposure setting Configure Image setting in the third column. 4. Click Save to enable the setting and click Close to exit the page. D-Link DCS-3010 User Manual...
  • Page 32 Constant bit rate and the desired bandwidth from 20 Kbps to 8 Mbps. • Fixed quality: To optimize the bandwidth utilization and video quality. The video quality can be adjusted to the following setting: Medium, Standard, Good, Detailed and Excellent. D-Link DCS-3010 User Manual...

  • Page 33: Image Settings

    2. Place a sheet of white paper in front of the lens, then allow the camera to adjust the color temperature automatically. 3. Select Fixed to confirm the setting while the white balance is being measured. D-Link DCS-3010 User Manual...
  • Page 34 • Up to 5 privacy mask windows can be set up on the same screen. • If you want to delete the privacy mask window, please click the ‘x’ at the upper right-hand corner of the window. D-Link DCS-3010 User Manual...

  • Page 35: Audio Settings

    Higher bit rate means higher audio quality but it takes more network bandwidth to transmit. G711 bit rate: Select an G711 bit rate from the drop-down list. Higher bit rate means higher audio quality but it takes more network bandwidth to transmit. D-Link DCS-3010 User Manual...

  • Page 36: Network

    Primary DNS: The Primary Domain Name Server (DNS) that translates hostname into IP address. Secondary DNS: Secondary Domain Name Server (DNS) that backups the Primary DNS. Primary WINS Server: The primary WINS server that maintains the database of computer name and IP address. D-Link DCS-3010 User Manual...
  • Page 37 3. Go to Setup > Event management > Event settings > Media Settings (please refer to Media Settings). Select System log so that you will receive the system log in TXT file format which contains the camera’s public IP address in your e-mail or on the FTP server. D-Link DCS-3010 User Manual...
  • Page 38 4. Go to Setup > Network > IP settings. Select PPPoE and enter the user name and password provided by your ISP. Click Save to enable the setting. 5. The camera will reboot. 6. Disconnect the power to the camera. Remove it from the LAN environment. D-Link DCS-3010 User Manual...

  • Page 39: Port And Access Name Settings

    The FTP server allows the user to save recorded video clips. You can utilize D-Link's IP Cam Wizard to upgrade the firmware via FTP server. By default, the FTP port is set to 21. It also can be assigned to another port number between 1025 and 65535.
  • Page 40 If digest authentication is selected, user credentials are encrypted using MD5 algorithm, thus providing better protection against unauthorized access. D-Link DCS-3010 User Manual...
  • Page 41 RTCP port number is the multicast RTP port number plus one, and thus is always odd. When the multicast RTP port changes, the multicast RTCP port will change accordingly. Multicast TTL [1~255]: The multicast TTL (Time To Live) is the value that tells the router the range a packet can be forwarded. D-Link DCS-3010 User Manual...

  • Page 42: Dynamic Dns

    Host Name: Enter the host name of the DDNS server. Username: Enter your username or e-mail used to connect to the DDNS Password: Enter your password used to connect to the DDNS server. Status: Indicate the connection status, automatically determined by the system. D-Link DCS-3010 User Manual...

  • Page 43: Https

    1. Click Create to open the Create Certificate page, then click Save to generate the certificate. 2. The Certificate Information will automatically be displayed in the third column as shown below. You can click Property to see detailed information about the certificate. D-Link DCS-3010 User Manual...
  • Page 44 If you want to create and install other certificates, please remove the existing one. To remove the signed certificate, deselect Enable HTTPS secure connection in the first column and click Save. Then click Remove to erase the certificate. D-Link DCS-3010 User Manual...

  • Page 45: Access List

    User settings. 2. The administrator has set up a user password, but set RTSP Authentication to “disable“. For more information about RTSP Authentication, please refer to RTSP Streaming. D-Link DCS-3010 User Manual...
  • Page 46 Administrator IP address Always allow the IP address to access this device: You can select this item and add the Administrator’s IP address in this field to make sure the Administrator can always connect to the device. D-Link DCS-3010 User Manual...

  • Page 47: Advanced Settings

    Read Only and enter the community name. • Authentication type: Select MD5 or SHA as the authentication method. • Authentication password: Enter the password for authentication (at least 8 characters). • Encryption password: Enter a password for encryption (at least 8 characters). D-Link DCS-3010 User Manual...
  • Page 48 Quality can be defined as, for instance, a maintained level of bit rate, low latency, no packet dropping, etc. D-Link DCS-3010 User Manual...
  • Page 49 CoS as "coarsely-grained" traffic control and QoS as "finely- grained" traffic control. • Though CoS is simple to manage, it lacks scalability and does not offer end-to-end guarantees since it is based on L2 protocol. D-Link DCS-3010 User Manual...
  • Page 50 Quality of service guarantees are important if the network capacity is insufficient, especially for real-time streaming multimedia applications. Quality can be defined as, for instance, a maintained level of bit rate, low latency, no packet dropping, etc. D-Link DCS-3010 User Manual...

  • Page 51: Event Management

    Sensitivity and Percentage slide bar. special situations(Profile2), such as day/night/ 4. Click Save to apply the changes. schedule mode. 5. Select Enable motion detection to activate motion detection. D-Link DCS-3010 User Manual...

  • Page 52: Tamper Detection

    Set up the event source as Camera Tampering Detection on Event Settings > Server Settings (how to send alarm message)/ Media Settings (send what type of alarm message)/Event Settings/. Please refer to Event settings for detailed information. D-Link DCS-3010 User Manual...

  • Page 53: Event Settings

    To verify if the e-mail settings are correctly configured, click Test. The result will be shown in a pop-up window. If successful, you will also receive an e-mail indicating the result. Click Save to enable the settings, then click Close to exit the page. D-Link DCS-3010 User Manual...
  • Page 54 Network storage: Select to send the media files to a network storage location when a trigger is activated. Click Save to enable the setting, then click Close to exit the page. When completed, the new server settings will automatically be displayed on the Event Settings page. D-Link DCS-3010 User Manual...

  • Page 55: Media Settings

    Add date and time suffix to the file name: Select this option to add a date/ time suffix to the file name. Click Save to enable the settings, then click Close to exit the page. D-Link DCS-3010 User Manual...
  • Page 56 Click Save to enable the settings, then click Close to exit the page. When completed, click Save to enable the settings and click Close to exit this page. The new media settings will appear on the Event Settings page. D-Link DCS-3010 User Manual...
  • Page 57 Priority: Set the priority for this event (High, Normal, or Low). The event with higher priority will be executed first Detect next event after * seconds: Select the delay time before selecting the next event. It is being used for both events of motion detection and digital input trigger. D-Link DCS-3010 User Manual...
  • Page 58 Tamper detection option first. Please refer to Tamper detection for detailed information. Event Schedule Specify the period for the event 1. Select the days of the week. 2. Select the recording schedule in 24-hr time format. D-Link DCS-3010 User Manual...
  • Page 59 To set an event with recorded video or snapshots, it is necessary to configure the server and media setting so that the camera will know what action to take (i.e. the server to send the media files to) when a trigger is activated. • Add Server: same as Server Settings • Add Media: same as Media Settings D-Link DCS-3010 User Manual...

  • Page 60: Recording

    Capacity: You can choose either the entire free space available or limit the reserved space. The recording size limit must be larger than the reserved amount for cyclic recording. File name prefix: Enter the text that will be appended to the front of the file name. D-Link DCS-3010 User Manual...
  • Page 61 Network Storage. The new recording name will appear in the drop-down list on the recording page. To remove a recording setting from the list, select a recording name from the drop-down list and click Delete. D-Link DCS-3010 User Manual...

  • Page 62: Local Storage

    Search Results Window. Search Results This area will show the search results. There are four columns: Trigger time, Media type, Trigger type, and Locked. Click up and down arrow to sort the search results in either direction. D-Link DCS-3010 User Manual...

  • Page 63: Ptz Control

    5. If you want to delete a selected location, select it from the Source list and click Remove. 6. Select a location and click Up or Down to rearrange the patrol order. 7. Click Save to enable the setting. D-Link DCS-3010 User Manual...

  • Page 64: System

    Username: Enter a username for the new account. Password: Enter a password for the new account. Privilege: Select the access rights for the new user. Manage user: Manage the accounts for existing users. Authentication: The access rights for existing users. D-Link DCS-3010 User Manual...

  • Page 65: Device Settings

    Turn off the LED indicator: Select this option to turn off the LED next to the lens. This will prevent anyone from observing the operation of the network camera. Camera Name: Create a unique name for your camera. D-Link DCS-3010 User Manual...

  • Page 66: Time And Date

    Update Interval: The time interval for updating the time information from NTP server. Set the date and time manually: This option allows you to set the time and date manually. Copy Your Computer’s Time Setting: This will synchronize the time information from your PC. D-Link DCS-3010 User Manual...

  • Page 67: Maintenance

    3. Open the file with Microsoft ® Notepad and locate your time zone. Set the start and end time of DST. 4. When completed, save the file Upload daylight saving time rule: Click Browse… and specify the XML file to upload. D-Link DCS-3010 User Manual...
  • Page 68 Note: Do not power off the camera during the upgrade! Follow the steps below to upgrade the firmware: 1. Download the latest firmware file from the D-Link website. The file is in .pkg file format. 2. Click Browse… and specify the firmware file.

  • Page 69: Parameter List

    Configuration Parameter List The Parameters List page lists the entire system’s parameters in alphabetical order. If you need technical assistance, please provide the information listed on this page. D-Link DCS-3010 User Manual...

  • Page 70: Logs

    3. When completed, select Enable remote log and click Save to enable the setting. Current Log: This column displays the system log in chronological order. The system log is stored in the camera’s buffer area and will be overwritten when reaching a certain limit. D-Link DCS-3010 User Manual...

  • Page 71: Appendix A - Technical Specifications

    ƒ IGMP ƒ FTP client ƒ ONVIF compliant ƒ HTTP / HTTPS Security ƒ Administrator and user group protection ƒ HTTP and RTSP digest encryption ƒ Password authentication ƒ Remote client access control ƒ HTTPS streaming D-Link DCS-3010 User Manual...
  • Page 72 ƒ Operating: 0 to 40 °C (32 to 104 °F) ƒ Storage: -20 to 70 °C (-4 to 158 °F) Humidity ƒ Operating: 20% to 80% non-condensing ƒ Storage: 5% to 95% non-condensing ƒ CE ƒ FCC Certifications ƒ CE LVD ƒ C-Tick Dimensions D-Link DCS-3010 User Manual...
