HD Network Camera
This document will guide you through the basic installation
process for your new D-Link Network Camera.
DCS-3511/DCS-3530
Quick Installation Guide
Краткое руководство по установке
Guía de Instalación Rápida
Guia de Instalação Rápida
快速安裝指南
Petunjuk Pemasangan Cepat
Documentation also available on
CD and via the D-Link Website
Advertisement
Table of Contents
Related Manuals for D-Link DCS-3511
Summary of Contents for D-Link DCS-3511
-
Page 1: Quick Installation Guide

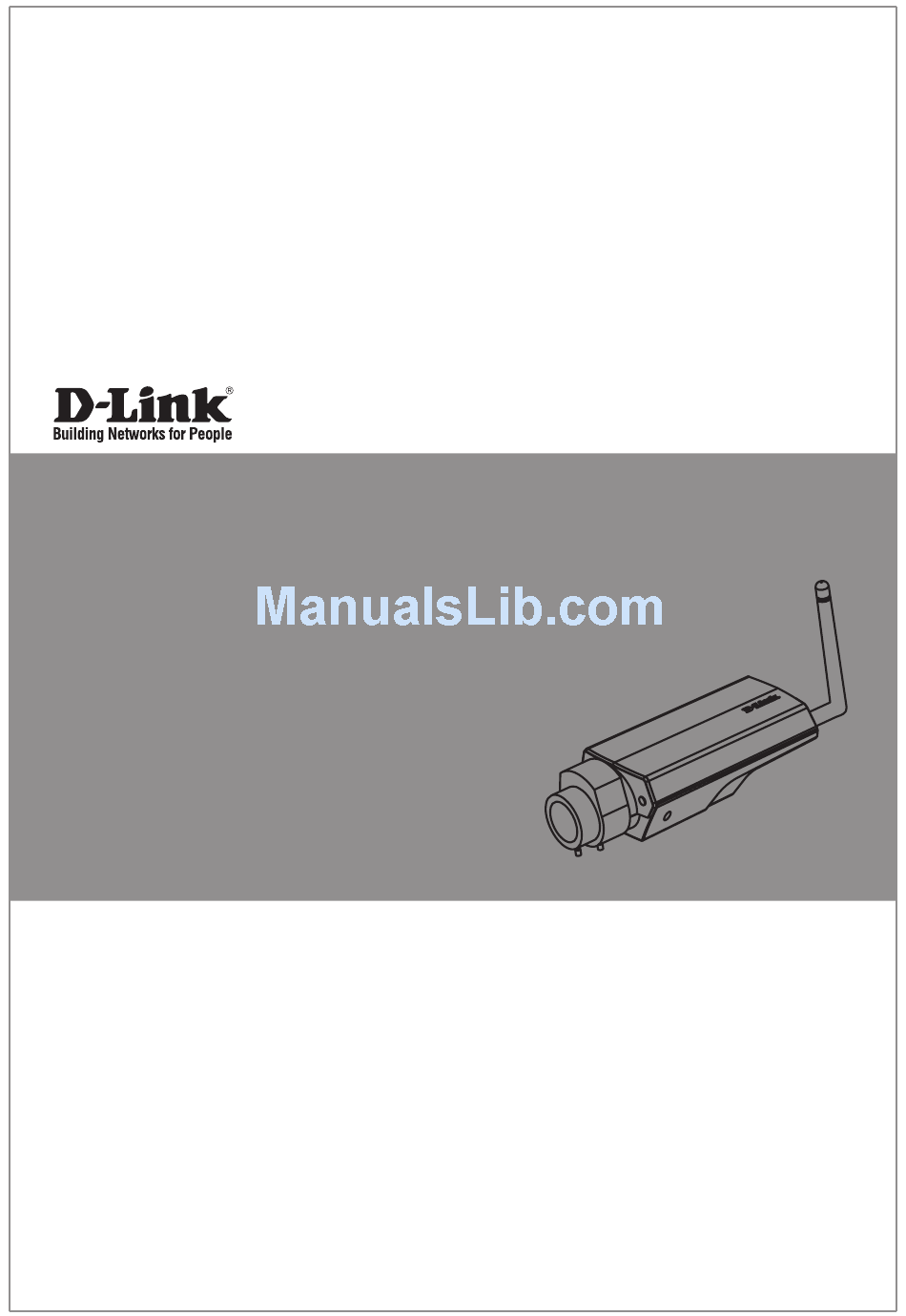

Quick Installation Guide HD Network Camera This document will guide you through the basic installation process for your new D-Link Network Camera. DCS-3511/DCS-3530 Quick Installation Guide Краткое руководство по установке Guía de Instalación Rápida Guia de Instalação Rápida 快速安裝指南 Petunjuk Pemasangan Cepat... -
Page 2: Quick Install Guide
DCS-3511/DCS-3530 Quick Install Guide This installation guide provides basic instructions for installing the DCS-3511/DCS-3530 Network Camera on your network. For additional information about how to use the camera, please see the User’s Manual which is available on the CD include in this package or from the D-Link support website. -
Page 3: Hardware Overview
Ethernet (PoE) RJ-45 connector for Ethernet which can also be used to power the camera using PoE Front Panel ICR Sensor The IR-Cut Removable sensor judges lighting conditions and switches from color to infrared accordingly D-Link DCS-3511/DCS-3530 Quick Install Guide... -
Page 4: Side Panel
Connector for DC iris lens Button panel Built-in MIC Internal microphone Wire Clip For wire management Mounting Nut I/O Connector 1/4' x 20 nut for affixing camera to I/O connectors for external devices mounting bracket D-Link DCS-3511/DCS-3530 Quick Install Guide... -
Page 5: Hardware Installation
PoE will transmit both power and data over a single cable. Note: Once power has been established, the LED will turn red. When the device has obtained an IP address and is accessible, the LED will turn green. D-Link DCS-3511/DCS-3530 Quick Install Guide... - Page 6 Attach the Antennas (DCS-3530 only) Locate the antennas included with your DCS-3530 and attach them to the antenna connectors located on the back of the DCS-3530 D-Link DCS-3511/DCS-3530 Quick Install Guide...
-
Page 7: Configuration With Wizard
4. Configuration with Wizard Insert the DCS-3511/DCS-3530 CD into your computer's CD-ROM drive to begin the installation. If the Autorun function on your computer is disabled, or if the D-Link Launcher fails to start automatically, click Start > Run. Type D:\autorun.exe, where D: represents the drive letter of your CD-ROM drive. - Page 8 Click on the D-Link Setup Wizard SE icon that was created in your Windows Start menu. Start > D-Link > Setup Wizard SE The Setup Wizard will appear and display the MAC address and IP address of your camera(s). If you have a DHCP server on your network, a valid IP Address will be displayed.
-
Page 9: Viewing Camera Via Web Browser
Viewing Camera via Web Browser Click on the D-Link Setup Wizard SE icon that was created in your Windows Start menu. Start > D-Link > Setup Wizard SE Select the camera and click the button labeled "Link" to access the web configuration. -
Page 10: Technical Support
Technical Support You can find software updates and user documentation on the D-Link website. Tech Support for customers in Australia: D-Link Middle East - Dubai, U.A.E. Tel: 1300-766-868 Plot No. S31102, 24/7 Technical Support Jebel Ali Free Zone South, Web: http://www.dlink.com.au P.O.Box 18224, Dubai, U.A.E. - Page 11 Türkiye Merkez İ rtibat Ofisi Ayazağa Maslak yolu Erdebil Cevahir İş Merkezi No: 5/A Ayazağa / Maslak İstanbul Tel: +90 212 2895659 Ücretsiz Müşteri Destek Hattı: 0 800 211 00 65 Web:www.dlink.com.tr Teknik Destek: support.tr@dlink.com.tr D-Link DCS-3511/DCS-3530 Quick Install Guide...
