Interacting with the iLO MP Using the Web GUI

Web browser access is an embedded feature of the iLO MP.
The iLO MP has a separate LAN port from the system LAN port. It requires a separate LAN drop, IP address,
and networking information from that of the port used by the operating system.
Before starting this procedure, you must have the following information:
• DNS name for the iLO MP LAN. This is found on the toe-tag on the server.
• Host name (used when messages are logged or printed).
To interact with the iLO MP through the Web GUI, follow these steps:
Step 1. Open a Web browser and enter the DNS name for the iLO MP. The iLO MP login page opens.

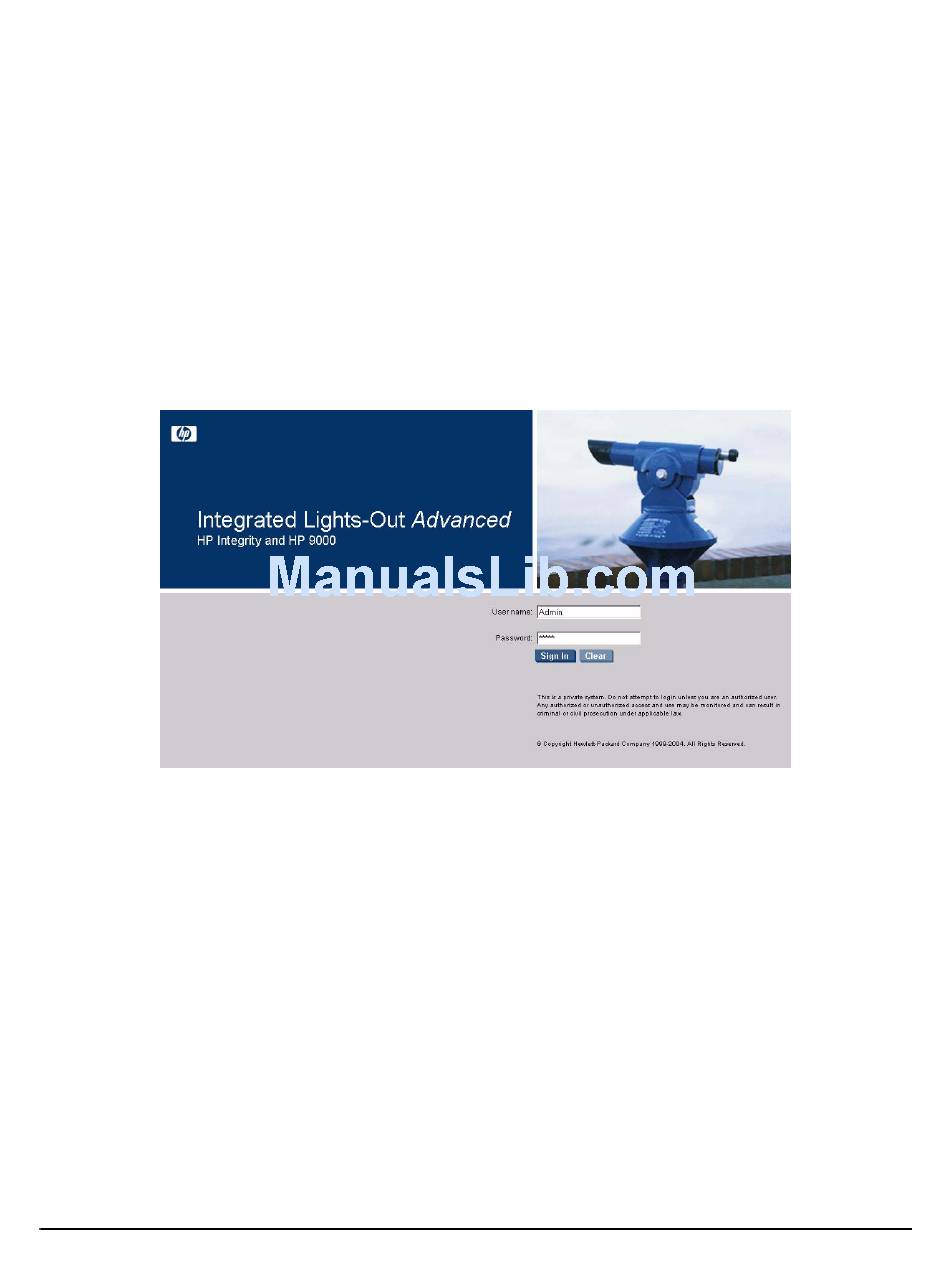

Figure 1-42 Web Login Page

Step 2. Log in using your user account name and password at the login page.
Step 3. Click . The
Sign In
Chapter 1
page displays after login.
Status Summary
Installing the System
Accessing the Host Console
85
