Installing the System
Installing Additional Components

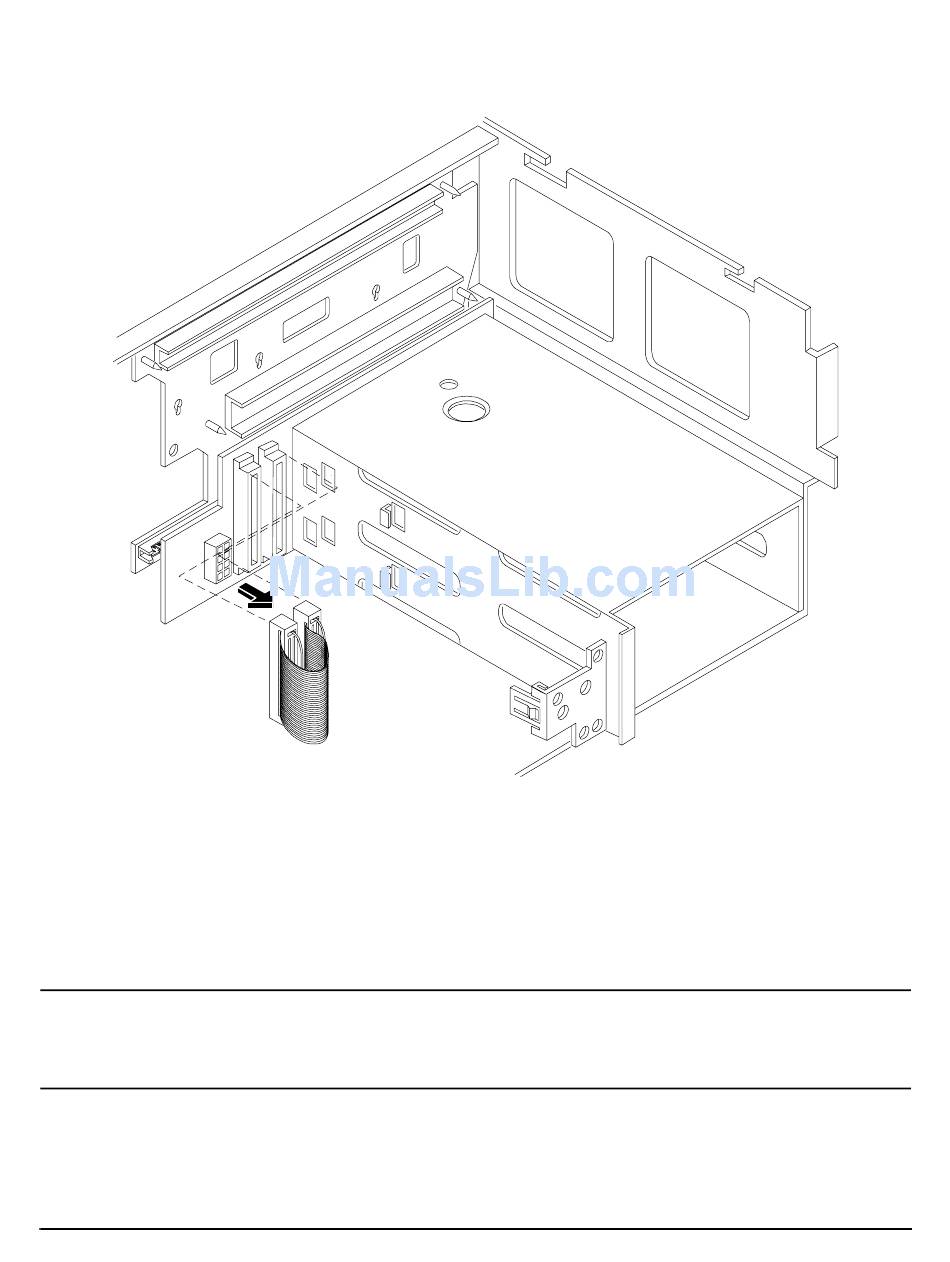

Figure 1-36 Removing the SCSI Jumper Cable

Step 2. Install the duplex board in the SCSI connector located nearest the disk drive cage.
a. Align the bracket tabs with the slots on the side of the disk drive cage.
b. Press the bracket against the disk drive cage until the bracket locks into place.
c. Align the connector of the duplex board with the connector on the SCSI backplane.
d. Press the board connector into the backplane connector.
NOTE
68
In simplex mode, both hard disk drives in slot 0 and slot 1 are driven by SCSI
channel A. When the duplex board is installed, the slot 1 hard disk drive is now
driven by SCSI channel B. If HP-UX was previously installed and whole disk vxfs
was not used, the system no longer boots.
Chapter 1
