Table 1-8 and Figure 1-28 show the DIMM filler requirements and configuration for the 16-DIMM memory
extender board.
Table 1-8 DIMM Filler Requirements for 16 DIMM Extender Board
DIMMs Loaded
4 DIMMs in quad 0
8 DIMMs in quads 0 and 1
12 DIMMs in quads 0, 1, and 2
16 DIMMs in quads 0, 1, 2, and 3
a. One DIMM filler board covers two adjacent DIMM connectors.

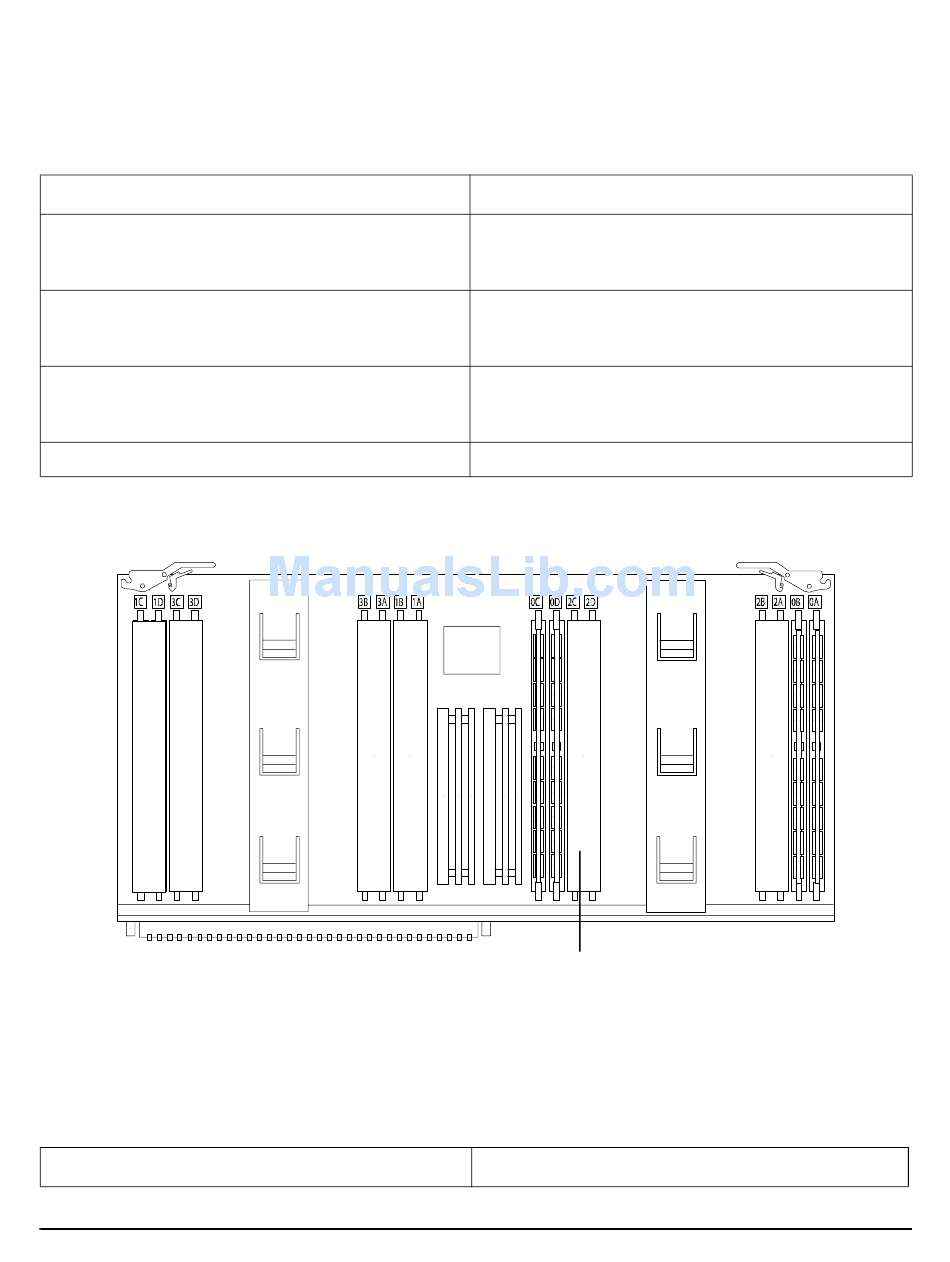

Figure 1-28 16-DIMM Memory Extender Board Minimum Configuration
Table 1-9 and Figure 1-29 show the DIMM filler requirements and configuration for the 32-DIMM memory
extender board.
Table 1-9 DIMM Filler Requirements for 32-DIMM Memory Extender Board
DIMMs Loaded
52
a
Fillers Required
Six fillers total:
Two fillers each in quads 1, 2, and 3
Four fillers total:
Two fillers in quads 2 and 3
Two fillers total:
Two fillers in quad 3
No fillers required
DIMM Filler
a
Fillers required
