Applying Standby Power To The Server; Connecting To The Lan; Figure 1-40 Ports On Server Rear - HP rp4410 Installation Manual

Installing the System
Connecting the Cables

Applying Standby Power to the Server

To apply standby power to the server, follow these steps:
Step 1. If the server has one power supply installed in slot P1, plug the power cord into that receptacle.
Plug the other end of the power cord into an appropriate outlet.
NOTE
Step 2. If the server has two power supplies, plug the second power cord into the power supply in slot P2.
Plug the other end of the power cord into an appropriate outlet.

Connecting to the LAN

The server has the following ports that provide network connectivity:
• iLO MP LAN port. Use this port to access the Integrity iLO MP through the LAN.
• Console/Remote/UPS port (RS-232). Use this port to access the iLO MP through the console.

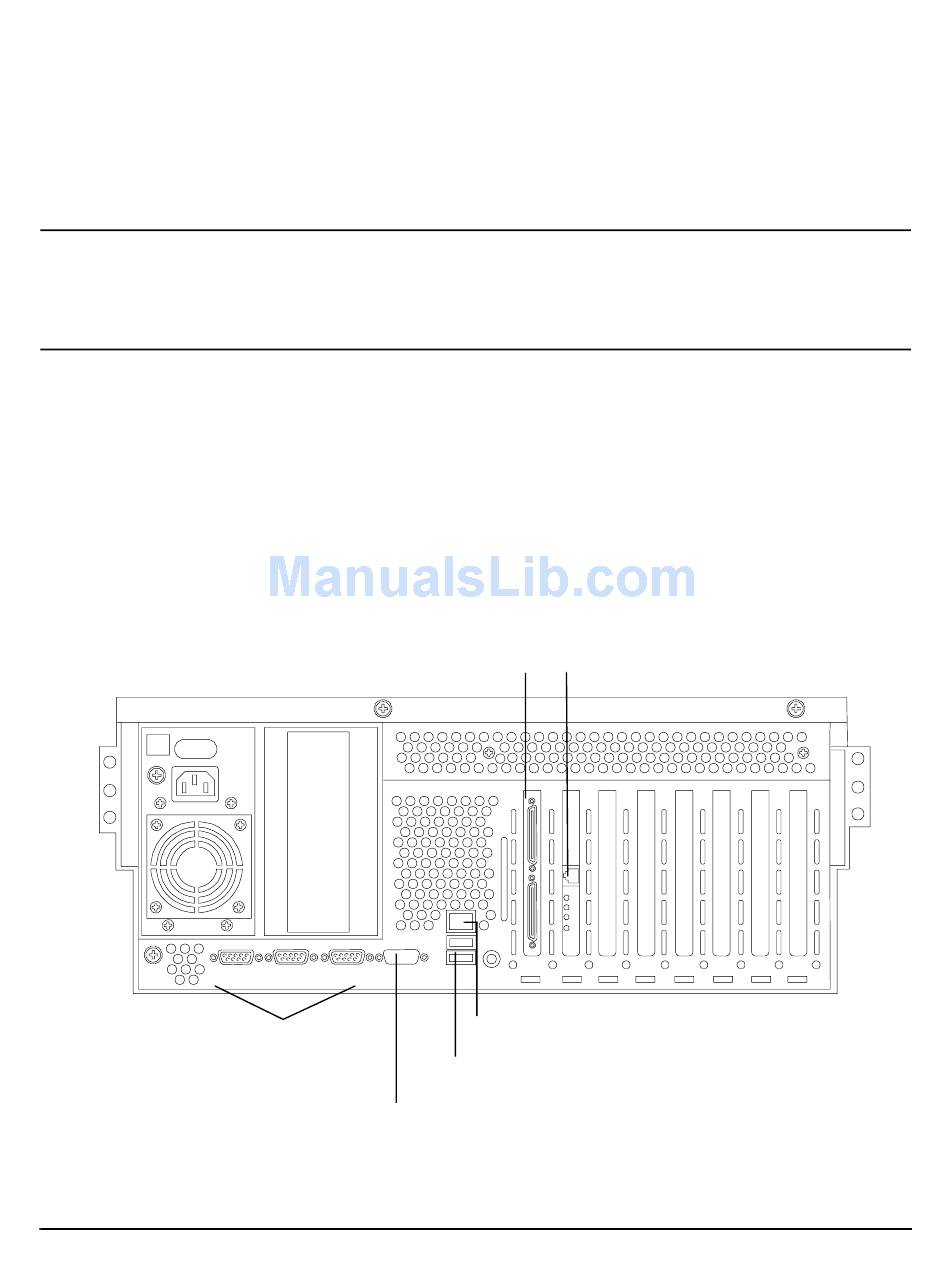

Figure 1-40 shows the available LAN ports for the server.
Figure 1-40 Ports on Server Rear
Local
Console/Remote/UPS Port (RS-232)
(M Cable & RS-232 DB-9F to DB-9F)
VGA Port
The VGA port is disabled on the rp4410 and rp4440 servers.
74
The LED on the power supply does not illuminate in the standby power state. The
LED illuminates when the server is powered on to full power. If the power restore
feature is set to Always On through the iLO MP PR command, the server
automatically powers on to the full power state when the power cord is plugged into
the server.
HBA, Ultra 3 SCSI, 68 Pin
Aux Remote
Gigabit Ethernet LAN Port
iLO MP LAN Port (10/100 LAN Cable
USB Ports
Chapter 1
