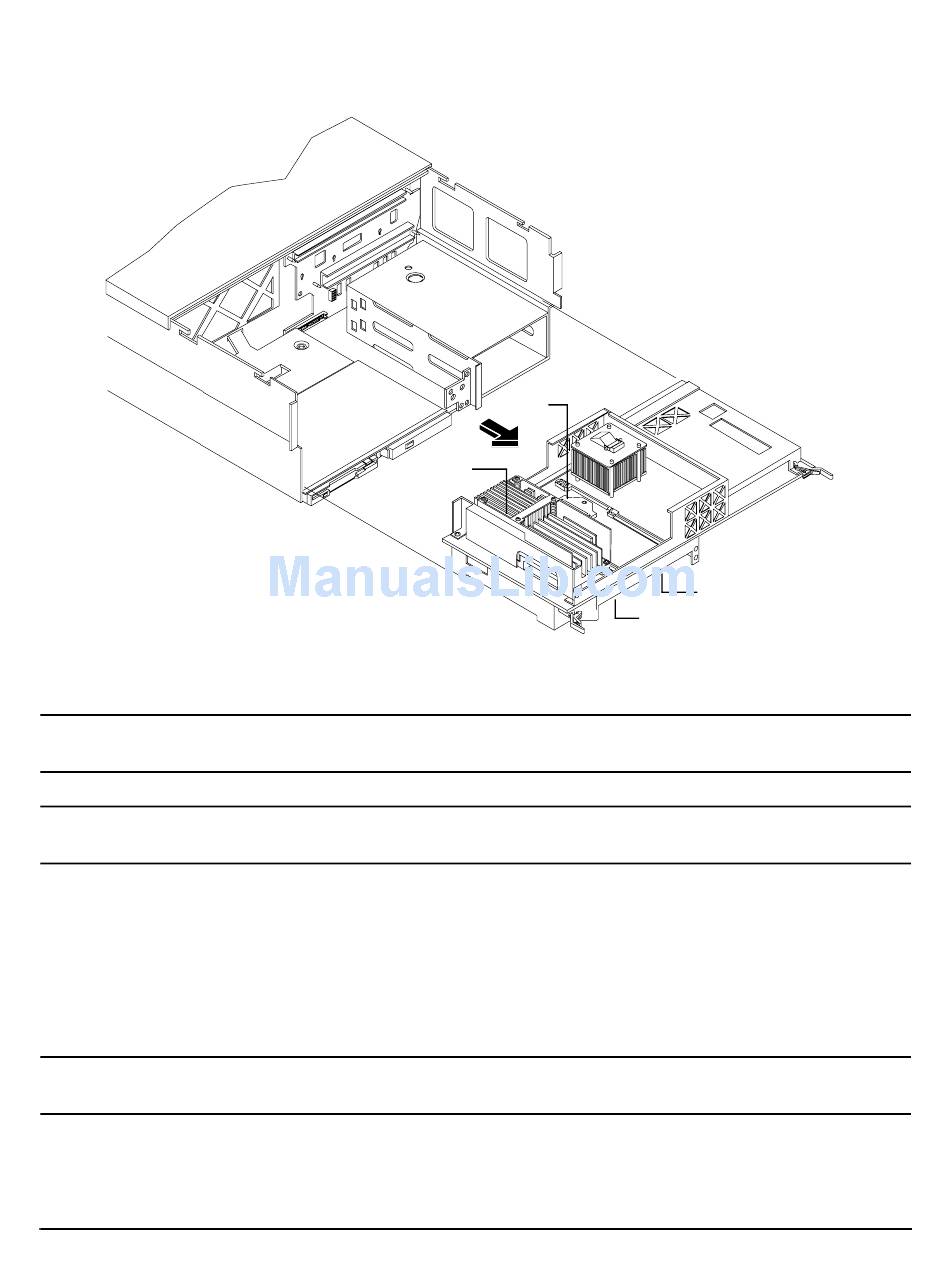

Figure 1-24 Removing the Processor Extender Board

Installing a Processor on the Extender Board
CAUTION Observe all ESD safety precautions before attempting this procedure. Failure to follow ESD
safety precautions can result in damage to the server.
Before installing a processor into the server, read the following instructions carefully for a
NOTE
complete understanding of this process.
To install a processor on the extender board, follow these steps:
Step 1. Locate the socket (CPU1, CPU2, or CPU3) where you will install the dual processor module. (See
Figure 1-24 and see "Processor Load Order" on page 44.)
Step 2. Ensure that the cam on the processor socket lock is in the unlocked, counter-clockwise position.
Step 3. Remove any protective packaging from the processor module.
NOTE
Step 4. Inspect the pins of the processor to be installed. Verify that the processor pins are not bent.
Chapter 1
Protective covers can be installed to protect connector pins. These covers can be
saved for future use.
CPU1
CPU0
Installing the System
Installing Additional Components
CPU3 (under)
CPU2 (under)
47
