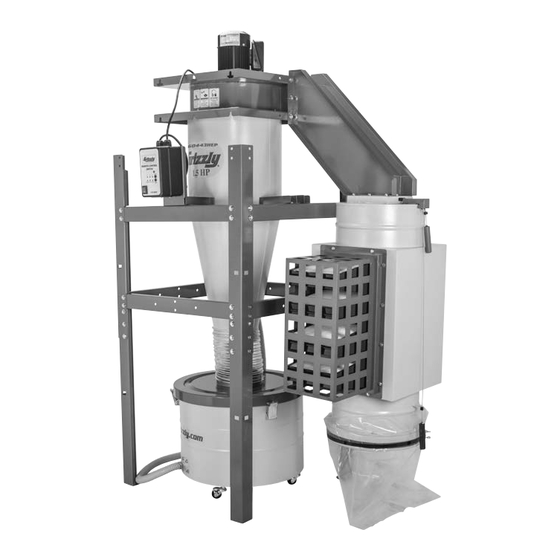

1 1/2 hp dual-filtration hepa cyclone dust collector
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

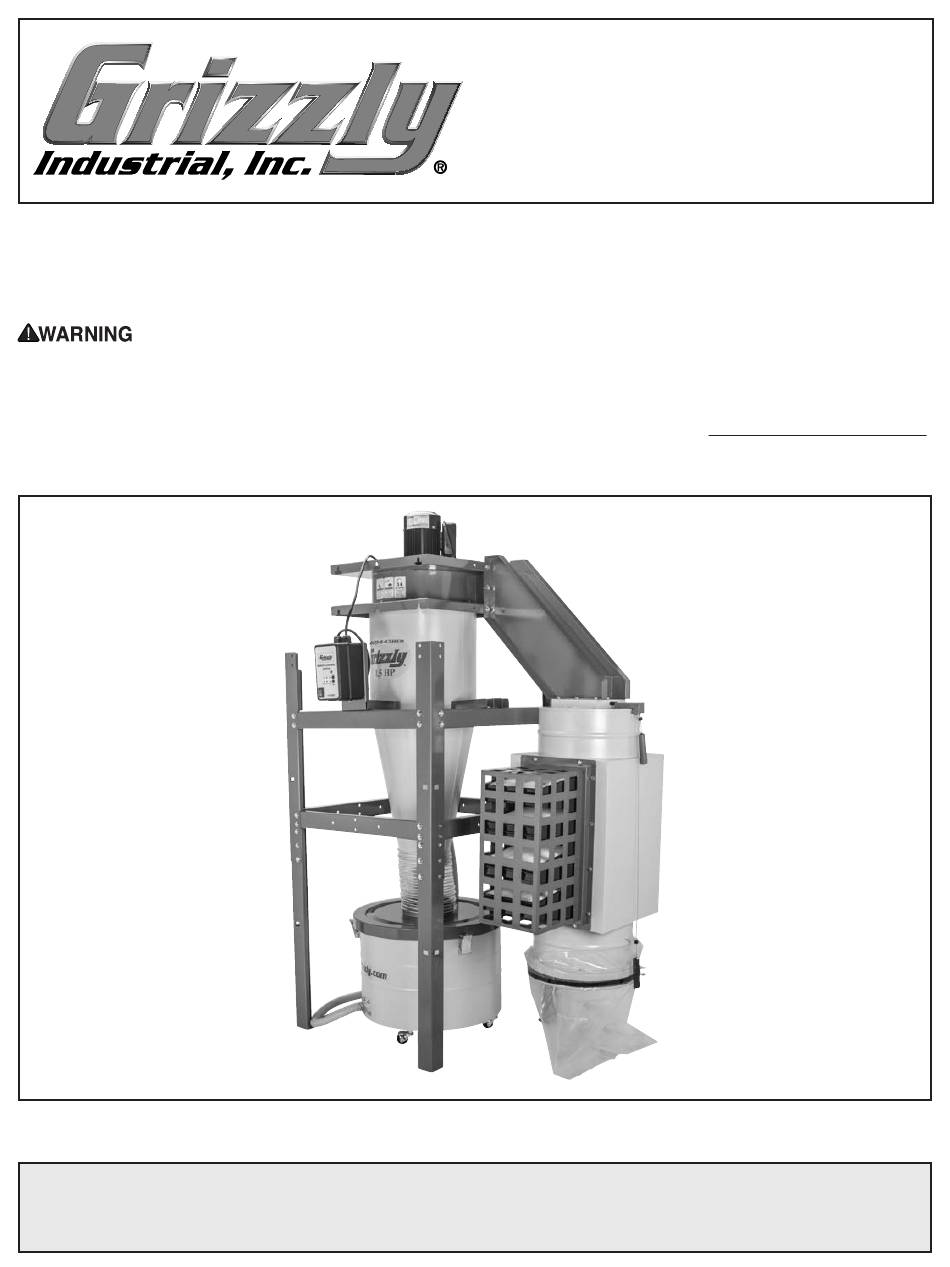

MODEL G0443HEP
1
⁄
HP DUAL-FILTRATION HEPA
1
2
CYCLONE DUST COLLECTOR
MANUAL INSERT
(For owner's manual printed March, 2012)
The Model G0443HEP is the same machine as the Model G0443 except for the dual-filtration HEPA filter
system and the included stand. Except for the differences noted in this insert, all other content in the Model
G0443 owner's manual applies to this machine.
: To reduce the risk of serious injury, you MUST read and understand this insert—and
the entire Model G0443 owners manual—BEFORE assembling, installing, or operating this machine!
If you have any further questions about this manual insert or the differences between the Model G0443HEP
and the Model G0443, contact our Technical Support at (570) 546-9663 or email techsupport@grizzly.com.
COPYRIGHT © FEBRUARY, 2015 BY GRIZZLY INDUSTRIAL, INC. REVISED DECEMBER, 2017 (AB)
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
(FOR MODELS MANUFACTURED SINCE 12/17) #BB17222 PRINTED IN TAIWAN
V2.12.17

Advertisement

Table of Contents
loading

Related Manuals for Grizzly G0443HEP

Summary of Contents for Grizzly G0443HEP

  • Page 1 (For owner's manual printed March, 2012) The Model G0443HEP is the same machine as the Model G0443 except for the dual-filtration HEPA filter system and the included stand. Except for the differences noted in this insert, all other content in the Model G0443 owner's manual applies to this machine.
  • Page 2 MACHINE DATA SHEET Customer Service #: (570) 546-9663 · To Order Call: (800) 523-4777 · Fax #: (800) 438-5901 MODEL G0443HEP 1‐1/2 HP DUAL‐FILTRATION HEPA CYCLONE DUST COLLECTOR Product Dimensions: Weight................................370 lbs. Width (side-to-side) x Depth (front-to-back) x Height............... 54-1/2 x 33 x 87-1/2 in.
  • Page 3 The information contained herein is deemed accurate as of 12/21/2017 and represents our most recent product specifications. Model G0443HEP PAGE 2 OF 3 Due to our ongoing improvement efforts, this information may not accurately describe items previously purchased. Model G0443HEP (Mfd. Since 12/17)
  • Page 4 "-16 x 1" ....... 8 —Hex Nuts ⁄ "-16 ........4 —Lock Nuts ⁄ "-16 ........8 —Lock Washers ⁄ " ........4 —Flat Washers ⁄ " ........24 Figure 1. Model G0443HEP inventory. Model G0442HEP/G0601HEP (Mfd. Since 01/15) Model G0443HEP (Mfd. Since 12/17)

  • Page 5: Table Of Contents

    If you cannot find an item on this list, care- fully check around/inside the machine and packaging materials. Often, these items get lost in packaging materials while unpack- ing or they are pre-installed at the factory. Model G0443HEP (Mfd. Since 12/17)

  • Page 6: Qty

    " hex bolts, (32) ⁄ " Lower flat washers, and (16) ⁄ "-16 lock nuts (see Figure 3)—only finger-tighten for now. x 24 Figure 5. Lower legs attached to stand assembly. Model G0442HEP/G0601HEP (Mfd. Since 01/15) Model G0443HEP (Mfd. Since 12/17)
  • Page 7 Medium Strength Blue Thread Locker 90° Square (Grizzly Model T21854) on the bolts that secure the intake cylinder to the motor/blower housing assembly to ensure that the fasten- ers won't come loose with vibration.

  • Page 8: Collector Mounting Brackets

    (8) lock nuts. or rocking. Collector Mounting Bracket Figure 13. Lifting the assembly upright. Figure 11. Collector mounting brackets attached to intake assembly. Model G0442HEP/G0601HEP (Mfd. Since 01/15) Model G0443HEP (Mfd. Since 12/17)

  • Page 9: Hex Bolts

    Rubber Gasket 17. Complete Step 11 from the G0443 Owner's Manual (see Page 18). HEPA Filter Assembly Figure 17. Attaching HEPA filter assembly to blower housing. U-Shaped Clips Figure 15. Securing vacuum hose to stand legs. Model G0443HEP (Mfd. Since 12/17)

  • Page 10: Hex Nuts

    22. Double-check that all nuts and bolts are tightened. Congratulations, the assembly is Extended complete. Wall-Mount Bracket Extended Intake Barrel Brace Figure 20. Included with T27324 wall-mount kit. Figure 19. G0443HEP filter system completely installed. -10- Model G0442HEP/G0601HEP (Mfd. Since 01/15) Model G0443HEP (Mfd. Since 12/17)
  • Page 11 Congratulations, the assembly is complete. HEPA Filter Assembly Rubber Gasket Figure 22. Attaching HEPA filter assembly to wall-mount adapter. Follow assembly Steps 16–22 and Step 24 in Owner's Manual. Figure 24. G0443HEP wall-mount filter system completely installed. -11- Model G0443HEP (Mfd. Since 12/17)
  • Page 12 Main G0443HEP 110V G0443HEP 220V 95-1 95-4 95-2 95-3 228-1 230-2 230-3 230-1 230-5 230-4 87 88 232A -12- Model G0442HEP/G0601HEP (Mfd. Since 01/15) Model G0443HEP (Mfd. Since 12/17)
  • Page 13 DRUM LID LATCH 230-5 P0443HEP230-5 HEPA FILTER BOTTOM PLATE P0443HEP053 PHLP HD SCR 10-24 X 3/8 P0443HEP231 DRUM LID PVC RUBBER SEAL 2M P0443HEP054 HEX NUT 10-24 232A P0443HEP232A HEPA FILTER KIT P0443HEP055 CASTER 2" -13- Model G0443HEP (Mfd. Since 12/17)
  • Page 14 READ MANUAL LABEL 2W X 3.3H P0443HEP313 RETURN RED HANDLE LABEL P0443HEP306 GLASSES/RESPIRATOR DC LABEL P0443HEP314 GRIZZLY PUTTY TOUCH-UP PAINT P0443HEP307 MOTOR WARNING LABEL P0443HEP315 GRIZZLY.COM LABEL P0443HEP308 MOTOR SPEC LABEL -14- Model G0442HEP/G0601HEP (Mfd. Since 01/15) Model G0443HEP (Mfd. Since 12/17)
  • Page 15 REFPART # DESCRIPTION REFPART # DESCRIPTION PT27324001 WALL MOUNT BRACKET, EXTENDED PT27324004 HEX BOLT 3/8-16 X 1 PT27324002 SWITCH MOUNTING BRACKET PT27324005 FLAT WASHER 3/8 INTAKE BARREL BRACE, EXTENDED PT27324003 PT27324006 HEX NUT 3/8-16 -15- Model G0443HEP (Mfd. Since 12/17)
  • Page 17 OWNER'S MaNUaL (For models manufactured since 11/09) Copyright © MarCh, 2012 By grizzly industrial, inC. WaRNiNG: NO PORTiON Of THiS MaNUaL MaY bE REPRODUCED iN aNY SHaPE OR fORM WiTHOUT THE WRiTTEN aPPROvaL Of GRizzLY iNDUSTRiaL, iNC. #Kn14539 printed in taiwan...
  • Page 18 This manual provides critical safety instructions on the proper setup, operation, maintenance, and service of this machine/tool. Save this document, refer to it often, and use it to instruct other operators. Failure to read, understand and follow the instructions in this manual may result in fire or serious personal injury—including amputation, electrocution, or death.
  • Page 19 Table of Contents iNTRODUCTiON ..........2 SECTiON 4: DESiGNiNG THE SYSTEM ..24 Manual accuracy ........... 2 general ............24 Contact info............ 2 duct Material ..........24 Machine description ........2 Metal duct ..........25 identification ........... 3 Flexible duct ..........25 Machine data sheet ........

  • Page 20: Introduction

    Any updates to your model before it returns to the shop. of machine will be reflected in these documents as soon as they are complete.

  • Page 21: Identification

    identification Blower housing Motor inlet port optional stand Canister remote Filter assembly Magnetic switch Vacuum hose Collection drum figure 1. Model g0443 identification (shown with optional stand). To reduce the risk of serious injury when using this machine, read and understand this entire...

  • Page 22: Machine Data Sheet

    Machine Data Sheet MACHINE DATA SHEET Customer Service #: (570) 546-9663 · To Order Call: (800) 523-4777 · Fax #: (800) 438-5901 MODEL G0443 1-1/2 HP CYCLONE DUST COLLECTOR Product Dimensions: Weight................................251 lbs. Width (side-to-side) x Depth (front-to-back) x Height............55-1/2 x 36-1/4 x 87-1/2 in. Footprint (Length x Width).......................
  • Page 23 Bag Information No of Lower Bags............................. 1 Canister Information No of Canister Filters............................1 Canister Filter Diameter........................15-3/4 in. Canister Filter Length.......................... 46-3/4 in. Filter Surface Area.......................... 96 square ft. Collection Drum Size.......................... 35 gallons Impeller Information Impeller Type............................Radial Fin Impeller Size............................

  • Page 24: Section 1: Safety

    SECTiON 1: SafETY For Your Own Safety, Read Instruction Manual Before Operating this Machine The purpose of safety symbols is to attract your attention to possible hazardous conditions. This manual uses a series of symbols and signal words intended to convey the level of impor- tance of the safety messages.
  • Page 25 ­ ­ DISCONNECTING POWER SUPPLY.­Always­dis- GUARDS & COVERS.­ Guards­ and­ covers­ can­ connect­ machine­ from­ power­ supply­ before­ ser- protect­ you­ from­ accidental­ contact­ with­ moving­ vicing,­ adjusting,­ or­ changing­ cutting­ tools­ (bits,­ parts­ or­ flying­ debris.­ Make­ sure­ they­ are­ prop- blades,­...

  • Page 26: Additional Safety For Dust Collectors

    additional Safety for Dust Collectors ­ ­ INTENDED USE.­ This­ dust­ collector­ is­ only­ SUSPENDED DUST ParTICLES aND IGNITIoN intended­for­collecting­wood­dust­and­chips­from­ SoUrCES.­DO­NOT­operate­the­dust­collector­in­ woodworking­ machines.­ DO­ NOT­ use­ this­ dust­ areas­were­explosion­risks­are­high.­Areas­of­high­ collector­ to­ collect­ metal,­ dirt,­ pebbles,­ drywall,­ risk­include,­but­are­not­limited­to,­areas­near­pilot­ asbestos,­ lead­ paint,­ silica,­ liquids,­ aerosols,­ or­ lights,­open­flames,­or­other­ignition­sources.

  • Page 27: Section 2: Power Supply

    SECTiON 2: POWER SUPPLY availability Circuit information Before installing the machine, consider the avail- A power supply circuit includes all electrical ability and proximity of the required power supply equipment between the breaker box or fuse panel circuit. If an existing circuit does not meet the in the building and the machine.

  • Page 28: Grounding & Plug Requirements

    Grounding & Plug Requirements Improper connection of the equipment-grounding wire can result in a risk of electric shock. The This machine MUST be grounded. In the event wire with green insulation (with or without yellow of certain malfunctions or breakdowns, grounding stripes) is the equipment-grounding wire.

  • Page 29: G0443 Conversion To 220V Operation

    (570) 546-9663. outside jackets of the cords so that there is no movement of the wires inside the switch...

  • Page 30: Section 3: Setup

    SECTiON 3: SETUP Needed for Setup This machine presents serious injury hazards the following are needed to complete the setup to untrained users. Read process, but are not included with your machine. through this entire manu- al to become familiar with Description ...........

  • Page 31: Inventory

    inventory Hardware (continued) —lock washers ⁄ " ........4 —Flat washers ⁄ " ........28 The following is a description of the main compo- nents shipped with your machine. Lay the compo- nents out to inventory them. If any non-proprietary parts are missing (e.g. a nut or a washer), we will gladly replace them;...

  • Page 32: Site Considerations

    Site Considerations Weight Load Physical Environment Refer to the Machine Data Sheet for the weight The physical environment where the machine is of your machine. Make sure that the surface upon operated is important for safe operation and lon- which the machine is placed will bear the weight gevity of machine components.

  • Page 33: Wall Mounting

    Wall Mounting Wood Framed Walls, G0443 = Lag Bolts = Lag Bolts, Countersunk Before mounting, make sure to situate the dust 36" collector away from any open flames or potential ignition sources, as fine dust can easily ignite. ⁄ " if mounting the dust collector to a wood framed wall, you must build and install the wall mount- 2x12 Board...

  • Page 34: Flat Washers

    Materials Needed for Concrete/ tighten the ⁄ " lag bolts into the mounting locations so they do not project more than Masonry Wall ⁄ " from the mounting board to the top of the • Concrete anchor studs ⁄ " x 2 ⁄...

  • Page 35: Assembly

    assembly attach the intake cylinder to the bottom of the housing, as shown in figure 12, using (4) ⁄ "-18 x ⁄ " hex bolts and (4) ⁄ " flat wash- ers. Note: Because this part of the dust collector will not be accessible after assembly, con- The Model G0443 Cyclone sider using medium strength thread locking...
  • Page 36 place the intake barrel brace in position attach the cyclone funnel to the intake barrel and mark the location of the mounting holes with a barrel gasket between them, as shown (shown in figure 14) with a small pencil, nail, in figure 16, using (12) ⁄...
  • Page 37 12. Attach the outlet port and filter L-braces to 13. Mount the filter to the L-braces with the brace the blower housing with the outlet gasket gaskets between them, as shown in Figure between the outlet port and the housing, as 20, using (4) ⁄ "-18 x ⁄ " hex bolts and (4) shown in Figures 18–19, using (8) ⁄...
  • Page 38 15. Connect the gray flexible hose from the out- 17. install the drum latches, as shown in figure let port to the canister adapter and secure 24, with the (6) #10-24 x ⁄ " phillips head it in place with the two 7" hose clamps, as screws and (6) #10-24 hex nuts included in shown in figure 22.
  • Page 39 19. insert the rubber seal over the top lip of the 21. Move the collector drum under the dust col- collection drum rim. pay special attention lector and connect it to the cyclone funnel to the direction of the seal, as shown in the with the clear flexible hose and the two 9"...

  • Page 40: Power Connection

    Power Connection 23. Fit the plastic canister collection bag over the bottom of the canister filter and clamp in place with the metal bag clamp, as shown in figure 30. Before the machine can be connected to the power source, an electrical circuit and connec- tion device must be prepared per the POWER SUPPLY section in this manual, and all previ- ous setup instructions in this manual must be...

  • Page 41: Test Run

    Test Run using the remote control, press the on/oFF button to turn the machine ON. listen to and watch for abnormal noises or once the assembly is complete, test run your actions. the machine should run smoothly machine to make sure it runs properly and is with little or no vibration or rubbing noises.

  • Page 42: Section 4: Designing The System

    Plastic duct generates static tionary system.

  • Page 43: Metal Duct

    However, the cost of specifically Another disadvantage is the rough internal seams designed flexible duct can vary greatly. Grizzly and crimped ends that unavoidably increase static offers polyethylene hose, which is well suited for pressure loss.

  • Page 44: System Design

    Line Duct our Workshop Planner will allow you to quickly and easily design and print a basic shop layout. don't worry, non-grizzly brand machines can be figure 36. efficient duct layout. substituted with grizzly machines for layout pur- poses. Note: After you're finished, make sure to save your layout for later modification.

  • Page 45: Step 4. Determine Required Cfm Of Each Machine

    directional changes should be kept to a mini- if the machine does not have a built-in dust port, mum. the more directional change fittings use the following table to determine which size of you use directly increases the overall resis- dust port to install.

  • Page 46: Determining Main Line Duct Size

    Determining Main Line Duct Size Jointer Sander Planer/ The general rule of thumb for a main line duct is Moulder that the velocity of the airflow must not fall below 4" 4" 6" 3500 FPM. For small/medium sized shops, using the inlet size 5"...

  • Page 47: Multiple Dust Ports

    Multiple Dust Ports Duct approximate approximate Dia. Static Pressure Static Pressure if your machine has multiple dust ports, add the Loss Per foot of Loss Per foot total CFM given for each dust port size from the Rigid Pipe of flex Pipe table under Step 4 (approximate required airflow) on the previous page.
  • Page 48 6" 45˚ Y-Branch ........ 0.329 figure 47. CFM for static pressure loss of line 4" 45˚ Elbow ........0.225 2 HP GRIZZLY DUST COLLECTOR PERFORMANCE RESULTS connected to a dust collector & router. Max CFM Max SP Volts Inlet Impeller...

  • Page 49: Example Materials List

    1500 1250 1025 Below is an example of some items that might be 1000 needed. refer to accessories for dust collection components available through grizzly.com. Description Model Quantity 10.0 11.0 STaTiC PRESSURE (inch/H2O) 6" rigid pipe at 20' g7364 1.5 HP DUST COLLECTOR PERfORMaNCE RESULTS...

  • Page 50: System Grounding

    System Grounding Be sure that you extend the bare copper wire down all branches of the system. do not forget to connect the wires to each other with wire nuts when two branches meet at a “y” or “t” connec- since plastic hose is abundant, relatively inex- tion.

  • Page 51: Section 5: Operations

    OMMEND that you read books, trade maga- zines, or get formal training before begin- ning any projects. Regardless of the con- tent in this section, Grizzly industrial will not be held liable for accidents caused by lack of training. -33-...

  • Page 52: Section 6: Accessories

    (1) 60˚ elbow. for this machine by Grizzly. NOTICE Refer to the newest copy of the Grizzly Catalog for other accessories available for this machine. H7508—Stand for G0443 Mounting your dust collector to a stand...
  • Page 53 G6163—4" Clamp H2443—Universal adapter G7343—5" Clamp this seven step adapter provides a multitude G7361—6" Clamp of dust collection reducing options. simply these clamps feature lever latches and foam cut away unneeded steps with a hacksaw. seals, and secure around the rolled ends of fit- outside diameter step sizes include 1", 2", tings and pipe.

  • Page 54: Section 7: Maintenance

    SECTiON 7: MaiNTENaNCE Cleaning filter always disconnect power to the machine before your new cyclone dust collector has a gentle performing maintenance. brush system inside the filter for cleaning. this failure to do this may brush system is controlled by the red and black result in serious person- handles shown in figure 58.

  • Page 55: Removing/Replacing Filter

    Follow the instructions below to perform this procedure. refer to the parts breakdown diagrams and list- ings beginning on Page 45 to order the correct filter from grizzly at 800-523-4777. Canister Base Tools Needed open-end wrench 10mm ........1 figure 60.
  • Page 56 Carefully lift the filter from the canister assem- re-insert a filter into the canister assembly. bly, as shown in figure 62. Note: Make sure the bristles of the brush are straight to ensure efficient cleaning of the filter when needed. 10.

  • Page 57: Section 8: Service

    SECTiON 8: SERviCE Review the troubleshooting and procedures in this section if a problem develops with your machine. If you need replacement parts or additional help with a procedure, call our Technical Support at (570) 546-9663. Note: Please gather the serial number and manufacture date of your machine before calling. Troubleshooting Motor &...

  • Page 58: Operation (Continued)

    Operation (continued) symptom possible Cause possible solution dust collector 1. dust collection drum is full. 1. empty collection drum. does not 2. Filter is dirty. 2. Clean filter. 3. remove dust line from dust collector inlet and adequately 3. restriction in the duct line. collect dust unblock the restriction in the duct line.

  • Page 59: Section 9: Wiring

    Technical source. Support at (570) 546-9663. The photos and diagrams included in this section are best viewed in color. You can view these pages in color at www.grizzly.com. -41- Model g0443 (Mfg. since 11/09)

  • Page 60: 110V (Prewired) Wiring Diagram

    110v (Prewired) Wiring Diagram Neutral Ground L5-30 Plug (As Recommended) Motor 110V (Prewired) OL_NO 110V Circuit Board 13NO NHD C-09D 14NO ON/OFF NHD NTH-21 Switch 110V Magnetic Contactor Switch and Overload Relay READ ELECTRICAL SAFETY -42- Model g0443 (Mfg. since 11/09) ON PAGE 41!

  • Page 61: 220V (Rewired) Wiring Diagram

    220v (Rewired) Wiring Diagram Ground 6-15 Plug (As Recommended) 220V Motor (Rewired) OL_NO 220V Circuit Board 13NO NHD C-09D 14NO ON/OFF NHD NTH-11 Switch 220V Magnetic Contactor Switch and Overload Relay READ ELECTRICAL SAFETY -43- Model g0443 (Mfg. since 11/09) ON PAGE 41!

  • Page 62: Section 10: Parts

    SECTiON 10: PaRTS 4C-1 4C-4 4C-2 4C-3 28-1 4B-1 4B-4 4B-2 4B-3 31V2-1 31V2-2 31V2 31V2-3 43V2 31V2-4 31V2-3 31V2-5 33V2 50V2 51V2 -44- Model g0443 (Mfg. since 11/09)

  • Page 63: Main Parts List

    Main Parts List Part # Description Part # Description P0443001 MOTOR 1.5HP 110/220V 1PH P0443016 FOAM TAPE 3 X 6 X 1800MM P0443001-1 MOTOR FAN COVER P0443035 INTAKE CYCLINDER 9" P0443001-2 MOTOR FAN PW07 FLAT WASHER 5/16 PC300B S CAPACITOR 300MFD 125V 1-3/4 X 3-3/8 PB07 HEX BOLT 5/16-18 X 3/4 PC040A...

  • Page 64: Labels

    Safety labels help reduce the risk of serious injury caused by machine hazards. If any label comes off or becomes unreadable, the owner of this machine MUST replace it in the original location before resuming operations. For replacements, contact (800) 523-4777 or www.grizzly.com. -46-...
  • Page 65 Would you recommend Grizzly Industrial to a friend? _____ Yes _____No Would you allow us to use your name as a reference for Grizzly customers in your area? Note: We never use names more than 3 times. _____ Yes _____No 10.
  • Page 66 FOLD ALONG DOTTED LINE Place Stamp Here GRIZZLY INDUSTRIAL, INC. P.O. BOX 2069 BELLINGHAM, WA 98227-2069 FOLD ALONG DOTTED LINE Send a Grizzly Catalog to a friend: Name_______________________________ Street_______________________________ City______________State______Zip______ TAPE ALONG EDGES--PLEASE DO NOT STAPLE...

  • Page 67: Warranty & Returns

    WaRRaNTY & RETURNS Grizzly Industrial, Inc. warrants every product it sells for a period of 1 year to the original purchaser from the date of purchase. This warranty does not apply to defects due directly or indirectly to misuse, abuse, negligence, accidents, repairs or alterations or lack of maintenance.
