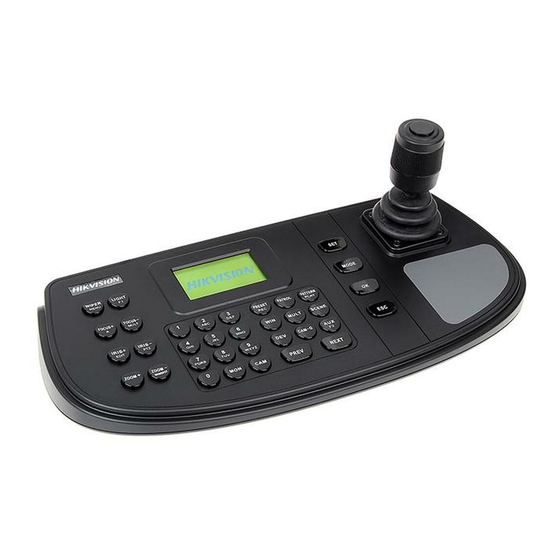

DS-1200KI/DS-1006KI Keyboard
User Manual
0

Advertisement

Table of Contents
loading

Related Manuals for HIKVISION DS-1200KI

Summary of Contents for HIKVISION DS-1200KI

  • Page 1 DS-1200KI/DS-1006KI Keyboard User Manual...
  • Page 2 Products described in this Document, which may include licenses obtained from third parties. ● Any part of the Document, including text, pictures, graphics, etc., belongs to Hikvision. No part of this Document may be excerpted, copied, translated, or modified in whole or in part by any means without written permission.
  • Page 3 LOSS OF DOCUMENTATION, WHETHER BASED ON BREACH OF CONTRACT, TORT (INCLUDING NEGLIGENCE), PRODUCT LIABILITY, OR OTHERWISE, IN CONNECTION WITH THE USE OF THE PRODUCT, EVEN IF HIKVISION HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES OR LOSS. ● YOU ACKNOWLEDGE THAT THE NATURE OF THE INTERNET PROVIDES FOR INHERENT SECURITY...
  • Page 4 DS-1200KI/1006KI Keyboard User Manual Applicable Models This manual is applicable to DS-1200KI and DS-1006KI keyboard models. Symbol Conventions The symbols that may be found in this document are defined as follows. Symbol Description Provides additional information to emphasize or supplement important points of the main text.

  • Page 5: Table Of Contents

    DS-1200KI/1006KI Keyboard User Manual TABLE OF CONTENTS Getting Started ........................1 Activate Your Device ......................1 Login ..........................2 Local Login ....................... 2 Remote Login (via Web browser) ................2 System Menu ........................3 Web Configuration ......................5 Device Mangement ......................5 Add Devices ......................
  • Page 6 DS-1200KI/1006KI Keyboard User Manual Dome by RS-232 ..................... 27 Analog Matrix by RS-232 ..................28 Platform Access ......................28 Access to KPS by Network ..................28 Access to Third-Party Platform by Network ............29 Access to HikCentral ....................30 Shortcut Operation ......................32 System Menu Configuration .....................

  • Page 7: Getting Started

    DS-1200KI/1006KI Keyboard User Manual Getting Started Activate Your Device Purpose: For the first-time access, you need to activate the device by setting an admin password. No operation is allowed before activation. You can also activate the device via SADP as well.

  • Page 8: Login

    Purpose: You must log in to the device before configuring the keyboard, and operating the menu and other functions. DS-1200KI keyboards support two ways of login: local login and remote login (by Web browser). DS-1006KI keyboards support local login only.

  • Page 9: System Menu

    DS-1200KI/1006KI Keyboard User Manual System Menu...
  • Page 10 DS-1200KI/1006KI Keyboard User Manual...

  • Page 11: Web Configuration

    DS-1200KI/1006KI Keyboard User Manual Web Configuration This section applies to DS-1200KI keyboards only. Device Mangement Add Devices Purpose: In Keyboard Operation mode, follow instructions in this section to add devices first before realizing the operation and control of the devices on the keyboard.

  • Page 12: Manage Input/Output Channels

    DS-1200KI/1006KI Keyboard User Manual You can add devices of ONVIF protocol. You can also click the Add SADP to add the online devices in the same network segment. Manage Input/Output Channels Purpose: You can manage the importing and exporting of input channels in batch, input group, and output...
  • Page 13 DS-1200KI/1006KI Keyboard User Manual Import and Export Input Channel List...
  • Page 14 DS-1200KI/1006KI Keyboard User Manual You are recommended to save the exported list first, and then open it. Opening it directly is not recommended. Add Auto-Switch Groups Purpose: You can classify the input channels, and realize the auto switch of one group of cameras.
  • Page 15 DS-1200KI/1006KI Keyboard User Manual Up to 16 input groups can be added, and up to 64 input channels can be added for each group. Manage Output Channel...

  • Page 16: System Management

    DS-1200KI/1006KI Keyboard User Manual System Management View Version Information Go to System Management > Version > Version to view the device version information. Go to System Management > Version > About, and click View License to view the open source software license.

  • Page 17: Maintenance

    DS-1200KI/1006KI Keyboard User Manual Maintenance Reboot Device Restore Device to Factory Settings...
  • Page 18 DS-1200KI/1006KI Keyboard User Manual Export Configuration File You can export the parameters of one device, and import them to another device to set the two devices with the same parameters. The password is used for importing the configuration file of the current device to other devices.
  • Page 19 DS-1200KI/1006KI Keyboard User Manual Upgrade Upgrade the system when you need to update the device version. Before You Start Prepare the upgrade file. It is named as “digicap.dav”. Note The upgrade process will take 1 to 10 minutes. Do not cut off the power supply.

  • Page 20: Security

    DS-1200KI/1006KI Keyboard User Manual Security...

  • Page 21: Network Management

    DS-1200KI/1006KI Keyboard User Manual Network Management Set the IP address of the device. The network that the device is connected to should support DHCP (Dynamic Host Configuration Protocol). Serial Port Settings Set the RS-485, RS-422, and RS-232 serial port parameters. Use RS-485 serial port when connecting with analog speed domes and DVR/NVRs.

  • Page 22: Matrix Access Gateway

    DS-1200KI/1006KI Keyboard User Manual Matrix Access Gateway The device can connect with the matrix access gateway, and realize the video wall control, PTZ control, etc.

  • Page 23: Platform Access

    DS-1200KI/1006KI Keyboard User Manual Platform Access Connect to KPS KPS refers to Keyboard Proxy Service. DS-1200KI keyboard can be used as a control terminal to connect to KPS to perform video wall and PTZ control. Connect to Third-Party Platform The keyboard can be used as a control terminal to connect to the third-party platform to realize the configuration via the third-party platform.
  • Page 24 DS-1200KI/1006KI Keyboard User Manual...

  • Page 25: Keyboard Operation

    This section describes how to control devices using the keyboard. On the keyboard, Press the MODE button on the panel to enter the operation for different devices. DS-1200KI keyboards support the following 9 operation modes, while DS-1006KI keyboards support mode 4, 5, and 6.

  • Page 26: Keyboard Operation

    DS-1200KI/1006KI Keyboard User Manual Operation Mode Description DS-1200KI keyboard can be used as a control terminal to connect to KPS (Keyboard Proxy Service) to perform video wall and PTZ control. Use the keyboard as terminal to connect to a third-party platform Private VMS and support video operations through the platform.

  • Page 27: Call Presets/Patrols/Patterns

    DS-1200KI/1006KI Keyboard User Manual  When you enter no device ID (DEV), the first decoder found is set for control by default. And if you enter no WIN ID, the window 01 is set to play the decoded video by default.

  • Page 28: Call Scenes

    DS-1200KI/1006KI Keyboard User Manual  The preset/patrol/pattern must be pre-configured.  Whether PTZ functions are available or not depends on the capabilities of speed domes. If the speed domes do not support a PTZ function, the keyboard does not respond.

  • Page 29: Dvr By Ip

    DS-1200KI/1006KI Keyboard User Manual For the initial use of MAG, you must use the configuration kits software to configure the input/output channel ID of the MAG. Please see the related user manual for details. The input/output channel ID is used for switching on the video wall or PTZ control during keyboard operation.

  • Page 30: Mag By Rs-422

    DS-1200KI/1006KI Keyboard User Manual MAG by RS-422 The keyboard can connect with the matrix access gateway via RS-422 serial port, and realize the video wall control, PTZ control, etc. Before you start: Check the connection between the MAG and the keyboard. Connect the T+ ad T- terminals of the RS-422 serial port of the keyboard with that of the MAG.

  • Page 31: Dvr By Rs-485

    DS-1200KI/1006KI Keyboard User Manual  You can also press the Num + CAM buttons to select the input channel, and operate the PTZ control.  For the initial use of MAG, you must use the configuration kits software to configure the input/output channel ID of the MAG.

  • Page 32: To Analog Device

    DS-1200KI/1006KI Keyboard User Manual The baud rate, protocol and other parameters of RS-485 of the keyboard must be configured to 9600, 8, 1, and none parity. To Analog Device Dome by RS-485 The keyboard can connect with the analog dome or PTZ unit via RS-485 serial port, and realize PTZ control.

  • Page 33: Dome By Rs-232

    DS-1200KI/1006KI Keyboard User Manual SITE: 3 The address, baud rate, protocol, and other parameters of RS-485 must be configured the same with those of the dome. Dome by RS-232 The keyboard can connect with the analog dome via RS-232 serial port, and control the dome via VISCA protocol.

  • Page 34: Analog Matrix By Rs-232

    DS-1200KI/1006KI Keyboard User Manual SITE: 3 Analog Matrix by RS-232 DEV: 1 MON: 2 CAM: 1 Platform Access Access to KPS by Network...

  • Page 35: Access To Third-Party Platform By Network

    DS-1200KI/1006KI Keyboard User Manual WALL: 2 MON: 2 CAM: 6  The parameters configurable through Web are also available when you log in to the keyboard and select Mode > iVMS Platform.  Log in to the iVMS platform to check which device is corresponding to the number entered for MON and CAM.

  • Page 36: Access To Hikcentral

    DS-1200KI/1006KI Keyboard User Manual Access to HikCentral...
  • Page 37 DS-1200KI/1006KI Keyboard User Manual...

  • Page 38: Shortcut Operation

    DS-1200KI/1006KI Keyboard User Manual Refer to the Quick Start Guide for the detailed descriptions of the functions of keyboard buttons. Shortcut Operation The device control via keyboard can be realized by shortcut operation.
  • Page 39 DS-1200KI/1006KI Keyboard User Manual...

  • Page 40: System Menu Configuration

    DS-1200KI/1006KI Keyboard User Manual System Menu Configuration On the main menu after login, you can select System to check the version, and configure the system configuration, including network, user, RS-485, RS-422, hardware, time and maintenance. 1. Version 5. Hardware 2. Network 6.

  • Page 41: User Management

    DS-1200KI/1006KI Keyboard User Manual User Management Select User to enter the user management interface. You can change the password (admin), add new user, edit user or delete the user. Click OK button or the central button of joystick to save the settings.

  • Page 42: Hardware

    DS-1200KI/1006KI Keyboard User Manual Hardware You can set the click sound, auto-logoff, and backlight feature of the keyboard. Select Hardware to enter the following interface, and move (left/right) the joystick to set the function. Click OK button or the central button of joystick to save the settings.
  • Page 43 DS-1200KI/1006KI Keyboard User Manual  You should connect the U-flash disk to the keyboard before upgrading, and importing/exporting the files.  The upgrade file and configuration file must be located in the root directory of the U-flash disk.  The upgrade file must be in digicap.dav; and the configuration file in kbCfg.bin.
  • Page 44 DS-1200KI/1006KI Keyboard User Manual UD34861B...
