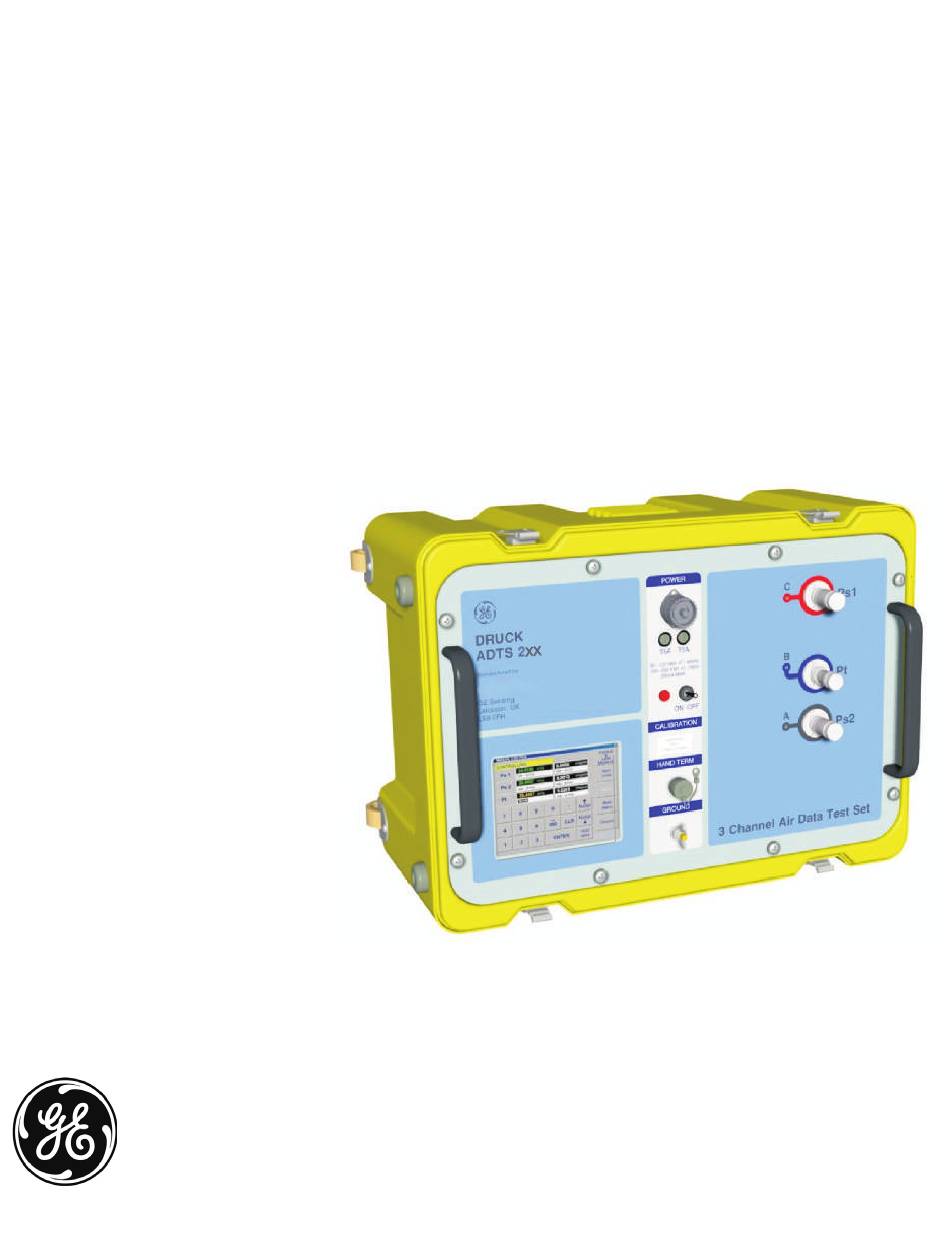

- Page 1 Sensing Druck ADTS 2XX Air Data Test Set Calibration Manual K0425...
- Page 2 © The General Electric Company. All rights reserved...
- Page 3 Druck ADTS 2XX Calibration Manual Introduction ü This technical manual provides calibration instructions for the Air Data Test System. Scope ü This technical manual contains the calibration instructions for the calibration technician of this equipment. Safety ü The manufacturer has designed this equipment to be safe when operated using the procedures detailed in this manual.
-
Page 4: Approved Service Agents
Druck ADTS 2XX Calibration Manual Approved Service Agents For a list of approved service agents visit our website: www.gesensing.com K0425 Issue No. 2... -
Page 5: Table Of Contents
Druck ADTS 2XX Calibration Manual ABLE OF ONTENTS Preliminary pages Introduction ............................................i Scope ............................................i Approved Service Agents........................................ii Table of contents (this table) ......................................iii List of Tables ............................................iii ATEX Certified Advanced Hand Terminal ...................................iv Abbreviations ............................................v Glossary ............................................vi Pressure units and conversion factors..................................viii Section Title page... -
Page 6: Atex Certified Advanced Hand Terminal
Druck ADTS 2XX Calibration Manual ATEX C ERTIFIED DVANCED ERMINAL CONDITIONS OF USE The ATEX certified Advanced Hand Terminal can be used in zone hazardous areas in accordance with the ATEX certification document and schedule. Marking detail: Refer to Advanced Hand Terminal User Manual K0418 and the label on the Advanced Hand Terminal. -
Page 7: Abbreviations
Druck ADTS 2XX Calibration Manual Abbreviations The following abbreviations are used in this manual; the abbreviations are the same in the singular and plural. Ampere Absolute ADTS Air Data Test System Advanced hand terminal Altitude Alt1 Altitude static channel 1 Alt2 Altitude static channel 2 e.g. -
Page 8: Glossary
Druck ADTS 2XX Calibration Manual Glossary Terminology The terminology used in this manual is specific and individual interpretation must not be introduced. The terms are defined as follows: Adjust To bring to a more satisfactory state; to manipulate controls, levers, linkages, etc. to return equipment from an out-of-tolerance condition to an in-tolerance condition. - Page 9 Druck ADTS 2XX Calibration Manual Glossary (contd) Remove: To perform operations necessary to take an equipment unit out of the next larger assembly or system. To take off or eliminate. To take or move away. Repair: To restore damaged, worn out or malfunctioning equipment to a serviceable, usable or operable condition.
-
Page 10: Pressure Units And Conversion Factors
Druck ADTS 2XX Calibration Manual viii Pressure Units and Conversion Factors Pressure unit Factor (Pascals) Pressure unit Factor (Pascals) 100000 47.8803 lbf/ft 6894.76 inHg 3386.39 lbf/in (psi) 9806.65 O [1] 249.089 mbar O [1] 2989.07 98066.5 101325.0 kgf/cm 9.80665 1.48816 kgf/m pdl/ft mmHg... -
Page 11: Introduction
Druck ADTS 2XX Calibration Manual INTRODUCTION The ADTS 2XX incorporates a calibration facility that operates through an enable switch, located on the front panel under a calibration protection label. For the system to stay accurate, a calibration check should be carried out at chosen intervals. If the accuracy of the system is not within the specification, carry out a calibration adjustment. -
Page 12: Calibration Description
Druck ADTS 2XX Calibration Manual 1-2 E ABLE QUIPMENT EQUIREMENTS Calibration Minimum use Equipment Sub-item equipment specifications Pressure Range: RUSKA 2468 primary standard 35 mbar to pitot static tester 3000 mbar absolute Accuracy: ± 0.01% of reading Uncertainty better than 50 ppm. -
Page 13: Preliminary Operations
Druck ADTS 2XX Calibration Manual Preliminary Operations • Review and become familiar with the whole procedure before beginning calibration process. • Allow at least one hour for the air data test system to thermally stabilize after switching on and before performing any calibration routines. •... -
Page 14: Calibration Checks Of Static Channels Ps1 And Ps2
Druck ADTS 2XX Calibration Manual CALIBRATION Calibration Check of Static Channels Ps1 and Ps2 Before starting this procedure carry out a leak test. Set the unit to Leak/Measure mode, set operating limits to MAX and disable Auto Leak, refer to the User manual for further details. Connect the pressure standard to static channels Ps1 and Ps2. -
Page 15: Calibration Checks Of The Pitot Channel
Druck ADTS 2XX Calibration Manual Calibration Check of the Pitot Channel • Before starting this procedure carry out a leak test. • Set the unit to Leak/Measure mode, set operating limits to MAX and disable Auto Leak, refer to the User manual for further details. •... -
Page 16: Sensor Calibration Of The Pitot And Static Channels
Druck ADTS 2XX Calibration Manual Sensor Calibration of the Pitot and Static Channels Before starting this procedure carry out a calibration check of all channels. Set the unit to Leak/Measure mode, set operating limits to MAX and disable Auto Leak, refer to the User manual for further details. -
Page 17: Pitot And Static Channel Calibration Points
Druck ADTS 2XX Calibration Manual Adjust the pressure standard and apply pressure No. 2 in Table 2-3, allow the displayed reading to stabilize. The display shows the number of points entered Pt = 2 and the current zero offset and span values and the new calculated zero offset and span values. The screen also changes with the Accept Pt Cal highlighted. -
Page 18: Completion Of Sensor Calibration
Druck ADTS 2XX Calibration Manual Completion of Sensor Calibration After completion of all calibration adjustment procedures, carry out the following: Set the calibration switch to disable (latched below the front panel level). Make sure the calibration standard and the unit are at atmospheric pressure. Disconnect the calibration standard from the unit.
