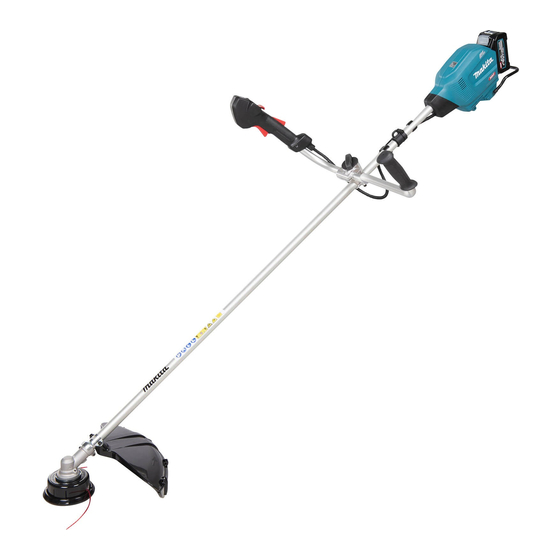

Makita UR013G Instruction Manual
Cordless grass trimmer
Hide thumbs
Also See for UR013G:
- Instruction manual (169 pages) ,
- Instruction manual (137 pages) ,
- Instruction manual (165 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for Makita UR013G
Summary of Contents for Makita UR013G
- Page 1 INSTRUCTION MANUAL Cordless Grass Trimmer UR013G Read before use.
-
Page 2: Specifications
SPECIFICATIONS Model: UR013G Handle type Bike handle No load speed 0 - 6,700 min Overall length 1,863 mm (without cutting tool and battery) Nylon cord diameter 2.7 mm Applicable cutting tool and 2-tooth blade 255 mm cutting diameter (P/N 198345-9) -
Page 3: General Power Tool Safety Warnings
Symbols SAFETY WARNINGS The followings show the symbols which may be used General power tool safety warnings for the equipment. Be sure that you understand their meaning before use. WARNING Read all safety warnings, instruc- Take particular care and attention. tions, illustrations and specifications provided with this power tool. - Page 4 Personal safety Power tool use and care Stay alert, watch what you are doing and use Do not force the power tool. Use the correct common sense when operating a power tool. power tool for your application. The correct Do not use a power tool while you are tired or power tool will do the job better and safer at the under the influence of drugs, alcohol or med- rate for which it was designed.
-
Page 5: Intended Use
Personal protective equipment Do not use a battery pack or tool that is dam- aged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury. Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or tem- perature above 130 °C may cause explosion. Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instruc-... -
Page 6: Putting Into Operation
Electrical and battery safety Adjust the shoulder harness and hand grip to suit the operator's body size. Do not expose the tool to rain or wet condi- When inserting a battery cartridge, keep the tions. Water entering the tool will increase the risk cutting attachment clear of your body and of electric shock. -
Page 7: Cutting Tools
14. Never touch moving hazardous parts before — Cutting blades are suitable for cutting weeds, the moving hazardous parts have come to high grasses, bushes, shrubs, underwood, a complete stop and the battery cartridge is thicket, and the like. removed. —... -
Page 8: First Aid
Request our authorized service center to inspect and maintain the tool at regular interval. Always keep the tool in good working condi- tion. Poor maintenance can result in inferior per- formance and shorten the life of the tool. 10. Keep handles dry, clean and free from oil and grease. - Page 9 Do not expose battery cartridge to water causing fires, personal injury and damage. It will or rain. also void the Makita warranty for the Makita tool and A battery short can cause a large current charger. flow, overheating, possible burns and even a breakdown.
-
Page 10: Parts Description
PARTS DESCRIPTION Fig.4 High-torque lamp Reverse lamp Caution lamp Main power lamp Reverse / high-torque Main power button Battery cartridge Handle button Knob Protector Protector extension (for Shoulder harness nylon cutting head / plastic blade) Switch trigger Lock-off lever Adjusting lever Protector (for chisel blade) Protector (for shredder blade) -
Page 11: Functional Description
Tool / battery protection system FUNCTIONAL DESCRIPTION The tool is equipped with a tool/battery protection system. This system automatically cuts off power to WARNING: Always be sure that the tool is the motor to extend tool and battery life. The tool will switched off and the battery cartridge is removed automatically stop during operation if the tool is placed before adjusting or checking function on the tool. -
Page 12: Main Power Switch
Indicating the remaining battery Main power switch capacity To turn on the tool, press the main power button. To turn off the tool, press and hold the main power button until Press the check button on the battery cartridge to indi- the main power lamp goes off. cate the remaining battery capacity. The indicator lamps light up for a few seconds. -
Page 13: Electric Brake
To prevent the switch trigger from being accidentally pulled, a lock-off lever is provided. To start the tool, depress the lock-off lever and pull the switch trigger. Release the switch trigger to stop. Fig.10 ► 1 . Reverse indicator 2. Reverse / high-torque button NOTE: During the reverse rotation, the tool operates Fig.8 only for a short period of time and then automatically stops. -
Page 14: Electronic Function
Adjust the handle position, and then tighten the Electronic function knob to fix the handle. Constant speed control The speed control function provides the constant rota- tion speed regardless of load conditions. Soft start feature Soft start because of suppressed starting shock. ASSEMBLY Fig.13 WARNING: Always be sure that the tool is ► 1 . - Page 15 Correct combination of the cutting Installing the protector tool and the protector WARNING: Never use the tool without the guard or with the guard improperly installed. CAUTION: Always use the correct combi- Failure to do so can cause serious personal injury. nation of cutting tool and the protector. A wrong combination may not protect you from the cutting tool, NOTE: The type of the protector supplied as the stan- flying debris, and stones. It can also affect the bal-...
- Page 16 To remove the protector extension from the protector, Installing the cutting tool unclasp the clips by inserting the hex wrench as illustrated. CAUTION: Always use the supplied wrenches to remove or to install the cutting tool. CAUTION: Be sure to remove the hex wrench inserted into the gear case after installing the cutting tool.
- Page 17 3-tooth blade Mount the cutter blade onto the receive washer so that the arrows on the cutter blade and protector are pointing in the same direction. Fig.21 4-tooth blade Fig.24 ► 1 . Arrow For the chisel and shredder blade, mount them as illustrated.
-
Page 18: Nylon Cutting Head
Plastic blade Put the clamp washer onto the cutter blade and then tighten the nut securely by the box wrench. NOTICE: Be sure to use genuine Makita plastic blade. 3 3 3 Fig.27 ► 1 . Box wrench 2. Hex wrench 3. Loosen 4. Tighten Fig.29... - Page 19 Put on the shoulder harness and fasten the The shoulder harness features a means of quick buckle. release. Simply squeeze the sides of the buckle while holding the tool to release the tool from the shoulder harness. Fig.30 Clasp the hook on the shoulder harness to tool's Fig.33 hanger.
- Page 20 When using a nylon cutting head (bump & feed Correct handling of the tool type) The nylon cutting head is a dual string trimmer head WARNING: Always position the tool on your provided with a bump & feed mechanism. To feed out the nylon cord, tap the cutting head against right-hand side.
-
Page 21: Maintenance
Discoloration, deformation or cracks may result. To maintain product SAFETY and RELIABILITY, repairs, any other maintenance or adjustment should Fig.39 be performed by Makita Authorized or Factory Service Centers, always using Makita replacement parts. Shredder blade Cleaning the tool CAUTION: Never raise the tool head higher than your waist height. - Page 22 121-SP 3 m (9 ft) 100 mm (3-15/16″) Fig.42 22 ENGLISH...
-
Page 23: Troubleshooting
► 1 . Arrow on the protector 2. Arrow on the blade TROUBLESHOOTING Before asking for repairs, conduct your own inspection first. If you find a problem that is not explained in the manual, do not attempt to dismantle the tool. Instead, ask Makita Authorized Service Centers, always using Makita replace- ment parts for repairs. State of abnormality Probable cause (malfunction) Remedy Motor does not run. -
Page 24: Optional Accessories
The use of any other accessory or attachment may result in serious personal injury. CAUTION: These accessories or attachments are recommended for use with your Makita tool specified in this manual. The use of any other accessories or attachments might present a risk of injury to persons. Only use accessory or attachment for its stated purpose.
