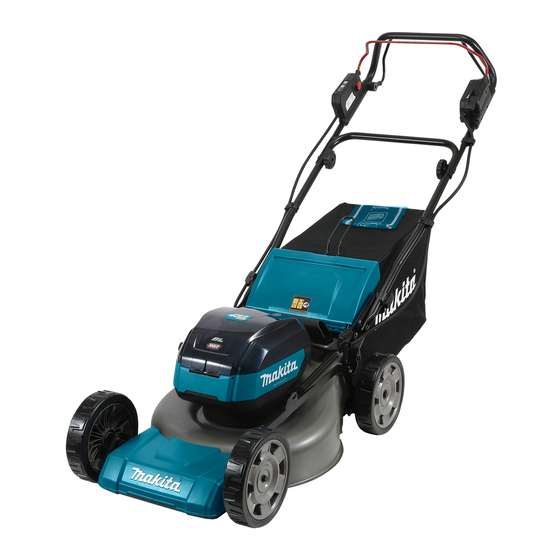

Makita LM001G Instruction Manual

Cordless lawn mower
Hide thumbs Also See for LM001G:
Table of Contents

Advertisement

Quick Links

Download this manual
INSTRUCTION MANUAL
Cordless Lawn Mower
LM001G
LM002G
Read before use.

Advertisement

Table of Contents
loading

Related Manuals for Makita LM001G

Summary of Contents for Makita LM001G

  • Page 1 INSTRUCTION MANUAL Cordless Lawn Mower LM001G LM002G Read before use.

  • Page 2: Specifications

    SPECIFICATIONS Model: LM001G LM002G Mowing width (blade diameter) 480 mm 534 mm No load speed Normal mode 3,200 min 2,800 min Soft no-load mode 2,500 - 3,200 min 2,300 - 2,800 min Noise reduction mode 2,500 min 2,300 min Part number of replacement...

  • Page 3: Intended Use

    Avoid body contact with earthed or grounded Only for EU countries Ni-MH surfaces, such as pipes, radiators, ranges and Due to the presence of hazardous com- Li-ion refrigerators. There is an increased risk of elec- ponents in the equipment, waste electrical and electronic equipment, accumulators tric shock if your body is earthed or grounded.
  • Page 4 Always wear protective goggles to protect When using the tool, do not wear cloth work your eyes from injury when using power tools. gloves which may be entangled. The entangle- The goggles must comply with ANSI Z87.1 in ment of cloth work gloves in the moving parts may the USA, EN 166 in Europe, or AS/NZS 1336 result in personal injury.
  • Page 5 Before using the lawnmower, always visually IMPORTANT SAFETY INSTRUCTIONS inspect to see that the blade and the blade assembly are not worn or damaged. Worn or WARNING: damaged parts increase the risk of injury. Read all safety warnings and all instructions. Failure to follow the warnings and Check the grass catcher frequently for wear or instructions may result in electric shock, fire and/or deterioration.
  • Page 6 Check the blades or blade bolts carefully for 13. Do not tilt the mower when switching on the cracks or damage before operation. Replace motor, except if the mower has to be tilted cracked or damaged blades or blade bolts for starting.
  • Page 7 29. When you use the machine on muddy ground, Do not use a battery pack or tool that is dam- wet slope, or slippery place, pay attention to aged or modified. Damaged or modified batteries your footing. may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury.
  • Page 8 Do not expose battery cartridge to water causing fires, personal injury and damage. It will or rain. also void the Makita warranty for the Makita tool and A battery short can cause a large current charger. flow, overheating, possible burns and even a breakdown.

  • Page 9: Installing The Handle

    Turn the knob 90° while pulling the knob on the ASSEMBLY lower handle to release the locking pin. Perform the same procedure on the other side. Raise the handle, and then turn the knob on both sides 90°. Make sure WARNING: Always be sure that all the battery that the knobs are securely fixed.

  • Page 10: Removing The Mulching Plug

    Insert the frame into the grass basket as far as it Removing the mulching plug will go while holding the handle of the frame. Open the rear cover. Fig.7 ► 1. Handle Fig.4 ► 1. Rear cover NOTICE: Do not insert the handle into the grass basket.
  • Page 11 Attach all the other clips as shown in the figure. Hold the handle of the grass basket, and then Make sure that all the clips are securely attached to the hook the grass basket on the rod of the mower body as frame.

  • Page 12: Functional Description

    Attach the mulching plug by pushing it as far as it FUNCTIONAL DESCRIPTION will go so that the protrusions on the mulching plug fit into the holes on the machine. Installing or removing battery cartridge CAUTION: Always switch off the machine before installing or removing of the battery cartridge.

  • Page 13: Overload Protection

    Let the machine and battery(ies) cool down. If no improvement can be found by restoring protection system, then contact your local Makita Service Center. NOTICE: If the machine stops due to a cause not described above, refer to the section for troubleshooting.

  • Page 14: Control Panel

    This machine is equipped with the switch button. If you notice anything unusual with the switch button, stop the operation immediately and have it checked by your nearest Makita Authorized Service Center. Fig.20 ► 1. Soft no-load mode lamp 2. Noise reduction mode Install the battery cartridges, and then close the lamp 3.

  • Page 15: Adjusting The Mowing Height

    Pull the switch lever toward you while holding The mowing height can be adjusted in the range of down the switch button. Release the switch button when between 20 mm and 100 mm. the motor starts running. Turn off the machine, and then pull the mowing height adjusting lever outward of the mower body and move it to your desired mowing height.

  • Page 16: Adjusting The Handle Height

    Adjusting the handle height NOTE: The mowing height figures should be used just as a guideline. Depending on the conditions of the lawn or the ground, the actual lawn height may The handle height can be adjusted in two levels. become slightly different from the set height.

  • Page 17: Electronic Function

    To decrease the speed, pull the lever toward you, the mower blades after releasing the switch lever, and to increase the speed, turn the lever forward. have the machine serviced at Makita Authorized Service Center. Using mulching plug The mulching plug allows you to return the cut grass...

  • Page 18: Emptying The Grass Basket

    Firmly hold the handle with both hands when mowing. The mowing NOTICE: Using the mower with the grass basket speed guideline is approximately 7 to 14 meters per 10 seconds. full prevents smooth blade rotation and places an extra load on the motor, which may cause breakdown.

  • Page 19: Maintenance

    Discoloration, deformation or cracks may result. To maintain product SAFETY and RELIABILITY, repairs, any other maintenance or adjustment should Fig.38 be performed by Makita Authorized or Factory Service Carrying the mower Centers, always using Makita replacement parts. Maintenance CAUTION: Before carrying the mower, make sure that all the battery cartridges are removed.
  • Page 20 Turn the knob on both sides 90°. Make sure that Storing the knobs are securely fixed. CAUTION: When putting the machine in the upright position, place the machine on a flat and stable surface. If the machine is placed on an unsta- ble surface, the machine may fall over and cause an injury.
  • Page 21 Removing the mower blade Store the grass basket as shown in the figure. For models equipped with straight mower blade Put the mower on its side so that the mowing height adjusting lever comes to the upper side. To lock the blade, insert the pin into the hole on the mower body as far as it will go.
  • Page 22 For models equipped with swing back To remove the individual mower blade, turn the bolt counterclockwise with box wrench 17 while holding mower blades the base plate. Put the mower on its side so that the mowing height adjusting lever comes to the upper side. To lock the base plate, insert the pin into a hole on the mower body through a hole on the base plate.

  • Page 23: Troubleshooting

    Before asking for repairs, conduct your own inspection first. If you find a problem that is not explained in the manual, do not attempt to disassemble the machine. Instead, ask Makita Authorized Service Centers, always using Makita replacement parts for repairs.
  • Page 24 Makita Corporation 3-11-8, Sumiyoshi-cho, Anjo, Aichi 446-8502 Japan 885993-911 www.makita.com 20220820...
