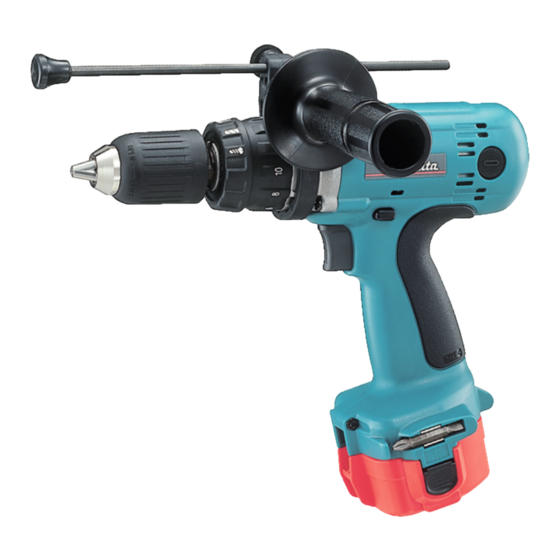

Makita 8413D Instruction Manual
Cordless percussiondriver drill equipped with electric brake
Hide thumbs
Also See for 8413D:
- Instruction manual (64 pages) ,
- Technical information (8 pages) ,
- Instruction manual (21 pages)
Table of Contents
Advertisement
Advertisement
Table of Contents
Related Manuals for Makita 8413D
Summary of Contents for Makita 8413D
- Page 1 Cordless Percussion- Driver Drill Equipped with Electric Brake MODEL 8413D MODEL 8433D MODEL 8443D I N S T R U C T I O N M A N U A L WARNING: For your personal safety, READ and UNDERSTAND before using.
-
Page 2: Specifications
1822 1833 18 V 1834 1835 • Manufacturer reserves the right to change specifications without notice. • Specifications may differ from country to country. 8413D Concrete 13 mm (1/2”) Steel 13 mm (1/2”) Wood 30 mm (1-3/16”) 36 mm (1-7/16”) 6 mm x 75 mm (1/4”... -
Page 3: General Safety Rules
GENERAL SAFETY RULES (FOR All BATTERY OPERATED TOOLS) WARNING: Read and understand all instructions. Failure to follow all instructions listed below, may result in electric shock, fire and/or serious personal injury. SAVE THESE INSTRUCTIONS Work Area 1. Keep your work area clean and well lit. Cluttered benches and dark areas invite acci- dents. -
Page 4: Specific Safety Rules
SPECIFIC SAFETY RULES DO NOT let comfort or familiarity with product (gained from repeated use) replace strict adherence to cordless hammer drill safety rules. If you use this tool unsafely or incorrectly, you can suffer serious personal injury. - Page 5 .../min...revolutions or reciprocation per minute ...number of blow 3. CAUTION - To reduce risk of injury, charge only MAKITA rechargeable marked on the charger label. Other types of batteries may burst causing personal injury and damage. 4. Do not expose charger to rain or snow.
- Page 6 5. Use of an attachment not recommended or sold by the battery charger manufac- turer may result in a risk of fire, electric shock, or injury to persons. 6. To reduce risk of damage to electric plug and cord, pull by plug rather than cord when disconnecting charger.
- Page 7 ADDITIONAL SAFETY RULES FOR CHARGER & BATTERY CARTRIDGE 1. Do not charge Battery Cartridge when temperature is BELOW 10°C (50°F) or ABOVE 40°C (104°F). 2. Do not attempt to use a step-up trans- former, an engine generator or DC power receptacle.
-
Page 8: Functional Description
FUNCTIONAL DESCRIPTION 002402 1. Button 2. Battery cartridge 004346 1. Battery cartridge 2. Charging light 3. Battery charger CAUTION: • Always be sure that the tool is switched off and the battery cartridge is removed before adjusting or checking function on the tool. Installing or removing battery cartridge •... - Page 9 NOTE: • The battery charger is for charging Makita battery cartridge. Never use it for other purposes or for other manufacturer’s batteries. • When you charge a new battery cartridge or a battery cartridge which has not been used for a long period of time, it may not accept a full charge.
-
Page 10: Switch Action
This tool is equipped with an electric brake. If the tool consis- tently fails to quickly stop after switch trigger release, have tool serviced at a Makita service center. Reversing switch action This tool has a reversing switch to change the direction of rotation. -
Page 11: Adjusting The Fastening Torque
002419 1. Action mode changing ring 2. Arrow 002426 1. Graduations 2. Adjusting ring 3. Arrow ASSEMBLY CAUTION: • Always set the speed change lever fully to the correct position. If you operate the tool with the speed change lever positioned halfway between the “I” side and “II” side, the tool may be damaged. - Page 12 When not using the driver bit, keep it in the bit holders. Bits 45 mm (1-3/4”) long can be kept there. Adjustable depth rod The adjustable depth rod is used to drill holes of uniform depth. Loosen the clamp screw, set to desired position, then tighten the clamp screw.
-
Page 13: Operation
OPERATION 002449 1. Blow-out bulb Hammer drilling operation CAUTION: • There is a tremendous and sudden twisting force exerted on the tool/bit at the time of hole break-through, when the hole becomes clogged with chips and particles, or when striking reinforcing rods embedded in the concrete. -
Page 14: Screwdriving Operation
002450 Screwdriving operation First, turn the action mode changing ring so that the arrow on the tool body points to the ring to the proper torque level for your work. Then proceed as follows. Place the point of the driver bit in the screw head and apply pressure to the tool. -
Page 15: Drilling Operation
Drilling operation CAUTION: • Pressing excessively on the tool will not speed up the drilling. In fact, this excessive pressure will only serve to damage the tip of your bit, decrease the tool performance and shorten the service life of the tool. •... -
Page 16: Maintenance
Makita Authorized or Factory Service Centers, always using Makita replacement parts. Recycling the Battery The only way to dispose of a Makita battery is to recycle it. The law prohibits any other method of disposal. To recycle the battery: 1. Remove the battery from the tool. - Page 17 CAUTION: • These accessories or attachments are recommended for use with your Makita tool specified in this manual. The use of any other accessories or attachments might present a risk of injury to persons. Only use accessory or attachment for its stated purpose.
- Page 18 Memo...
- Page 19 Memo...
- Page 20 Memo...
- Page 21 First-Class Postage Required Post Office will not deliver without proper postage. Makita U.S.A., Inc. 14930 Northam Street La Mirada, CA 90638-5753 Fold...
- Page 22 Paste 3. How did you learn about this product: Magazine From Dealer Newspaper Store Display Catalog 4. Most favored points are: Design Features Size Price Makita Brand MODEL NO. YEAR SERIAL NO. PHONE 20-29 30-39 40-49 Paste Paste Radio Exhibition...
-
Page 23: Factory Service Centers
Date Purchased When you need service: Send complete tool (prepaid) to one Dealer’s Name & Address of the Makita Factory Service Centers listed, or to an Authorized Makita Service Center. Be sure to attach a letter to the outside of Model No. -
Page 24: Warranty Policy
MAKITA LIMITED ONE YEAR WARRANTY Warranty Policy Every Makita tool is thoroughly inspected and tested before leaving the factory. It is warranted to be free of defects from workmanship and materials for the period of ONE YEAR from the date of original purchase.
