Operation (Cont.)
Symptom Possible Cause
Glazed sanding 2. Sanding stock with high pitch/residue.
surfaces.
3. Sanding belt/disc worn or filled with pitch/
residue.
Poor, non- 1. Using too fine of sanding grit.
aggressive sanding
2. Sanding belt/disc clogged/worn.
results.
Abrasive grit rubs 1. Sanding belt/disc has been stored in an
off easily.
incorrect environment.
2. Sanding belt/disc has been folded or
crushed.
Workpiece not 1. Table is not square to sanding belt/disc.
sanded square
when table is set
to 90°.
Workpiece not 1. Miter gauge body is not square to miter
sanded square
bar.
when miter gauge is
set to 90°.
Workpiece 1. Not supporting the workpiece against the
frequently gets
stop.
pulled out of your
2. Starting the workpiece on a leading corner.
hand.
Squaring Work Table
to Sanding Belt/Disc
Tools Needed
Machinist's Square ............................................. 1
To square the work table to the sanding belt/
disc:
1.
DISCONNECT MACHINE FROM POWER!
2.
Place a machinist's square or other 90° mea-
suring tool against the work table and sand-
ing belt/disc (see Figure 84).
Model G1014Z/G1014ZX (Mfd. Since 08/22)
Possible Solution
2. Use different stock or accept characteristics and
plan on frequently cleaning (Page 44)/replacing
sanding belt (Page 39)/disc (Page 41).
3. Replace sanding belt (Page 39)/disc (Page 41).
1. Use coarser grit sandpaper (Page 32).
2. Clean (Page 44)/replace sanding belt (Page 39)/
disc (Page 41).
1. Replace sanding belt (Page 39)/disc (Page 41).
Store belt/disc in a cool, dry area.
2. Replace sanding belt (Page 39)/disc (Page 41). Do
not bend or fold belt/disc.
1. Calibrate table tilt (this page).
1. Calibrate miter gauge scale (Page 48).
1. Use back stop or miter gauge to support workpiece.
2. Start workpiece on a trailing corner.
Qty
Angle Pointer

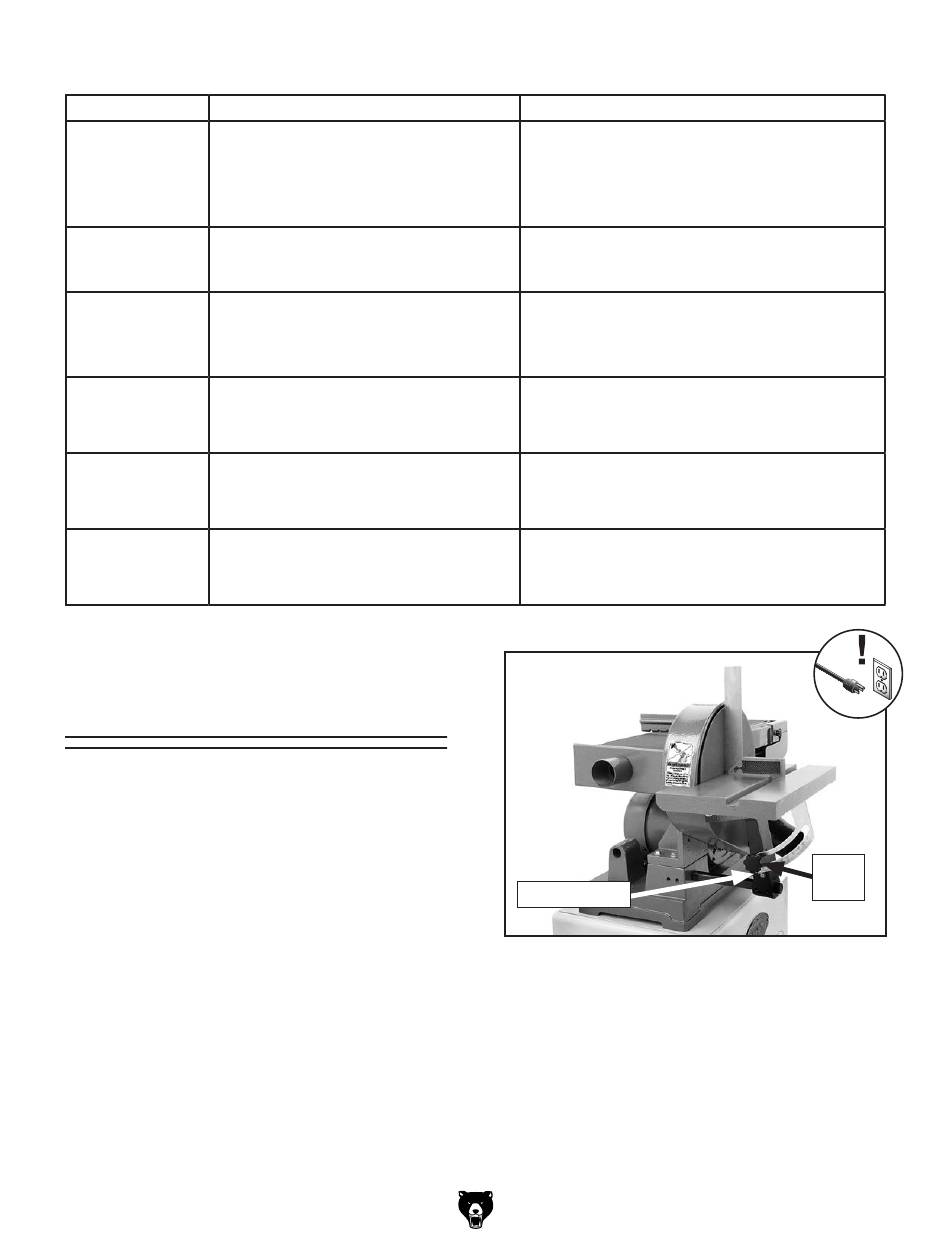

Figure 84. Using a machinist's square to adjust
3. Loosen the table lock knob, adjust the table
square with the sanding belt/disc, then re-
tighten the table lock knob.
4.
Loosen the Phillips head screw on the angle
pointer, position the red scale pointer over the
"0" mark on the angle scale, then re-tighten
the screw.
the work table to 90°.
Lock
Knob
