Summary of Contents for HIKVISION DS-K1102AE
- Page 1 Card Reader User Manual...
- Page 2 WITHOUT LIMITATION, MERCHANTABILITY, SATISFACTORY QUALITY, OR FITNESS FOR A PARTICULAR PURPOSE. THE USE OF THE PRODUCT BY YOU IS AT YOUR OWN RISK. IN NO EVENT WILL HIKVISION BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR INDIRECT DAMAGES,...
- Page 3 During the use of device, personal data will be collected, stored and processed. To protect data, the development of Hikvision devices incorporates privacy by design principles. For example, for device with facial recognition features, biometrics data is stored in your device with encryption method;...
- Page 4 Card Reader User Manual Regulatory Information FCC Information Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC compliance: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
- Page 5 Card Reader User Manual EU Conformity Statement This product and - if applicable - the supplied accessories too are marked with "CE" and comply therefore with the applicable harmonized European standards listed under the EMC Directive 2014/30/EU, the RoHS Directive 2011/65/EU 2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed of as unsorted municipal waste in the European Union.
- Page 6 Card Reader User Manual Safety Instruction These instructions are intended to ensure that user can use the product correctly to avoid danger or property loss. The precaution measure is divided into Dangers and Cautions: Dangers: Neglecting any of the warnings may cause serious injury or death. Cautions: Neglecting any of the cautions may cause injury or equipment damage.
- Page 7 Card Reader User Manual • Please use the provided glove when open up the device cover, avoid direct contact with the device cover, because the acidic sweat of the fingers may erode the surface coating of the device cover. • Please use a soft and dry cloth when clean inside and outside surfaces of the device cover, do not use alkaline detergents.
- Page 8 Card Reader User Manual Available Models Product Name Model Card Reader DS-K1102AE DS-K1102AEK DS-K1102AM DS-K1102AMK Use only power supplies listed in the user instructions: Model Manufacturer Standard TS-A018-120015Ec Shenzhen Transin Technologies Co., Ltd...
-
Page 9: Table Of Contents
Card Reader User Manual Contents Chapter 1 Overview ........................1 Chapter 2 Appearance ........................ 2 2.1 Front View ..........................2 2.2 Side View ..........................2 2.3 Rear View ..........................3 Chapter 3 Installation ......................... 5 3.1 DIP Switch Description ......................5 3.2 Wiring Cables ......................... -
Page 10: Chapter 1 Overview
Card Reader User Manual Chapter 1 Overview The card reader is a kind of high-performance product, with a 32 bit high-speed processor. It communicates with access controller via either RS-485 protocol or Wiegand protocol. And a built-in tamper-proof module helps to protect card reader from malicious damage. As to the physical appearance, the PC+ABS material makes water proof and dust proof possible in poor environment. -
Page 11: Chapter 2 Appearance

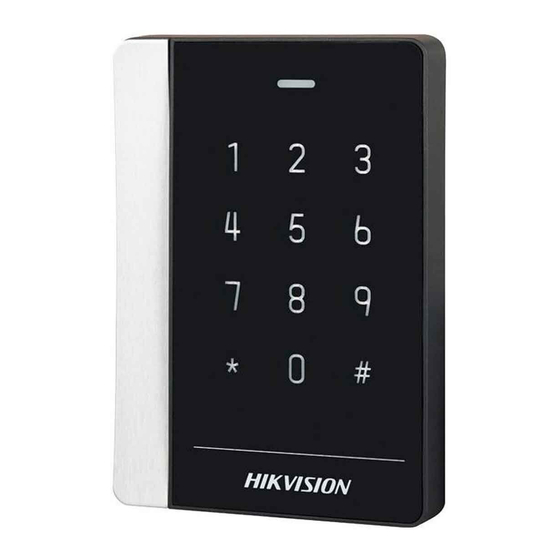

Card Reader User Manual Chapter 2 Appearance 2.1 Front View The front view of the card reader is shown below: Figure 2-1 Front View 2.2 Side View The side view of card reader is shown below:... -
Page 12: Rear View
Card Reader User Manual Figure 2-2 Side View 2.3 Rear View The rear view of card reader is shown below: Figure 2-3 Rear View... - Page 13 Card Reader User Manual Table 2-1 Description of Rear View Name Cable Interface of RS-485, Power, LED Control, etc. Buzzer Tamper-proof Module DIP Switch...
-
Page 14: Chapter 3 Installation
Card Security 1: Enable M1 card encryption function, and disable door Note open via NFC card. For DS-K1102AE/AEK, the DIP 0: Disable M1 card encryption switch is reserved. function, and enable door open via NFC card. Wiegand protocol or RS-485 1: Wiegand protocol protocol. -
Page 15: Description Of Cable
Card Reader User Manual 3.2.1 Description of Cable The description of 10 cables is shown below. Table 3-2 Description of Cable Color Description Yellow RS-485+ Brown Blue LED Control (available for Wiegand Protocol) Blue RS-485- Purple Beep Control (available for Wiegand Protocol) Gray Case Sensor (available for Wiegand Protocol) Green... -
Page 16: Set Wiegand Communication Mode
Card Reader User Manual Figure 3-1 Wiring for RS-485 Communication Mode 3.2.3 Set Wiegand Communication Mode Steps 1. Set the DIP switch of No. 6 as 1. 2. Set the DIP switch of No. 5 and 7 for reading card mode and Wiegand protocol. For details, refers to DIP Switch Description . -
Page 17: Install Card Reader
Card Reader User Manual Figure 3-2 Wiring for Wiegand Communication Mode 3.3 Install Card Reader Before You Start Set the DIP switch. For details, refer to DIP Switch Description . Steps 1. Fix the plate on the wall or other place. Figure 3-3 Install Mounting Plate 2. - Page 18 Card Reader User Manual 3. Push the card reader to match the fixed plate. 4. Fasten the screw to keep the components together. Figure 3-4 Install Device...
-
Page 19: Chapter 4 Sound Prompt And Indicator
Card Reader User Manual Chapter 4 Sound Prompt and Indicator After the card reader is powered on, LED status indicator will turn blue and blink for 1 time. Then it will turn red and flash for 3 times. At last the buzzer will send out a beep sound indicating the starting up process is completed. -
Page 20: Appendix A. Preventive And Cautionary Tips
Card Reader User Manual Appendix A. Preventive and Cautionary Tips To guarantee the card reader works properly, please read and obey the notes below. • If the card reader is powered by the controller, the power supply distance is recommended to be no longer than 100m. -
Page 21: Appendix B. Communication Matrix And Device Command
Device Command Scan the following QR code to get the device common serial port commands. Note that the command list contains all commonly used serial ports commands for all Hikvision access control and video intercom devices. Figure B-2 Device Command... - Page 22 UD18870B-A...
