The table below lists the pin assignments for backplane connector RJ45, the alarm relay
connector.
Pin
1
2
3
4
5
6
7
8

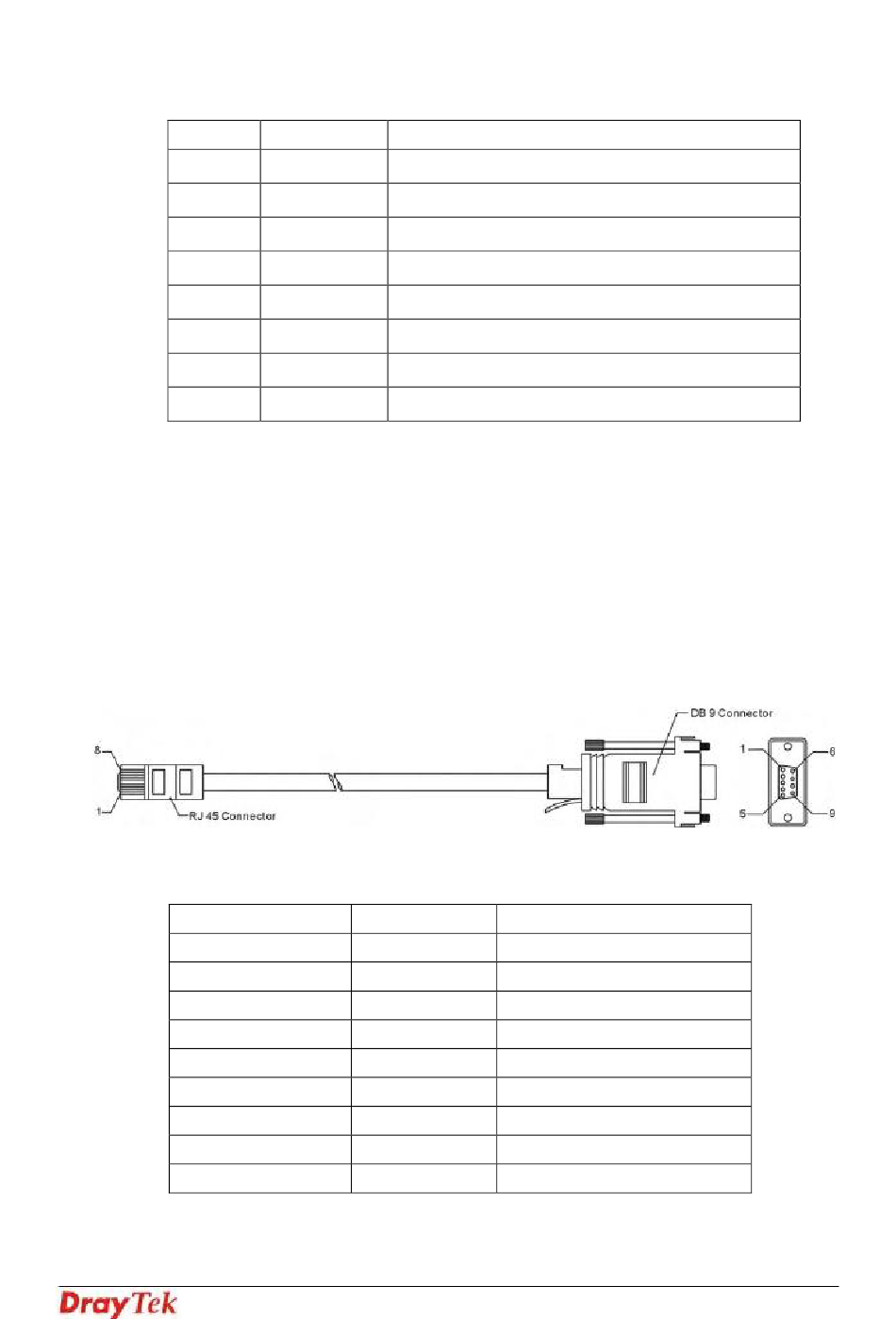

A.4 RS232 Connector
The RJ45 connection jet is used for CLI commands for system configurations and
controlling functions in the VigorAccess. The jet is used for initialization of the
VigorAccess during the preliminary installation. The "management cable", as shown in
Figure 1-15, converts the RJ45 to the RS232 interface. The RJ45 jet connects to a console
interface in the VigorAccess, while the RS232 DB9 connecting to a console port on the
computer.
The default setting of the console port is "baud rate 9600, no parity, and 8 bit with 1
stop bit (N81)".
The pin-out for this connector is shown below:
RJ45
No connection
3
6
7
5
2
8
1
No connection
Signal
RELAY NC
RELAY NORMAL CLOSE CONTACT
RELAY NO
RELAY NORMAL OPEN CONTACT)
RELAY COM
(RELAY COMMON CONTACT)
ALARM IN2
(ALARM INPUT CONTACT GROUP2)
NOT USED
ALARM IN1
(ALARM INPUT CONTACT GROUP1
ALARM GND1 ALARM GND CONTACT GROUP1
ALARM GND2 ALARM GND CONTACT GROUP2
DB9 (Female)
1
2
3
4
5
6
7
8
9
53
Description
Signal
CD
TD
RD
DTR
GND
DSR
RTS
CTS
RI
