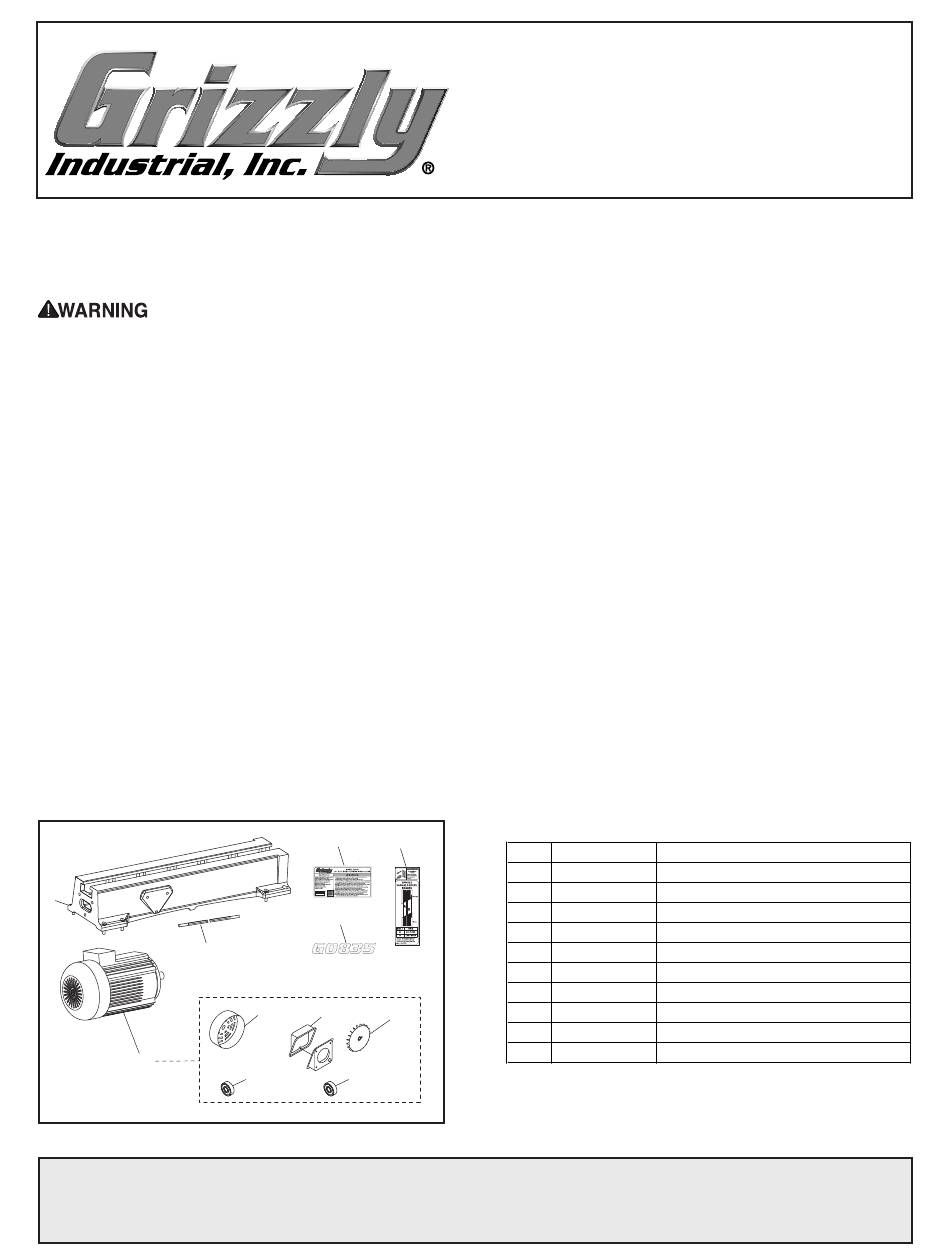

Grizzly G0835 Manual

24" x 24" bowl turning lathe manual insert
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
The Model G0835 is the same machine as the Model G0800 except it has a shorter bed and a different
motor. Except for the differences noted in this insert, all other content in the Model G0800 owner's manual
applies to this machine.
: To reduce the risk of serious injury, you MUST read and understand this insert—and
the entire Model G0800 manual—BEFORE assembling, installing, or operating this machine!
If you have any further questions about this manual insert or the differences between the Model G0835 and
the Model G0800, contact our Technical Support at (570) 546-9663 or email techsupport@grizzly.com.
G0835 Specifications
Product Dimensions:
Weight ........................................................................................................................................................................... 706 lbs.
Width (side-to-side) x Depth (front-to-back) x Height ........................................................................................66 x 28 x 58 in.
Footprint (Length x Width) ............................................................................................................................ 43-1/2 x 24-1/2 in.
Shipping Dimensions:
Weight ............................................................................................................................................................................ 780 lbs.
Operation Information:
Distance Between Centers ................................................................................................................................................24 in.
Max. Distance Tool Rest to Spindle Center .................................................................................................................15-1/2 in.
Spindle Speed Range ..........................................................................................................................................60–2300 RPM
Features:
Low Spindle Speed Range of 60 to 1200 RPM and a High Speed Range of 120–2300 RPM
G0835 Parts
4
51
131
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
213
201
207
131-1 131-2
131-3
131-4
131-5
COPYRIGHT © MARCH, 2018 BY GRIZZLY INDUSTRIAL, INC.
#BL19470 PRINTED IN CHINA
MODEL G0835
24" X 24" BOWL TURNING LATHE
MANUAL INSERT
For Machines Mfd. Since 11/17
and Owner's Manual Revised 03/18
REF PART #
4
P0835004
51
P0835051
131
P0835131
131-1 P0835131-1
131-2 P0835131-2
131-3 P0835131-3
131-4 P0835131-4
131-5 P0835131-5
201
P0835201
207
P0835207
213
P0835213
DESCRIPTION
BED
CHISEL PAN MOUNTING ROD
MOTOR 3HP 220V 3-PH
MOTOR FAN COVER
MOTOR JUNCTION BOX
MOTOR FAN
BALL BEARING 6205ZZ (FRONT)
BALL BEARING 6205ZZ (BACK)
SPINDLE RANGE LABEL
SPINDLE PIN NOTICE
MACHINE ID LABEL
