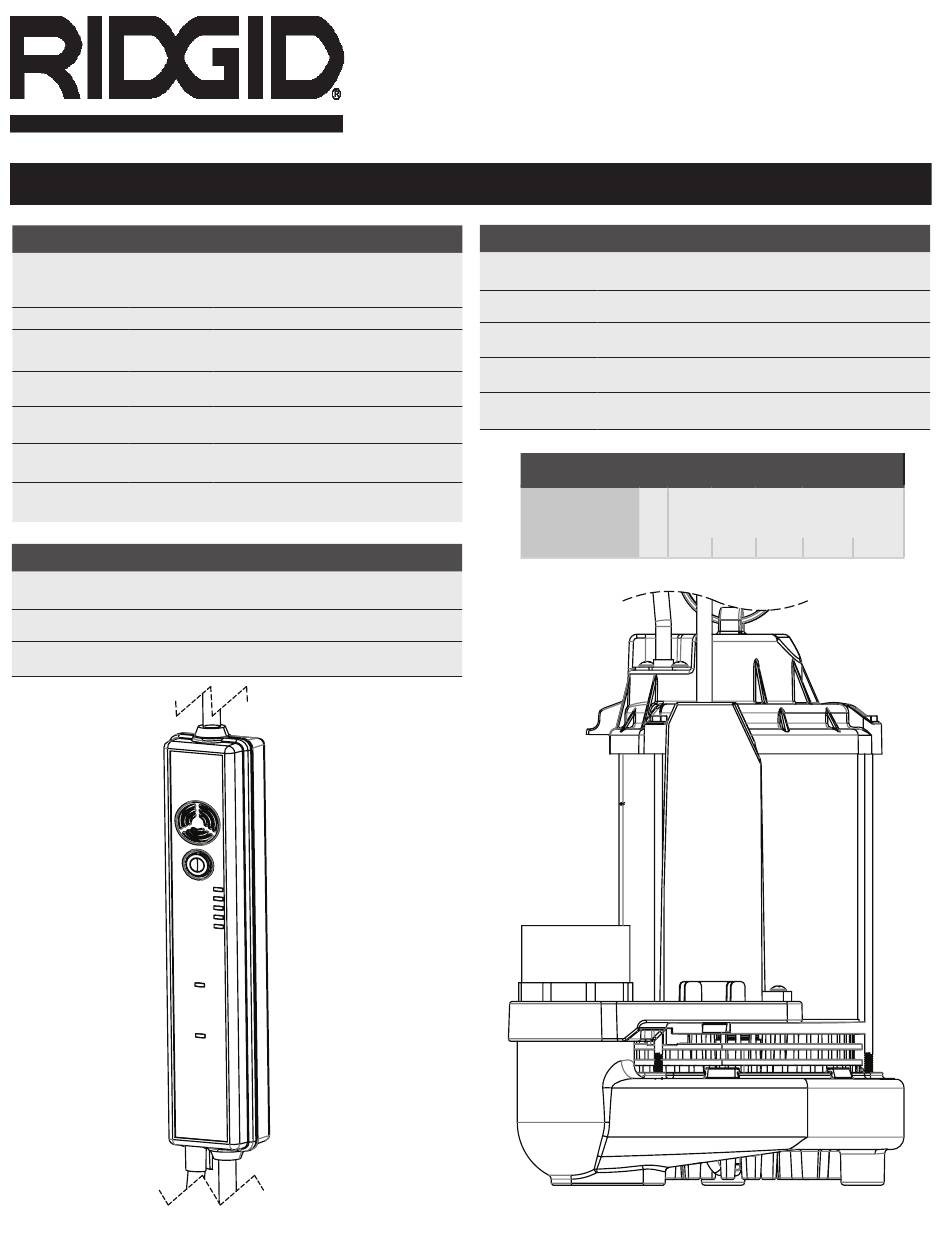

Installation Manual
PUMP SPECIFICATIONS
POWER SUPPLY REQUIREMENTS
MOTOR
HORSEPOWER
CIRCUIT REQUIREMENTS
DIMENSIONS
ON LEVEL (FACTORY SET)
OFF LEVEL (FACTORY SET)
CONTROLLER SPECIFICATIONS
SWITCH
CONNECTIVITY
AIR TUBE
© 2021, RIDGID® TOOL COMPANY
120 V, 60 Hz
Single Phase, Dielectric Oil Filled
1 HP ....................
15 A (minimum)
11-1/2 in. high x 9-3/4 in. base
Approximately 9.5 in.
Approximately 4.5 in.
Solid State Air Switch
Wi-Fi + BLE
PVC
Smart Submersible Sump Pump
Please read and save these instructions. Read carefully before attempting to assemble, install,
operate or maintain the product described. Protect yourself and others by observing all safety
information. Failure to comply with instructions could result in personal injury and/or property
damage! Retain instructions for future reference.
MOTOR HOUSING
VOLUTE
IMPELLER
SHAFT
DISCHARGE
Model
1000RSDSSmart
www.homedepot.com
1000RSDSSmart
CONSTRUCTION
Stainless Steel
Cast Iron
Glass Reinforced Thermoplastic
Steel
1-1/2 in. NPT
PERFORMANCE GAL/HR
Discharge Head (Lift Distance)
HP
0 ft
5 ft
10 ft
1
6600
6240
5640
600007-001 B 04/21
15 ft
20 ft
4920
3660
