Replacing The Headset Port; Procedure; Post-Requisites - Dell Inspiron 24 5000 Service Manual

Identifier
Status
WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the
steps in Before working inside your
your computer. For more safety best practices, see the Regulatory Compliance home page at
regulatory_compliance.
Identifier
Status

Procedure

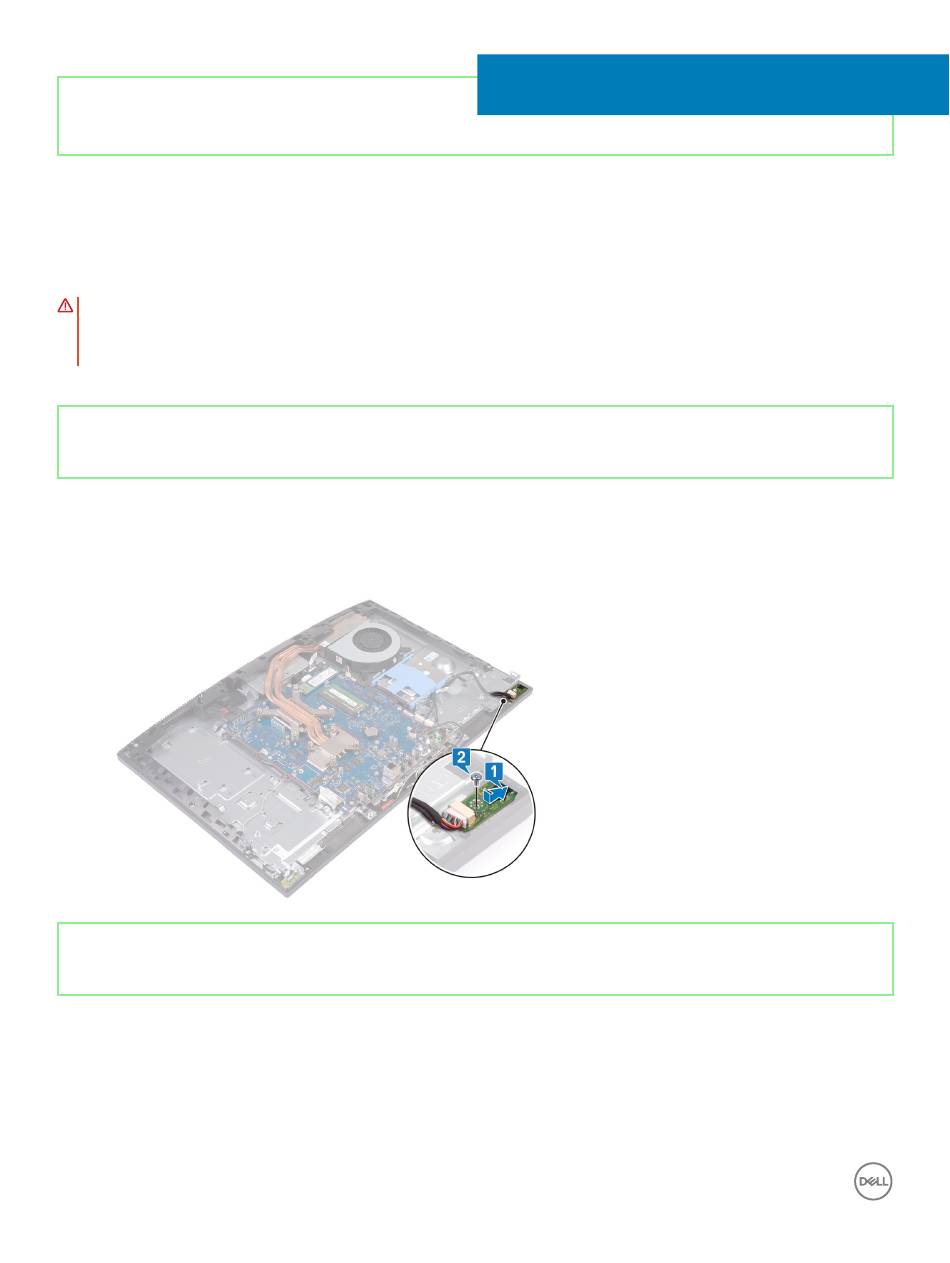

1 Slide the headset port into its slot on the middle frame and align the screw hole on the headset port with the screw hole on the
display-assembly base.
2 Replace the screw (M3x5) that secures the headset-port board to the display-assembly base.
Identifier
Status

Post-requisites

1 Replace the side I/O-board.
2 Replace the rear-I/O bracket.
3 Replace the base panel.
4 Replace the system-board
