Attach the straight guide with the clamp screw (A).
Loosen the wing nut on the straight guide and adjust the
distance between the bit and the straight guide. At the
desired distance, tighten the wing nut securely.
When cutting, move the tool with the straight guide lush
with the side of the workpiece.

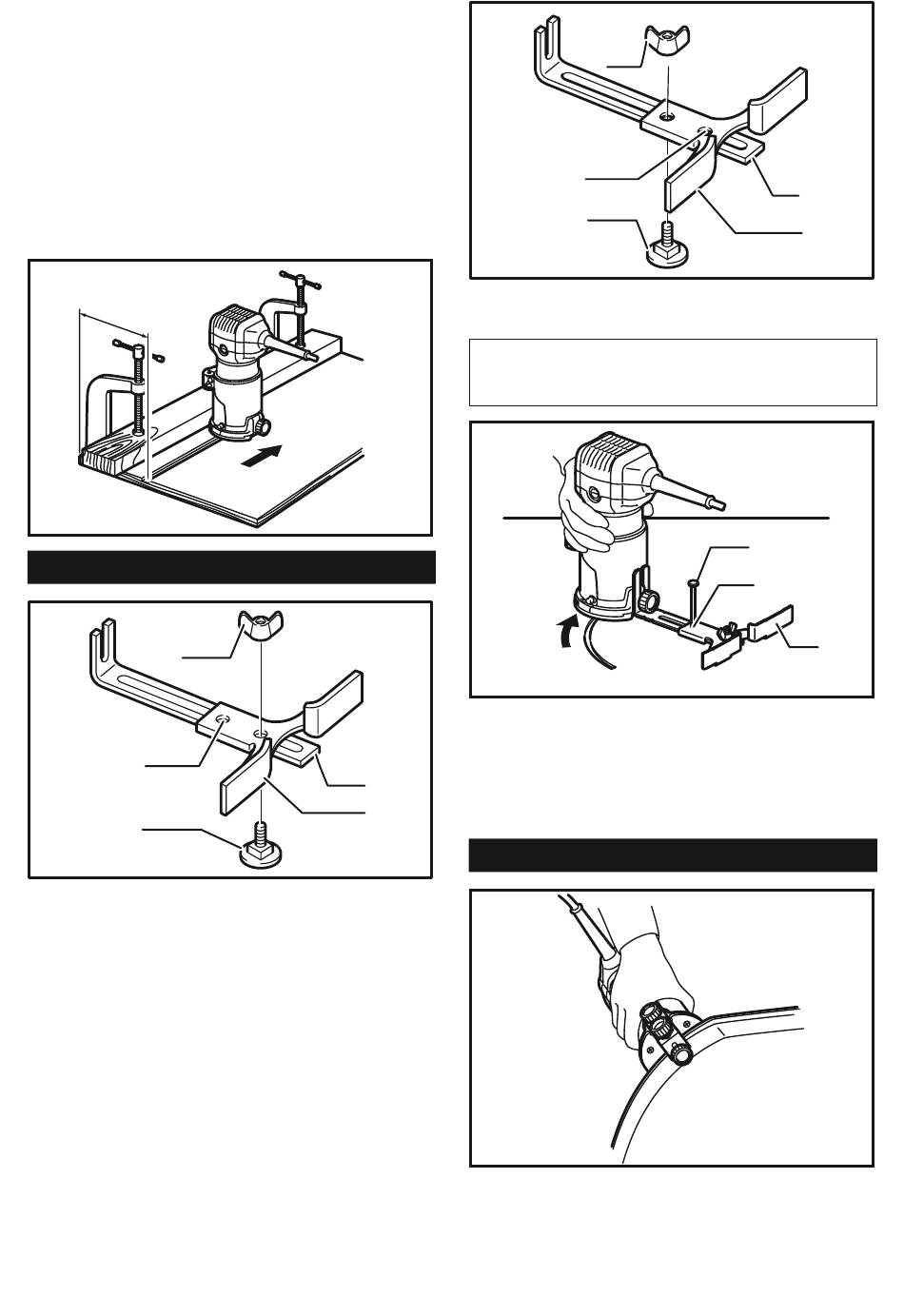

If the distance (A) between the side of the workpiece
and the cutting position is too wide for the straight
guide, or if the side of the workpiece is not straight, the
straight guide cannot be used. In this case, irmly clamp
a straight board to the workpiece and use it as a guide
against the trimmer base. Feed the tool in the direction
of the arrow.
A
Circular work
1
4
5
► 1. Wing nut 2. Guide plate 3. Straight guide
4. Center hole 5. Bolt
Circular work may be accomplished if you assemble the
straight guide and guide plate as shown in the igures.
Min. and max. radius of circles to be cut (distance
between the center of circle and the center of bit) are
as follows:
Min.: 70 mm
Max.: 221 mm
For cutting circles between 70 mm and 121 mm in
radius.
For cutting circles between 121 mm and 221 mm in
radius.
► 1. Wing nut 2. Guide plate 3. Straight guide
4. Center hole 5. Bolt
NOTE:
• Circles between 172 mm and 186 mm in radius
cannot be cut using this guide.
► 1. Nail 2. Center hole 3. Straight guide
Align the center hole in the straight guide with the cen-
ter of the circle to be cut. Drive a nail less than 6 mm
2
in diameter into the center hole to secure the straight
guide. Pivot the tool around the nail in clockwise
3
direction.
Trimmer guide (optional accessory)
Trimming, curved cuts in veneers for furniture and the
like can be done easily with the trimmer guide. The
guide roller rides the curve and assures a ine cut.
8 ENGLISH
1
4
5
2
3
1
2
3
