Introduction
Your new Heavy-Duty Mobile Base is designed to
give you a stable and mobile platform upon which
to mount machinery and equipment.
Inventory
Description
A. Right Front Corner Bracket ........................ 1
B. Left Front Corner Bracket ........................... 1
C. Right Rear Corner Bracket ......................... 1
D. Left Rear Corner Bracket ........................... 1
E. 21" Side Rails (T28000) ............................. 4
14" Side Rails (T28922) (Not Shown) ......... 4
21" Side Rails (T28923) (Not Shown) ......... 2
26" Side Rails (T28923) (Not Shown) ........ 2
F.
3" Swivel Casters ....................................... 2
G. 3" Wheels ................................................... 2
H. Foot Pedals ................................................ 4
I.
Foot Pedal Springs ..................................... 2
J.
Foot Pedal Plungers ................................... 2
K. Adjustable Rubber Feet .............................. 2
L. Bearing Sleeves ......................................... 4
M. Shoulder Bolts M10-1.5 x 55 (Casters) ....... 2
N. Shoulder Bolts M8-1.25 x 52 (Pedals) ........ 2
O. Hardware (Not Shown)
—Hex Bolts M8-1.25 x 16 (Brackets) ....... 24
—Hex Nuts M10-1.5 (Rubber Feet) ............ 2
—Lock Nuts M8-1.25 (Caster/Pedal) ........ 10
—Lock Nuts M10-1.5 (Casters) .................. 2
Specifications
T28000
• Minimum Inside Dimensions .......... 19" x 21"
• Maximum Inside Dimensions .. 29
• Maximum Weight Capacity ............1200 lbs.
T28922
• Minimum Inside Dimensions .......... 14" x 14"
• Maximum Inside Dimensions .. 22
• Maximum Weight Capacity ............. 900 lbs.
T28923
• Minimum Inside Dimensions ..........19" x 26"
• Maximum Inside Dimensions .. 29
• Maximum Weight Capacity ............1200 lbs.
COPYRIGHT © APRIL, 2017 BY GRIZZLY INDUSTRIAL, INC. REVISED SEPTEMBER, 2019 (AI)
NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
Qty
⁄ " x 29 ⁄
1 1
2
⁄ " x 22 ⁄
1 1
2
⁄ " x 34 ⁄
1 1
2
(FOR MODELS MFD. SINCE 11/18) #JH18886 PRINTED IN CHINA
MODEL T28000/T28922/T28923
HEAVY-DUTY MOBILE BASE
INSTRUCTIONS
A
C
E
F
H
Operating machinery on an unsecured
mobile base may allow the machine to
"
shift unexpectedly, which could result in
2
accidental contact with a cutting device or
other moving parts.
"
2
Tools Needed for Assembly
• Open-End Wrench or Socket 13mm .......... 1
• Open-End Wrench or Socket 14mm .......... 1
" • Open-End Wrench or Socket 17mm........... 1
2
• Measuring Tape .......................................... 1
J
I
K

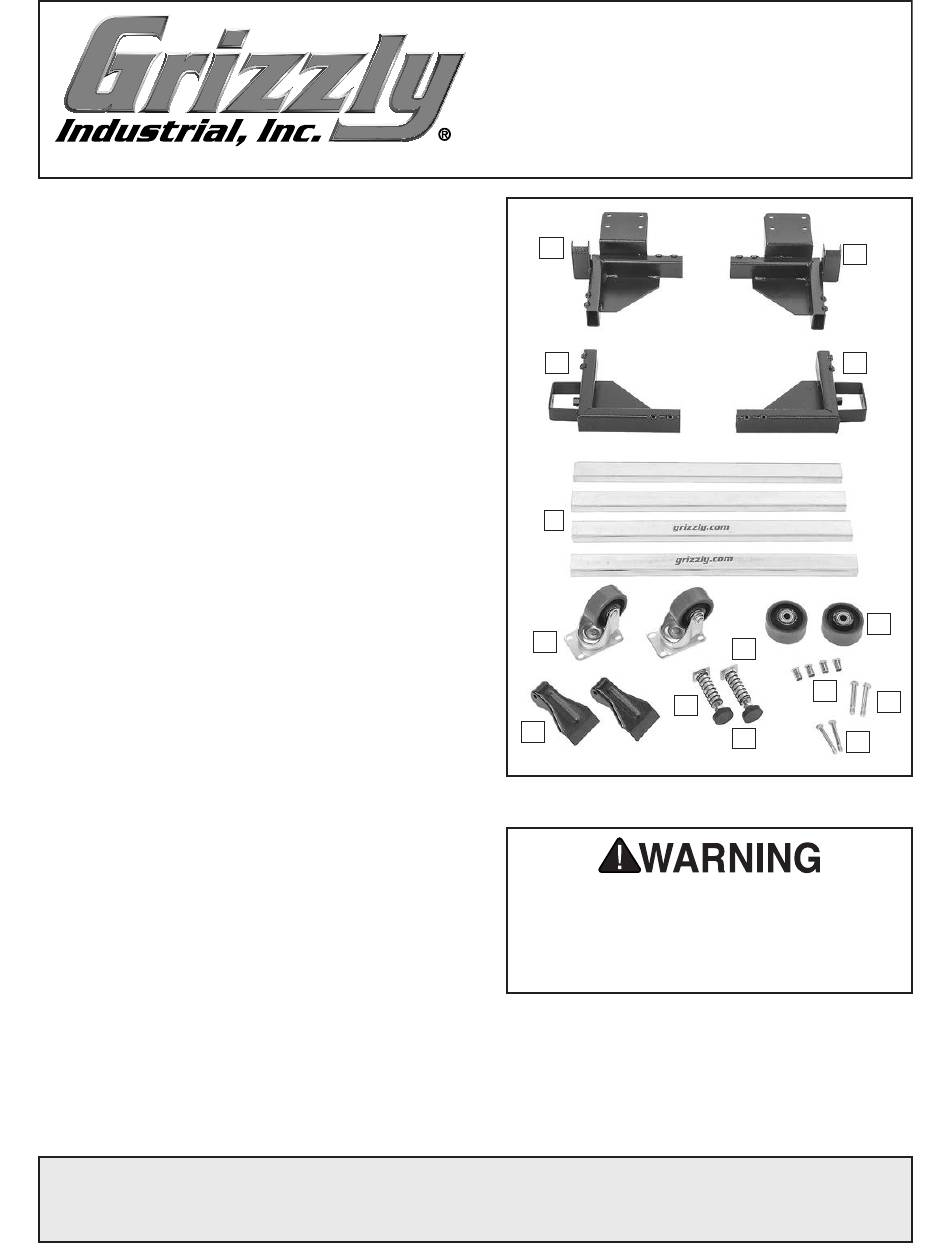

Figure 1. Inventory.
B
D
G
L
M
N
