Grizzly T30372 Instructions

For questions or help with this product contact Tech Support at (570) 546-9663 or techsupport@grizzly.com
Introduction
The Model T30372 Mounting Kit is a quick and
easy way to mount the Model T30399 Infeed/
Outfeed Roller Set onto your G0613 or G0614
Metal Bandsaw.
Inventory
Description
A. Extension Plate Cover ................................ 1
B. Outfeed Roller Plate ................................... 1
C. Infeed Mounting Bracket ............................ 1
D. Outfeed Mounting Bracket.......................... 1
E. Hex Bolts M10-1.5 x 25 ............................ 10
F. Flat Washers 10mm ................................. 16
G. Hex Nuts M10-1.5 ....................................... 6
H. Set Screws M8-1.25 x 8 ............................. 2
A
C

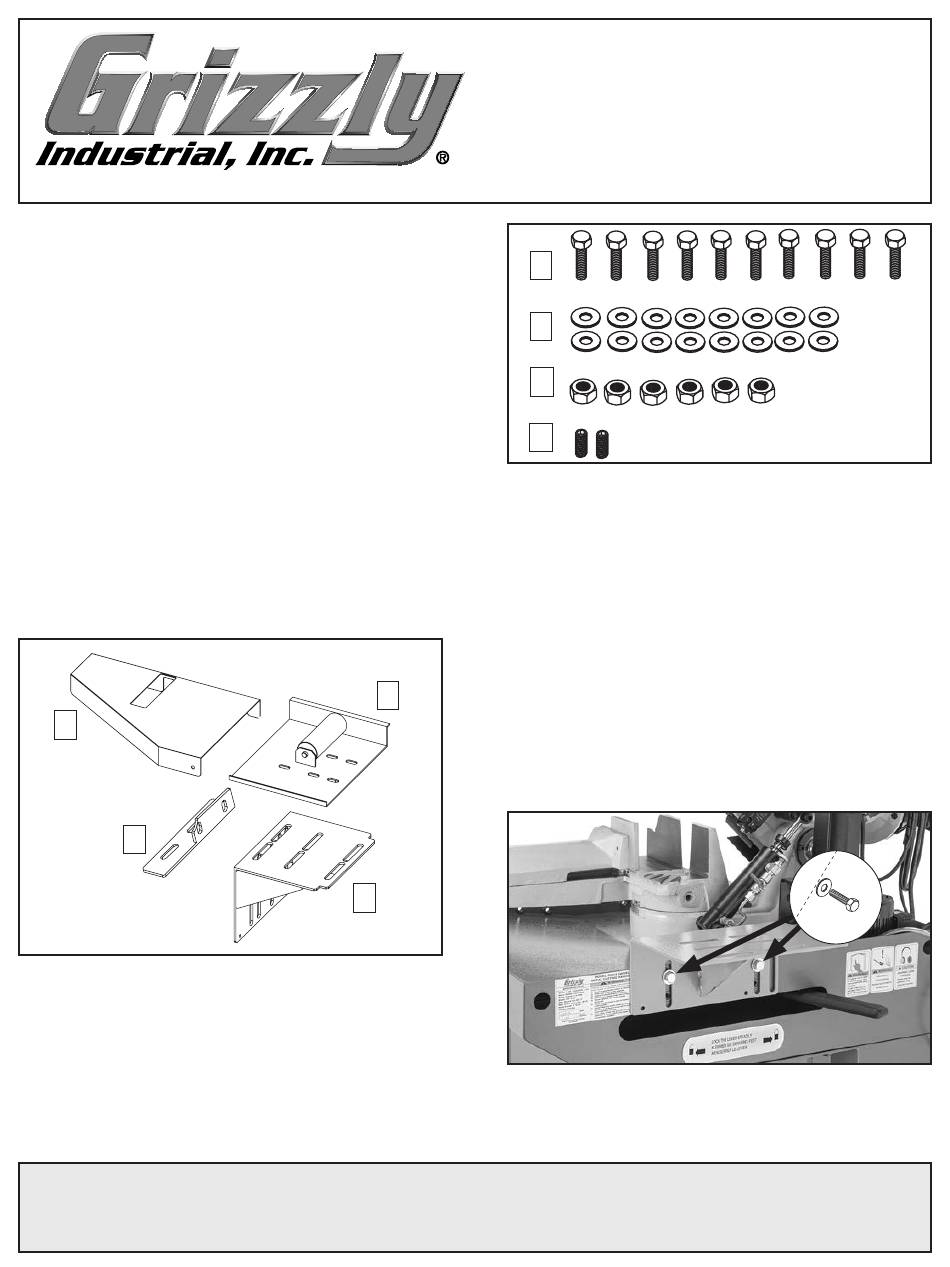

Figure 1. Main inventory.
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
D
COPYRIGHT © SEPTEMBER, 2019 BY GRIZZLY INDUSTRIAL, INC.
NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
(FOR MODELS MFD. SINCE 6/19) #CS20520 PRINTED IN TAIWAN
FOR G0613/G0614
E
F
G
Qty
H
Needed for Setup
Description
A. Wrenches or Sockets 17mm ...................... 2
B. Assembled Model T30399 ......................... 1
C. Model G0613 or G0614 Metal Bandsaw .... 1
D. Precision Level ........................................... 1
Assembly
B
1.
Attach outfeed mounting bracket to bandsaw
base with (2) M10-1.5 x 25 hex bolts and (2)
10mm flat washers, see Figure 3.
Figure 3. Outfeed mounting bracket attached.
MODEL T30372
MOUNTING KIT
INSTRUCTIONS
Figure 2. T30372 hardware.
Qty
V1.09.19
