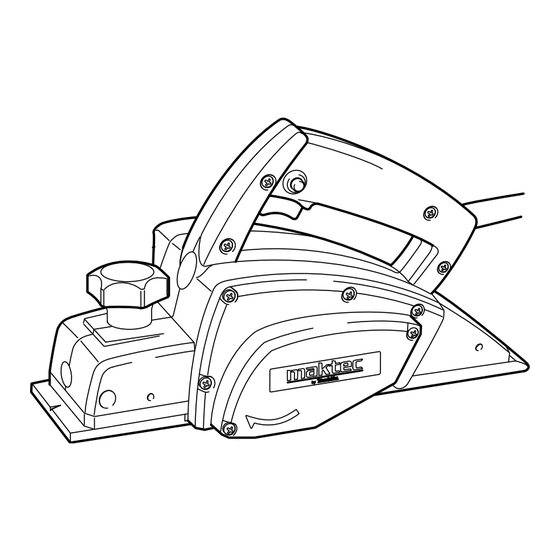

Model MT190 has been developed as the first power planer
of maktec series models, providing industrial performance
and durability at less expense.
Its specifications are the same as that of the popular Model
N1900B of Makita brand.
S
pecification
Voltage (V)
110
120
220
230
240
No load speed (min = rpm)
Max. planing width: mm (")
Max. planing depth: mm (")
Shiplapping depth: mm (")
Protection from electric shock
Net weight: Kg (lbs)
Cord length: m (ft)
*Shiplapping depth for Philippines is 9mm (11/32").
S
tandard equipment
Blade gauge assembly .................................................................................... 1 pc
Sharpening holder assembly** ....................................................................... 1 pc
Socket wrench 9 ............................................................................................. 1 pc
Planer blade 82 (resharpenable) or Mini planer blade 82 (disposable) .......... 1 set
Guide rule ....................................................................................................... 1 pc
**only for countries employing resharpenable Planer blade 82
< Note > The standard equipment for the tool shown may differ from country to country.
MT190
Power Planer 82mm (3-1/4")
Cycle (Hz)
Current (A)
4.6
50 / 60
4.0
50 / 60
2.8
50 / 60
2.7
50 / 60
2.5
50 / 60
-1
Continuous Rating (W)
Input
480
460
580
580
580
16,000
82 (3-1/4)
1 (1/32)
6 (1/4)*
double insulation
2.5 (5.5)
2.0 (6.6)
W
Dimensions: mm ( " )
Length (L)
290 (11-3/8)
Width (W)
157 (6-3/16)
Height (H)
160 (6-5/16)
Max. Output (W)
Output
165
130
300
300
300
NEW TOOL
P 1 / 4
H
L
550
550
550
550
550
Advertisement
Related Manuals for Makita Maktec MT190
Summary of Contents for Makita Maktec MT190
- Page 1 Model MT190 has been developed as the first power planer of maktec series models, providing industrial performance and durability at less expense. Its specifications are the same as that of the popular Model N1900B of Makita brand. Dimensions: mm ( " ) Length (L) 290 (11-3/8)
- Page 2 Poly V-belt a Lock nut wrench of a Makita grinder. (Fig. 1) 4-241 When you replace the Poly V-belt with a brand-new one, remove simply by cutting the worn belt with cutting pliers.
- Page 3 P 3 / 4 epair <2> Replacing Armature and Drum Disassembling 5. Remove Ball bearings 6000ZZ and 608ZZ from Drum using Bearing extractor (No.1R269). Between Drum and Ball bearing 608ZZ, there is no space for insertion of the jaw of the bearing extractor. When removing Ball bearing 608ZZ, therefore, be sure to use a proper adjustable wrench to securely hold the jaws of the bearing extractor so that the jaws cannot spread and slip off the ball bearing.
- Page 4 P 4 / 4 ircuit diagram Switch Color index of lead wires' sheath Black Clear Noise *Noise suppressor is not used suppressor* for some countries. Power supply cord Field Heat shrink tube iring diagram in main frame complete 1) When using Noise suppressor, put it into place as illustrated below. 2) Put the grounding wire of noise suppressor into place as illustrated below.
