Introduction

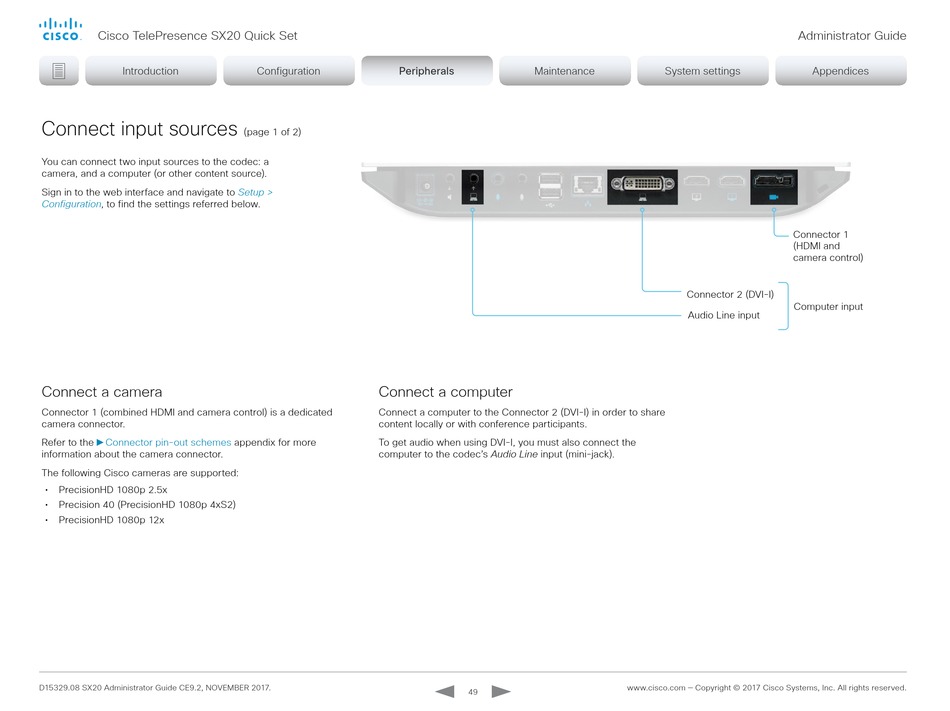

Connect input sources

You can connect two input sources to the codec: a
camera, and a computer (or other content source).
Sign in to the web interface and navigate to
Configuration, to find the settings referred below.
Connect a camera
Connector 1 (combined HDMI and camera control) is a dedicated
camera connector.
►Connector pin-out schemes
Refer to the
information about the camera connector.
The following Cisco cameras are supported:
• PrecisionHD 1080p 2.5x
• Precision 40 (PrecisionHD 1080p 4xS2)
• PrecisionHD 1080p 12x
D15329.08 SX20 Administrator Guide CE9.2, NOVEMBER 2017.
Configuration Peripherals Peripherals
(page 1 of 2)
Setup >
Connect a computer
Connect a computer to the Connector 2 (DVI-I) in order to share
content locally or with conference participants.
appendix for more To get audio when using DVI-I, you must also connect the
computer to the codec's Audio Line input (mini-jack).
Maintenance
www.cisco.com — Copyright © 2017 Cisco Systems, Inc. All rights reserved.
49
Administrator Guide
System settings Appendices
Connector 1
(HDMI and
camera control)
Connector 2 (DVI-I)
Computer input
Audio Line input
