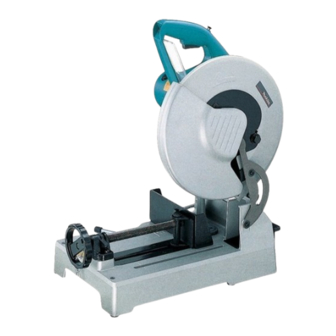

Makita LC1230 Technical Information

Portable cut off 305mm
Hide thumbs Also See for LC1230:
1
2
3
4
5
6
7
8
9

Advertisement

Quick Links

Download this manual See also: Instruction Manual
T
ECHNICAL INFORMATION
Models No.
Description
C
ONCEPTION AND MAIN APPLICATIONS
1. No tools are required for adjustment of the angle of the fence.
Angle adjustment of the fence can be made by loosening the lever.
2. With Quick vise
3. Aluminium base
4. Dust tray can be dismounted from the machine.
5. Chip saw blade 305mm
6. Carrying handle
7. Shaft Lock
8. Anti-Vibration for chip saw, for decrease the noise during the work,
and it contributes to saving of the life of saw blade.
S
pecifications
Voltage (V)
115
220
230
240
No Load Speed
Blade diameter
Arbor diameter
Max. cutting capacities
Net weight
Power supply cord
S
tandard equipment
Socket Wrench 17---------------------------------- 1 pc.
Safety Goggle--------------------------------------- 1 pc.
Switch Button(as s spare) ------------------------ 1 pc.
T. C. T. Saw Blade(for U.S. A. and Canada) --- 1 pc.
O
ptional accessories
T. C. T. Saw Blade(for thinner mild steel)
T. C. T. Saw Blade(for mild steel(noiseless steel))
T. C. T. Saw Blade(for stainless steel)
LC1230
Portable Cut Off 305mm
Current (A)
Cycle (Hz)
15.0
50/60
8.4
50/60
8.0
50/60
7.7
50/60
1300rpm
305mm(12")
25.4mm(1")
150x75mm(5-7/8"x2-15/16")
90°
100x100mm(3-15/16"x3-15/16")
ø115mm(4-1/2")
45°
85x85mm(3-5/16"x3-5/16")
ø90mm(3-1/2")
19kg(41.9 lbs)
2.5m(8.2 ft)
Continuous Rating (W)
Input
Output
1650
950
1750
1000
1750
1000
1750
1000
New Tool
Max. Output(W)
2000
2700
2700
2700

Advertisement

loading

Related Manuals for Makita LC1230

Summary of Contents for Makita LC1230

  • Page 1 ECHNICAL INFORMATION New Tool LC1230 Models No. Description Portable Cut Off 305mm ONCEPTION AND MAIN APPLICATIONS 1. No tools are required for adjustment of the angle of the fence. Angle adjustment of the fence can be made by loosening the lever.

  • Page 2: F Eature And Benefits

    Quick vise . Various size of work can be clamped quickly. *Model LC1230 for European market is equipt with safety lock system. Superiority of chip saw blade over abrasive cut off wheel 1.Faster than abrasive cut off wheel in cutting work.
  • Page 3 Makita Model No. LC1210 LC1230 Input(w) 1,750 No load speed(rpm) 1,300 Blade diameter 305mm(12")x25.4mm(1") Max. cutting 90° 150x75mm capacities (5-7/8"x2-15/16") 100x100mm (3-15/16"x3/15/16") ø115mm (4-1/2") 45° 85x85mm (3-5/16"x3-5/16") ø90mm (3-1/2") Adjustment of the fence No tools are required Tools are required...
  • Page 4 Dismounting of gear 1. Take off 2 ball bearings 6000 from the gear housing R. 2. Take off gear complete 16-44 from the gear housing R. However the ball bearing 6000LLB remains in the gear housing R. 3. Put the gear housing R on the U-cut part of arbor press table, and press the spindle with the arbor press.
  • Page 5 3. Mount the spring holder on the position A greased Spring holder Greease with MAKITA Grease No.1, pressing the compression Position A spring. Hex bolt M16 Base Adjust of base and gear housing L 1.
  • Page 6 Dismounting of handle and switch unit Handle set is fastened on the gear housing L with 6 screws sa follows. -with 3 screws, Handle R and L -with another 3 screws, Handle set and Gear Housing L 1. Dismount the handle L, bay taking off these 6 screws. Construction of the switch unit is as illustrated below. 2.
  • Page 7 4 lever holder Adjusting for LC1230 with safety lock system 1. Adjust with hex bolt M6x16 so that the lock lever can return to the lock point from the every working position smoothly. 2. Fastening torque for hex socket head bolt must be 80kgfcm.
  • Page 8 Suport Unit Switch Line filter Power supply cord Noise Suppessor In some areas,noise suppressor and line filter are not used. Fix power supply cord as below. 190-210mm strain relief power supply cord...

  • Page 9: Line Filter

    Hold the two lead wires of Line Filter and Put Line Filter on the position indicated below Hold the two lead wires of Line Filter To Support To Switch Line Filter the position of Line Filter Line Filter...
