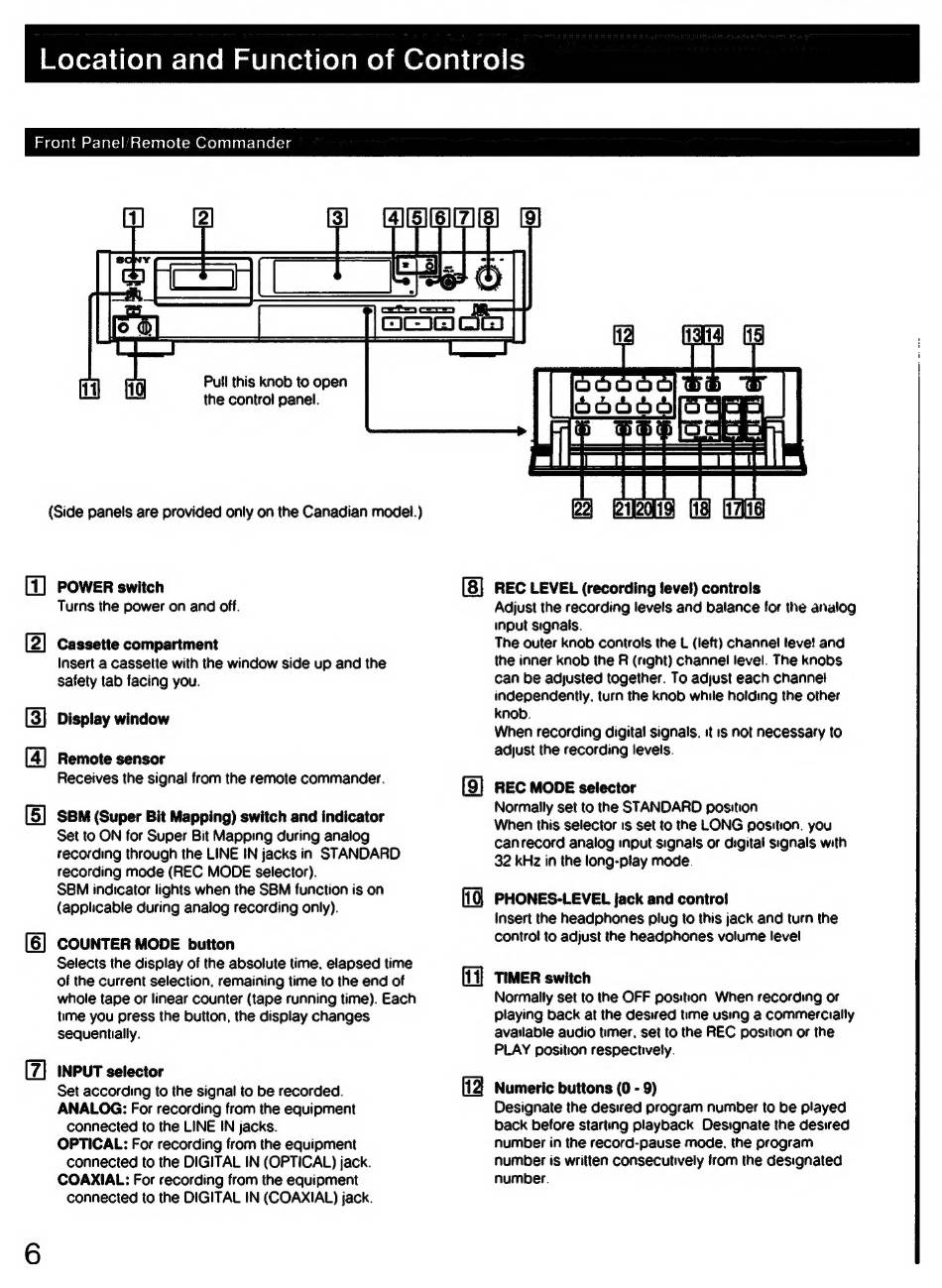

|Meoler-)dtelam-siarem melaverecelame)m@relelige) ts
jsagelalanarcbats) fa atstenie) (om Ore) saleatclalelcia
OW)
[2]
Pull this knob to open
the control panel.
(Side panels are provided only on the Canadian model.)
POWER switch
Turns the power on and off.
Cassette compartment
Insert a cassette with the window side up and the
safety tab facing you.
Display window
Remote sensor
Receives the signal from the remote commander.
SBM (Super Bit Mapping) switch and indicator
Set to ON for Super Bit Mapping during analog
recording through the LINE IN jacks in STANDARD
recording mode (REC MODE selector).
SBM indicator lights when the SBM function is on
(applicable during analog recording only).
COUNTER MODE
button
Selects the display of the absolute time, elapsed time
of the current selection, remaining time to the end of
whole tape or linear counter (tape running time). Each
time you press the button, the display changes
sequentially.
INPUT selector
Set according to the signal to be recorded.
ANALOG: For recording from the equipment
connected to the LINE IN jacks.
OPTICAL: For recording from the equipment
connected to the DIGITAL IN (OPTICAL) jack.
COAXIAL: For recording from the equipment
connected to the DIGITAL IN (COAXIAL) jack.
i
REC LEVEL (recording !feve!) controls
Adjust the recording levels and balance for the analog
input signals.
The outer knob controls the L (left) channel leve! and
the inner knob the R (right) channel level. The knobs
can be adjusted together. To adjust each channet
independently. turn the knob while holding the other
knob.
When recording digital signals, it is not necessary to
adjust the recording levels.
REC MODE selector
Normally set to the STANDARD position
When this selector is set to the LONG position. you
canrecord analog input signals or digital signals with
32 kHz in the long-play mode.
PHONES-LEVEL jack and control
Insert the headphones plug to this jack and turn the
contro! to adjust the headphones volume level
TIMER switch
Normally set to the OFF position When recording or
playing back at the desired time using a commercially
available audio timer, set to the REC position or the
PLAY position respectively.
Numeric buttons (0 - 9)
Designate the deswed program number to be played
back before starting playback Designate the desired
number in the record-pause mode. the program
number is written consecutively from the designated
number.
