DWG Series GSM/CDMA VoIP Gateway User Manual
the hotline User ID. If no need this feature, just left it blank
【Auto‐Dial Delay Time】Offhook Auto‐Dial delay time, the range is 0‐10 seconds
5) Fax Configuration
Fax Configuration use for configure fax, and support pass‐Through and T.38 fax mode, the
maximum baud rate supported 14400bps
Interface describe as following:
【Fax way】support T.38 and pass‐Through；
【Fax Tone Detection Mode】There are two calling and called
【 Enable ECM 】 Error Correction Mode. If enabled, when transmiss the fax ,will automatically
detects the wrong part of the requested retransmission to eliminate data errors, but will
increase the fax time
【Fax Rate】support fax rate list include：2400bps、4800 bps、7200 bps、9600 bps、12000 bps、
14400 bps
4.3.6 Tools
1) Firmware upload
Equipment upgrades can through Dinstar's softswitch platform, when the device disconnects with
Dinstar's softswitch platform or some special circumstances. The firmware is able to upload
locally.

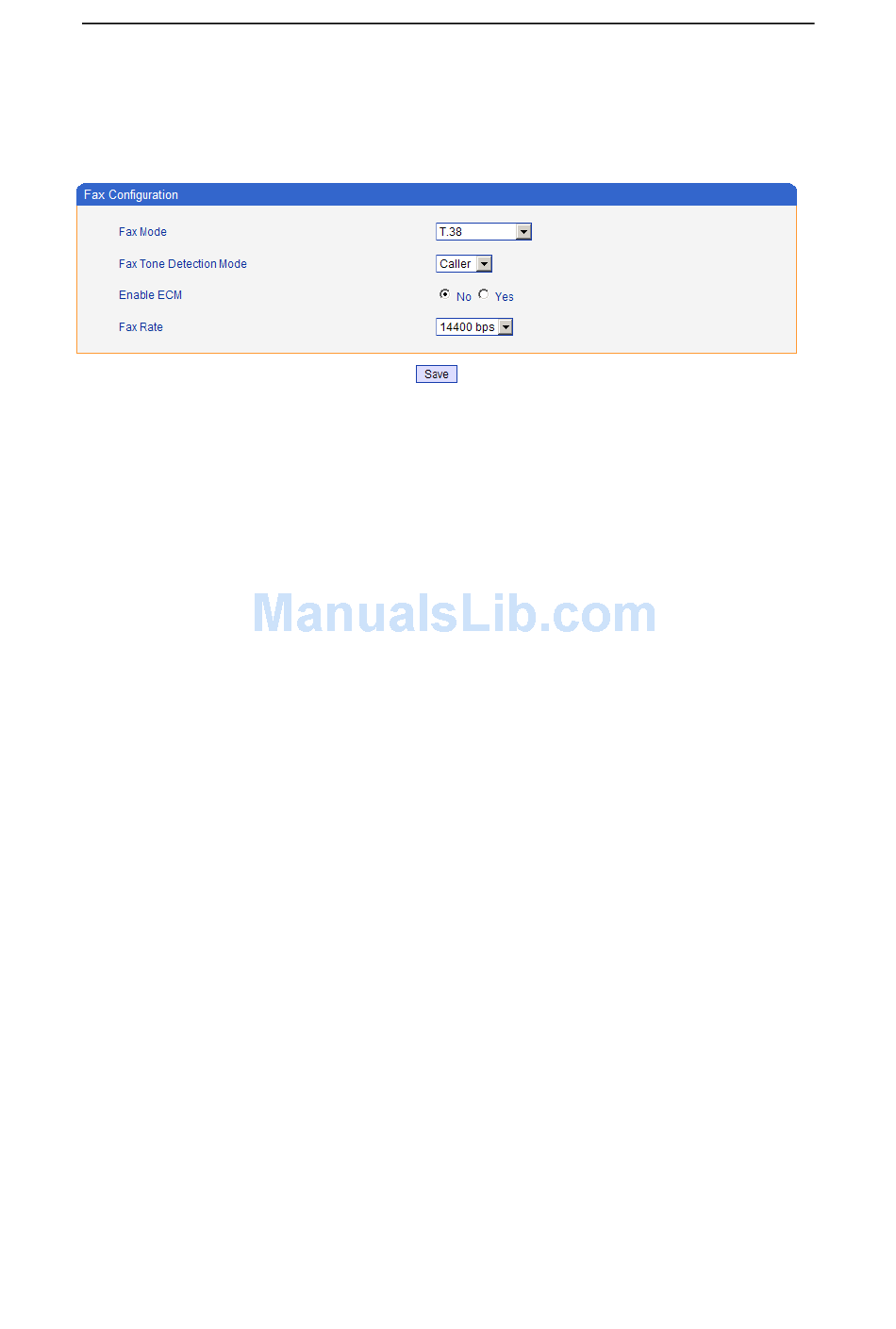

Figure 4‐3‐23 Fax Configuration
45
