The following graphic provides an example of an ESX Server with TWO NICs connected to the network.
Both NICs are configured to support VLANs 101-104. VLAN 101 is the default VLAN and is not tagged.
Port Groups are added to support each VLAN.

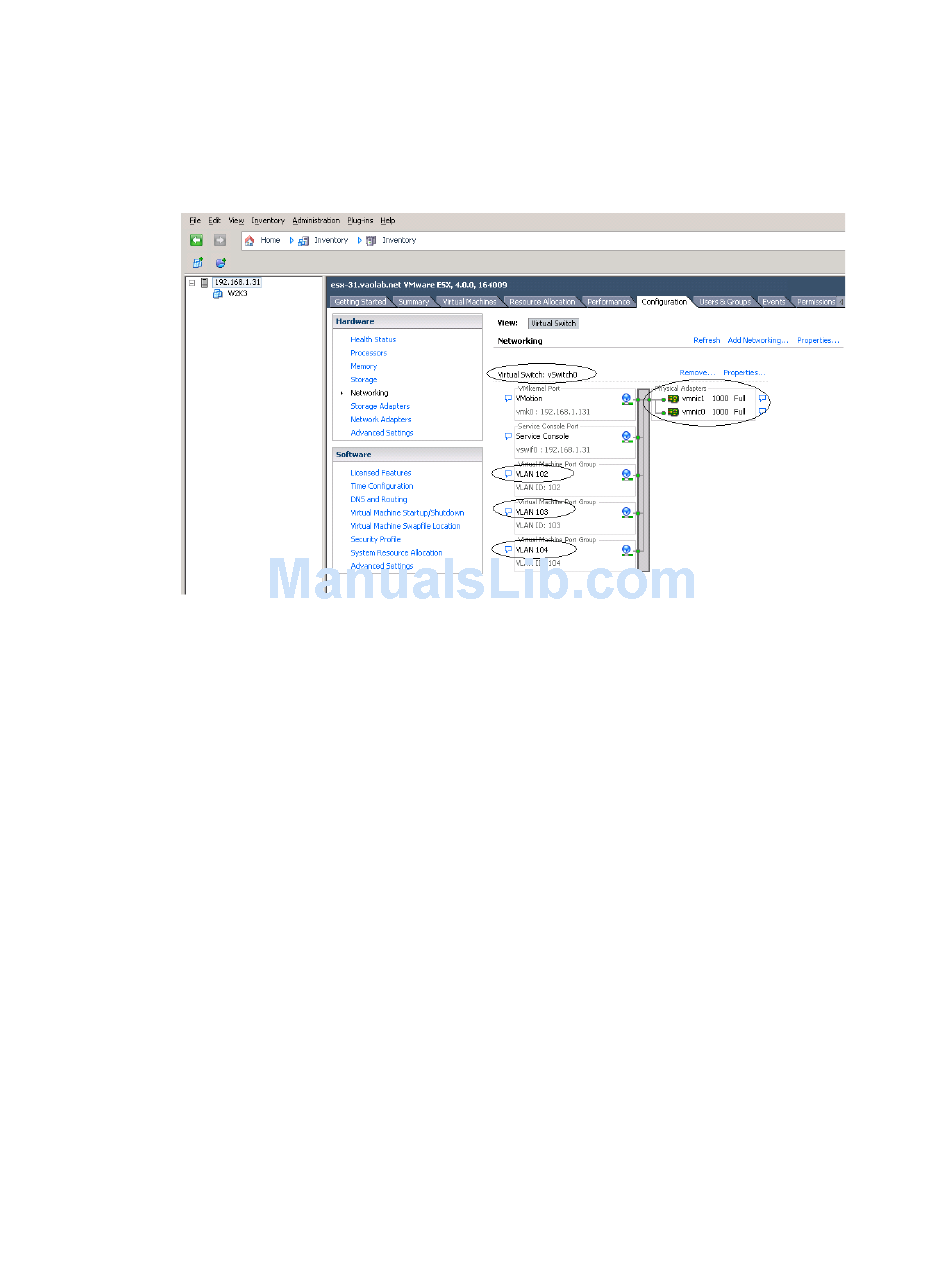

Figure 1-76 Both NICs for Profile ESX-1are connected to the network through Multiple Networks, VLANs are
configured as Port Groups within the virtual switch.
Scenario 1:6 – VLAN Tagging (802.1Q) with Multiple Shared Uplink Sets (SUS) and Link Aggregation using LACP (802.3ad) –
VMware ESX 85
