Results

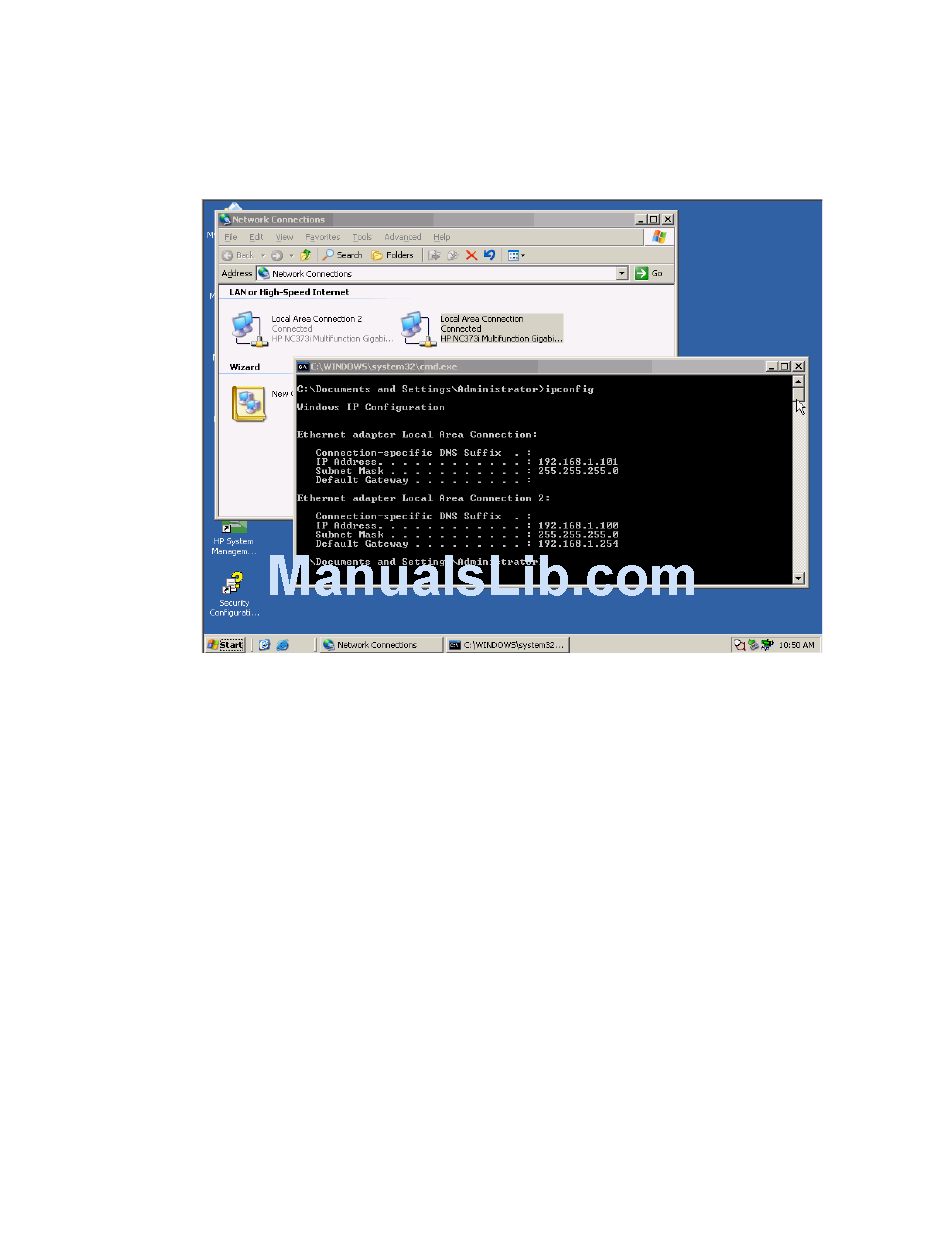

The following graphic provides an example of a Windows 2003 server with TWO NICs connected to the
network, each NIC has its own TCP/IP address, either or both NICs could be actively working on the
network.
Figure 3-12 Both NICs for Profile App-1are connected to the network through vNet-PROD.
The following graphics provide an example of a Windows 2003 server with TWO NICs teamed and
connected to the network. One NIC will be active while the other is in standby. In the event of an Uplink
or switch failure, VC will fail-over to the standby uplinks. IF VC were to fail, the NIC teaming software
would fail-over to the standby NIC.
Scenario 3:1 – Multi-Enclosure stacking, with Multiple Simple vNets, Redundant Uplinks and LACP (2 Enclosures) 181
