Requirements

In order to implement this scenario, an HP BladeSystem c7000 enclosure with one of more Blade G6
servers with 10Gb NICs and TWO Virtual Connect Flex-10 Ethernet modules, installed in Bays 1& 2 are
required. In addition, we will require ONE or TWO external Network switches. As Virtual Connect does
not appear to the network as a switch and is transparent to the network, any standard managed switch
will work with Virtual Connect.

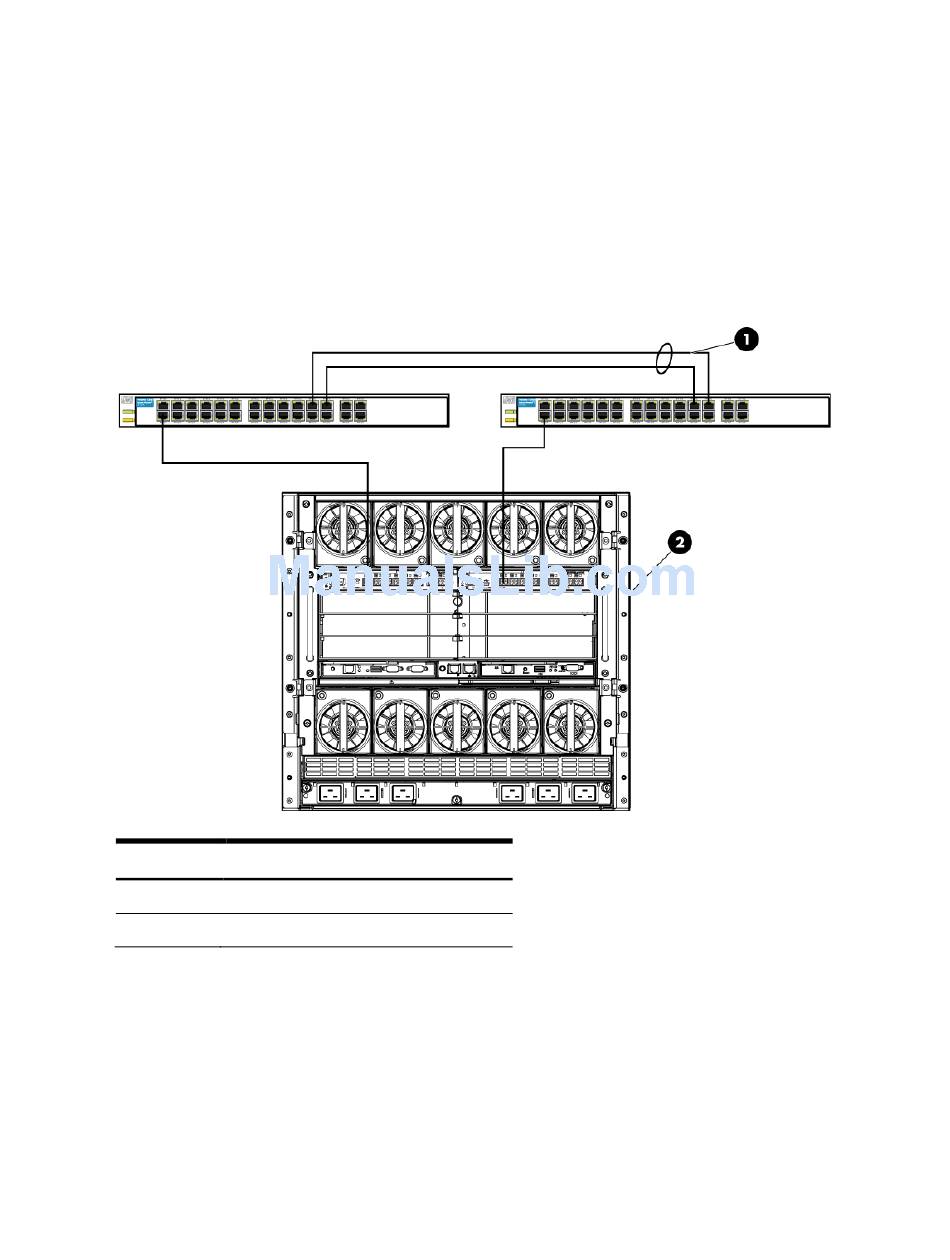

Figure 2-46 Physical View; Shows one 10Gb Ethernet uplink from Ports 1 on Module 1 to Port 1 on the first
network switch and one 10Gb uplink from Port 1 on Module 2 to Port 1 on the second network switch.
Item
1
2
Scenario 2:3 - Flex-10 - VLAN Tagging (802.1Q) with Multiple Shared Uplink Sets (SUS) and Mapped VLANs - ESX 4 141
Description
Switch Cross Connect
c7000 Enclosure, rear view
