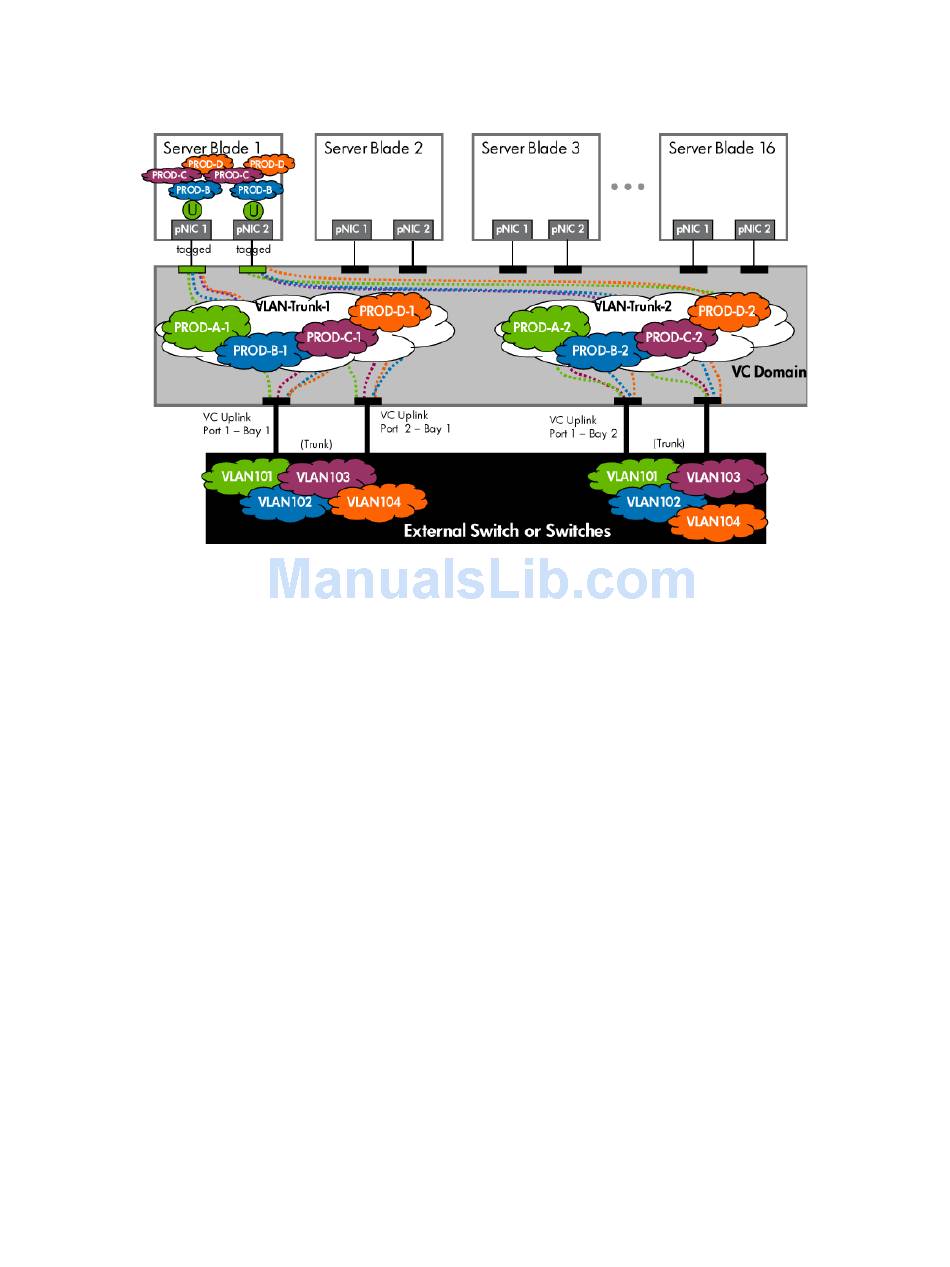

Figure 1-67 Server Profile ESX-1 configured with Multiple Networks on NICs 1&2 with PROD-A-1 and PROD-A-2 configured
as the Default VLAN (untagged) at the server profile. All additional networks will be presented with tags.

Installation and configuration

Switch configuration
Appendices A and B provide a summary of the commands required to configure the switch in either a
Cisco IOS or a ProCurve network infrastructure. The configuration information provided in the appendices
assumes the following information:
•
The switch ports are configured as TRUNK ports to support VLANs 101, 102, 103 and 104. All
frames will be forwarding to VC with VLAN tags.
•
When adding the additional uplinks to the SUS, the switch ports connected to Virtual Connect will
need to be configured for LACP and configured for the same Link Aggregation Group.
VC CLI commands
Many of the configuration settings within VC can also be accomplished via a CLI command set. In order
to connect to VC via a CLI, open an SSH connection to the IP address of the active VCM. Once logged
in, VC provides a CLI with help menus. Through this scenario the CLI commands to configure VC for each
setting will also be provided.
Configuring the VC module
•
Physically connect Ports 1 and 2 of the first network switch to Ports 1 and 2 on the VC module in Bay
1.
•
Physically connect Ports 1 and 2 of the second network switch to Ports 1 and 2 of the VC module in
Bay 2, if you have only one network switch, connect the second VC module cables to alternates port
on the same switch. This will NOT create a network loop and does not require Spanning Tree to be
configured.
Scenario 1:6 – VLAN Tagging (802.1Q) with Multiple Shared Uplink Sets (SUS) and Link Aggregation using LACP (802.3ad) –
VMware ESX 75
