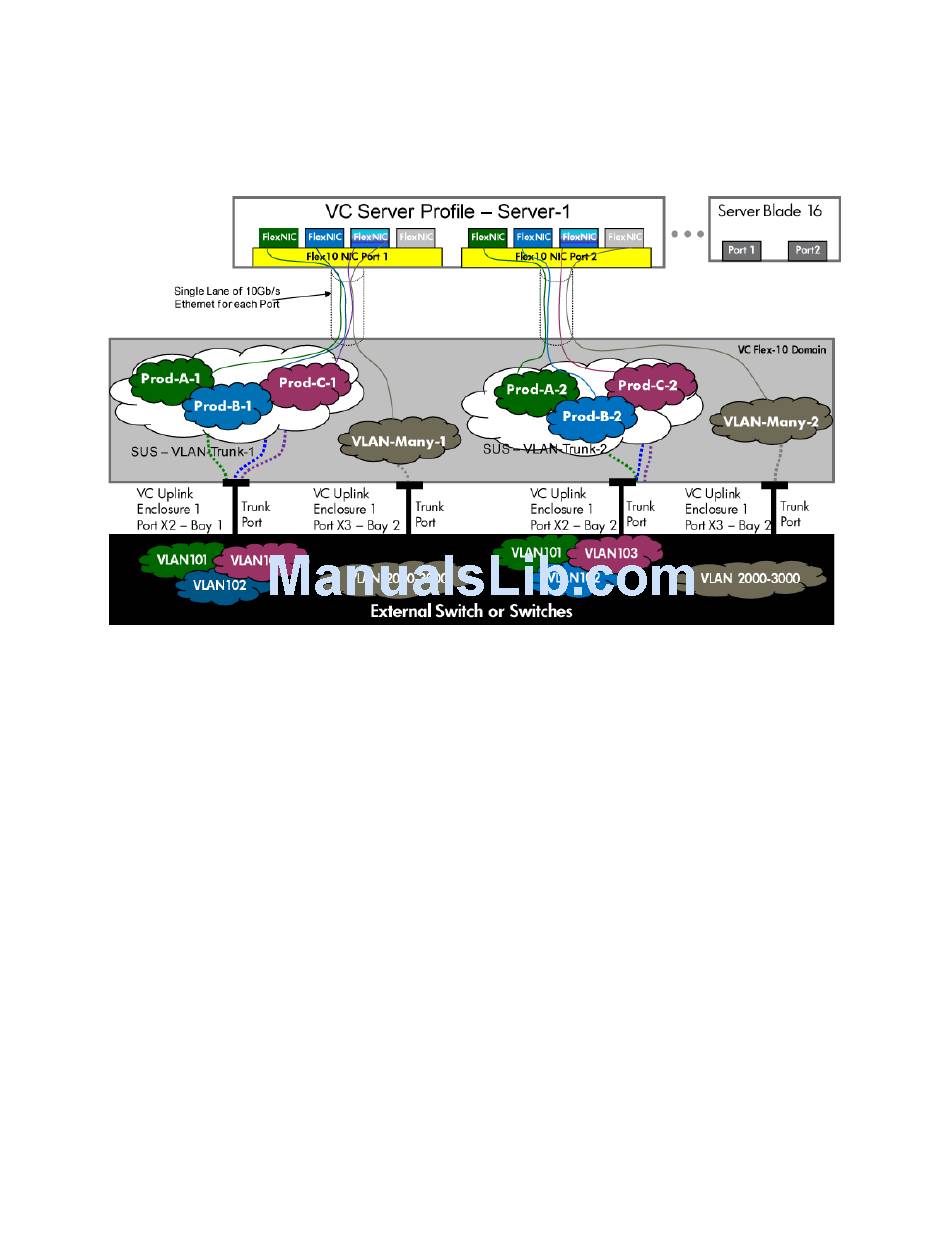

Figure 2-61 Server Blade profile with TWO Flex-10 NICs configured. Each FlexNIC will connect to a different
network. Both Shared Uplinks Sets and vNets are used.
VLAN-Trunk-1 and VLAN-Trunk-2 respectively connect to Port X1 on Bays 1&2, were VLAN-Many-1 and VLAN-Many-
2 are connected to Port X2 on Bays 1&2 of the Flex-10 modules.

Installation and configuration

Switch configuration
Appendices A and B provide a summary of the commands required to configure the switch in either a
Cisco IOS or a ProCurve network infrastructure. The configuration information provided in the appendices
assumes the following information:
•
The switch ports are configured as TRUNK ports. Part1 of each network switch is configured to
support VLANs 101, 102, and 103. Port 2 of each network switch is configured to support VLANs
2000 through 3000. All frames will be forwarding to VC with VLAN tags.
•
If adding additional uplinks to the SUS or vnet, the switch ports connected to Virtual Connect will
need to be configured for LACP and configured for the same Link Aggregation Group.
VC CLI commands
Many of the configuration settings within VC can also be accomplished via a CLI command set. In order
to connect to VC via a CLI, open an SSH connection to the IP address of the active VCM. Once logged
in, VC provides a CLI with help menus. Through this scenario the CLI commands to configure VC for each
setting will also be provided.
Scenario 2:4 - Flex-10 - VLAN Tagging (802.1Q) with Multiple Shared Uplink Sets (SUS) and Tunneled VLANs - ESX 4 157
