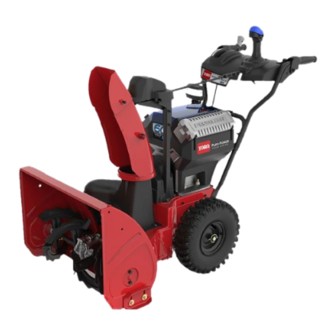

60v snowthrower
Hide thumbs Also See for Power Max e26:

Advertisement

Power Max
Model No. 31875—Serial No. 414119400 and Up

Introduction

This machine is intended to be used by residential
homeowners. It is designed primarily for removing
snow from paved surfaces, such as driveways and
sidewalks, and other surfaces for traffic on residential
or commercial properties. It is designed to use
Toro 60V lithium-ion battery packs. These battery
packs are designed to be charged only by Toro 60V
lithium-ion battery chargers. Using these products for
purposes other than their intended use could prove
dangerous to you and bystanders.
Read this information carefully to learn how to operate
and maintain your product properly and to avoid
injury and product damage. You are responsible for
operating the product properly and safely.
Visit www.Toro.com for product safety and operation
training materials, accessory information, help finding
a dealer, or to register your product.
Whenever you need service, genuine Toro parts, or
additional information, contact an Authorized Service
Dealer or Toro Customer Service and have the model
and serial numbers of your product ready.
identifies the location of the model and serial numbers
on the product. Write the numbers in the space
provided.
© 2023—The Toro® Company
8111 Lyndale Avenue South
Bloomington, MN 55420
®
e26 60V Snowthrower
Important:
scan the QR code on the serial number decal (if
equipped) to access warranty, parts, and other
product information.
Figure 1
Register at www.Toro.com.
With your mobile device, you can
Figure 1
1. Model number, serial number, and QR code location
Model No.
Serial No.
Original Instructions (EN)
Printed in Mexico
All Rights Reserved
Form No. 3461-100 Rev A
Operator's Manual
g397375
*3461-100*

Advertisement

Table of Contents
loading

Summary of Contents for Toro Power Max e26

  • Page 1: Introduction

    It is designed to use Toro 60V lithium-ion battery packs. These battery packs are designed to be charged only by Toro 60V lithium-ion battery chargers. Using these products for purposes other than their intended use could prove dangerous to you and bystanders.
  • Page 2: Table Of Contents

    Safety-Alert Symbol Contents The safety-alert symbol (Figure 2) shown in this Introduction ............... 1 manual and on the machine identifies important safety Safety-Alert Symbol..........2 messages that you must follow to prevent accidents. Safety ............... 3 ................3 Safety and Instructional Decals ......6 Setup ................
  • Page 3: Safety

    Use only the battery pack specified by Toro. Read All Instructions Using other accessories and attachments may increase the risk of injury and fire.
  • Page 4 • Replace the battery pack with a genuine Toro battery pack only; using another type of Use extreme caution when reversing or pulling battery pack may cause a fire or risk of injury. the machine toward you.
  • Page 5 When servicing the rotor, be aware that the rotor can still move even though the power source is off. For best performance, use only genuine Toro replacement parts and accessories. Other replacement parts and accessories could be dangerous, and such use could void the product warranty.
  • Page 6: Safety And Instructional Decals

    Safety and Instructional Decals Safety decals and instructions are easily visible to the operator and are located near any area of potential danger. Replace any decal that is damaged or missing. decal121-6817 121-6817 1. Cutting/dismemberment hazard of hand or foot, impeller and auger—keep bystanders away.
  • Page 7 decal144-6028 144-6028 1. Do not dispose improperly 3. For indoor use 2. Read the Operator’s Manual. 4. Double insulated decal137-9496 137-9496 1. The battery pack is charging. 3. The battery pack is over or under the appropriate temperature range. 2. The battery pack is fully charged. 4.
  • Page 8: Setup

    Setup Important: The battery pack is not fully charged when you purchase it. Before using the machine for the first time, refer to Charging the Battery Pack (page 17). Mounting the Battery Charger (Optional) Parts needed for this procedure: Mounting hardware (not included) Procedure If desired, mount the battery charger securely on a wall using the wall-mount key holes on the back of the charger.
  • Page 9: Installing The Upper Handle

    Installing the Upper Handle No Parts Required Procedure g344090 Installing the Chute No Parts Required Procedure g344087...
  • Page 10: Installing The Traction-Control Linkage

    Installing the Traction-Control Linkage No Parts Required Procedure g344089...
  • Page 11: Installing The Chute-Control Rod

    Installing the Chute-Control Rod No Parts Required Procedure g344086...
  • Page 12: Installing The Snow-Cleanout Tool

    Installing the Snow-Cleanout Tool No Parts Required Procedure g344088 Checking the Tire Pressure No Parts Required Procedure g344084...
  • Page 13: Checking The Skids And Scraper

    The machine should move rearward. If the machine does not move or moves forward, complete the following: Release the traction lever and shut off the Checking the Skids and machine; refer to Shutting Off the Machine (page 21). Scraper Disconnect the trunnion from the speed-selector lever.
  • Page 14: Product Overview

    Product Overview g347780 Figure 12 1. Battery charge lights 3. Key switch in O position 2. ECO button g344092 Figure 13 1. Snow-cleanout tool (attached to the handle) g411293 Figure 11 1. Handgrip (2) 9. Discharge chute 2. Auger/impeller lever 10.
  • Page 15: Specifications

    Contact your Authorized Service Dealer or authorized Toro g348180 distributor or go to www.Toro.com for a list of all Figure 15 approved attachments and accessories. To ensure optimum performance and continued safety certification of the machine, use only genuine Toro replacement parts and accessories.
  • Page 16: Checking The State Of Charge

    Checking the State of Charge You can view the exact state of charge of each installed battery; turn the key to the A CCESSORY position (Figure 16). The position of each set of lights corresponds to the related battery cavity. If the battery state of charge is too low and needs to be charged, or if there is no battery in the corresponding cavity, the battery presence light does not turn on.
  • Page 17: Charging The Battery Pack

    Charging the Battery Pack Refer to the following table to interpret the LED indicator light on the battery charger. Important: The battery pack is not fully charged Indicator Indicates when you purchase it. Before using the tool for light the first time, place the battery pack in the charger No battery pack inserted and charge it until the LED display indicates the battery pack is fully charged.
  • Page 18: Operating The Traction Drive

    Operating the Traction Drive CAUTION If the traction drive is not properly adjusted, the machine may move in the direction opposite of what you intended, causing injury g322971 and/or property damage. Figure 21 Carefully check the traction drive and adjust it properly, if necessary;...
  • Page 19: Operating The Quick Stick

    operate the machine. Check the auger/impeller cable; refer to Checking and Adjusting the Auger/Impeller Cable (page 24) and adjust it if necessary. Otherwise, take the machine to an Authorized Service Dealer for service. WARNING If the auger and impeller continue to rotate when you release the auger/impeller lever, you could seriously injure yourself or others.
  • Page 20: Clearing A Clogged Discharge Chute

    Clearing a Clogged Operating Tips Discharge Chute DANGER When the machine is in operation, the impeller WARNING and auger rotate and can injure or amputate If the auger/impeller is running but there is no hands or feet. snow coming out of the discharge chute, the •...
  • Page 21: After Operation

    Preventing Freeze-up after After Operation Shutting Off the Machine • In snowy and cold conditions, some controls and moving parts may freeze. Do not use excessive Release the traction and auger/impeller levers. force when trying to operate frozen controls. Turn the key to the O position and remove it •...
  • Page 22: Maintenance

    Maintenance Recommended Maintenance Schedule(s) Maintenance Service Maintenance Procedure Interval • Inspect the traction cable and adjust it if necessary. After the first 2 hours • Inspect the auger/impeller cable and adjust it if necessary. • Check the skids and the scraper and adjust them if necessary. •...
  • Page 23: Checking And Adjusting The Traction Cable

    Ensure that the scraper is 3 mm (1/8 inch) above and parallel to a level surface. Note: If the pavement is cracked, rough, or uneven, adjust the skids to raise the scraper. For gravel surfaces, adjust the skids further down to prevent the machine from picking up rocks.
  • Page 24: Checking And Adjusting The Auger/Impeller Cable

    Checking and Adjusting the Auger/Impeller Cable Service Interval: After the first 2 hours—Inspect the auger/impeller cable and adjust it if necessary. Yearly—Inspect the auger/impeller cable and adjust or replace it if necessary. Loosen the jam nut (Figure 31). Engage the auger/impeller lever and hold it in place (Figure 30).
  • Page 25: Checking The Auger-Gearbox-Oil Level

    Checking the Auger-Gearbox-Oil Level Service Interval: Yearly—Check the auger-gearbox oil and add oil if necessary. Move the machine to a level surface. Clean the area around the pipe plug (Figure 32). g019018 Figure 33 1. Hex shaft 3. Rubber wheel 2.
  • Page 26: Replacing The Drive Belts

    Do not attempt to destroy or disassemble the battery pack or remove any of its components. Contact your local municipality or your authorized Toro distributor for more information on how to responsibly recycle the battery.
  • Page 27: Troubleshooting

    Troubleshooting Perform only the steps described in these instructions. All further inspection, maintenance, and repair work must be performed by an authorized service center or a similarly qualified specialist if you cannot solve the problem yourself. Always remove all batteries from the machine when troubleshooting, inspecting, maintaining, or cleaning the machine.
  • Page 28 4. The auger/impeller drive belt is loose 4. Install and/or adjust the auger/impeller or is off the pulley. drive belt; refer to www.Toro.com for servicing information or take the machine to an Authorized Service Dealer. 5. The auger drive belt is worn or broken.
  • Page 29 Notes:...
  • Page 30 Notes:...
  • Page 31 The Toro Company (“Toro”) respects your privacy. When you purchase our products, we may collect certain personal information about you, either directly from you or through your local Toro company or dealer. Toro uses this information to fulfil contractual obligations - such as to register your warranty, process your warranty claim or to contact you in the event of a product recall - and for legitimate business purposes - such as to gauge customer satisfaction, improve our products or provide you with product information which may be of interest.
