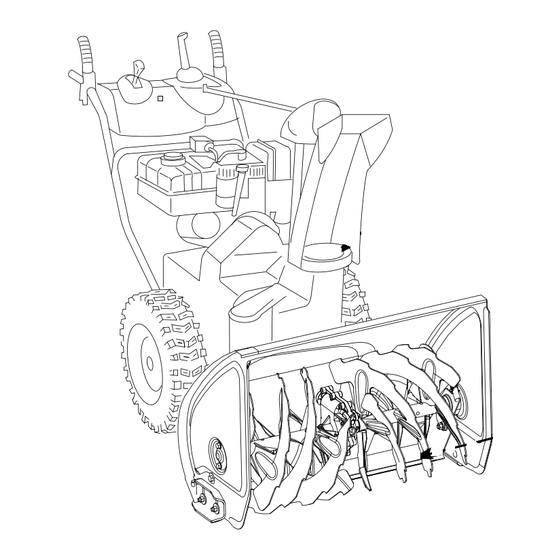

Power Max™ 1128OXE Snowthrower
Model No. 38650—Serial No. 260000001 and Up
Introduction
Read this information carefully to learn how to operate and
maintain your product properly and to avoid injury and
product damage. You are responsible for operating the
product properly and safely.
You may contact Toro directly at www.Toro.com for
product and accessory information, help finding a dealer,
or to register your product.
Whenever you need service, genuine Toro parts, or
additional information, contact an Authorized Service
Dealer or Toro Customer Service and have the model and
serial numbers of your product ready. Figure 1 identifies the
location of the model and serial numbers on the product.
Write the numbers in the space provided.
Figure 1
1. Model and serial number location
Model No.
Serial No.
This manual identifies potential hazards and has safety
messages identified by the safety alert symbol (Figure 2),
which signals a hazard that may cause serious injury or
death if you do not follow the recommended precautions.
Figure 2
1. Safety alert symbol
© 2005—The Toro® Company
8111 Lyndale Avenue South
Bloomington, MN 55420
This manual uses 2 other words to highlight information.
Important calls attention to special mechanical information
and Note emphasizes general information worthy of special
attention.
The engine exhaust from this product contains
chemicals known to the State of California to cause
cancer, birth defects, or other reproductive harm.
This spark ignition system complies with Canadian
ICES-002
The enclosed Engine Owner's Manual is supplied
for information regarding the US Environmental
Protection Agency (EPA) and the California Emission
Control Regulation of emission systems, maintenance,
and warranty. Replacements may be ordered through
the engine manufacturer.
Register at www.Toro.com.
Form No. 3353-936 Rev A
Operator's Manual
Warning
CALIFORNIA
Proposition 65 Warning
Original Instructions (EN)
Printed in the USA
All Rights Reserved

Advertisement

Table of Contents
loading

Related Manuals for Toro 38650

Summary of Contents for Toro 38650

  • Page 1 Authorized Service Dealer or Toro Customer Service and have the model and This spark ignition system complies with Canadian serial numbers of your product ready. Figure 1 identifies the ICES-002 location of the model and serial numbers on the product.
  • Page 2 Safety Bef or e Ope r a t ing Ca u ti o n : Im p r o p er u se ma y r e su lt in lo ss o f fin g e r , h a n d s, o r fe e t. Re a d a nd unders t a n d t he cont e n t s o f t hi s manual b...

  • Page 3: Maintenance And Storage

    Stop the engine whenever you leave the operating position, before unclogging the auger/impeller housing The following list contains safety information specific to or discharge chute, and when making any repairs, Toro products or other safety information that you must adjustments, or inspections. know. •...

  • Page 4: Safety And Instructional Decals

    • Do not smoke while handling gasoline. • Purchase only genuine Toro replacement parts and • Do not touch the engine while it is running or soon accessories. after it has stopped because the engine may be hot enough to cause a burn.

  • Page 5: Loose Parts

    Tecumseh Part No. 37119 Tecumseh Part No. 35077 1. Key ignition 5. Increasing scale 2. Engage to start the engine 6. Slow 3. Disengage to stop the engine 7. Stop the engine 4. Fast 108-2967 Setup Loose Parts Use the chart below to verify that all parts have been shipped. Step Description Qty.

  • Page 6: Installing The Upper Handle

    1. Installing the Upper Handle 2. Installing the Wheel Clutch Cable Ends Note: Do not remove the rubber band until you have installed the upper handle. 1. Unwrap the cable ends from the lower handle (Figure 5). 1. Lift and rotate the upper handle and position it over the lower handle (Figure 3).

  • Page 7: Installing The Traction Control Linkage

    4. Pull the cable jacket down gently until the wheel clutch 3. Remove the hairpin cotter and the outer washer from lever is down and the slack is out of the cable, then the trunnion on the upper end of the speed control rod tighten the cable clamp nut securely (Figure 8).

  • Page 8: Installing The Chute Control Rod

    Note: For easier installation, look down through the opening in the speed selector (Figure 13). Figure 13 1. Speed selector Figure 15 4. Installing the Chute Control 5. Align the holes in the nested ends of the rods and insert 2 carriage bolts (in the loose parts bag) through the short rod from the left side of the snowthrower (from the operating position).

  • Page 9: Connecting The Wire To The Headlight

    5. Connecting the Wire to the Headlight 1. Insert the wire connector on the loose end of the wire straight into the back of the headlight until it is securely in place (Figure 17). Figure 18 2. Install the dipstick securely. Note: Do not spill oil around the oil fill tube;...

  • Page 10: Product Overview

    Product Overview Operation Note: Determine the left and right sides of the machine from the normal operating position. Freewheeling or Using the Self-propel Drive You can operate the snowthrower with the self-propel feature engaged or disengaged (freewheeling). To freewheel, slide the wheels inward and insert the axle pins through the outer axle holes, but not through the wheel hubs (Figure 21).

  • Page 11: Starting The Engine

    Fill the fuel tank with fresh unleaded regular gasoline from a major name-brand service station (Figure 23). Important: To reduce starting problems, add fuel stabilizer to the fuel all season, mixing it with gasoline less than 30 days old. Do not add oil to the gasoline. Figure 26 4.

  • Page 12: Stopping The Engine

    Stopping the Engine 7. Start the snowthrower using the recoil starter or the electric starter (Figure 30). 1. Move the throttle to the Stop position (Figure 31). Figure 31 2. Wait for all moving parts to stop before leaving the operating position.

  • Page 13: Using The Wheel Clutch Levers

    2. To stop the traction drive, release the traction lever. 3. Check to ensure that the speed selector operates properly: • If the snowthrower does not move or moves forward when it is in Position R1, remove the trunnion from the speed selector lever, turn the trunnion downward (clockwise) on the speed Figure 35 control rod, then install the trunnion.

  • Page 14: Operating The Quick Stick

    Important: When you engage both the auger/impeller lever and the traction lever, the traction lever locks the auger/impeller lever down, freeing your right hand. To release both levers, simply release the left hand (traction) lever. 3. If the auger and impeller continue to rotate when you release the auger/impeller lever, do not operate the snowthrower.

  • Page 15: Unclogging The Discharge Chute

    Unclogging the Discharge Operating Tips Chute If the auger/impeller is running but there is no snow coming out of the discharge chute, the discharge chute may When the snowthrower is in operation, the impeller be clogged. and auger can rotate and cut off or injure hands and feet.

  • Page 16: Recommended Maintenance Schedule(S)

    Important: You can find more information about maintaining and servicing your snowthrower at www.Toro.com. Important: Refer to your engine operator’s manual for additional maintenance procedures. For engine adjustments, repairs, or warranty service not covered in this manual, contact an Authorized Tecumseh Servicing Dealer.

  • Page 17: Checking The Engine Oil Level

    Checking the Engine Oil Level Each time before using the snowthrower, check the oil level in the engine crankcase. 1. Remove the dipstick, wipe it clean, then fully install the dipstick. 2. Remove the dipstick and check the oil level (Figure 42). If the oil level is below the Add mark on the dipstick, add oil.

  • Page 18: Checking And Adjusting The Auger/Impeller Cable

    Figure 45 Figure 47 1. Pin 3. With the auger/impeller lever disengaged, ensure that If the left hand (traction) cable is not properly adjusted, the gap between the auger clutch assembly and the tab do the following steps: is 1/16 inch (1.5 mm) (Figure 48). 1.

  • Page 19: Checking The Auger Gearbox Oil Level

    8. Tighten the jam nut. 9. Insert the 2 screws you previously removed on the belt cover. 10. If the auger/impeller cable is properly adjusted but a problem remains, contact an Authorized Service Dealer. Figure 51 1. Oil drain cap Checking the Auger Gearbox 2.

  • Page 20: Inspecting And Replacing The Spark Plug

    4. Move the speed selector lever to Position R2. 5. Dip your finger in automotive engine oil and lightly lubricate hex shaft. 6. Move the speed selector lever to Position 6. 7. Lubricate the other end of the hex shaft. 8.

  • Page 21: Replacing The Headlight Bulb

    5. Turn the base of the bulb clockwise until it is snug an Authorized Service Dealer replace the belt. (Figure 62). Replacing the Headlight Bulb Use a GE 892 16W halogen light bulb. Do not touch the bulb with your hands or allow dirt or moisture to come into contact with the bulb.

  • Page 22: Removing The Snowthrower From Storage

    5. Install the fuel line onto the fuel shutoff valve and secure it with a hose clamp. 6. Run the snowthrower until the engine stops from running out of fuel. 7. Prime the engine and start it again. 8. Allow the engine to run until it stops. When you can no longer start the engine, it is sufficiently dry.

  • Page 23: Troubleshooting

    Troubleshooting Problem Possible Cause Corrective Action Electric starter does not turn 1. The power cord is 1. Connect the power cord (electric-start models only) disconnected at the outlet or to the outlet and/or the the snowthrower. snowthrower. 2. The power cord is worn, 2.
  • Page 24 6. The auger/impeller drive belt 6. Install and/or adjust the is loose or is off the pulley. auger/impeller drive belt; refer to www.Toro.com for servicing information or take the snowthrower to an Authorized Service Dealer. 7. The auger/impeller drive belt 7.
  • Page 28 Countries Other than the United States or Canada Customers who have purchased Toro products exported from the United States or Canada should contact their Toro Distributor (Dealer) to obtain guarantee policies for your country, province, or state. If for any reason you are dissatised with your Distributor’s service or have difculty obtaining guarantee information, contact the Toro importer.
