3.2 HUMAN MACHINE INTERFACE (HMI)
The format of the displayed screens is as follows:
3
Possible fault types are as follows:
3-40
Select the Fault report menu in text menu
If there is more than one fault record rotate the shuttle key and select the desired
record to be displayed.
First screen with general fault information: Fault report #number, fault type, distance
and date and time.
Second screen with metering data for that fault record. All this data is a summary
from the fault report file that can be retrieved via EnerVista 650 Setup software.

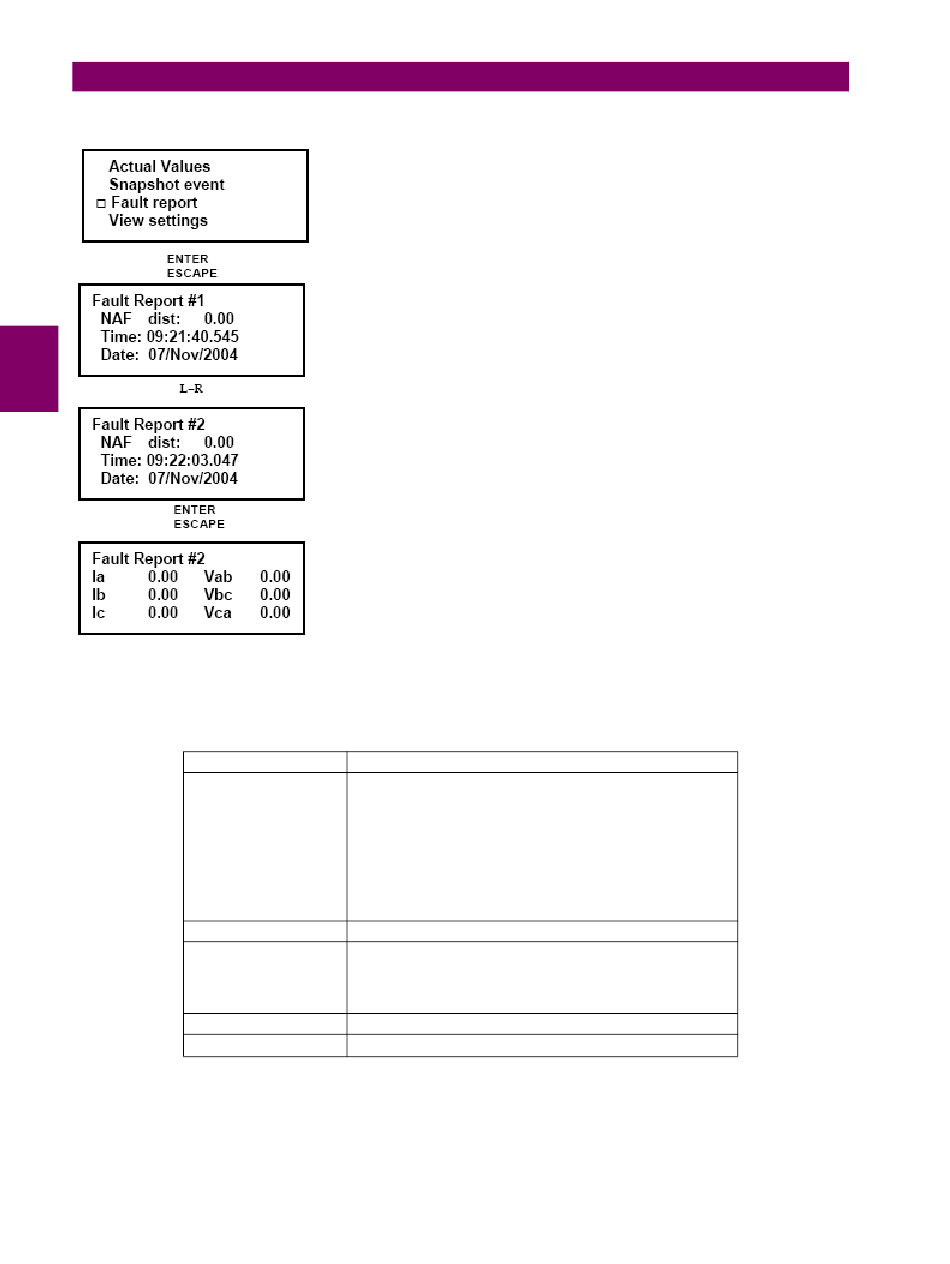

Figure 3–20: FAULT REPORT NAVIGATION IN HMI
GROUND Ground faults
AG
ABG phase AB to ground
BG
BCG phase BCG to ground
CG
CAG phase CAG to ground
PHASE Phase to phase faults
AB
BC
CA
3PHASE Three-phase faults (shown on the display as 3PH)
Fault type not calculated
NAF
G650 Generator Protection & Control System
3 HUMAN INTERFACES. SETTINGS & ACTUAL VALUES
phase A to ground
phase BG to ground
phase CG to ground
phase A to phase B
phase B to phase C
phase C to phase A
