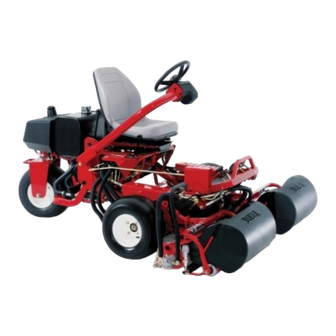

Toro Greensmaster 3000 Series Setup Instructions

8 and 11 Blade DPA Reel Mowers
Greensmaster
Model No. 04610—230000001 and Up
Model No. 04611—230000001 and Up
You must perform the following procedures on the designated traction units before you
Greensmaster 3050 Serial No. 230001501 & Prior
Greensmaster 3100 Serial No. 220001501 & Prior
Greensmaster 3150 Serial No. 230001000 & Prior
Mounting the Pull Arm
Bumpers
Order (6) Bumpers, Part No. 94-4548 and (6) Washer
Head Self Tapping Screws, Part No. 32144-44 from your
local Toro Distributor. Bumper may have already been
mounted to pull frame.
1. Using the dimensions shown in Figure 1, locate, mark,
and drill two .221 in. diameter holes in the underside
of each pull frame cross tube.
Note: Holes may already be present in the cross tubes.
19.43 in.
3.54 in.
Figure 1
1. Pull frame cross tube
2004—The Toro Company
8111 Lyndale Ave., Bloomington, MN 55420, USA
3000 Series
Attention!
install the cutting units.
2. Mount the 2 recessed bumpers to the underside of each
pull frame cross tube with 2 washer head self tapping
screws (1/4 x 3/4 in.) (Fig. 2).
1. Recessed bumper
Modifying the Baskets
1
1. Locate and mark cut-off lines on each side of basket,
as shown in Figure 3.
0.75 in.
1. Cut-off line
Printed in the USA
All Rights Reserved
Form No. 3351-557
Setup Instructions
1
Figure 2
1
Figure 3
Original Instructions (EN)
Register your product at www.Toro.com
