— S AFET Y PRODU CTS INCA Tina Emergency stop buttons and INCA Tina Safety stop button Product Manual 2TLC172163M0201 Rev.F ORIGINAL INSTRUCTIONS new.abb.com/low-voltage/products/safety-products...
Page 2
Suitability for use ABB shall not be responsible for conformity with any standards, codes, or regulations that apply to the combination of products in the customer’s application or use of the product. Third party certificates for the products are available at https://new.abb.com/low- voltage/products/safety-products.
This document is intended for authorized personnel. Reading prerequisites It is assumed that the reader of this document has knowledge of the following: • Basic knowledge of ABB safety products • Knowledge of machine safety Special notes Pay attention to special notes in the document:...
Safety Safety precautions The safety precautions must be followed during installation, operation, maintenance and troubleshooting. It is the responsibility of the user to ensure the correct overall functionality. Warning! Carefully read through the entire product manual before using the device. Warning! The devices shall be installed by authorized personnel following applicable Safety regulations, standards and the Machinery directive.

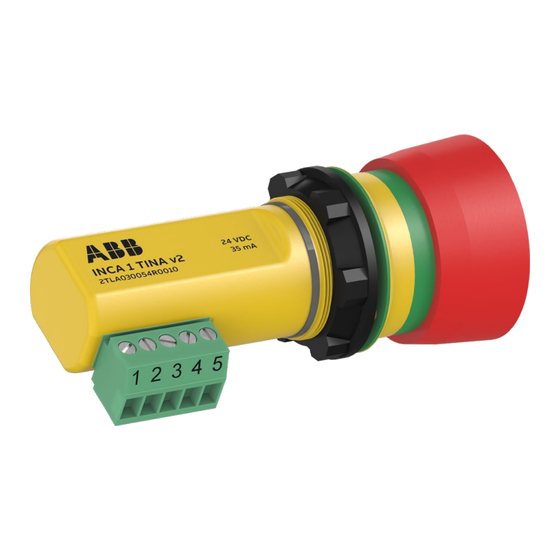

INCA 1 Tina v2 is an emergency stop with a red button. INCA 1S Tina v2 is a safety stop with a black button. INCA 1EC Tina is an emergency stop with StatusBus configured for static information output, but it switches to StatusBus configuration when StatusBus communication is detected on the information output.
Installation • Mount and fit INCA Tina in the cabinet. • Attach and tighten the M22 nut. • See max. tightening torque in chapter “Technical data”. • Connect the terminal block. Installation precautions Warning! All safety functions shall be tested before starting up the system. Testing safety functions After each step the status of the input can be read on the monitoring device.
Connections 5-pin screw terminal block +24 VDC DYNlink signal input 0 VDC DYNlink signal output Information output * * For INCA 1EC Tina: Information/StatusBus output Warning! Information output signals shall never be used for safety purpose(s). 2TLC172163M0201 Rev.F...
Three INCA 1EC Tina with StatusBus connected to the DYNlink safety circuit monitored by a safety PLC. The status of each individual INCA 1EC Tina unit can be monitored with a single PLC port in a controller having a StatusBus master.
Functions LED Indications LED indication Description DYNlink state Green DYNlink input signal, button released/not pressed Green/red flashing DYNlink input open or 0 VDC, Interrupted before this button released/not pressed unit Button actuated/pressed Interrupted in this unit LED Indications for StatusBus LED indication Description Status...
Warning! Information output signals shall never be used for safety purpose(s). Information output signal for StatusBus The information output on INCA 1EC Tina has two functions: • Default function and behavior see chapter “Information output signal attributes”. • StatusBus: The information output from several devices with StatusBus functionality, can be connected to one and the same port on a StatusBus master.
(EN 62061:2005+A1:2013+A2:2015, EN ISO 13849-1:2015). Warning! In case of breakdown or damage to the product, contact ABB. Do not try to repair the product yourself since it may accidentally cause permanent damage to the product, impairing the safety of the device which in turn could lead to serious injury to personnel.
Troubleshooting LED indications LED indication Probable cause Action Button actuated/pressed Turn the button clockwise and pull it up. +24 VDC connected to Check if there is +24 VDC on DYNlink signal input DYNlink signal input. If yes, check cable connections or the unit before.
