Summary of Contents for ABB Jokab Safety Safeball JSTD1
- Page 1 Original instructions Safeball JSTD1 One/two hand enabling device ABB AB / Jokab Safety Varlabergsvägen 11, SE-434 39 Kungsbacka, Sweden www.jokabsafety.com...
- Page 2 DAMAGES, LOSS OF PROFITS OR COMMERCIAL LOSS IN ANY WAY CONNECTED WITH THE PRODUCTS, WHETHER SUCH CLAIM IS BASED ON CONTRACT, WARRANTY, NEGLIGENCE, OR STRICT LIABILITY. In no event shall responsibility of ABB/JOKAB SAFETY for any act exceed the individual price of the product on which liability asserted.
-
Page 3: Table Of Contents
Table of Contents Introduction ............................4 Scope ................................4 Audience ................................4 Prerequisites ..............................4 Special notes ..............................4 Overview .............................. 5 General description ............................5 Safety regulations .............................. 5 Connections ............................6 Connection examples............................7 Installation and maintenance ......................8 Installation precautions ............................ -
Page 4: Introduction
This document is intended for authorized installation personnel. Prerequisites It is assumed that the reader of this document has knowledge of the following: Basic knowledge of ABB/Jokab Safety products. Knowledge of two hand enabling devices. Knowledge of machine safety. Special notes... -
Page 5: Overview

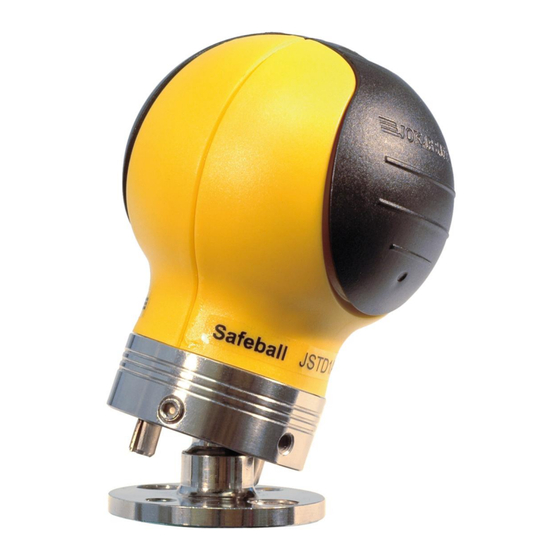

Safeball is a one hand device which can also be used in pair to create a two hand device. They can be mounted on a table or on aluminium profiles available from ABB/Jokab Safety. In order to increase the grip and ergonomics, the Safeballs can be mounted on a flexible support or similar device. -
Page 6: Connections
When used as a two-hand device, Safeball is designed for operation together with the safety relay JSBR4 from ABB/Jokab Safety. This connection can achieve the highest safety level according to EN 574. To achieve the highest safety level for a two-hand device, dual supervised safety function and simultaneous actuation of the two Safeballs within 0.5 seconds is required (PL e according to EN ISO 13849-1). -
Page 7: Connection Examples
Connection examples Connection example – JSTD1-A, -B or -C connected in a one-hand or two-hand device setup JSTD1-A, -B, -C JSTD1-A, -B, -C JSTD1-A, -B, -C JOKAB SAFETY 24 VDC Type: JSBR4 JOKAB SAFETY 24 VDC Type: RT9 One-hand device Two-hand device 2TLC172180M0201, rev. -
Page 8: Installation And Maintenance
Installation and maintenance The Safeball is mounted using four M5 screws or ST4.8 self-tapping screws. If necessary, the connection cables can be taken out at the sides at the lower part of the Safeball. The two prepared outlets are provided for this purpose. -
Page 9: Minimum Mounting Distances And Requirements For Two Hand Device
Minimum mounting distances and requirements for two hand device Warning! Follow the below instructions to avoid severe personal injury. A Safeball must be mounted at a minimum distance to the edge of the mounting surface in order to prevent the system being defeated and the device being activated either intentionally or unintentionally with a part of the body other than the hands. -
Page 10: Maintenance
(EN 62061:2005). In case of breakdown or damage to the product, contact the nearest ABB/Jokab Safety Service Office or reseller. Do not try to repair the product yourself since it may accidentally cause permanent damage to the product, impairing the safety of the device which in turn could lead to serious injury to personnel. -
Page 11: Operation
Operation One hand device To activate a one hand device, both buttons on the Safeball must be pressed. Unlike a two-hand device, there is no time requirement for activation of the two buttons. Instead, the safety distance is longer. Refer to Installation precautions above for further details. -
Page 12: Model Overview
Model overview Type Article number Description JSTD1-A 2TLJ020007R3000 Safeball with 2 m cable JSTD1-B 2TLJ020007R3100 Safeball with 0.2 m wires JSTD1-C 2TLJ020007R3200 Safeball with 10 m cable JSTD1-E 2TLJ020007R3400 Safeball with 0.2 m wires, 1 NO + 1 NO contacts JSTD1-A JSTD1-B 2 m cable... -
Page 13: Technical Data
JSTD1-C: 680 g (with 10 m cable) Material Polypropene Chemical resistance at 20°C Alcohols Good Paraffin oil Good Milk Good Silicon oil Good Acetone Good Please contact ABB/Jokab Safety for more information regarding other substances. 2TLC172180M0201, rev. A www.jokabsafety.com 2011-10-20... -
Page 14: Dimensions
Safety / Harmonized Standards Conformity European Machinery Directive 2006/42/EC EN ISO 12100-1+A1:2009, EN ISO 12100-2+A1:2009, EN 574+A1:2008 EN ISO 13849-1 Suitable for PL e, cat 4 : 2 000 000 operations EN 574 Appropriate for the design of two hand device type IIIC Certificates Inspecta Dimensions... -
Page 15: Cad Model
CAD model Complete CAD models are available through the webpage. 1 ) Visit www.jokabsafety.com. 2 ) Choose language English in the menu at the top of the page. 3 ) In the menu to the left, choose Product support. 4 ) Choose 3D CAD files. This will open a new window called “Jokab Safety AB – SolidComponents”. 5 ) In the new window there is a menu to the left, showing different product categories. -
Page 16: Ec Declaration Of Conformity
Tel: +46-21-81 44 30 Fax: +46-300-67 59 01 Fax: +46-40-671 56 01 Fax: +46-36-37 04 69 Fax: +46-8-544 707 49 Fax: +46-21-81 44 39 Original ABB AB / JOKAB SAFETY Varlabergsvägen 11, SE-434 39 Kungsbacka, Sweden www.jokabsafety.com 2TLC172180M0201, rev. A www.jokabsafety.com 2011-10-20...
