Summary of Contents for Blomberg WAF 4080
- Page 1 Washing Machine WAF 4100 A WAF 4080 A User's Manual...
-
Page 2: Table Of Contents
Contents 1- Technical Features of Your Washing Machine 2- Warning 3- Preparation 4- Program Selection and Starting Machine 5- Care and maintenance 6- Installation 7- Before calling service... -
Page 3: 1- Technical Features Of Your Washing Machine
Technical Features of Your Washing Machine Maximum dry laundry capacity (kg.) Height (cm.) Width (cm.) Depth (cm.) Net Weight (kg.) Electricity (V/Hz.) Total Current (A) Total Power (W) Washing -rinsing cycle (cyc/min) Spinning cycle (max cyc/min) There may be changes in the technical features without prior notice in order to enhance product quality. -
Page 4: Your Washing Machine

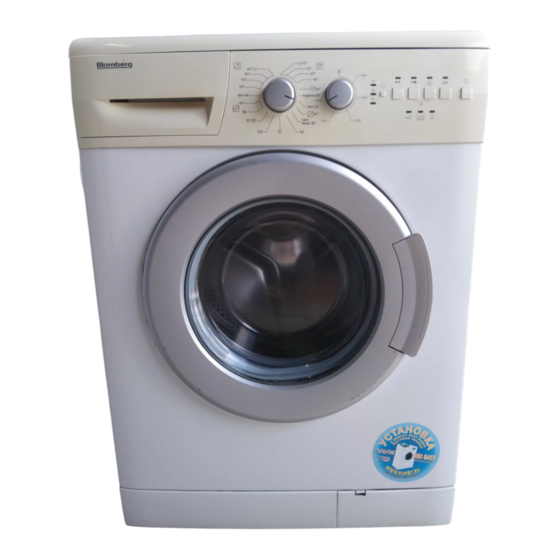

Your Washing Machine Detergent dispenser Front Panel Front door Kick Plate Cover Height-adjustable feet... -
Page 5: 2- Warning
Warning • This product is designed for home use. • Your washing machine is adjusted to 230V. • If the fuse in your house is less than 16A than have a certified electrician deploy an 16A fuse. • In case of transformer or non- transformer use, grounding instal- lation must be performed with a li- censed electrician. - Page 6 off. Check your taps. Turn your machine off and on. If the problem persists unplug your machine, turn off tap water and call authorized service. • If program is started and program selection can not be performed your machine might be in protec- tion mode due to infrastructure problem (voltage, water pressure, etc.) Press and hold the >...
-
Page 7: 3- Preparation
Preparation Before starting your machine please beware of below men- tioned points: Did you plug the cable? Did you connect draining hose cor- rectly? Did you close front door? Did you open tap water? If you haven’t installed your ma- chine please read to “Installation”... - Page 8 a. Compartment I, powder detergent drawer for pre-wash. b. Compartment II, powder detergent drawer for main wash. c. Softener dispenser d. Siphon Fill the softener as indicated (usu- ally <100ml; 1 tea bag) on pack- age. Never fill more than “MAX” level.
-
Page 9: Control Panel
Control Panel 1- Program selection knob 2- Time delay selection button 3- Auxiliary function buttons 4- On / Off button 5- Program progress display 6- Spin speed selection knob... -
Page 10: Auxiliary Functions
Auxiliary Functions Quick-wash Shortens washing time for lightly soiled fabrics. Rinse plus By using this function your machine will add another rinse process to the three rinse processes that it has al- ready done. This additional rinse will reduce any affects on sensitive skin by washing leftover detergent. -
Page 11: 4- Program Selection And Starting Machine
Program Selection and Starting Machine Plug you machine to outlet. Turn on the machine by pressing “On / Off” key. Open the door by pulling the handle and load the machine without exceeding loading capacity and close the door. Specify the appropriate pro- gram by looking at program selection table according to type of laundry, degree of soiledness and washing... -
Page 12: Program Selection Table
Program selection table Program Type of laundry Cotton 95 with Heavy soiled Durable fabrics Prewash made of cotton and linen Heavy soiled Durable fabrics Cotton 95 made of cotton and linen Normal soiled cotton and linen Cotton 60 * durable to heat Less soiled cotton and linen Cotton 40 sensitive to heat... -
Page 13: Function Selection
Pressing “On/Off” By pressing “On/Off” button you can make your machine ready for select- ing program. When “On/Off” key is pressed “door” led will light on mean- ing “door can open”. Press “On/Off” key again for turning your machine off. Pressing “On/Off”... - Page 14 Changing Program You can use this feature for wash- ing laundry in the same textile group for washing at lower or higher tem- peratures. For example, instead of Cotton60, Cotton40 can be used. For selecting Cotton40 instead of Cotton60 by pressing “Start/Pause/ Cancel”...
-
Page 15: End Of Program
gram can be selected. Even program selection button is changed during the program initially selected program will be executed. For changing washing program “Can- celing a program” must be performed afterwards new program can be selected and started After machine starts operation even if spin speed or washing temperature is changed, initial speed and tempera- ture is valid. -
Page 16: 5- Care And Maintenance
Care and maintanence Detergent Dispenser Powder detergent residue may ac- cumulate in drawer after a while. In order to clean detergent drawer press the marked point of the siphon on softener compartment and push the drawer towards yourself. Wash the drawer with water Siphon Do not neglect cleaning suction cup... -
Page 17: 6- Installation
finished turn in clockwise direction and close. Close the filter tap by pushing. Installation If your system is not ready, let a certi- fied plumber make it ready. 1. Removing the transportation safety bolts Before the washing machine is oper- ated, the transit bars must be re- moved! In order to do this: 1. -
Page 18: Electrical Connection
water inlet models, 2 for single water inlet models) on hose or plastic bag for eliminating any leakage in con- nections points. These seals must be used on each side of the connection. Seals on machine side must be con- nected filter cannal. -
Page 19: 7- Before Calling Service
Before calling service You turned the machine on, but the leds are off on the panel. Check the grounding on the power cable or a blown fuse. Check the front door proper closure. Machine does not take water. Check the front door for proper clo- sure.
