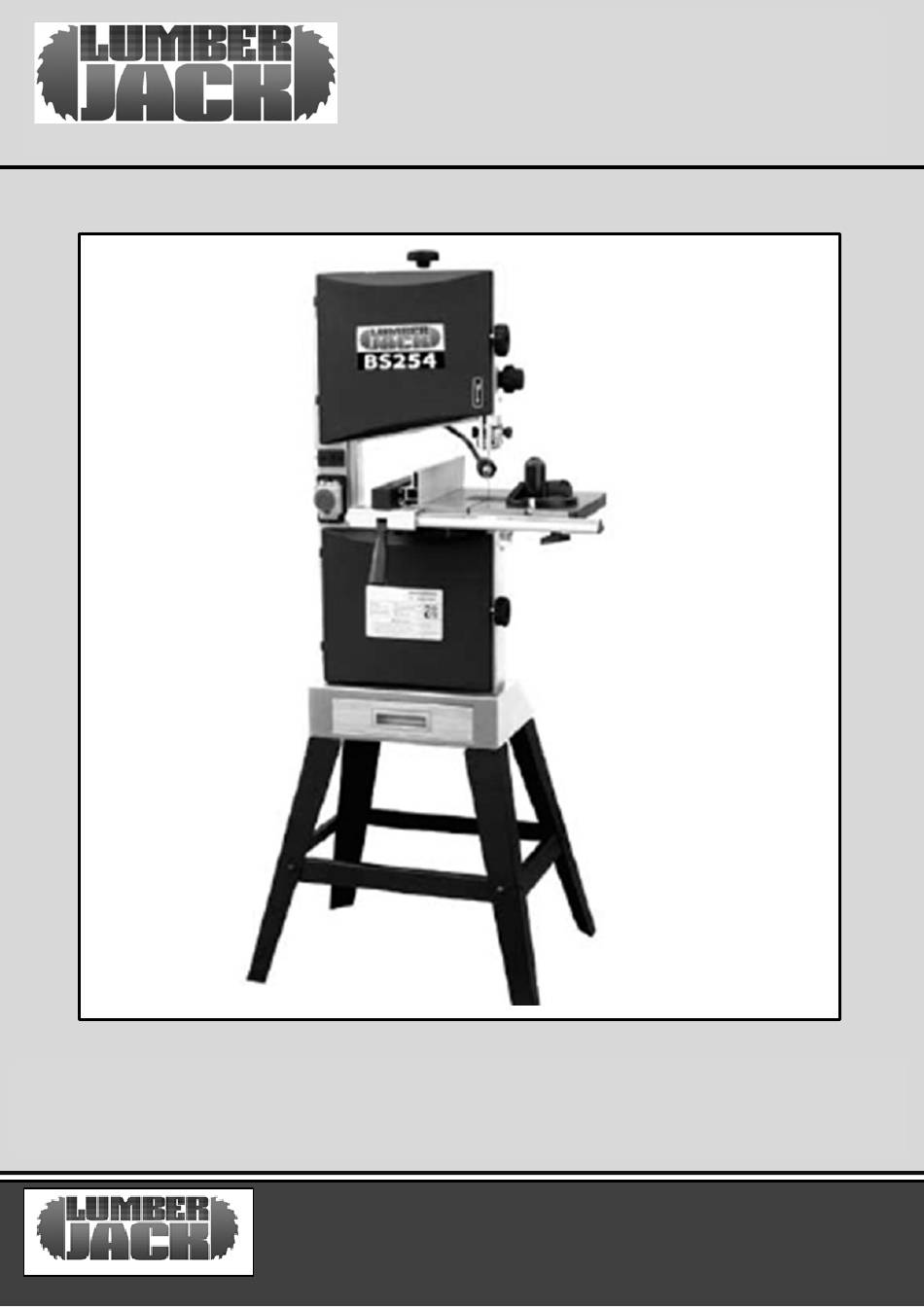

- Page 1 SAFETY AND OPERATING MANUAL 254MM BAND SAW BS254 ORIGINAL INSTRUCTIONS 26/04/19 BS254...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Welcome to Lumberjack! Dear customer, Congratulations on your purchase. Before using the Product for the first time please be sure to read these instructions for use. They provide you with all information necessary for using the product safely and to ensure its long service life. -
Page 3: General Power Tool Safety Warnings
Remove any adjusting key or wrench before conditions. Water entering a power tool will turning the power tool on. A wrench or a key left increase the risk of electric shock. attached to a rotating part of the power tool may result in personal injury. BS254... - Page 4 Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. BS254...
- Page 5 7.9 Store the machine in a safe manner when not being used. The storage location must be dry and lockable. This prevents the machine from storage damage and from being operated by untrained persons. BS254...
- Page 6 7.11 Never use the machine with a damaged cable. Do not touch the damaged cable and pull the mains plug when the cable is damaged while working. Damaged cables increase the risk of an electric shock. BS254...
- Page 7 Do not dispose of in unsorted Wear a dust mask. waste. Wear protective gloves while working This machine is heavy and requires at least two persons to lift it. BS254 BS254...
-
Page 8: Machine Details And Product Features
Band Saw wood. The capacity of the power tool is designed for Mitre Gauge sawing hardwood and softwood. The power tool is not Stand suitable for cutting aluminium or other non-ferrous Push Stick metals or alloys. Rip Fence BS254 BS254... -
Page 9: Assembly
6mm flat washers. – Next fix the long and short horizontal braces but do not fully tighten the bolts. – Stand the band saw up on to its stand and then tighten the nuts fully on the braces. BS254... - Page 10 – Loosen the tracking lock knob. – Whilst rotating the upper wheel by hand, turn the tracking knob until the blade tracks through the centre of the table throat. Then close upper and lower covers. – Raise the upper blade guide. BS254...
- Page 11 – Loosen bolt C and adjust the guide bearings to locking knob to hold the height in place. sit 0.5mm away from the blade on either side, and then tighten bolt C. BS254...
- Page 12 E. used. – Loosen bolt F and adjust the guide bearing to site 0.5mm away from the blade on either side, and then tighten bolt F. BS254...
-
Page 13: Operation
– Now tighten the drive belt knob. – Now check the belt is tensioned correctly, do this by pulling the belt half way between the pulleys and it should approx. 10mm. BS254... -
Page 14: Maintenance And Service
– Tighten the saw blade tension knob, and replace the guide rail and close the top and bottom covers. – Now align and tension the blade then adjust the upper and lower blade guides as described earlier in this manual. BS254... -
Page 15: Lumberjack Guarantee
1.2.7 The product has not been used for 1.2.3 If asked to do so by lumberjack or hire purposes. its Authorised Dealer, you return the product at your own cost to 1.2.8 The product has been purchased by... - Page 16 2.4 Please note that it is essential that the letter of 2. Claims Procedure claim reaches Lumberjack on the last day of this 2.1 In the first instance please contact the guarantee at the latest. Late claims will not be Authorised Dealer who supplied the product to considered.
- Page 17 BS254...
-
Page 18: Parts List
PARTS LIST BS254... - Page 19 PARTS LIST BS254...
- Page 20 PARTS LIST BS254...
- Page 21 PARTS LIST BS254...
- Page 22 PARTS DIAGRAM PART 1 BS254...
- Page 23 PARTS DIAGRAM PART 2 BS254...
-
Page 24: Parts Diagram
PARTS DIAGRAM FULL BS254...
